Main Parts of Production Line:

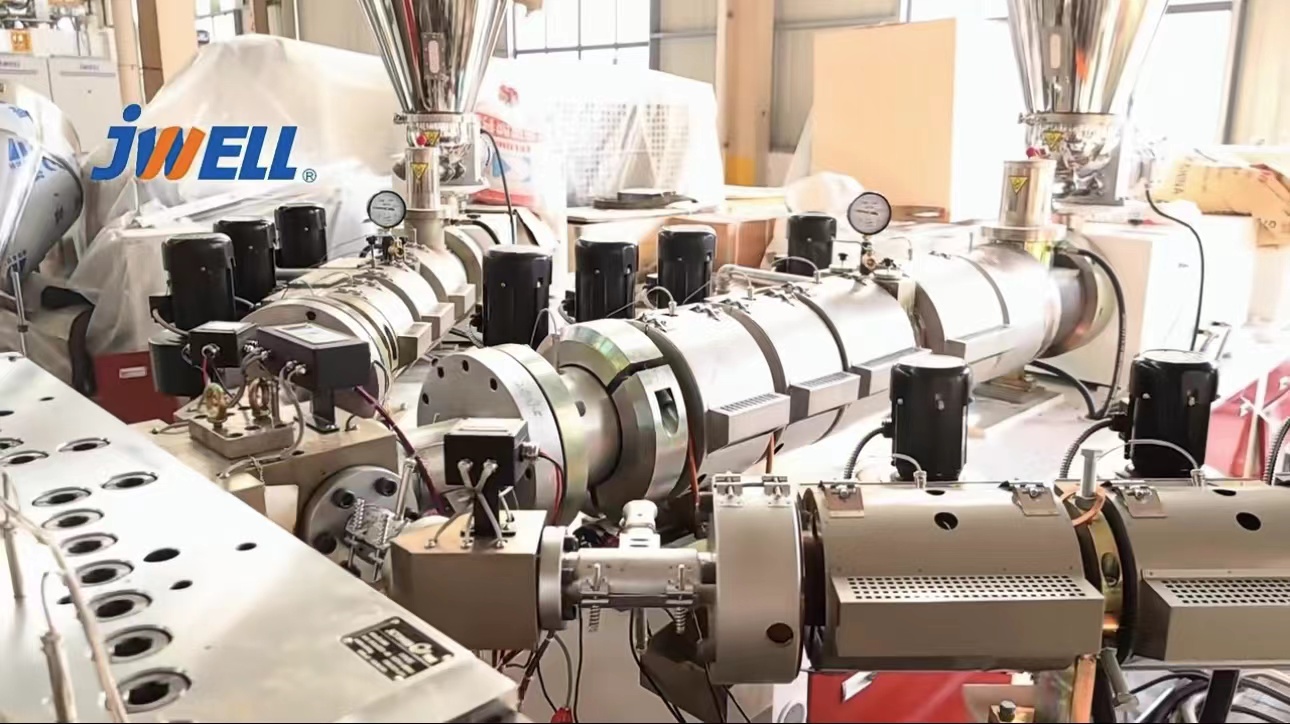

Mixer→Conical Twin-screw Extruder→Loader→T-die→Calibration Tooling→Haul-off Machine→Cutter→Stacker
Main Technical Parameter:
| Model | Main Motor Power | Products Width | Max. Capacity |
| SJZ65/132, 2*SJZ51/105 | 37KW, 2*18.5KW | 1140mm | 180KG/H, 120KG/H |
| SJZ80/156, JWS50/30 | 55KW, 22KW | 1050mm | 350KG/H, 50KG/H |
Note: The specifications are subject to change without prior notice.
|
Application:

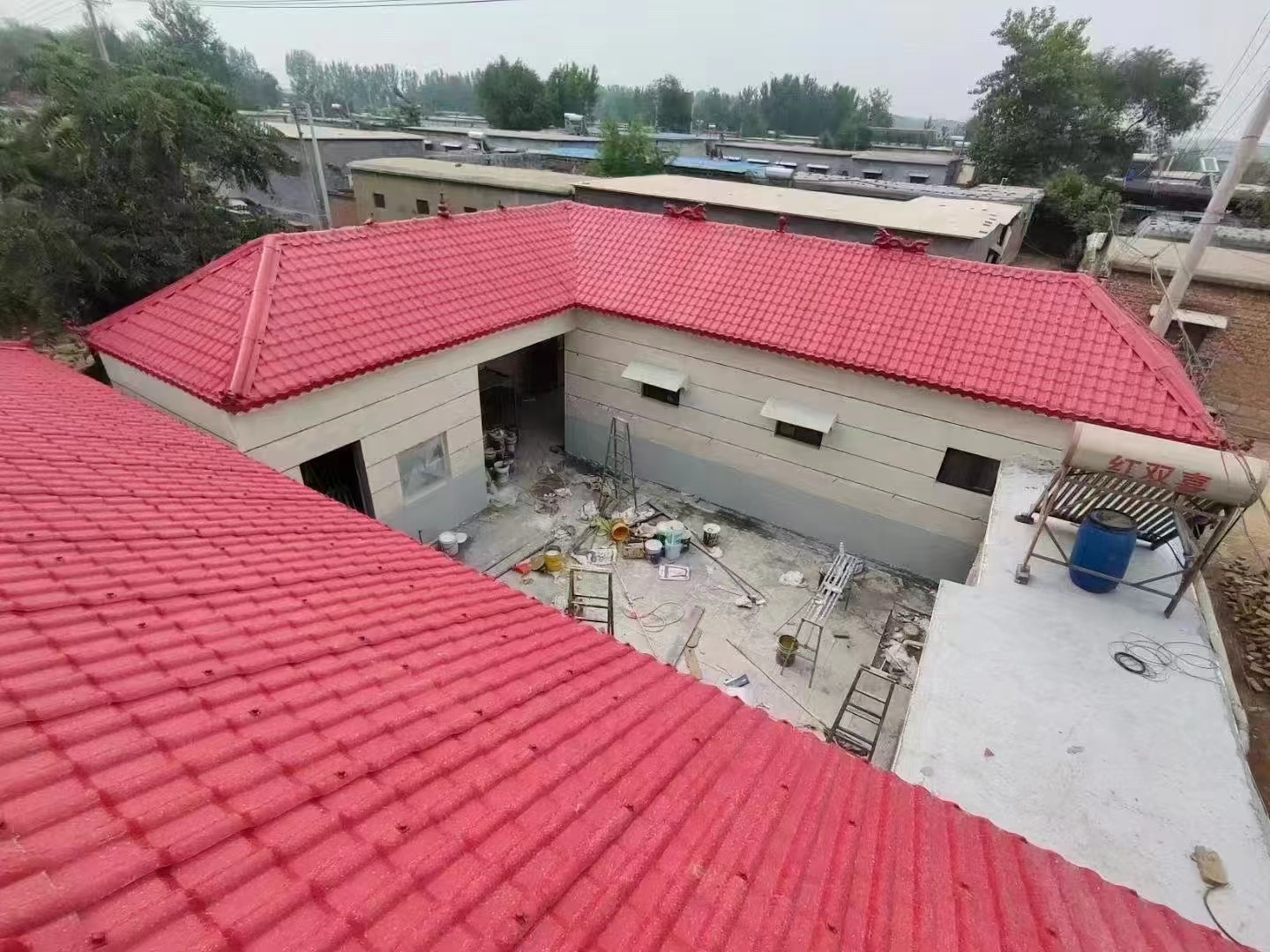

The PVC roofing sheet extrusion line is used for manufacturing corrugated roofing sheets and roof tiles for industrial plants, warehouses, agricultural farms, poultry houses, commercial buildings, residential houses, and other construction projects requiring durable and weather-resistant roofing materials.
Production process:

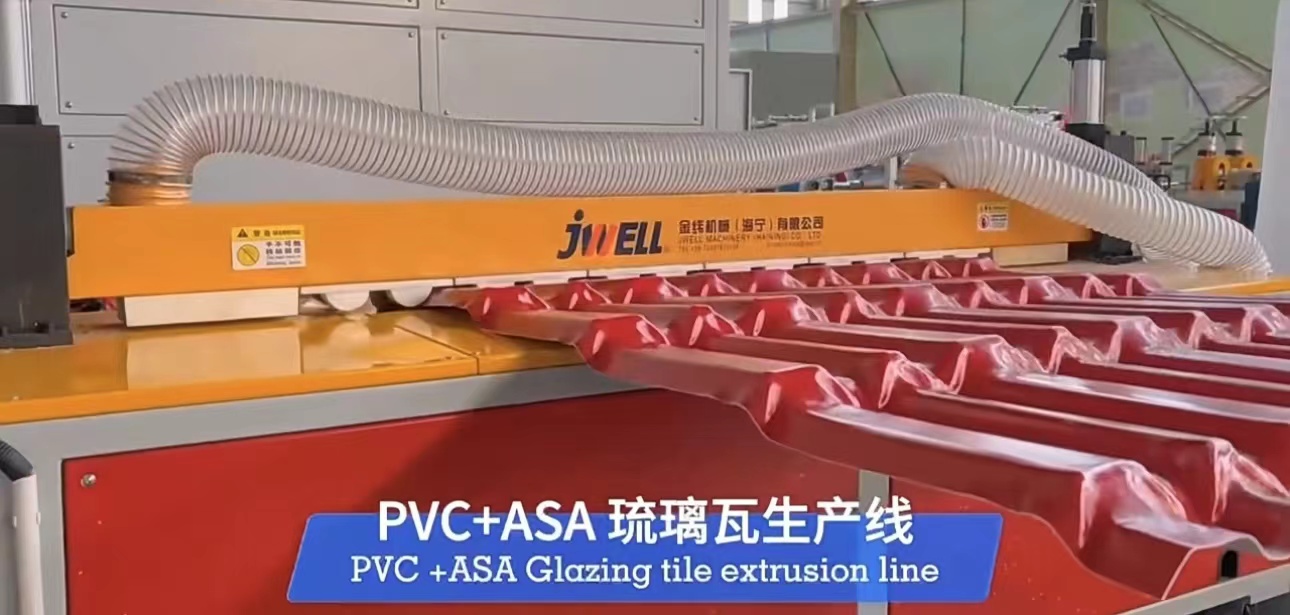

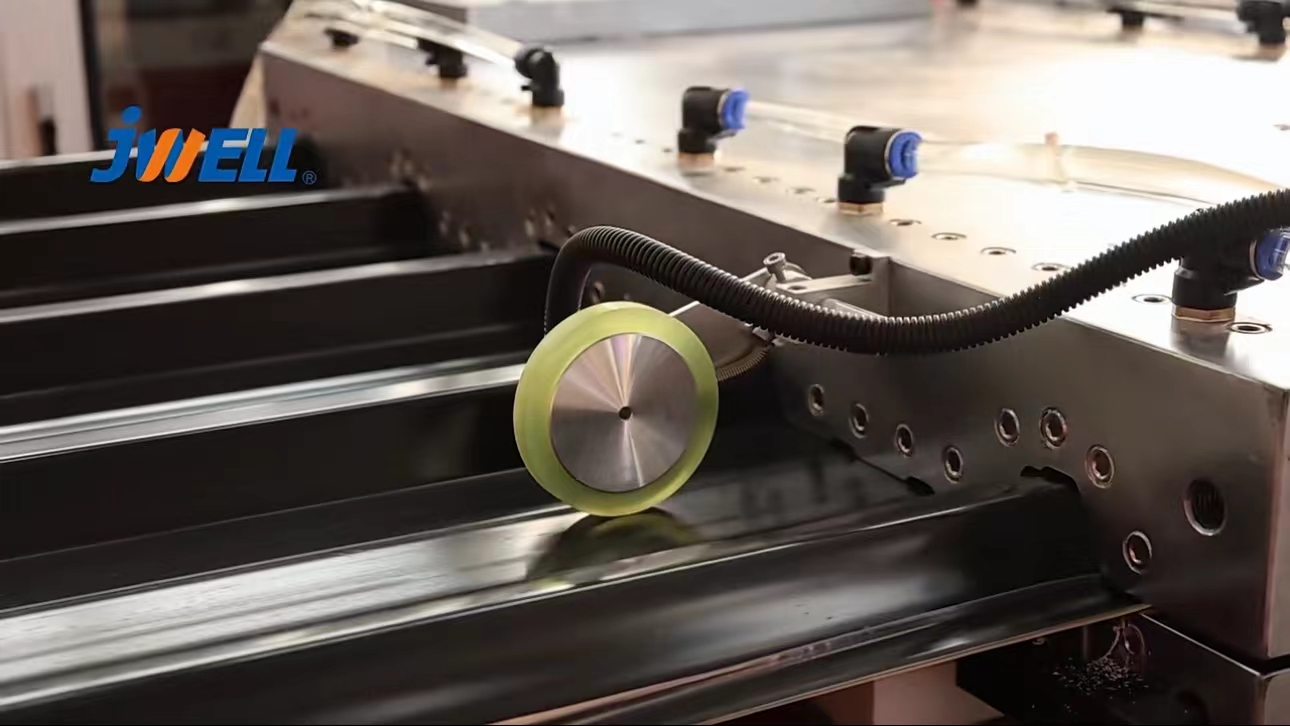

The plastic extruder extrudes the PVC plastic raw materials into sheets of a certain thickness. Next, the sheet is shaped into the shape of a glazed tile by a mold. The glazed tiles are then shaped by a cooling system. Finally, the glazed tile is cut from the sheet by the forming equipment.

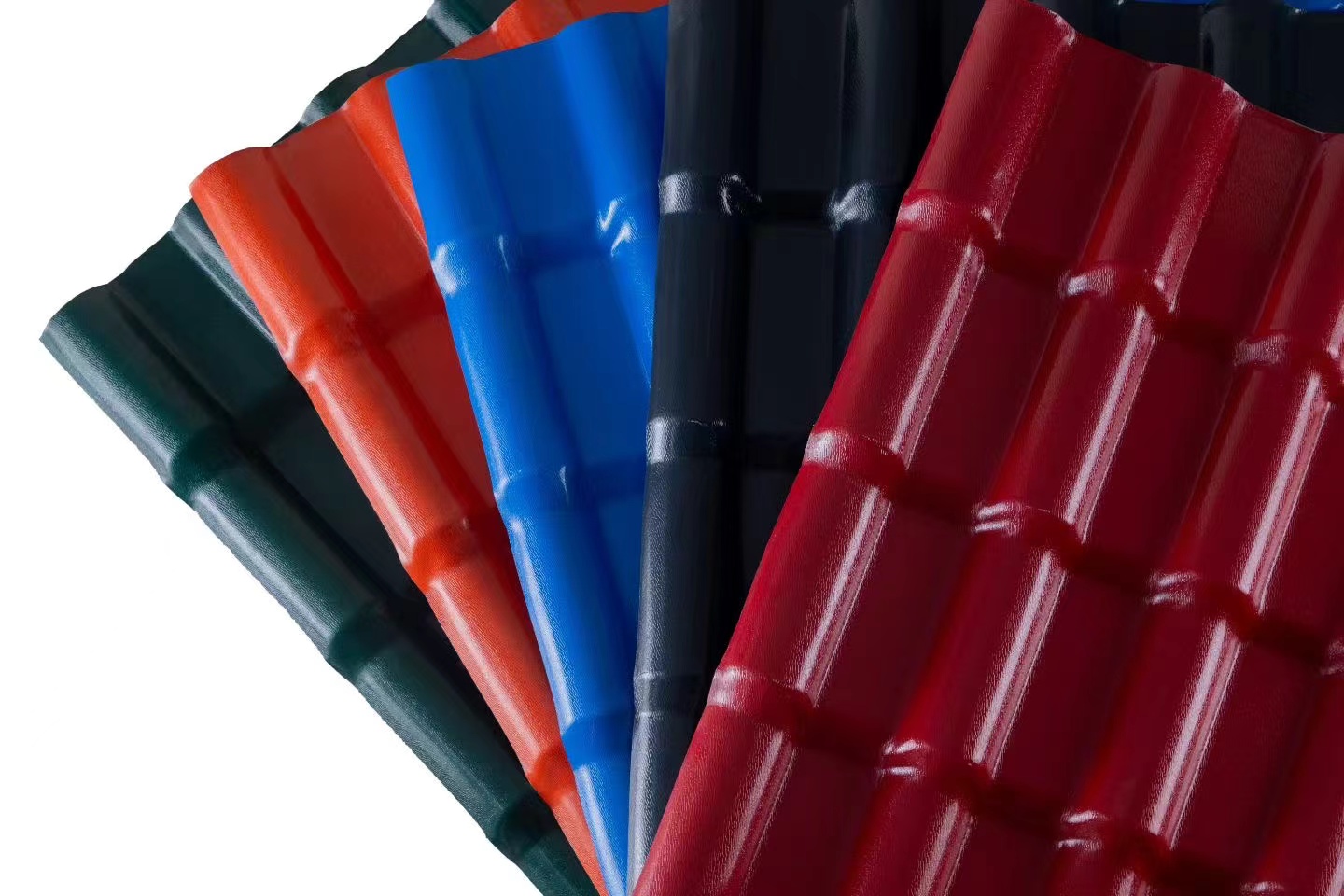

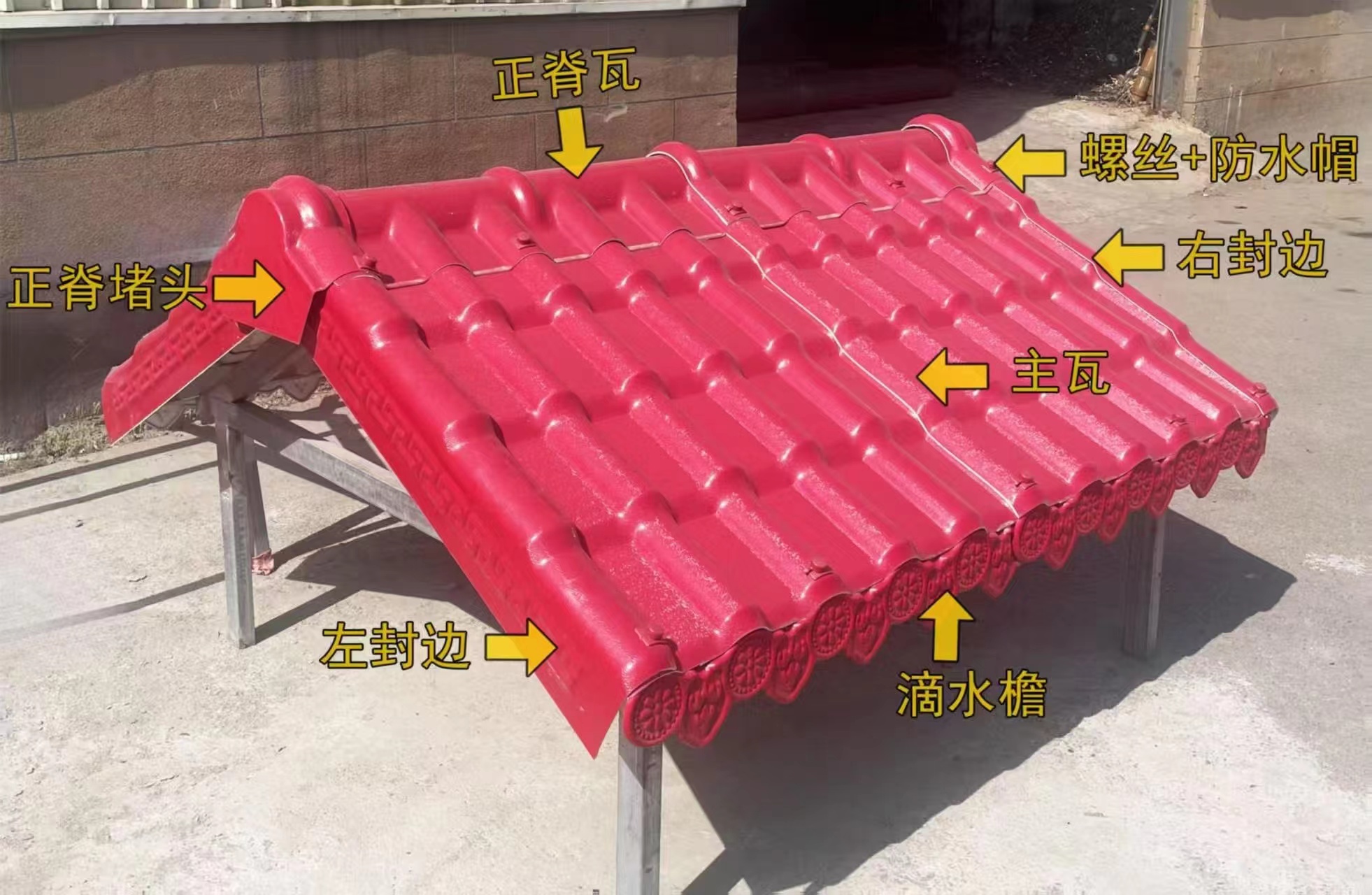

Advantages of PVC plastic glazed tile
1. Low cost: Compared with traditional glazed tiles, the cost of PVC plastic glazed tiles is lower, which reduces the cost pressure of builders.
2. Environmental protection: the raw material of plastic glazed tile is renewable resources, the production process is pollution-free, and it meets the requirements of environmental protection.
3. Good waterproof performance: due to the special material and production process of plastic glazed tile, its waterproof performance is better than traditional glazed tile.
4. Beautiful and durable: PVC plastic glazed tile is rich in color, diverse in style, long in service life, and is one of the ideal roofing materials.

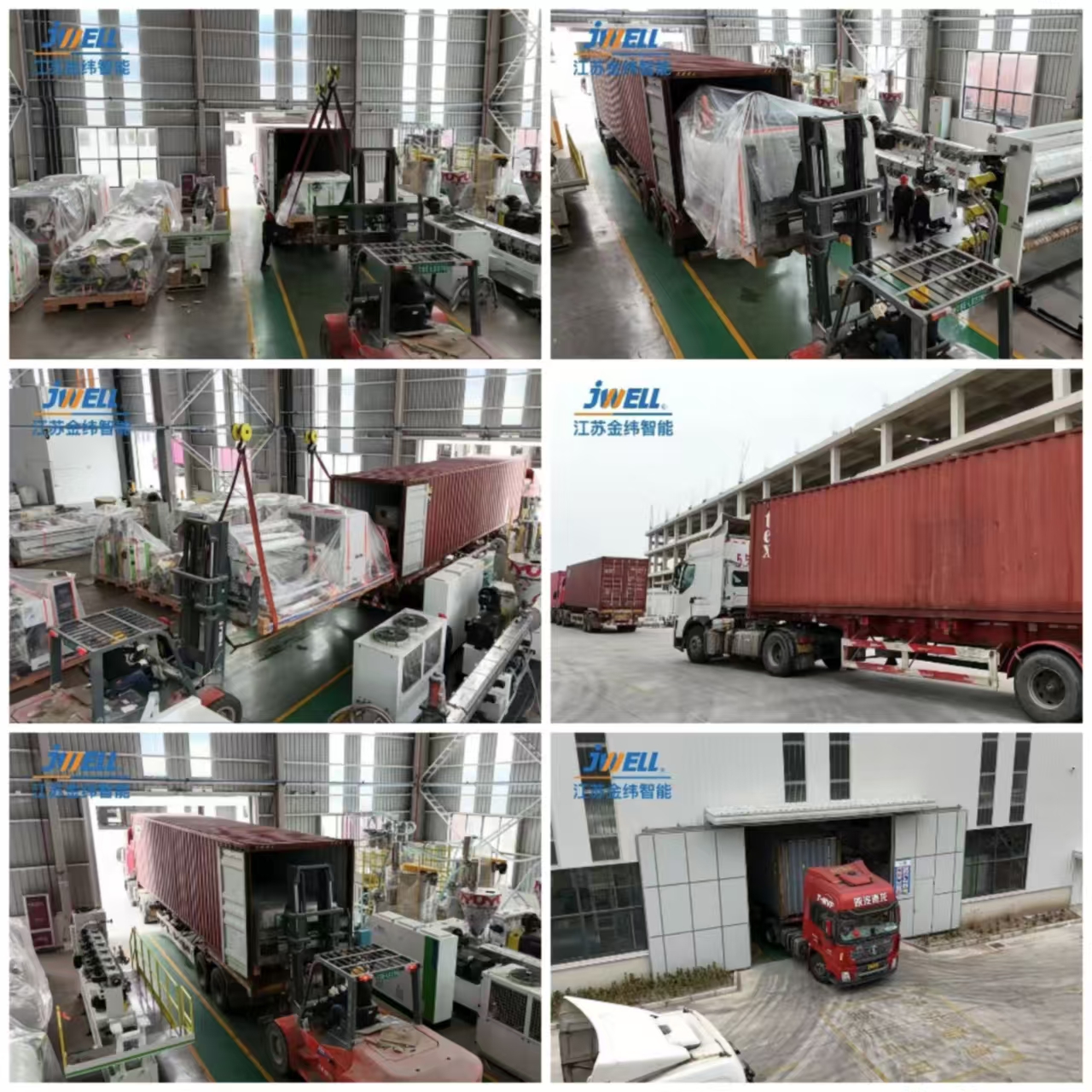

Machine Delivery
