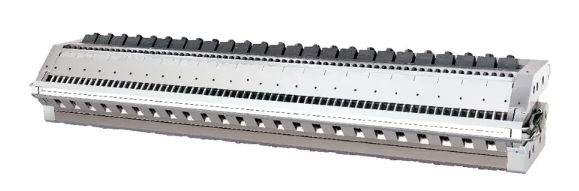

The JW-P-C1 Series hanger-style sheet die for multi-layer thermoplastic sheet extrusion is an industry-leading extrusion solution purpose-built for industrial manufacturers, thermoplastic sheet production enterprises and large-scale fabrication facilities. Designed with a precision-calibrated standard hanger-style flow channel, this sheet die delivers unparalleled melt flow control, consistent production stability and high-efficiency output for both single and multi-layer thermoplastic sheet manufacturing. Fully compatible with widely used resins including PVC, PS, PP, PE, PC and more, it is the trusted choice for industrial production lines seeking to elevate sheet quality, cut unplanned downtime, and maximize overall operational yield.
Core Advantages of the JW-P-C1 Hanger-Style Sheet Die Series
Optimized Hanger-Style Flow Channel for Unrivaled Sheet Uniformity
At the core of the JW-P-C1 series lies its industry-validated hanger-style flow channel design, precision-engineered to eliminate persistent pain points in thermoplastic extrusion: uneven melt velocity, material stagnation, and thermal degradation. This optimized flow structure ensures consistent melt distribution across the entire die width, delivering exceptional sheet thickness tolerance and flawless surface finish for every production run. This design drastically reduces scrap rates and rework, directly boosting profitability for high-volume industrial production operations.
Flexible Die Lip System with 45° Throttle Bar for Maximum Production Adaptability
The JW-P-C1 extrusion sheet die features a fully adjustable upper die lip and an interchangeable lower die lip paired with an integrated 45° throttle bar device, delivering unmatched flexibility for diverse production requirements. The precision-adjustable lip allows for quick, fine-tuned control of sheet thickness without full line shutdown, while the interchangeable lower lip and throttle bar enable rapid reconfiguration for different resin types, sheet specifications, and production targets. This design minimizes changeover time between production batches, making it ideal for industrial facilities with multi-material, multi-specification production schedules.
Heavy-Duty Industrial-Grade Construction for Long-Term Reliability
Engineered for non-stop 24/7 industrial production environments, the JW-P-C1 series is built with robust, high-grade forged alloy steel and precision machining processes that meet strict global manufacturing standards. Its heavy-duty construction ensures consistent, reliable performance even under high-temperature, high-pressure extrusion conditions, with exceptional wear and corrosion resistance to extend service life and reduce routine maintenance costs. Every unit undergoes rigorous multi-point quality testing before delivery, ensuring long-term operational stability and minimal unplanned downtime for production enterprises.
Full Compatibility for Single & Multi-Layer Co-Extrusion Production
The JW-P-C1 hanger-style sheet die is fully optimized for both single-layer sheet production and complex multi-layer co-extrusion lines, supporting up to 7-layer composite sheet manufacturing for advanced industrial applications. It is compatible with a full spectrum of common thermoplastic resins, from general-purpose PP, PE, PS and PVC to high-performance engineering plastics such as PC, PMMA and ABS, eliminating the need for dedicated dies for different material types. This versatility allows industrial manufacturers to expand their product offerings without significant additional equipment investment.
Technical Specifications of JW-P-C1 Sheet Die Series
Parameter | Standard Specification Range | Customization Availability |
Die Working Width | 600mm – 3000mm | Fully customizable to match existing extrusion line dimensions |
Sheet Thickness Range | 0.2mm – 12mm | Adjustable via die lip configuration for specialized applications |
Compatible Melt Temperature | Up to 350°C | Customizable for high-temperature engineering resins |
Max Extrusion Output | Up to 1500kg/h | Scaled to match extruder capacity and production requirements |
Die Lip Adjustment Range | ±2mm | Extended range available for thick sheet production |
Flow Channel Material | Premium forged alloy steel | Custom material options for corrosive or high-wear materials |
Surface Treatment | Mirror polishing (Ra ≤ 0.02μm) | Hard chrome plating, nitriding treatment optional |
Compatible Resins | PVC, PS, PP, PE, PC, ABS, PMMA | Custom flow design for specialized thermoplastic materials |
Compatible Materials & Industrial Applications
Compatible Thermoplastic Materials
The JW-P-C1 series is precision-tuned to deliver exceptional performance across a full spectrum of thermoplastic materials, with specialized flow optimization for each resin type:
General-purpose polyolefins: PP, HDPE, LDPE, LLDPE
Vinyl and styrenic resins: PVC, PS, HIPS, ABS
Engineering thermoplastics: PC, PMMA, PETG, EVOH
Barrier and composite resins for multi-layer structures
Target Industrial Use Cases
This hanger-style sheet extrusion die is the preferred solution for a wide range of industrial production sectors, including:
Packaging Industry: Multi-layer food and pharmaceutical packaging sheet, thermoformed container sheet, blister packaging sheet
Building & Construction Industry: PVC decorative sheet, PP construction formwork, PE waterproof sheet, PC sunshine panel
Automotive Industry: Interior and exterior trim composite sheet, PP/ABS alloy sheet, thermoformed automotive component sheet
Electronics & Optical Industry: Optical-grade PC/PS sheet, electronic component packaging sheet, display protective film substrate
General Industrial Manufacturing: Thermoformed industrial parts sheet, advertising printing sheet, luggage and appliance shell sheet
Customization & Full-Cycle Support for Industrial Clients
We understand that every industrial production line has unique requirements, which is why the JW-P-C1 series offers full end-to-end customization to align with your specific production goals. Our in-house engineering team can tailor the die width, flow channel design, lip configuration, material selection and surface treatment to match your existing extrusion equipment, material specifications and final product requirements.
Beyond custom product engineering, we provide comprehensive full-cycle support for our industrial clients, including:
Pre-sales technical consultation and extrusion line matching guidance
On-site installation, commissioning and operator training
Scheduled after-sales maintenance and 24/7 technical support
Fast supply of genuine spare parts and wear components
Lifetime technical upgrade and retrofit services for existing dies
FAQ
What is a hanger-style sheet die, and how does it outperform standard T-dies?
A hanger-style sheet die is a precision extrusion die with a flow channel shaped like a clothes hanger, engineered to create uniform melt velocity and pressure across the entire die width. Unlike standard T-dies, which often suffer from uneven flow at the die edges, the hanger-style design eliminates material stagnation, delivers superior sheet thickness uniformity, and supports a wider range of resin viscosities and production speeds, making it the preferred choice for high-quality industrial sheet production.
What materials can the JW-P-C1 sheet die process?
The JW-P-C1 hanger-style sheet die is compatible with nearly all common thermoplastic resins, including PVC, PS, PP, PE, PC, ABS, PMMA, PETG and EVOH. We also offer custom flow channel optimization for specialized thermoplastic materials, ensuring consistent performance for your unique material formulation.
Can this sheet die be used for multi-layer co-extrusion production?
Yes, the JW-P-C1 series is fully optimized for multi-layer co-extrusion, supporting up to 7-layer composite sheet structures. It can be seamlessly integrated with existing co-extrusion lines, with custom flow channel design to ensure uniform layer distribution and bonding strength for barrier, structural and decorative multi-layer sheet products.
How long is the lead time for a custom JW-P-C1 sheet die?
Standard lead time for a base JW-P-C1 series die is 30-45 working days, while fully customized dies for specialized applications typically range from 45-60 working days. We work closely with our industrial clients to align production schedules with your project timelines, and can offer expedited production for urgent orders where possible.
What maintenance is required for the JW-P-C1 extrusion sheet die?
Routine maintenance for the JW-P-C1 die includes regular cleaning of the flow channel and die lip during material changeovers, inspection of wear components, and periodic lubrication of adjustment mechanisms. We provide a detailed maintenance manual with every unit, and our technical team is available to guide your maintenance team through proper care procedures to maximize the die’s service life and performance.
As a trusted manufacturer of high-performance extrusion equipment for industrial production enterprises worldwide, Jwell stands behind the quality and performance of every JW-P-C1 series sheet die. Whether you are upgrading an existing extrusion line or building a new multi-layer sheet production facility, our team is ready to deliver a tailored extrusion solution that meets your exact production requirements.
Contact our technical engineering team today to discuss your project needs, request a detailed technical datasheet, and receive a free, no-obligation custom quote for your thermoplastic sheet extrusion operation.
