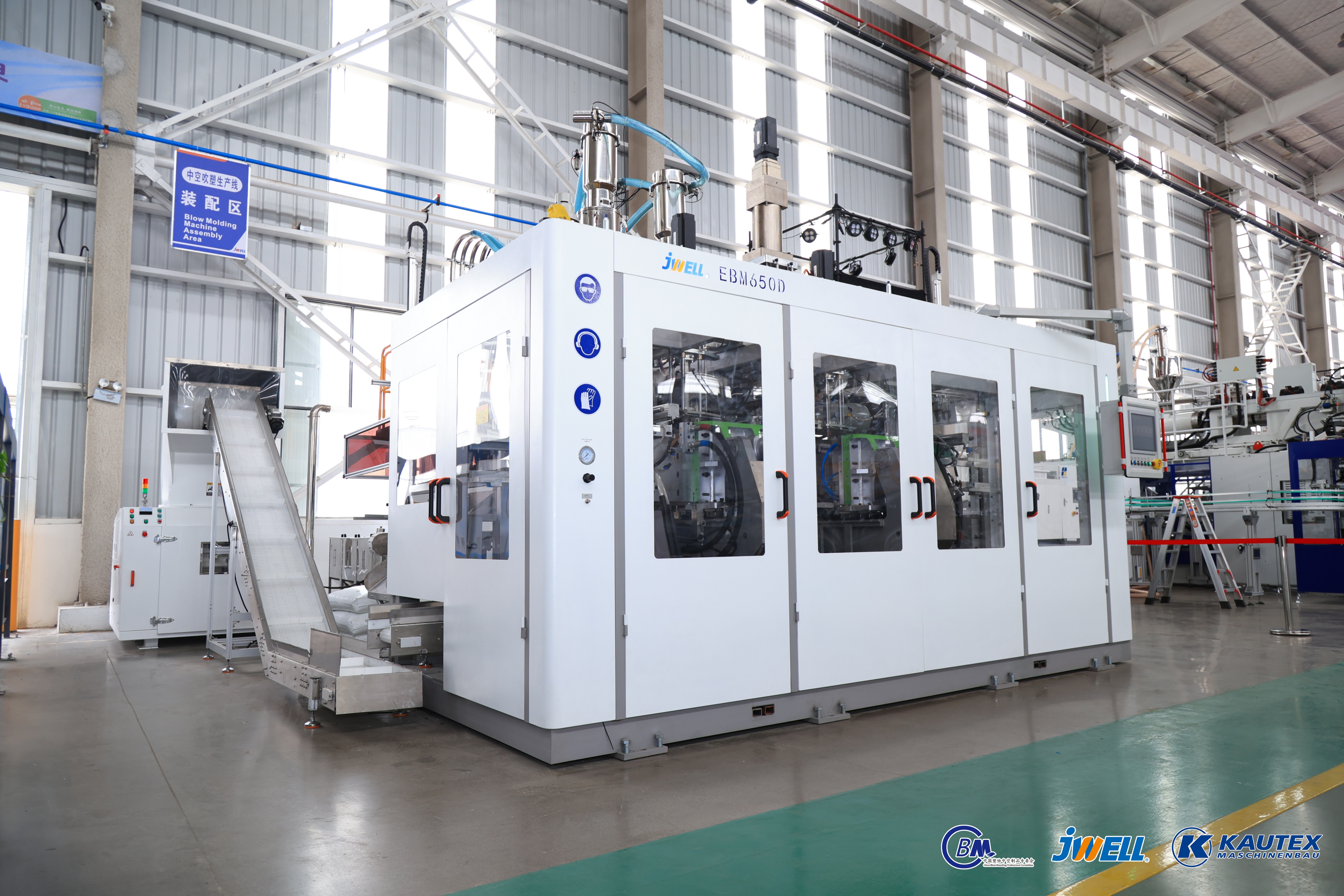

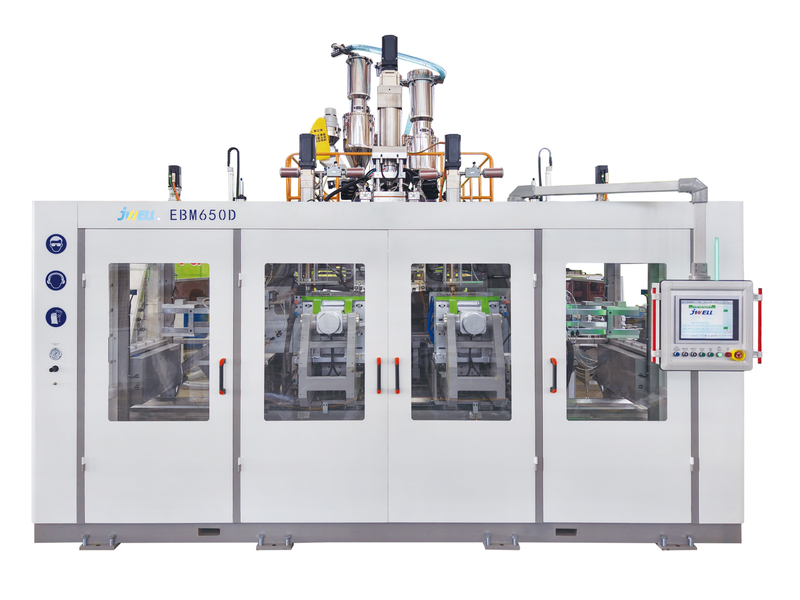

EBM650D Full Electric High Speed Blow Molding Machine

Name: EBM650D Full Electric High Speed Blow Molding Machine
Brand: Jwell
Rating: 5.0 (27 reviews)

In recent years, with the continuous development of blow-molded products, the requirements for blow molding machines have become increasingly stringent. Electric blow molding machines demonstrate significant advantages in clean production and energy conservation, making them the optimal choice for production facilities requiring low-noise environments and ultra-clean manufacturing standards, such as food & beverage processing and pharmaceutical packaging industries. Compared with standard hydraulic models, electric blow molding machines can notably increase production output, reduce energy consumption, and minimize product contamination risks. The overall operational efficiency of the equipment has been greatly improved, while production costs are reduced and product quality is enhanced, granting clients greater competitive advantages in the market economy. JWZ-EBM650D three-layer jerrycan blow molding machine is a fully automatic, high-speed production line developed by Suzhou Jwell Plastic Machinery Co., Ltd. through years of research and continuous innovation. It marks a significant step toward Industry 4.0 in the field of jerrycan manufacturing.

Availability:

Quantity:



Inquire Add to Basket

Brand:
Jwell

Product Description

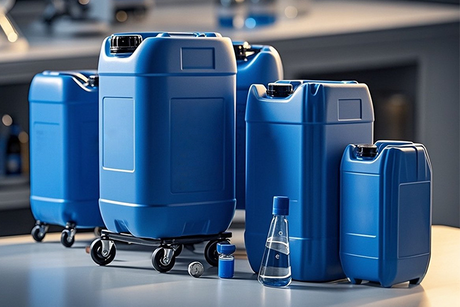

1. JWZ-EBM650D is designed for producing 5-12L jerrycan, adopt three-layer continuous type die head, two-platen U-type carriage, and up-blowing unit. Equipped with automatic feeding system, online automatic de-flashing system, online leakage testing,and conveyor unit. This intelligent unmanned/mimimized-manual-operation blow molding production line significantly reduces labor intensity while enhancing productivity. 2. Utilizes B&R automation control system, supporting multi-task time-sharing operation with high automation level. Advanced HMI replaces conventional control system. The new-generation programmable computer controller integrates PLC and industrial PC functions, enabling parameter storage. 400-point parison thickness control system combined with servo electric cylinders ensures precise parison thickness. Centralized operation status display with open architecture and fieldbus interface. 3. Two-platen U-type carriage design with linear rolling guide for mold opening&closing via electric drive. Features low friction resistance, superior motion characteristics, and high clamping precision. Servo-controlled swing arms ensure accurate, reliable and repeatable operation with easy setup. Enables smooth and silent movement. The mold frame features uniform clamping, large clamping force, large mold capacity, and easy to disassemble. 4. Full-electric servo motor drive system: All processes (material plastication, extrusion, mold movement, blow molding) employ high-performance servo motors, completely replacing traditional hydraulic technology. More energy-saving and environmentally. Platen movement: a. 1000 mm/s speed with shock-free silent operation and smooth start/stop b. 0.05 mm repeat accuracy c. Bus communication control with strong anti-interference capability and data integrity Mold Clamping Power System: a. Independent power unit delivers max. 18T clamping force; U-type device maintains perfect performance during prolonged operation b. Servo motor enables rapid mold opening response and precise positioning Electric Parison Thickness Control: a. Multi-point dynamic adjustment, running smoothly (eliminates parison sawtooth defects) b. Servo motor fast forward/reverse switching response without lag c. High-precision thickness actuator with fatigue resistance for continuous long-term operation d. Rapid-response,short cycles and high curve repeatability
Model	Unit	JWZ-EBM650D
Max product volume	L	12
Dry cycle	pc/h	450
Number of working station		Double Stations
Parison mould structure		Three layers continous type
Max die pin diameter	MM	240
Screw diameter	MM	50+90+50
Screw L/D ratio		25
Capacity	Kg/h	Max 260
Driving motor	KW	16.5KW+49.5KW+16.5KW
Max space between platens	MM	2*180（370-650）
Platen size W*H	MM	520*490
Clamping force	KN	180
Air pressure	Mpa	0.7
Air consumption	M³/h	70-90
Cooling water pressure	Mpa	0.3
Cooling water consumption	t/h	8-10
Overall dimension LWH	M	6.74.84.5
Total weight	ton	21
Total power	KW	190

Note: Information listed above are for reference only, the production line can be designed
