Jwell PC Hollow Plate Extrusion Line is designed for producing high-quality polycarbonate (PC) hollow sheets, commonly known as sunlight sheets. The extrusion lines are highly flexible and can manufacture hollow sheets of various specifications and materials, with a width of up to 2300mm and thickness ranging from 4mm to 40mm,the machine capacity can reach 350-450kg/h depend on different models.
Key components and features of the Jwell PC Hollow Plate Extrusion Line include:
1. Extruder: The single screw extruder is designed with advanced temperature control for excellent plasticization and stable high-output extrusion.
2. Screen Changer: A hydraulic quick screen changer with a double station ensures efficient and stable operation during the screen change process.
3. T-die Mold: Made of high-quality alloy steel, the mold features a portable throttling device to ensure uniform material distribution and thickness.
4. Vacuum Setting Table: Equipped with a fast heat exchange system and staggered vacuum system for precise shaping accuracy and uniform vacuum distribution.
5. Tractors: Two sets of tractors work together; the first set ensures uniform pulling of sheets from the vacuum table, while the second set removes product stress and includes an edge trimming device.
6. Cutting Machine: Features precise length cutting and automatic unloading, ensuring high-quality cut surfaces
The PC hollow plates are valued for their excellent transparency, light weight, impact resistance, flame retardance, and anti-aging properties. Because the material PC resin, which is a high-performance engineering plastic. This material offers high durability, making the boards suitable for a wide range of applications, including construction, transportation, security, agriculture, and advertising.
PC hollow boards are environmentally friendly, as they are recyclable and can be used in various eco-conscious applications. Their light weight and high strength make them an efficient alternative to traditional materials like glass and metal.
Main Technical Parameters
| Model | Products Width(mm) | Products Thickness(mm) | Designed Capacity(kg/h) |
| JWS100+JWS45 | 1220 | 4-40 | 350 |
| JWS120+JWS45 | 2100 | 4-40 | 450 |
Note: The specifications are subject to change without prior notice.
|
Applications
Construction: Used for sunroofs in buildings, stadiums, and shopping centers.
Transportation: Ideal for rain shields in bus stations and garages.
Security: Transparent shields for public facilities like nurseries and airports.
Agriculture: Skylights for greenhouses and indoor pools.
Advertising: Signboards and light boxes for commercial use

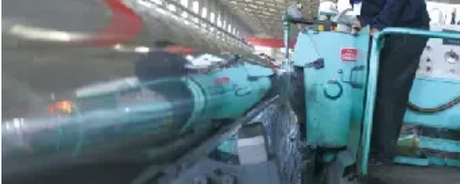

Factory Shot
