Product Overview
Core Design Purpose & Target Production Scenarios

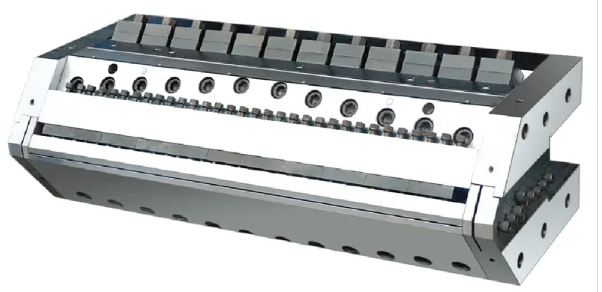

The JW-P-D1 in-mold coextrusion sheet die is a cutting-edge extrusion tooling solution engineered exclusively for high-efficiency, ultra-precise production of multi-layer coextruded sheet materials. Designed to solve core pain points of industrial sheet manufacturing facilities—including inconsistent layer thickness, high material waste, and limited material compatibility—this advanced die features an innovative in-mold coextrusion structure with optimized multi-flow channel design, delivering unparalleled control over the sheet forming process. It is the ideal choice for high-volume production lines requiring strict dimensional accuracy and batch-to-batch consistency.
Core Advantages of the JW-P-D1 In-Mold Coextrusion Sheet Die
Industry-Leading Layer Thickness Precision & Uniformity
At the core of this precision sheet manufacturing die is its proprietary flow channel design, which ensures consistent melt distribution across the entire sheet width, even for ultra-thin or thick multi-layer structures. This level of precision reduces material scrap by up to 30% compared to standard extrusion dies, drastically lowering production costs for industrial clients while ensuring every batch meets the most stringent quality standards.
High-Efficiency In-Mold Multi-Channel Coextrusion Structure
The integrated multi-flow channel structure enables seamless in-mold coextrusion of multiple material layers in a single pass, eliminating the need for secondary lamination processes. This design cuts production cycle times significantly, boosts line efficiency, and preserves the structural integrity of multi-layer sheets, making it perfect for applications requiring barrier properties or functional layer integration.
Heavy-Duty Construction for 24/7 Industrial Continuous Production
Constructed with high-grade, wear-resistant steel alloys, the JW-P-D1 multi-layer coextrusion sheet die delivers stable, consistent performance even in round-the-clock continuous production environments. Its robust design minimizes downtime for maintenance, ensuring maximum uptime and return on investment for industrial manufacturing facilities.
Technical Specifications of JW-P-D1 Precision Sheet Die
Standard & Customizable Core Parameters
Core Parameter | Standard Specification |
Model | JW-P-D1 |
Supported Sheet Width | 300mm - 3000mm (fully customizable) |
Max Coextrusion Layers | 2-9 layers (customizable) |
Sheet Thickness Range | 0.1mm - 12mm |
Thickness Tolerance | ±0.005mm (precision grade) |
Compatible Line Speed | 5m/min - 80m/min |
Melt Index Compatibility | 0.3 - 30 g/10min |
Compatible Materials & Industrial Applications
Supported Thermoplastic Materials
This high-precision coextrusion sheet die is fully compatible with a wide range of thermoplastic materials, including PC, PS, PP, PE, PLA, PETG, ABS, and EVOH barrier materials, supporting both virgin and recycled resin formulations.
Target Industrial Application Scenarios
Its versatile design makes it suitable for a broad spectrum of industrial applications, including food and medical packaging sheets, optical grade sheets, automotive interior trim sheets, electronic component packaging, lithium battery separator substrates, and biodegradable sheet production.
Customization & Full-Cycle Support for Industrial Clients
Tailored Customization for Dedicated Production Needs
We offer end-to-end customization for industrial manufacturing clients, tailored to your specific production requirements. This includes custom flow channel engineering, adjustable sheet width, specialized layer ratio design, and retrofitting compatibility with existing extrusion lines.
End-to-End Full-Cycle Service System
Our full-cycle support includes pre-sales process consultation, 3D design optimization, on-site installation and commissioning, operator training, and lifetime technical support, ensuring seamless integration into your production workflow and long-term reliable operation.
FAQ
What is the maximum number of coextrusion layers the JW-P-D1 die can support?
The JW-P-D1 in-mold coextrusion sheet die can be customized to support 2 to 9 coextrusion layers, accommodating complex functional sheet requirements for barrier, structural, and aesthetic applications.
What thickness tolerance can this die achieve for precision applications?
For high-precision production, this die delivers a thickness tolerance of ±0.005mm, ensuring consistent uniformity across the entire sheet width, even for ultra-thin high-precision sheets.
Can this die be retrofitted to our existing sheet extrusion line?
Yes, the JW-P-D1 die can be fully customized to match the specifications of your existing extrusion line, including screw diameter, line speed, and melt output, for seamless retrofitting with minimal production downtime.
