Procuring extrusion equipment represents a high-stakes capital expenditure. Technical misalignments during this process lead to compounding losses. You face material waste, excessive downtime, and rejected parts. Processing temperature-sensitive polymers like PVC presents inherent challenges. You must balance high throughput demands with strict dimensional tolerances. Surface finish requirements also demand precise control. PVC degrades quickly under excessive heat or shear. This makes equipment selection critical for long-term production stability.

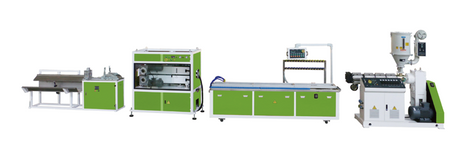

Mitigating these production risks requires a rigorous technical evaluation. You must analyze the extrusion line component by component. Basic output specifications do not tell the whole story. You need to evaluate upstream material handling and thermal control systems. Downstream calibration and integration capabilities are equally important. A well-engineered PVC profile extrusion machine addresses these variables directly. It provides the mechanical and digital infrastructure necessary to maintain steady-state production.
Key Takeaways
- Screw Architecture Dictates Material Compatibility: Processing PVC dry blends requires specific twin-screw configurations to manage shear sensitivity and prevent material degradation.
- Downstream Equipment is Mission-Critical: The extruder only melts and pushes the plastic; final dimensional stability relies entirely on the precision of the vacuum calibration and cooling systems.
- Closed-Loop Controls Prevent Drift: Advanced PLC systems with synchronized speed regulation and multi-zone temperature controls are non-negotiable for minimizing scrap rates.
- Vendor Vetting Extends Beyond the Sale: A reliable profile extrusion machine manufacturer must provide verifiable Factory Acceptance Testing (FAT), robust operator training, and accessible spare parts.
Defining Success Criteria for PVC Profile Production
Problem Framing
End-product requirements dictate your machine specifications. You cannot force a generic extruder to produce high-tolerance architectural profiles. The physical properties of your final product determine the necessary mechanical features. You must define these parameters before evaluating equipment. Failure to align machine capabilities with product requirements guarantees production bottlenecks and unacceptable scrap rates.
Dimensional Tolerances and Wall Thickness
Structural profiles require strict adherence to dimensional tolerances. Acceptable deviation limits often fall within +/- 0.1 millimeters. Machine vibration directly impacts these metrics. Inconsistent melt pressure causes wall thickness variations. A rigid machine frame absorbs operational vibrations. High-quality gearboxes maintain steady screw rotation. These elements prevent chatter marks and ensure uniform material distribution. Consistent wall thickness prevents structural failures in the final application.
Surface Finish and Mechanical Properties
Surface finish depends heavily on melt homogeneity. The die design also plays a major role. A well-mixed polymer melt produces a smooth, glossy surface. Poor mixing leads to dull spots and flow lines. Mechanical properties like impact resistance rely on proper fusion. The extruder must apply the correct amount of shear energy. Too little shear leaves un-melted particles. Too much shear degrades the polymer chains. Both scenarios compromise the impact strength of the PVC profile.
Material Formulation Realities
Different PVC formulations require distinct machine configurations. Processing rigid UPVC demands high-torque gearboxes and intensive barrel cooling to prevent burning. Flexible PVC relies on specialized haul-off tension control to prevent stretching. Highly filled formulations present unique challenges. High calcium carbonate content increases abrasive wear. This necessitates specialized metallurgy for the screws and barrels. You must match the machine design to your specific compound.
Upstream Material Handling: The Prerequisite for Extrusion Success
Evaluation Dimensions
Material preparation dictates extrusion stability. The polymer must be uniform before it enters the extruder. Inconsistent bulk density causes surging. Surging leads to dimensional variations in the final profile. Upstream equipment handles mixing, dosing, and feeding. These systems are the first line of defense against quality defects. You cannot fix poor material preparation downstream.
Hot/Cold Mixing Systems
PVC resin requires high-speed friction heating. This process opens the PVC particles, allowing them to absorb additives, plasticizers, and stabilizers. The hot mixer achieves this through intense mechanical shear. Subsequent water-cooling is mandatory. The cold mixer rapidly drops the temperature to prevent premature fusion and agglomeration. The result is a uniform, free-flowing dry blend that feeds consistently into the extruder hopper.
- Charge the PVC resin and stabilizers into the hot mixer.
- Apply high-speed friction until the batch reaches 120°C to 130°C.
- Discharge the hot compound into the cooling mixer.
- Circulate chilled water through the cooling mixer jacket until the batch drops below 40°C.
- Discharge the stabilized dry blend into a storage silo for resting.
Gravimetric Dosing and Feeding
Automated feeding systems prevent material bridging. Loss-in-weight feeders measure the exact mass of material entering the machine. They adjust the feed screw speed in real-time. This ensures a consistent bulk density of the compound. Steady feeding maintains constant melt pressure inside the barrel. Volumetric feeders cannot account for density variations. Gravimetric systems provide the precision required for tight-tolerance profile extrusion.
Core Extruder Architecture: Evaluating the PVC Profile Extruder
Solution Categories
The primary mechanical components drive the extrusion process. The extruder melts, mixes, and pumps the polymer. The architecture of these components determines processing efficiency. You must evaluate the screw design, metallurgy, and drive systems. These elements define the operational lifespan of the equipment. They also dictate the maximum throughput achievable without compromising quality.
Conical vs. Parallel Twin Screw Profile Extruder
Conical twin screws build high pressure quickly. They feature a shorter barrel length. This makes them suitable for large profiles and pipes. They handle high-output demands efficiently. However, a parallel twin screw profile extruder offers different advantages. Parallel screws provide excellent venting capabilities. They deliver consistent, gentle shear along a longer barrel. This makes them ideal for high-output window profiles. Single screw extruders are generally unsuitable for PVC powder. They lack positive displacement and generate excessive friction.
| Feature | Conical Twin Screw | Parallel Twin Screw |
| Barrel Length (L/D Ratio) | Shorter (typically 22:1 to 24:1) | Longer (typically 28:1 to 32:1) |
| Melt Pressure Generation | High and rapid | Gradual and consistent |
| Shear Profile | Aggressive, good for heavy walls | Gentle, ideal for sensitive formulations |
| Venting Efficiency | Moderate | Excellent, removes moisture effectively |
Barrel and Screw Metallurgy
PVC processing releases corrosive chlorine gas. Abrasive fillers like calcium carbonate cause severe wear. Standard steel components degrade rapidly under these conditions. You must specify bimetallic coatings or nitrided steel. Tungsten carbide alloys provide excellent wear resistance. These advanced metallurgies extend the lifespan of the plasticizing unit. They maintain the critical clearance between the screw flights and the barrel wall. This clearance is vital for pumping efficiency.
Drive Motors and Gearboxes
Complex profile dies generate significant backpressure. The drive system must overcome this resistance. You need high-torque, low-RPM gearboxes. Integrated thrust bearings absorb the axial load from the screws. A failing thrust bearing will destroy the gearbox. AC motors with variable frequency drives (VFD) offer precise speed control. A robust drive system ensures the PVC profile extruder operates smoothly under heavy loads.
Die Design and Melt Flow Dynamics
Evaluation Dimensions
The tooling shapes the polymer melt before calibration. Die design requires complex engineering. The internal flow channels must distribute the melt evenly. Uneven flow causes warping and internal stress. The die must balance the velocity of the polymer across the entire profile cross-section. Poor die design leads to continuous downstream processing issues.
Rheological Considerations
Die geometry must account for PVC flow behavior. Polymer melts exhibit viscoelastic properties. They swell upon exiting the die lips. This phenomenon is known as die swell. Tooling engineers must calculate this expansion. They cut the die slightly smaller than the desired final shape. The exact geometry depends on the specific PVC formulation. Changes in the compound require adjustments to the die.
Multi-Cavity vs. Single-Cavity Dies
Multi-cavity dies offer higher throughput. They produce two or more profiles simultaneously. This maximizes the output of a large extruder. However, they complicate process control. Balancing the flow between multiple cavities is difficult. Single-cavity dies provide easier process control. They are ideal for complex, heavy-walled profiles. You must weigh production volume against operational complexity.
Co-Extrusion Capabilities
Co-extrusion adds a secondary layer to the profile. This often involves applying an ASA or PMMA weather-resistant layer. This layer protects a recycled PVC core. The process requires a secondary extruder. The dies must merge the two melt streams smoothly. The temperatures and viscosities of the two polymers must be compatible. Co-extrusion reduces material costs while improving exterior performance.
Downstream Calibration: The Hidden 50% of a Custom Profile Extrusion Line
Features-to-Outcomes
Downstream components directly dictate product quality. The extruder only pushes the molten plastic. The calibration system freezes the dimensions. A high-quality custom profile extrusion line relies heavily on downstream precision. Inadequate cooling or erratic pulling will ruin a perfectly extruded melt. You must evaluate these units with the same rigor as the extruder.
Vacuum Calibration Tables
Calibration tables use vacuum to hold the profile shape. Dry calibration uses vacuum blocks. Wet calibration immerses the profile in water. Independent vacuum and water pumps are essential. They prevent pressure fluctuations. Sizing sleeves freeze the outer dimensions of the profile. The vacuum pulls the soft polymer against the chilled metal sleeves. This process requires precise control to prevent surface drag marks.
Cooling Tanks
Cooling tanks remove residual heat. Turbulent water flow is necessary. It breaks the thermal boundary layer around the profile. This removes heat faster than laminar flow. Temperature-controlled zones prevent thermal shock. Adequate tank length ensures the core of the profile cools completely. Insufficient cooling causes post-extrusion shrinkage. The profile will warp after it leaves the machine.
Haul-Off (Tractor) Units
The haul-off unit pulls the profile through the line. Caterpillar haul-offs provide consistent traction. They must feature servo-driven, synchronized speed control. Erratic pulling stretches or compresses the soft profile. This destroys dimensional tolerances. The haul-off pads must match the profile shape. This prevents crushing delicate internal webs. Constant tension is critical for stable production.
Cutting and Stacking Systems
Cutting systems must match the profile thickness. Planetary saws work well for thick, rigid profiles. They provide a clean, square cut. Guillotine cutters suit thinner or flexible profiles. They eliminate dust generation. Automated tilt tables handle the finished lengths. They gently drop the profiles into stacking racks. This prevents damage to the finished surface.
Precision Control Systems and Automation
Evaluation Dimensions
Software and sensors maintain steady-state production. Manual adjustments cannot keep pace with modern extrusion speeds. Precision control systems monitor dozens of variables simultaneously. They make micro-adjustments to maintain equilibrium. A robust PLC system reduces reliance on operator intuition. It standardizes the production process.
Closed-Loop Temperature Control
PID controllers manage the delicate thermal balance. They control the barrel heating and cooling. Ceramic heater bands provide the heat. Air blowers or oil circulation systems provide the cooling. The PID algorithm prevents temperature overshoots. PVC degrades rapidly if the temperature spikes. Closed-loop control maintains the melt temperature within a strict one-degree tolerance.
Synchronized Drive Speeds
Line tension must remain constant. The central PLC links the drive speeds. It synchronizes the extruder screw speed, dosing feeder, and haul-off speed. If the extruder speeds up, the haul-off accelerates proportionally. This prevents the profile from sagging or snapping. Synchronization is vital during machine startup and speed changes.
Process Monitoring and Data Logging
Real-time monitoring enables predictive maintenance. Sensors track melt pressure, melt temperature, and motor load. Data logging records these parameters over time. You can audit quality by reviewing historical data. Spikes in motor load indicate bearing wear or cold material. Drops in melt pressure suggest feeding issues. This data allows you to fix problems before they cause downtime.
Troubleshooting Common PVC Extrusion Defects via Machine Features
Evaluation Dimensions
Specific machine capabilities resolve frequent production challenges. Understanding how hardware fixes defects improves your procurement strategy. You can specify features that address your most common issues. This proactive approach reduces scrap rates and improves overall equipment effectiveness.
| Defect Type | Root Cause | Machine Feature Solution |
| Thermal Degradation (Yellowing) | Inadequate screw cooling or failed PID controllers. | Internal screw oil cooling systems; solid-state relays for precise heater control. |
| Dimensional Warping | Uneven cooling or misaligned haul-off tracks. | Multi-zone turbulent water tanks; servo-driven caterpillar haul-offs. |
| Surface Die Lines | Abrasive wear on die lips or un-melted particles. | Tungsten carbide die coatings; optimized twin-screw shear geometry. |
| Internal Web Collapse | Excessive vacuum pressure or poor melt strength. | Independent variable-frequency vacuum pumps for delicate chamber control. |
| Surging (Thickness Variation) | Inconsistent material bulk density entering the barrel. | Loss-in-weight gravimetric dosing systems. |
Thermal Degradation (Yellowing/Burning)
Thermal degradation appears as yellowing or brown streaks. This occurs when PVC overheats. Inadequate screw core cooling often causes this issue. Dead spots in the die design also trap material, causing it to burn. Failing temperature controllers allow heat spikes. Upgrading to internal screw oil cooling mitigates this risk. Precise PID controllers prevent thermal runaway.
Dimensional Warping and Shrinkage
Post-extrusion warping ruins structural profiles. Uneven cooling in the water tanks induces internal stresses. The profile bends as these stresses release. Misaligned caterpillar haul-offs also cause warping. They pull the profile at an angle. Ensuring turbulent, even water flow prevents thermal stress. Laser alignment of the haul-off tracks guarantees straight pulling.
Surface Imperfections
Die lines and poor gloss degrade the product appearance. Improper melt homogeneity leaves un-melted particles that score the surface. Abrasive wear on the die lips causes continuous drag lines. Incorrect vacuum sizing pressure pulls the material too hard against the calibrator. Optimizing the screw design improves mixing. Hardened die coatings resist wear and maintain a polished surface.
Specialized Applications: UPVC Window Profile Machine Considerations
Overall Value Influencing Factors

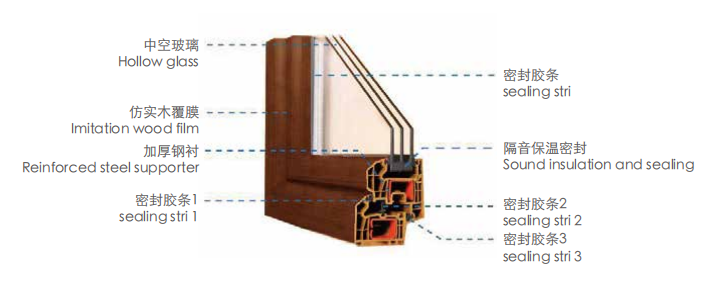

The fenestration industry requires specific machine capabilities. Window profiles are highly complex. They demand tight tolerances for weather stripping and hardware insertion. A standard extruder cannot meet these requirements. You must specify a dedicated UPVC profile machine designed for architectural applications.
Complex Internal Webbing
Window profiles feature multi-chamber designs. These internal webs provide structural rigidity and thermal insulation. Dies and calibration units must handle these delicate structures. Excessive vacuum will cause the internal walls to collapse. Insufficient cooling will allow them to sag. The calibration table requires independent vacuum control for different sections of the profile.
Weatherability and Formulation Handling
Window profiles endure harsh UV exposure. The formulation includes high levels of titanium dioxide and UV stabilizers. The UPVC window profile machine must process these blends without degrading the additives. The screw design must provide enough shear to disperse the titanium dioxide evenly. Poor dispersion leads to chalking and discoloration in the field.
In-Line Processing
Modern production lines integrate secondary operations. Automated punching units create drainage holes. Routing stations prepare hardware slots. In-line weather-strip insertion saves manual labor. Integrating these steps directly into the extrusion line increases efficiency. The central PLC must synchronize these auxiliary machines with the main haul-off speed.
Vetting a Profile Extrusion Machine Manufacturer
Evaluation Dimensions
Assessing vendor credibility ensures long-term support. You are buying a relationship, not just metal. The manufacturer must understand your specific production goals. They must provide engineering expertise and reliable after-sales service. A poor vendor choice leads to stranded assets and unsupported hardware.
Engineering and Customization Depth
Evaluate the vendor's ability to design custom solutions. A reputable profile extrusion machine manufacturer tailors the line to your factory layout. They adjust the machine height, control panel placement, and cooling tank length. They must demonstrate experience with your specific product portfolio. Ask for case studies detailing similar custom installations.
Factory Acceptance Testing (FAT)
Never accept shipment without a rigorous FAT. This testing occurs at the manufacturer's facility. You must use your actual PVC formulation and your own dies. The machine must run at the contracted speed for a sustained period. The final profiles must meet your dimensional tolerances. The FAT proves the machine works before it leaves the factory floor.
Post-Installation Support
Extrusion lines require ongoing maintenance. Service Level Agreements (SLAs) define the vendor's response time. Local spare parts inventory prevents extended downtime. Remote diagnostic capabilities allow engineers to troubleshoot PLC faults over the internet. Verify the vendor's support infrastructure before signing the purchase order.
Implementation Risks and Mitigation Strategies
Implementation Realities
Installation and commissioning present significant risks. Even the best machine fails if the facility is unprepared. You must manage the infrastructure and human elements. Proactive planning mitigates startup delays. It ensures a smooth transition from installation to full production.
Utility Infrastructure
Extrusion requires massive utility support. Chilled water systems must handle the thermal load of the cooling tanks. Compressed air must be clean and dry to operate pneumatic cutters. Stable three-phase power is critical. Voltage fluctuations will trip the VFDs and stall the extruder. You must upgrade your facility infrastructure before the machine arrives.
Operator Skill Gap
PVC extrusion relies heavily on operator intuition. Operators must understand polymer behavior and thermal dynamics. A new machine requires comprehensive training. Rely on vendor-led training programs during commissioning. Operators need hands-on experience with the new HMI screens and calibration tables. A skilled operator prevents scrap and protects the equipment.
Formulation Dial-In
Expect iterative adjustments during the startup phase. Your existing PVC dry blend may not run perfectly on new screws. The new machine has a different shear profile. You will need to tweak the lubricant package or stabilizer levels. Work closely with your material supplier and the machine vendor to dial in the formulation.
Conclusion
- Compile your specific profile drawings, throughput requirements, and material formulations before contacting vendors.
- Audit your facility's utility infrastructure to ensure adequate chilled water, compressed air, and stable electrical power.
- Demand a comprehensive Factory Acceptance Test (FAT) using your own dies and resin before authorizing machine shipment.
- Invest heavily in vendor-led operator training to bridge the skill gap and reduce initial startup scrap rates.
FAQ
Q: Why is a parallel twin screw better for window profiles?
A: Parallel twin screws provide consistent, gentle shear along a longer barrel. This prevents thermal degradation of sensitive UPVC formulations while maintaining the high output required for multi-cavity window profile production.
Q: How does vacuum calibration prevent profile warping?
A: Vacuum calibration pulls the soft polymer against chilled metal sizing sleeves. This freezes the outer dimensions instantly, preventing the profile from shrinking or warping as it cools in the water tank.
Q: What causes yellow streaks in extruded PVC profiles?
A: Yellow streaks indicate thermal degradation. This is typically caused by inadequate screw core cooling, dead spots in the die design, or failing PID temperature controllers allowing heat spikes.
Q: Why do I need a gravimetric feeder for PVC extrusion?
A: Gravimetric feeders measure the exact mass of material entering the extruder. This compensates for variations in bulk density, ensuring constant melt pressure and preventing dimensional fluctuations in the final profile.
Q: Can I run flexible and rigid PVC on the same machine?
A: While possible, it is not optimal. Rigid UPVC requires high-torque gearboxes and intensive cooling. Flexible PVC requires specialized haul-off tension control. Switching between them requires significant mechanical and tooling adjustments.
Q: What is the purpose of bimetallic barrels in PVC extrusion?
A: PVC processing releases corrosive gases, and fillers like calcium carbonate are highly abrasive. Bimetallic coatings, such as tungsten carbide, protect the barrel and screws from rapid wear, extending machine life.
Q: How do I fix die lines on my PVC profile?
A: Die lines are caused by abrasive wear on the die lips or un-melted polymer particles scoring the surface. You must polish or re-coat the die lips and adjust the screw temperature to ensure complete melt homogeneity.
