High-volume building materials manufacturing relies on minimizing scrap rates, maximizing continuous uptime, and achieving a flawless surface finish straight off the line. Scaling up PVC door and window production exposes equipment limitations. Plant managers frequently battle melt instability, dimensional inconsistencies at high speeds, and prolonged tooling changeovers that bottleneck output. Selecting the right equipment requires moving beyond basic throughput claims. You must evaluate extruder geometry, coordinated process flow, calibration precision, and control automation. This guide provides a technical framework for evaluating and specifying a production line. We outline how to meet strict dimensional tolerances, aesthetic requirements, and operational efficiency targets without relying on trial and error on the factory floor.
Extruder Geometry Dictates Stability: Parallel twin-screw extruders generally offer superior melt stability and can boost output by up to 30% for rigid PVC compared to conical alternatives, directly impacting high-volume yield.
Calibration is the Bottleneck: The length and vacuum efficiency of the calibration table determine the maximum line speed without compromising the profile's structural integrity.
Tooling Flexibility Drives ROI: A highly configurable setup reduces downtime when switching between standard door frames, WPC (Wood Plastic Composite) panels, and complex Plastic Steel Door and Window Profiles.
Integrated Finishing Adds Value: Incorporating inline surface treatment (lamination or hot stamping) reduces secondary processing costs and accelerates time-to-market.
Vendor Support Mitigates Risk: Partnering with an established profile extrusion machine manufacturer that offers rigorous Factory Acceptance Testing (FAT) is critical to ensuring rapid deployment and minimizing adoption risks.

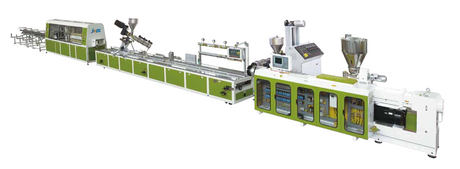

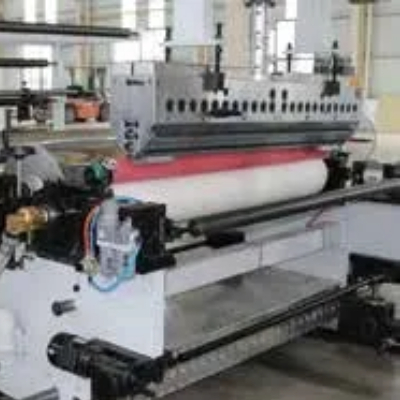

Core Components of a High-Volume PVC Door Profile Extrusion Machine
A high-volume PVC door profile extrusion machine operates as a synchronized system. Every component from the material feeder to the cutting saw must maintain exact coordination. Component selection directly dictates the maximum line speed and the final profile quality.
Drive and Motor Systems
The main drive motor powers the extrusion process. You must evaluate the torque capacity and energy efficiency of these motors. Permanent magnet synchronous motors (PMSM) offer distinct advantages over standard AC motors. They provide higher torque at lower RPMs and maintain excellent energy efficiency across varying load conditions. Upgrading to a PMSM drive reduces electrical consumption and minimizes heat generation within the motor housing. This translates to lower long-term operational expenses.
Motor Type
Energy Efficiency
Torque at Low RPM
Maintenance Requirements
Standard AC Motor
Moderate (75-85%)
Lower
High (Brush and bearing wear)
PMSM (Permanent Magnet)
High (90-95%)
Maximum
Low (Fewer moving parts)
Twin-Screw Extruder Unit
Extruder geometry determines how effectively the machine melts and mixes the PVC formulation. High-volume continuous runs require specific screw designs to prevent material degradation.
Feature
Conical Twin-Screw Extruder
Parallel Twin-Screw Extruder
Output Capacity
Moderate (Ideal for small to medium runs)
High (Optimized for large-scale production)
Melt Stability
Good at lower speeds
Superior at high speeds
Shear Rate
Higher shear, faster plasticization
Lower shear, prevents PVC degradation
Application Focus
Standard profiles, high-pressure dies
High-volume door panels, wide profiles
The Length to Diameter (L/D) ratio strongly influences plasticization quality. Rigid PVC formulations require precise melt pressure control. An optimal L/D ratio ensures the material spends enough time in the barrel to melt uniformly without burning. Processing high-calcium or WPC formulations introduces severe abrasion risks. You must specify bimetallic barrels and specially treated screws. Tungsten carbide coatings protect the screw flights from rapid wear, ensuring consistent output over thousands of operating hours.
Die Head and Tooling Design
The extrusion die shapes the molten plastic into the final profile. Flow channel design inside the die dictates product viability. Poorly designed channels cause material stagnation, leading to burned PVC and ruined profiles. The internal geometry must promote smooth, balanced flow across the entire cross-section. A custom PVC profile machine accommodates complex multi-cavity dies. These dies allow you to extrude intricate door panel structures and multi-chamber frames simultaneously. Precision machining of the die lips ensures uniform wall thickness, which prevents warping during the cooling phase.
Vacuum Calibration and Cooling Tables
Calibration tables freeze the molten profile into its final dimensions. The length of the table and the efficiency of the vacuum pumps determine your maximum line speed. High-volume lines typically require calibration tables ranging from 6 to 11 meters. Heavy door profiles need extended cooling time to prevent internal heat from softening the outer walls after exiting the table. High-capacity vacuum pumps pull the profile against the sizing blocks to maintain strict tolerances. Closed-loop water cooling systems provide rapid heat dissipation. They circulate chilled water through the calibration blocks, extracting heat efficiently while conserving water resources.
Operators must follow strict procedures when setting up the calibration phase:
Align the die exit perfectly with the first dry calibration block to prevent profile tearing.
Set initial vacuum pressure high enough to stabilize the outer walls without causing drag.
Adjust water flow valves to prevent rapid quenching, which induces internal stress.
Monitor profile dimensions continuously during the first 10 minutes of startup to account for thermal expansion.
Haul-Off and Cutting Mechanisms
The haul-off unit pulls the profile through the calibration table. Caterpillar haul-off units provide consistent pulling force. They use non-marking rubber pads to grip the profile securely without causing deformation. The pulling speed must synchronize perfectly with the extruder output. Precision cutting units follow the haul-off. You can choose between planetary saws for large, thick-walled profiles or guillotine cutters for smaller sections. Saws must feature robust dust extraction systems to maintain a clean working environment. PLC-synchronized tracking ensures the cutter matches the line speed, delivering exact cut lengths without slowing down production.
Inline Surface Treatment and Finishing Units
Integrating downstream surface treatments eliminates the need for offline processing. You can add inline hot stamping, lamination, or printing units directly after the haul-off. These units apply wood-grain foils or custom aesthetic finishes while the profile is still moving. Inline lamination relies on precise tension control and targeted heat application to bond the foil to the PVC substrate. This integration reduces secondary processing costs, minimizes material handling, and accelerates your time-to-market.
Evaluating Production Capacity and Material Versatility
Production capacity extends beyond the numbers listed on a specification sheet. You must evaluate how the equipment handles real-world manufacturing conditions, material variations, and continuous high-speed operation.
Throughput Rates vs. Actual Yield
Manufacturers often advertise theoretical maximum output in kilograms per hour. You must differentiate this theoretical number from the actual usable yield. High-speed extrusion generates scrap during startup, shutdown, and speed fluctuations. Evaluate manufacturer claims of output boosts against the realities of your production floor. A machine that produces 500 kg/hr but generates 15% scrap yields less usable product than a stable machine running at 450 kg/hr with only 2% scrap. Focus on equipment that reaches steady-state operation quickly and maintains tight tolerances during minor voltage or temperature shifts.
Handling Diverse Formulations
High-volume production often requires running multiple material formulations. Assess the machine's ability to process various dry blends. Formulations heavily dictate machine setup. A standard rigid PVC mix might use 10-15 phr (parts per hundred resin) of calcium carbonate. High-filler formulations push this to 40 phr or more, drastically changing the melt rheology. The extruder must generate enough shear to melt the PVC without burning the stabilizers. Impact modifiers like CPE (Chlorinated Polyethylene) require precise temperature control to disperse evenly. If the melt temperature drops too low, the impact modifiers fail to activate, resulting in brittle door frames that crack during installation.
Co-extrusion capabilities are mandatory for producing Plastic Steel Door and Window Profiles. These setups use multiple extruders feeding into a single die. They allow you to extrude a weather-resistant ASA or PMMA outer layer over a highly filled PVC core, or integrate steel reinforcements directly into the profile structure.
Melt Stability at High Speeds
Pushing an extruder to its maximum speed often destabilizes the melt. You must maintain consistent melt temperature and pressure to prevent surface defects. The technical requirements for high-speed stability include advanced screw geometries, precise barrel heating zones, and responsive melt pressure transducers. These components work together to deliver a homogenous melt to the die, ensuring a smooth, defect-free surface even at maximum line speeds.
When defects occur, operators must diagnose the root cause immediately:
Sharkskin Surface: Indicates melt fracture. Reduce haul-off speed or increase die lip temperature by 2-5 degrees Celsius.
Yellowing or Discoloration: Points to material degradation. Check barrel cooling fans and verify the stabilizer dosage in the dry blend.
Dimensional Surging: Caused by inconsistent feeding or screw wear. Inspect the dosing unit and monitor main motor amperage for fluctuations.
Key Decision Factors When Selecting a Door and Window Profile Extruder
Choosing a Door and Window Profile Extruder requires analyzing operational efficiency, automation capabilities, and maintenance demands. These factors dictate the long-term viability of your production line.
Energy Efficiency and Resource Consumption
Energy consumption heavily influences production margins. Analyze the specific energy consumption of the machine, measured in kilowatt-hours per kilogram of processed material (kWh/kg). Evaluate the efficiency of the barrel heating and cooling systems. Ceramic band heaters with insulated covers reduce heat loss. Variable frequency drives on vacuum pumps lower power draw when full vacuum capacity is not required. Efficient closed-loop water systems reduce both water consumption and the energy needed for chilling.
Automation and Coordinated Process Flow
Modern extrusion relies on advanced automation. Advanced PLC systems manage the entire line. They provide recipe management, allowing operators to load specific temperature profiles and speed settings for different products instantly. Automated temperature control uses PID algorithms to prevent overheating in the barrel zones. Real-time fault diagnostics pinpoint issues immediately, reducing troubleshooting time. Synchronized process flow ensures the melting, die forming, and haul-off speeds remain perfectly coordinated. This prevents line tension issues that cause profile stretching or jamming. Integrating inline dimensional measurement systems, such as laser or optical scanners, automates quality assurance by alerting operators the moment a profile drifts out of tolerance.
Tooling Changeover and Maintenance Downtime
Running multiple SKUs on a single PVC door frame extrusion line requires frequent tooling changes. Assess the availability of quick-change die systems. These systems use standardized mounting plates and quick-release clamps to reduce physical changeover time. Modular calibration setups allow operators to swap out sizing blocks rapidly. Calculate the financial impact of changeover times. Reducing a tooling change from four hours to two hours effectively adds hundreds of kilograms of production capacity to your weekly schedule.
Implementation Realities and Adoption Risks
Deploying a new extrusion line involves significant logistical and operational challenges. Preparing your facility and your workforce minimizes adoption risks and accelerates the path to full production.
Facility Footprint and Infrastructure
High-volume extrusion lines require substantial physical space. A standard 65/132 twin-screw line requires a minimum footprint of 30 meters by 4 meters. The foundation must support static loads exceeding 8,000 kilograms at the extruder base. Heavy twin-screw extruders require reinforced concrete floors to prevent vibration transfer. Trenching for water and power lines keeps the factory floor clear of tripping hazards. Chilled water systems must deliver water at 10-15 degrees Celsius with a flow rate of at least 15 cubic meters per hour. Compressed air lines need a steady 0.6 to 0.8 MPa pressure to operate pneumatic cutting saws and stacking tables reliably. Ensure your facility has the high-voltage power infrastructure necessary to support the total connected load of the machine.
Operator Training and Skill Gaps
High-tech extrusion lines require skilled operators. Address the reality that automated systems introduce a learning curve. Operators must understand new HMI screens, recipe management systems, and complex troubleshooting protocols. Transitioning from manual machines to fully automated lines exposes skill gaps. Invest in comprehensive training programs. Operators need to know how to interpret melt pressure alarms, adjust vacuum settings to correct profile warping, and perform safe tooling changeovers.
Daily maintenance routines prevent catastrophic failures. Operators must execute the following checks before starting a shift:
Inspect vacuum pump filters and clear any PVC dust buildup.
Verify water flow through all calibration blocks to prevent dry running.
Check the gearbox oil level and monitor for unusual vibration signatures.
Calibrate the haul-off caterpillar pressure to avoid crushing thin-walled profiles.
Supply Chain and Spare Parts Availability
Equipment breakdowns halt production. Identify the risks of proprietary components. Machines built with custom, single-source electronics or gearboxes leave you vulnerable to extended downtime if the manufacturer experiences supply chain issues. Emphasize the importance of machines built with globally sourced, standardized parts. Standardized bearings, contactors, VFDs, and PLC modules ensure alignment with international manufacturing standards. You can source these parts locally, preventing weeks of downtime waiting for overseas shipments.
Vetting a Profile Extrusion Machine Manufacturer
Your relationship with the equipment vendor extends far beyond the initial purchase. Vetting the manufacturer ensures you receive reliable equipment and competent technical support.
Assessing Engineering Pedigree
Verify a manufacturer's specific expertise in rigid PVC, WPC, and door profile applications. General plastics machinery builders often lack the nuanced understanding required for complex profile extrusion. A dedicated profile extrusion machine manufacturer understands the specific rheological behavior of highly filled PVC. They know how to design dies that balance flow for multi-chamber window frames and heavy door panels. Ask for case studies or reference sites demonstrating their success in high-volume building materials production.
Factory Acceptance Testing (FAT) Protocols
Never accept a machine without a rigorous Factory Acceptance Test. Define non-negotiable criteria for a successful FAT. The manufacturer must run the PVC profile extrusion machine using your specific material formulation and your exact tooling. They must achieve the guaranteed production speeds and maintain dimensional tolerances for a continuous period, typically 4 to 8 hours. This proves the machine's capability before it leaves their facility. It allows you to identify and resolve software bugs, heating issues, or die imbalances before shipment.
Post-Installation Support and Warranty
Evaluate the vendor's post-installation support infrastructure. Review their Service Level Agreements (SLAs) regarding response times for technical issues. Remote diagnostic capabilities allow the manufacturer's engineers to log into your PLC securely and troubleshoot software or sensor faults instantly. Ensure the availability of localized field service technicians. If a mechanical failure occurs, you need a technician on-site quickly to minimize production losses.
Conclusion
Initiate technical consultations with shortlisted vendors to discuss your specific profile drawings and material formulations.
Request detailed energy consumption data (kWh/kg) from actual production runs to calculate long-term utility expenses.
Draft rigorous FAT requirements that mandate running your exact dry blend at target speeds before approving shipment.
Evaluate your facility's cooling water and power infrastructure to ensure it can support the new extrusion line.
FAQ
Q: What is the typical output capacity of a high-volume PVC door profile extrusion machine?
A: Output capacity typically ranges from 300 kg/hr to over 800 kg/hr. The exact yield depends heavily on the profile weight, the specific material formulation, and the size of the twin-screw extruder. Heavier door panels allow for higher throughput compared to thin-walled window frames.
Q: How does a parallel twin-screw extruder differ from a conical twin-screw for PVC profiles?
A: Parallel twin-screw extruders provide lower shear and longer residence times. This makes them ideal for high-volume, high-speed runs with stable plasticization. Conical extruders generate higher shear and pressure quickly, which suits lower output runs and highly complex, smaller profiles.
Q: What is the standard length of a cooling and calibration table for door frames?
A: High-volume door frame production typically requires calibration tables between 6 and 11 meters long. Thick-walled profiles retain significant internal heat. They need extended vacuum sizing and water cooling to ensure dimensional stability and prevent post-extrusion warping.
Q: Can a single PVC profile extrusion machine produce both door panels and window frames?
A: Yes, a single machine can produce both by changing the extrusion die and calibration tooling. You must ensure the extruder's output capacity and the haul-off unit's gripping dimensions are sized appropriately to handle both the large door panels and the smaller window frames.
Q: Can surface treatments like lamination be integrated directly into the extrusion line?
A: Yes, inline lamination and hot stamping units can be installed directly downstream of the haul-off. This requires additional floor space, usually 2 to 4 meters. It eliminates the need for offline secondary processing, significantly reducing labor and handling costs.
Q: How do you prevent surface defects during high-speed PVC extrusion?
A: Preventing surface defects requires precise temperature control across all barrel zones, a polished die flow channel, and coordinated haul-off speeds. Maintaining consistent melt pressure and utilizing high-efficiency vacuum calibration also prevent sharkskin and dimensional surging at high speeds.
Q: What are the power requirements for a complete PVC door frame extrusion line?
A: A complete line typically requires a total connected load between 150 kW and 400 kW, depending on the extruder size and downstream equipment. Operational power consumption is usually 60% to 70% of the connected load during steady-state production.
