JWELL PET/PA6/Composed POY Yarn High Speed Spinning Machine

Origin: Jiansu, China
Type: Synthetic Spinning Machine
Application: Suitable For Spinning 30-330dtex Polyester Filament And Chips Spinning For PA6, PA66
Customized: Customized
Automatic : Available
Warranty: 12-15 months
Delivery Time: 120-150 days
Certification: CE, ISO19001:2000
Availability:
Quantity:
Inquire Add to Basket

 Basic Information

Original China
Model No. Synthetic Fiber Machine
Application Sutable For  Spinning Polyester(PET) Filament And Chips Spinning For PA6, PA66
Specification
  30-330dtex /12-144F
Customized Customized
Automatic Automatic
Power Electric
Spinning type Extruder spinning
Production Capacity 1000 tons/year
Technic support Yes
Spare pares support Yes
After sales service 24 hours online
Condition New
Factory or Trading Factory
Certification CE, ISO19001:2000
Warranty 12-15months
Deliery Time 120-150 days



Process Overview

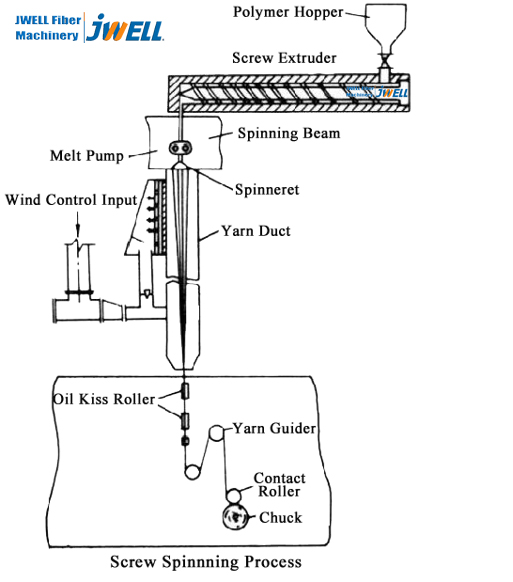

Dry chips→ Melt extrusion → Mixing → Metering → Filtration → Spinning → Cooling and shaping → Oiling → Winding.


JWELL PET PA6 Composed Yarn(filament) POY Spinning Line

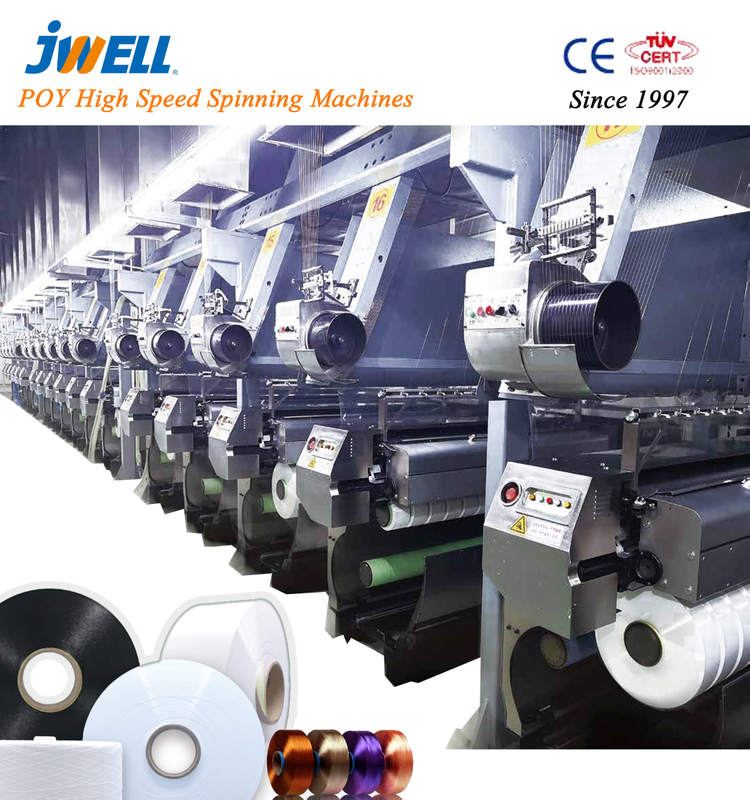

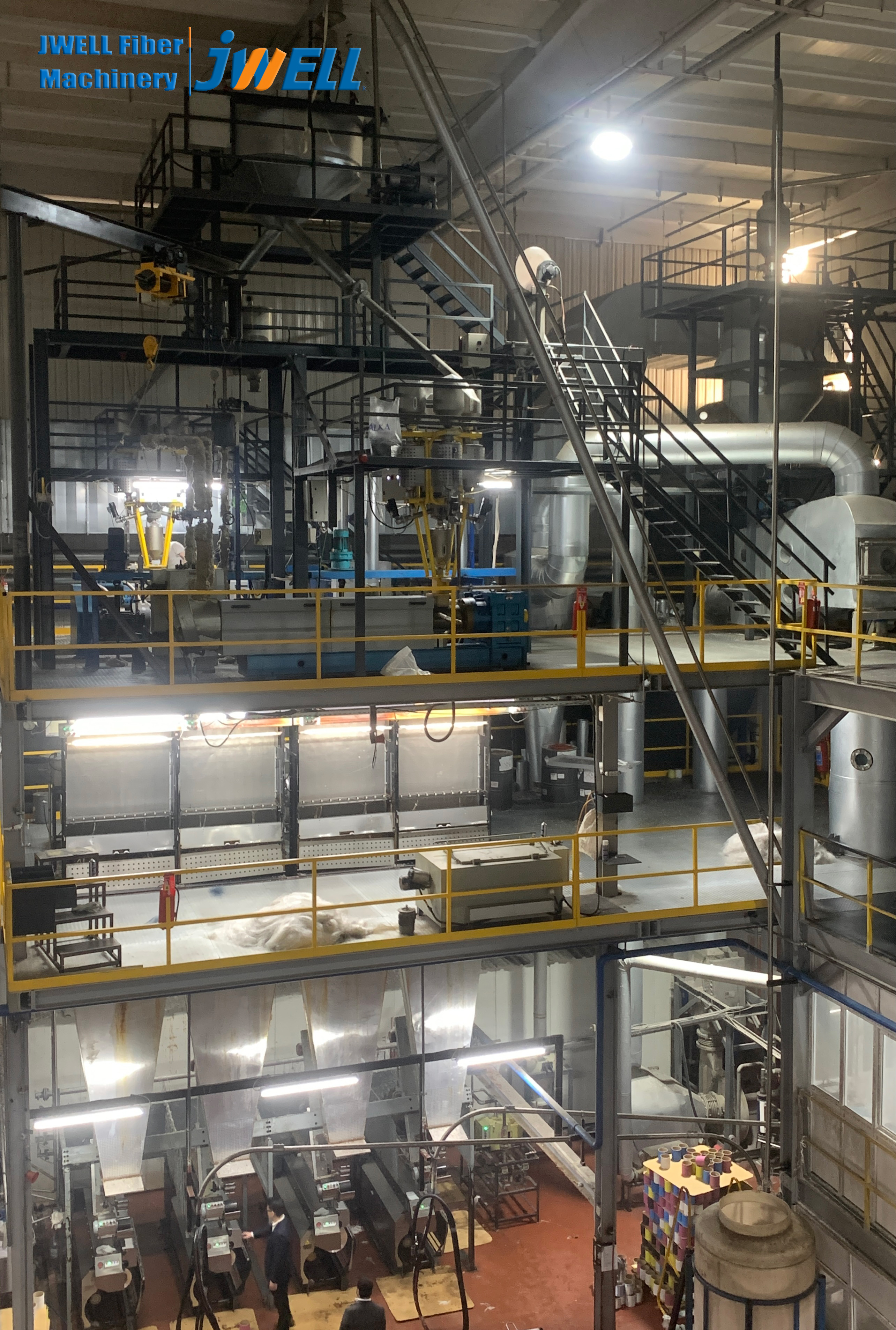

JWELL PET PA6 Composed POY Yarn Spinning Line(Customer site )





Production

Suitable for producing black yarns, white yarns, various colored yarns, and funtional yarns.

poy (3)

White yarn

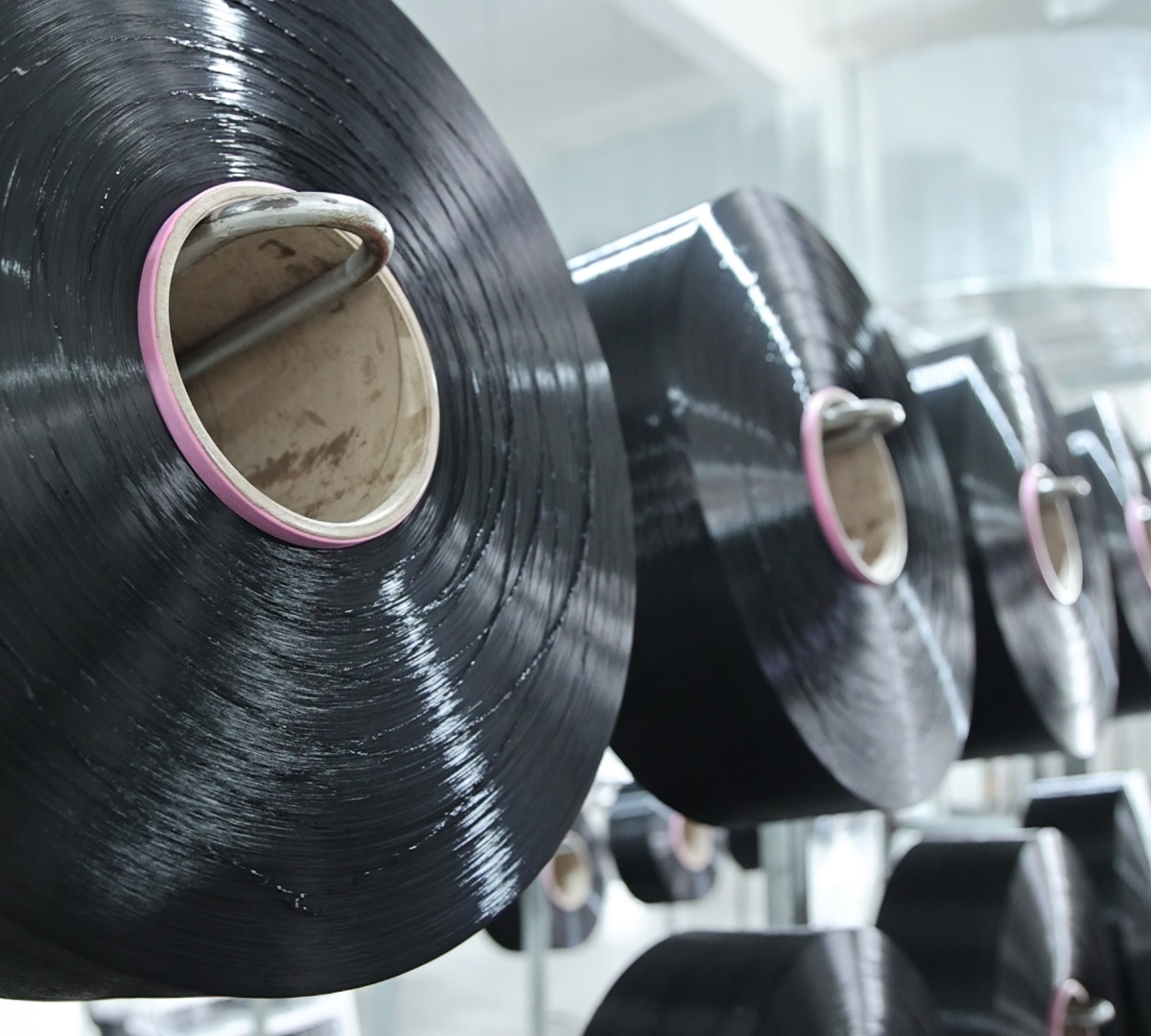

JWELL PET Black Yarn Machine

Black yarn

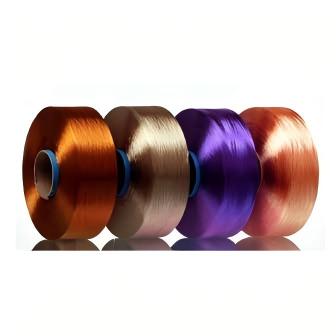

Production(1)

Colored yarn

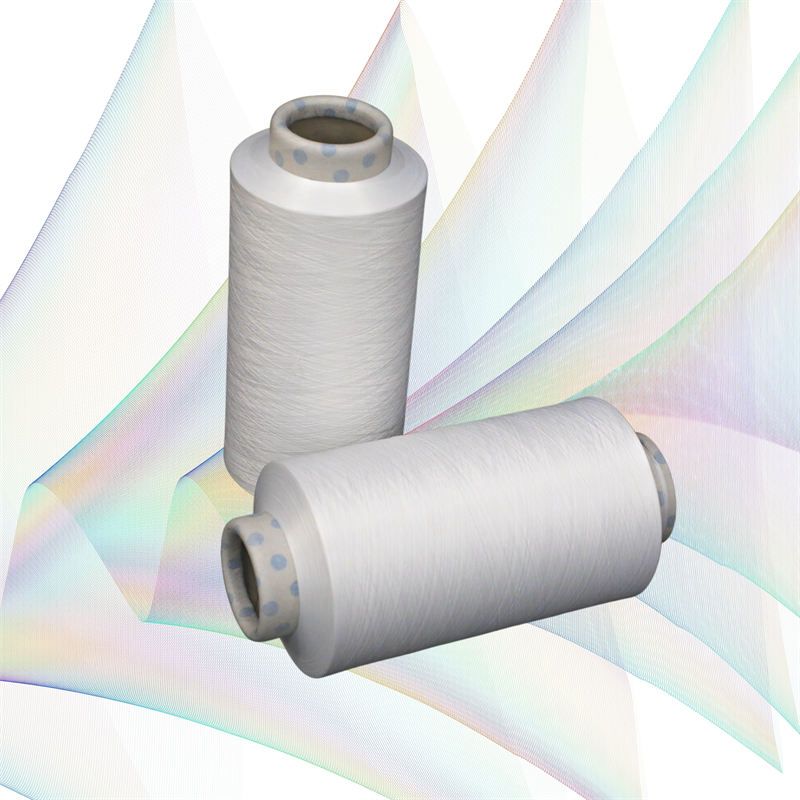

Lightweight Fiber

Light Weight Fiber

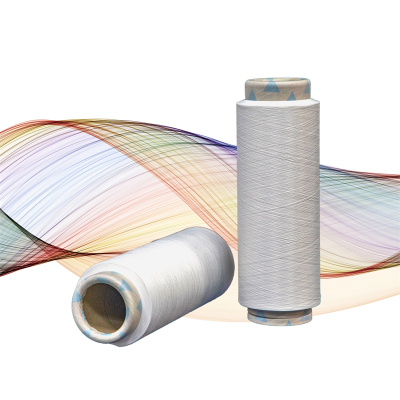

Antiyellowing Fiber

Anti yellowing Fiber

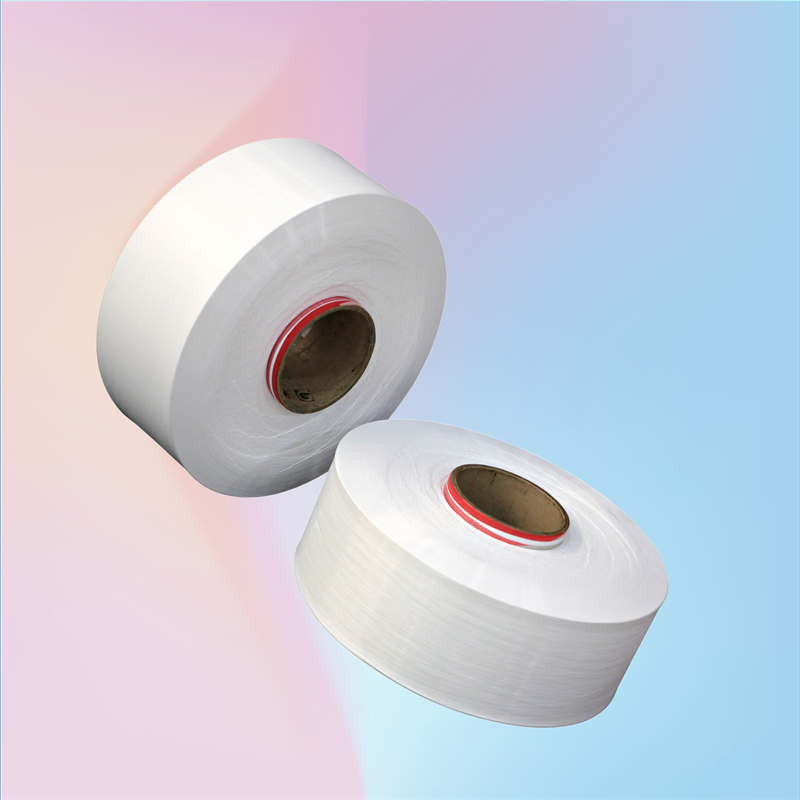

Superfine Denier PA6

Superfine Denier PA6

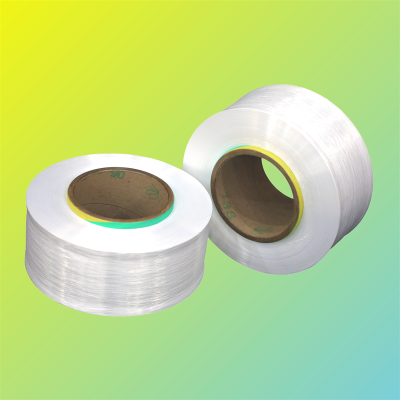

Cool Feeling Fiber

Cool Feeling Fiber

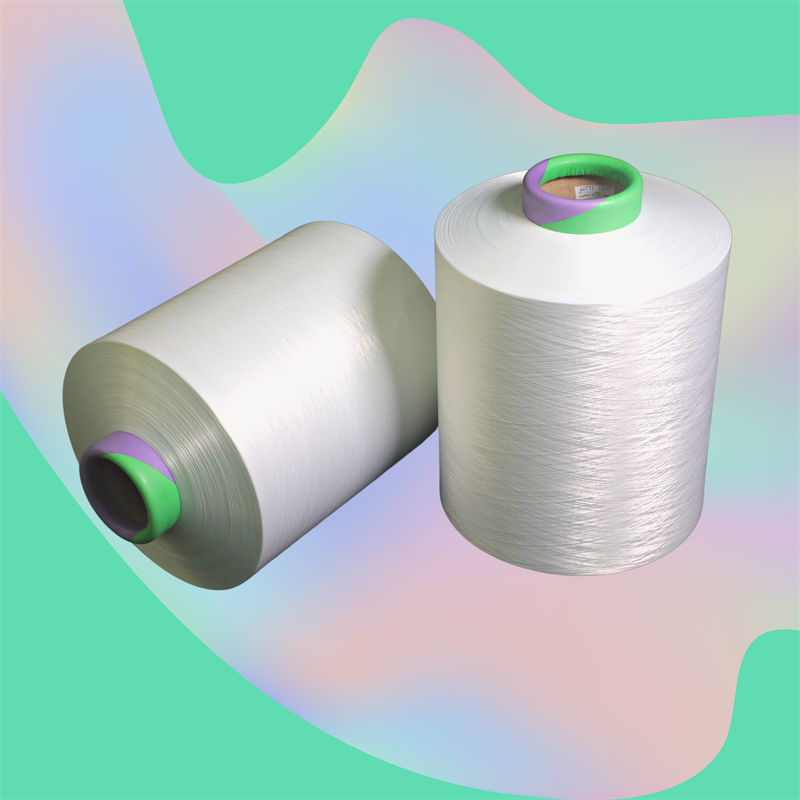

Water Repellent Fiber

Water Repellent Fiber


Product Application

Application Producton Scene
Clothing Apparel Fabrics 11
Sportswear 2
Fitting Curtains 3
Bedding 4
Car Interiors Car Seat and table Fabri-cs 5
Car Carpets 6
Industry Rope、Lifting Strap 77
Conveyor belt 8


Your Benefits

  • Sustainability saves money

  • Automation makes processes more efficient

  • Digital plants help you maintaining the overview

  • Easy maintenance ,faster start up




Main Features

Application 1: Used for spinning 30-330dtex polyester POY

Application 2:Used for chips spinning of PA6 and PA66.

Main features


  • Adopt new type of bimetal, barrel and special manifold design.

  • Energy saving spin beam, equipped with botton mounted, high pressure  cylinder spin pack.

  • Unique planetary spinning pump and separately driving finish oil pump. With  well designed air suctivice for monomer.

  • Uniform front dismountable quenching chamber and unique nozzle type oil  adding device.

  • Equipped with precision winding and high speed automatic winders, high  succssfully of doffing, fineless of yarn shape, and good function of unwinding.

Main features


  • Adopt new type of bimetal, barrel and special manifold design.

  • Energy saving spin beam,equipped witj bottom mounted,high pressure cylinder spin pack.

  • Unique planetary sping pumpand separately driving finish oil pump. With well designed air suctivice for monomer.

  • Uniform front dismountable quenching chamber and unique nozzle type oil adding device.

  • Equipped with precision winding and high speed automatic winders, high successfully of doffing, fineless of yarn shape,and good function of unwinding.


Technical Datas

Spinning TypeExtruder Spinning
Dtex/Filament30-330 D
Holes12-144F
Type Of Spin Pack
Cylinder Shape, Bottom Load
Size Of SpinneretΦ70-105mm
Oil Feeding TypeFinishing Spray
Spinning BeamCross Quenching , EVO Queching
GR(Godet roller)Φ220mm
SR(Separate roller)Φ110mm
Type Of  Winder
Birotor Type , Traverse Cam Type
Ends of Winder8ends\10ends\12ends\16ends\20ends
Mechnical Speed2800-3500m/min
Weight/each bobbin15-20kg


Before-sale Service

1、JWELL  provides cusotmer complete engineering solutions in all asepects.

2、You are warmly welcome to visit our factory.


After-sale Service

1、JWELL guarantee machine quality for 12 months to 15 months.

2、JWELL provides service from initial on-site factory surveys, equipment specification communication, process design and installation debugging& trainning,

3、JWELL offers global 24/7 remote diagnostics, on-site engineer commissioning, and operator training programs.


On Site

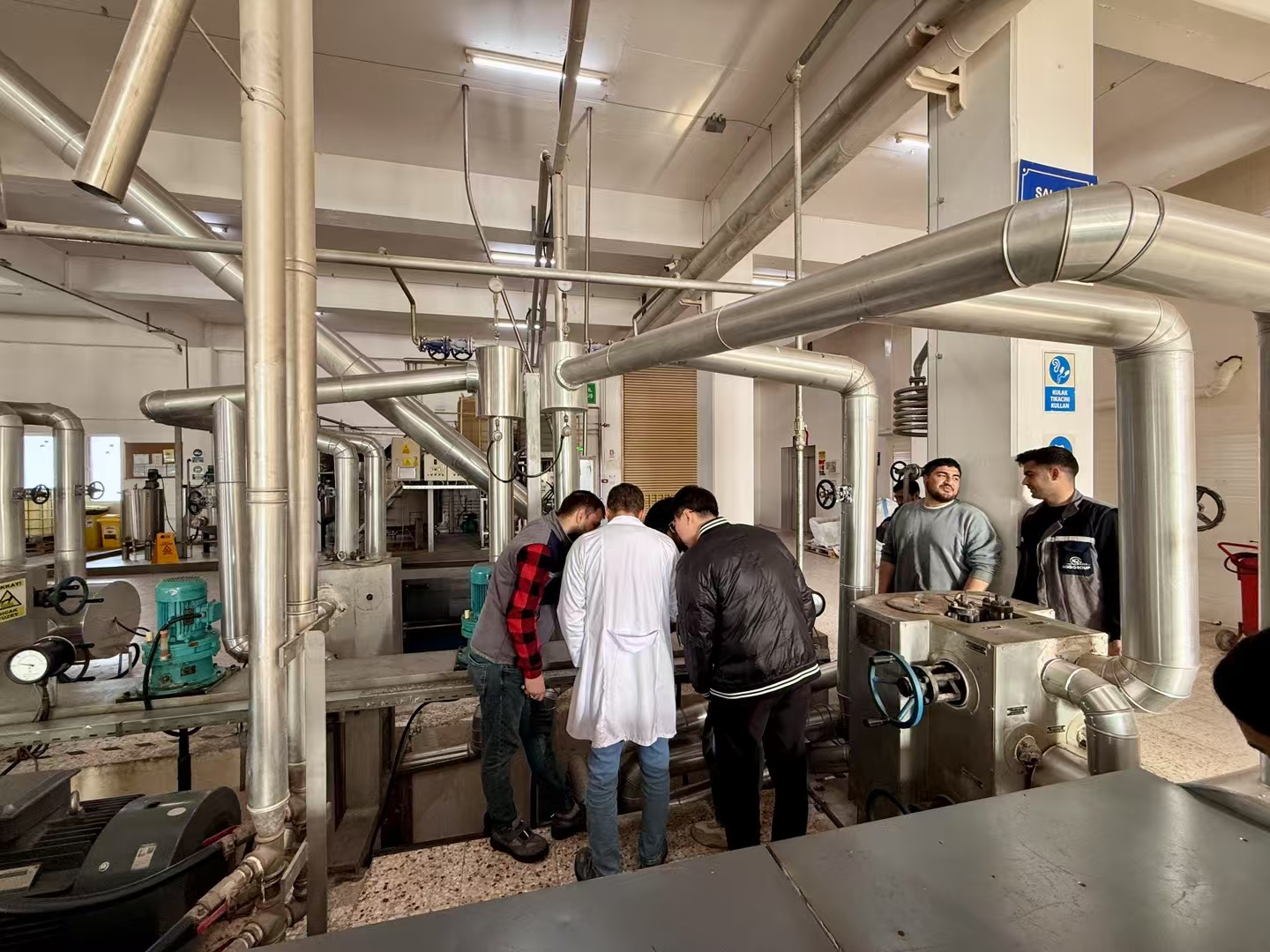

售后服务

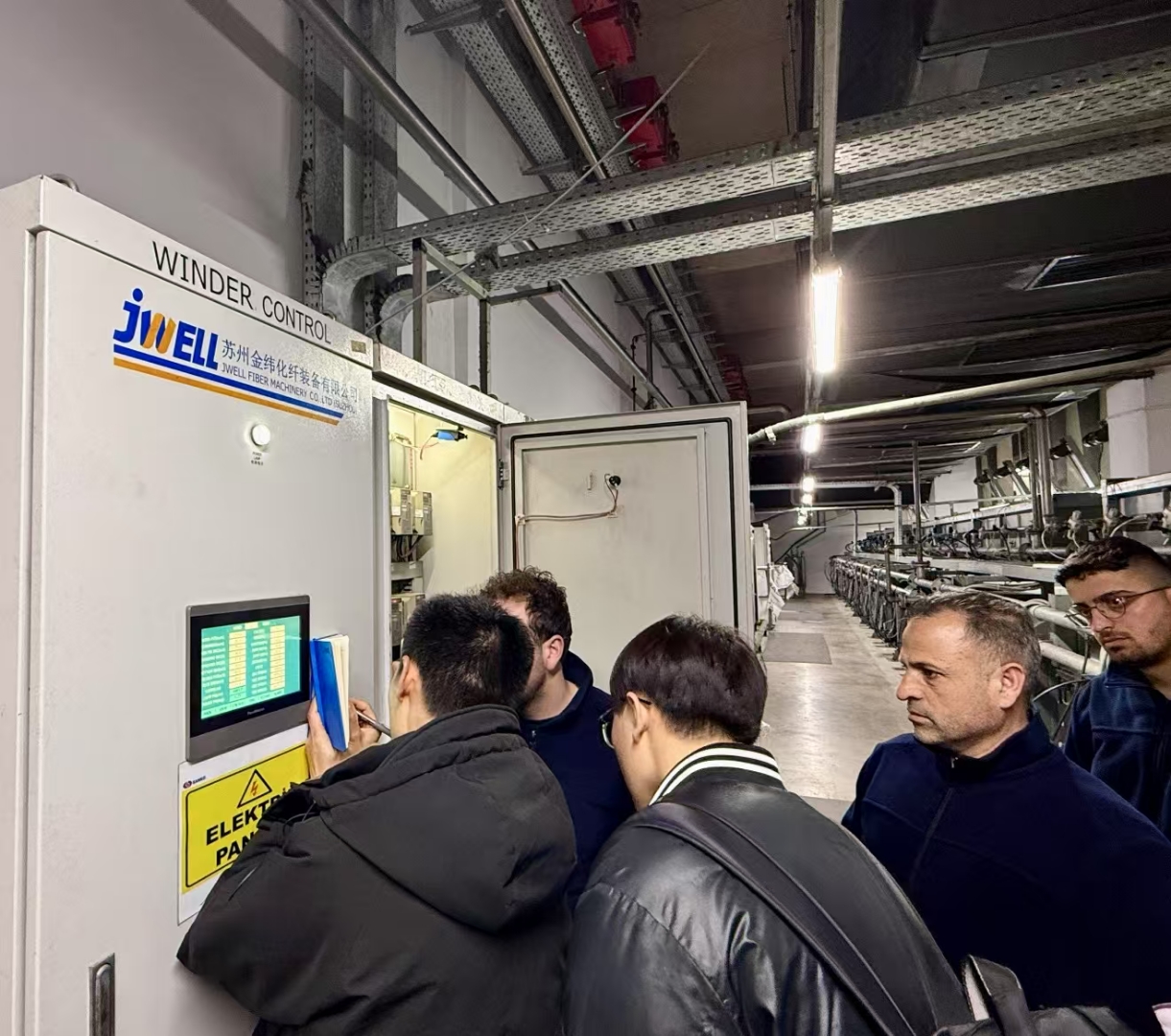

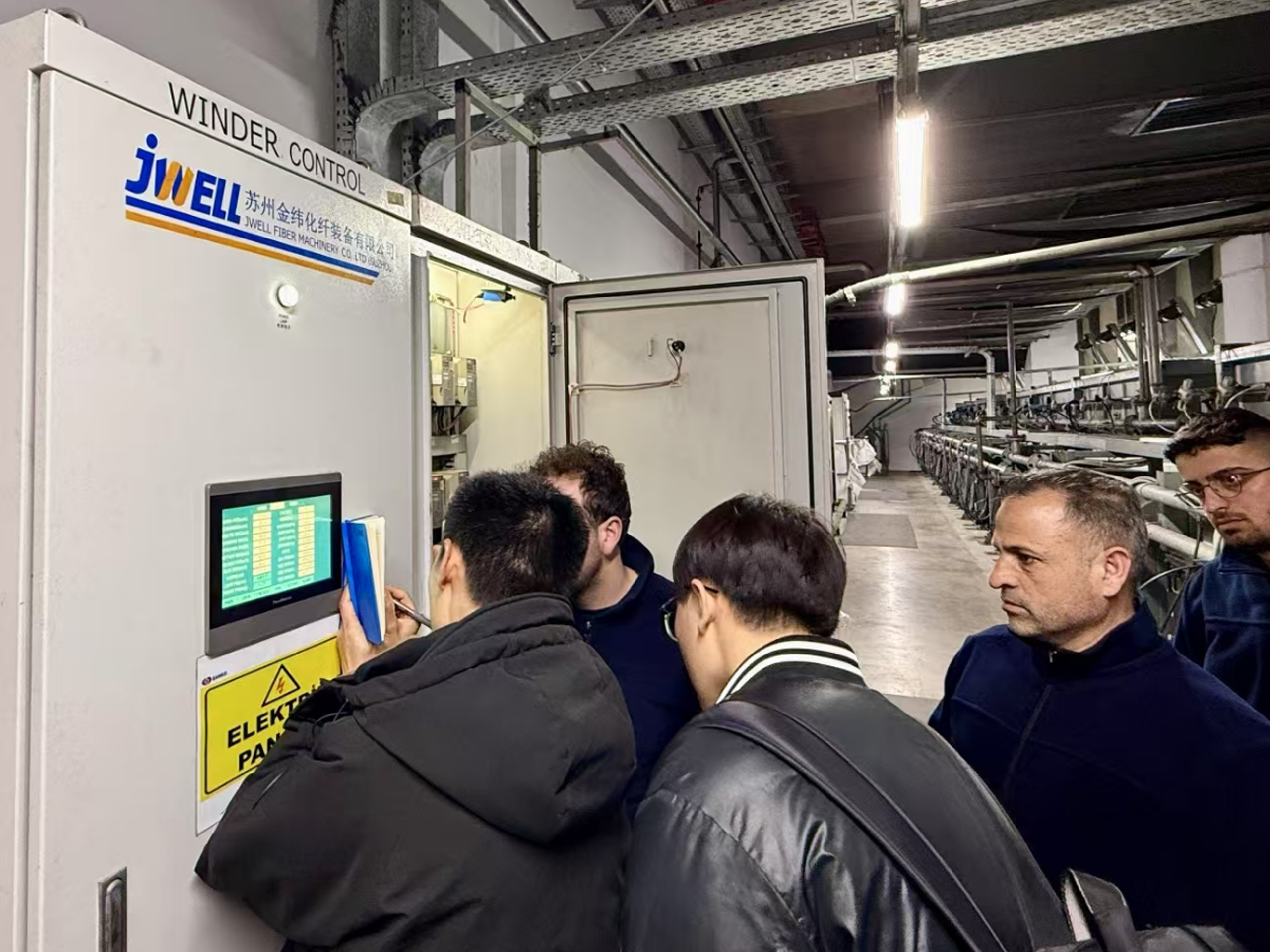

教授调试

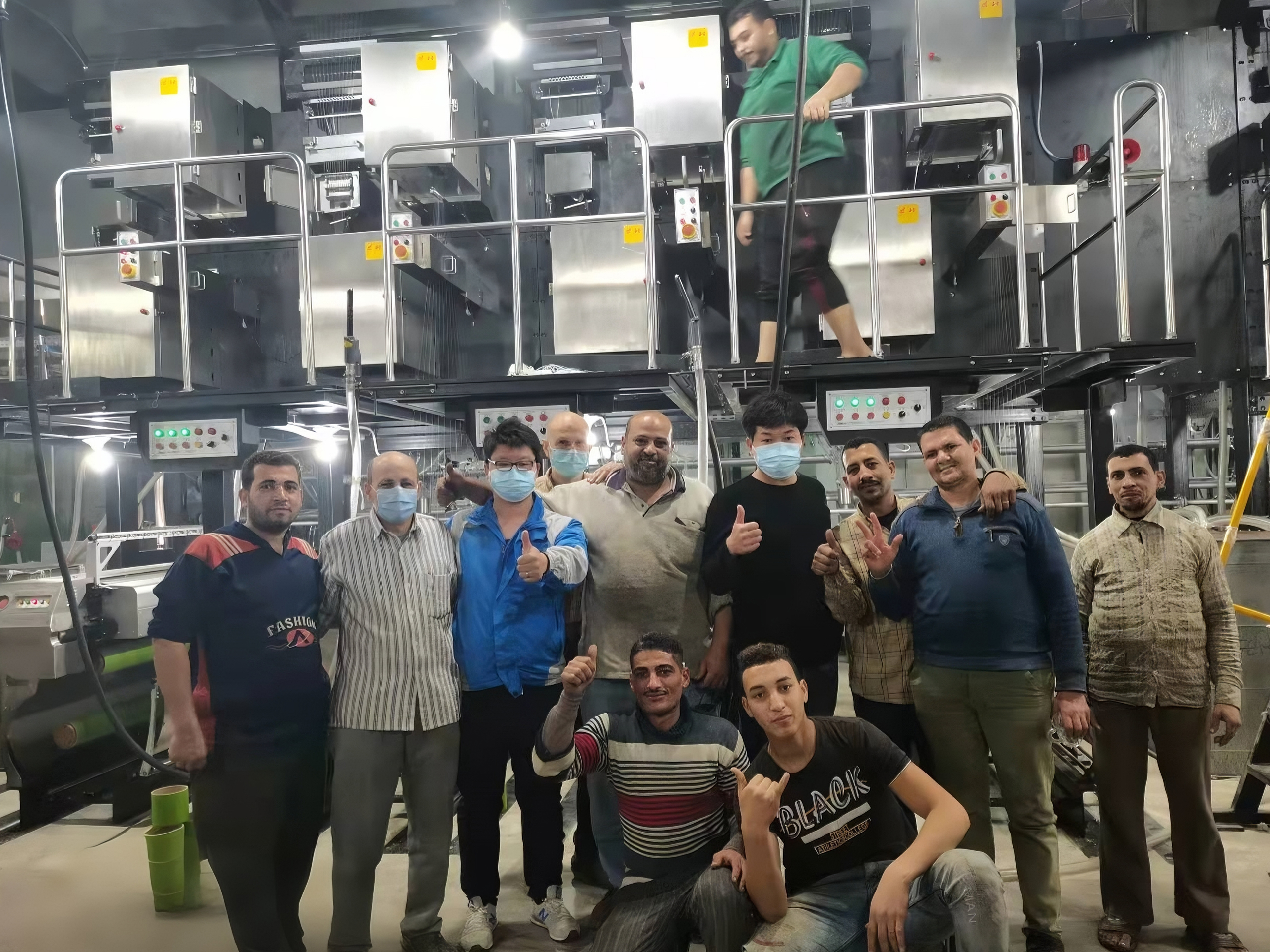

售后2
售后3


Company Profile

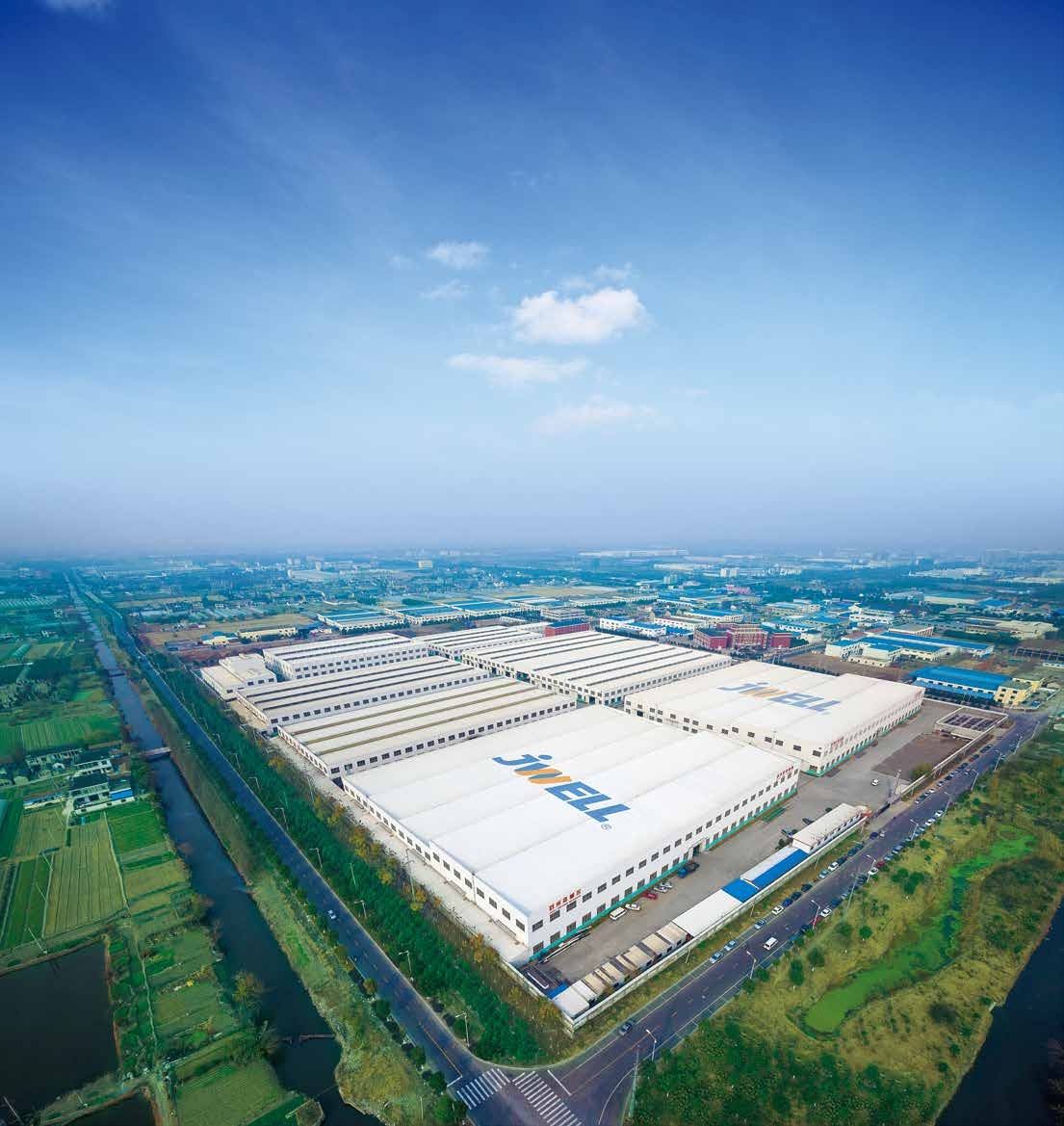

厂房

JWELL FIBER SPINNING MACHINERY

JWELL Fiber Machinery Co.，Ltd (SUZHOU), its predecessor was Shanghai JWELL Chemical Fiber Company, with nearly 30 years of accumulation, has grown into a national high-tech enterprise and a globally well-known manufacturer of chemical fiber spinning equipment since its establishment in1997. The company locate in the Yangtze River Delta core zone—Chengxiang Industrial Park, Taicang City, Jiangsu Province, owned 20-hectare smart manufacturing base featuring 12,000㎡ of modern workshops equipped with precision CNC machining centers and intelligent assembly lines, enabling an annual production capacity of 1,000+ units. JWELL is committed to providing global customers with end-to-end intelligent equipment solutions, from R&D to mass production.


          7                           26                       120+                 3000+               3000

Production Base       Subsidary Company      Business Coverage       Annual Output        Company Staff

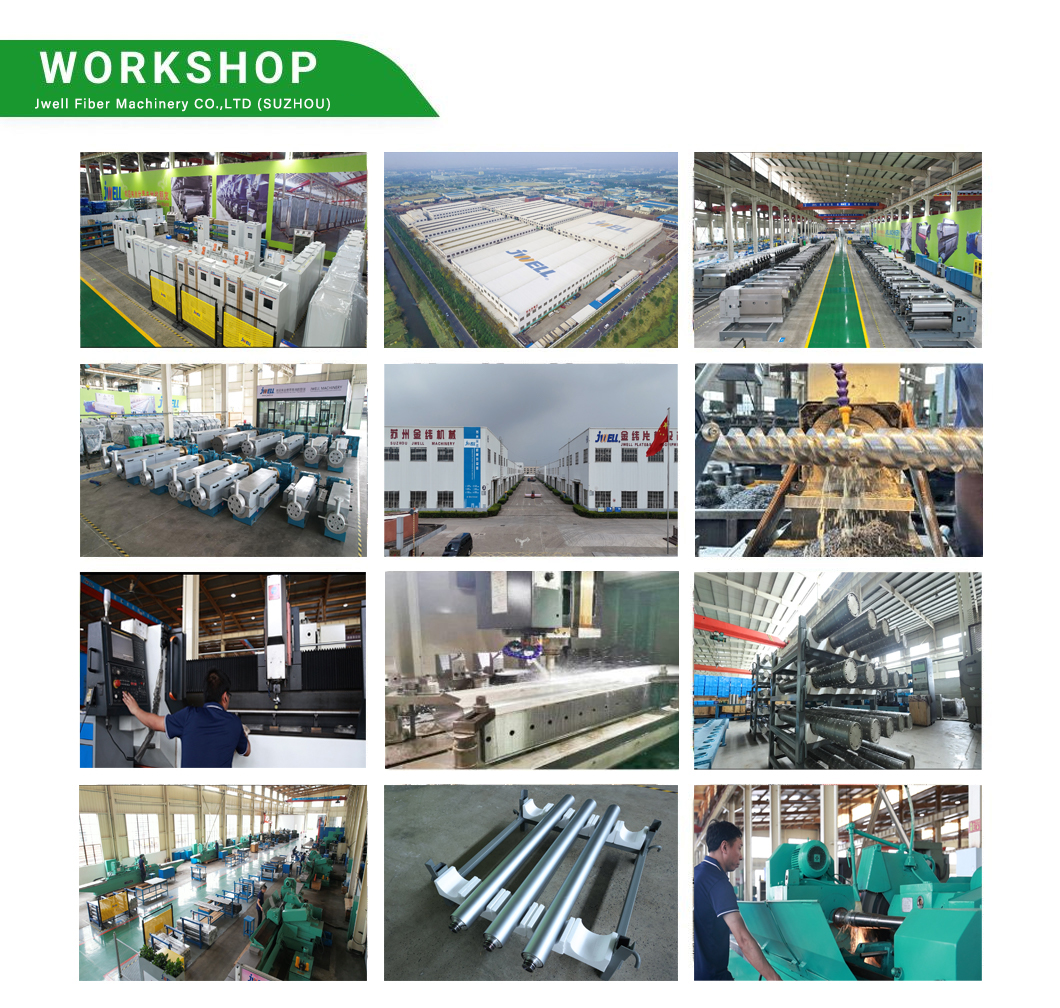

Workshop

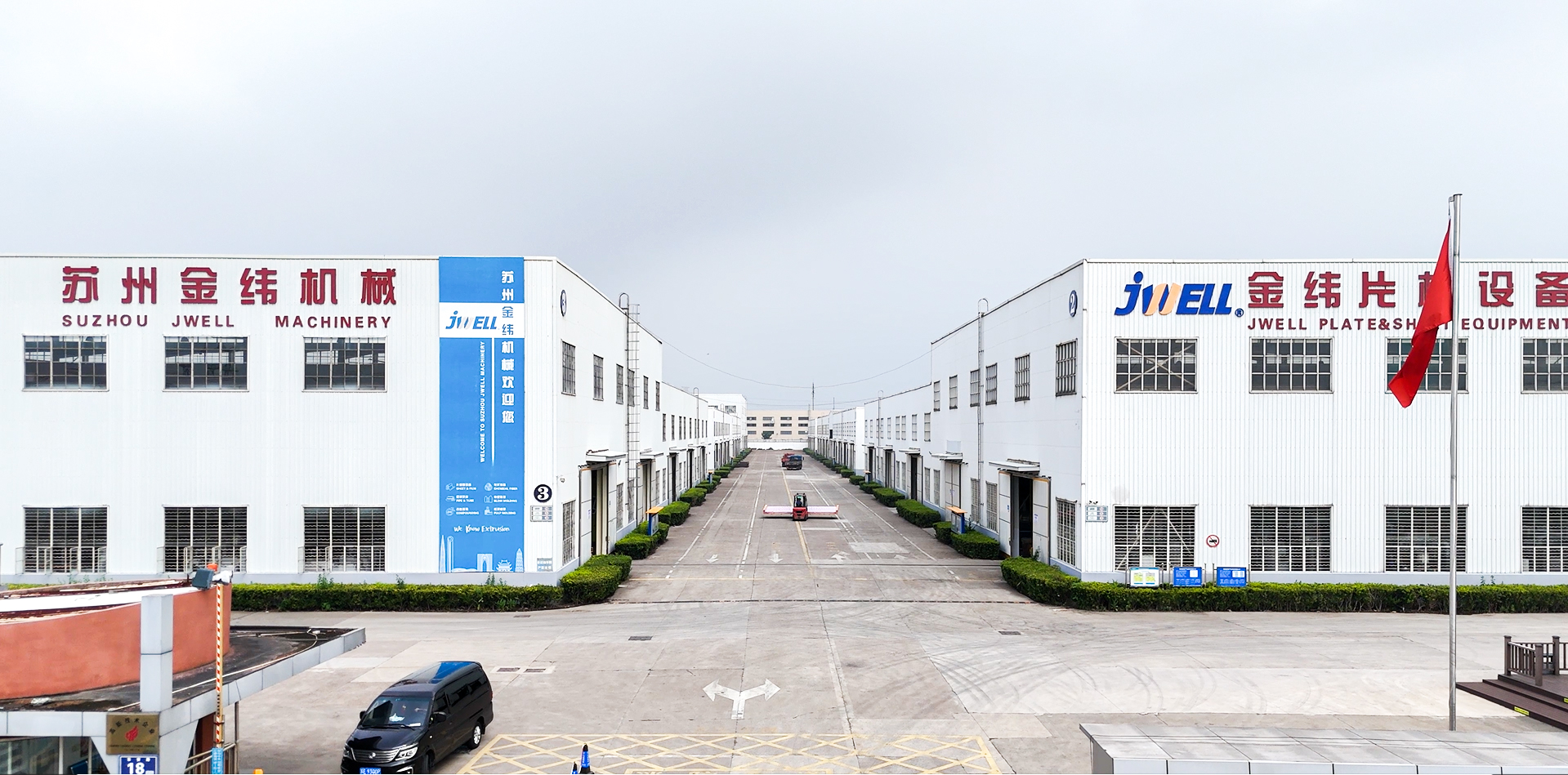

JWELL FACTORY

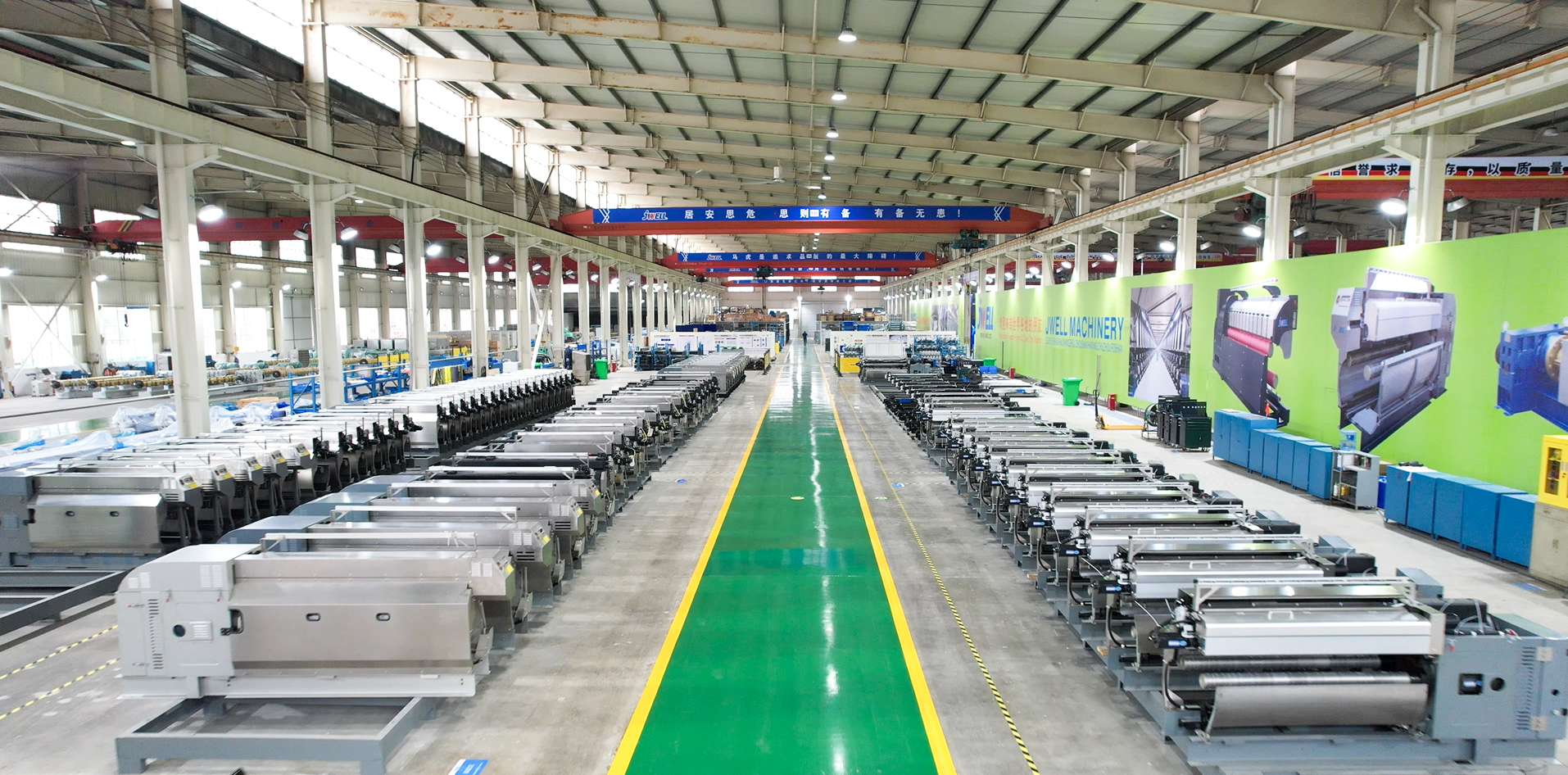

Winder assembly workshop

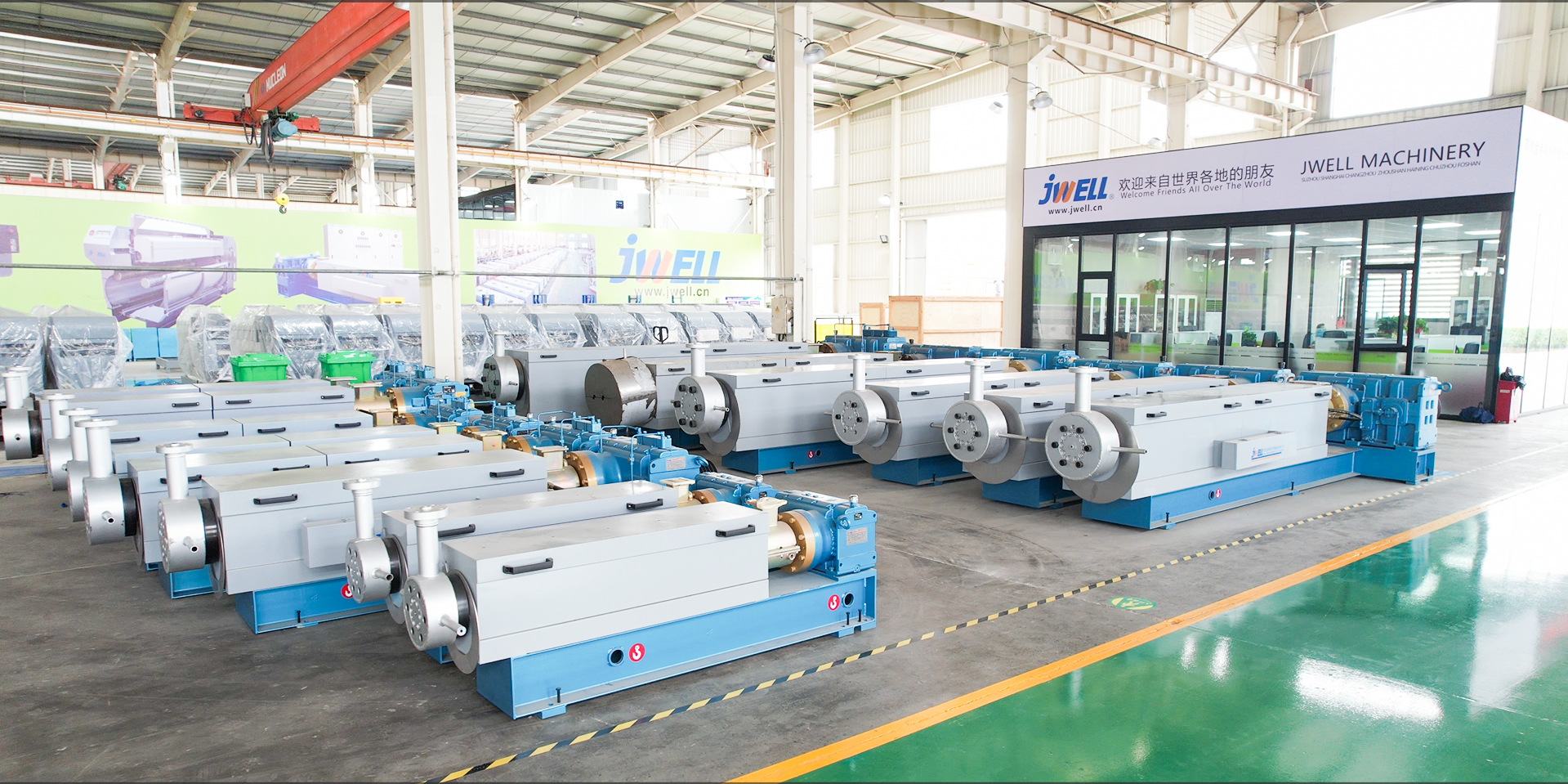

Extruder assembly area

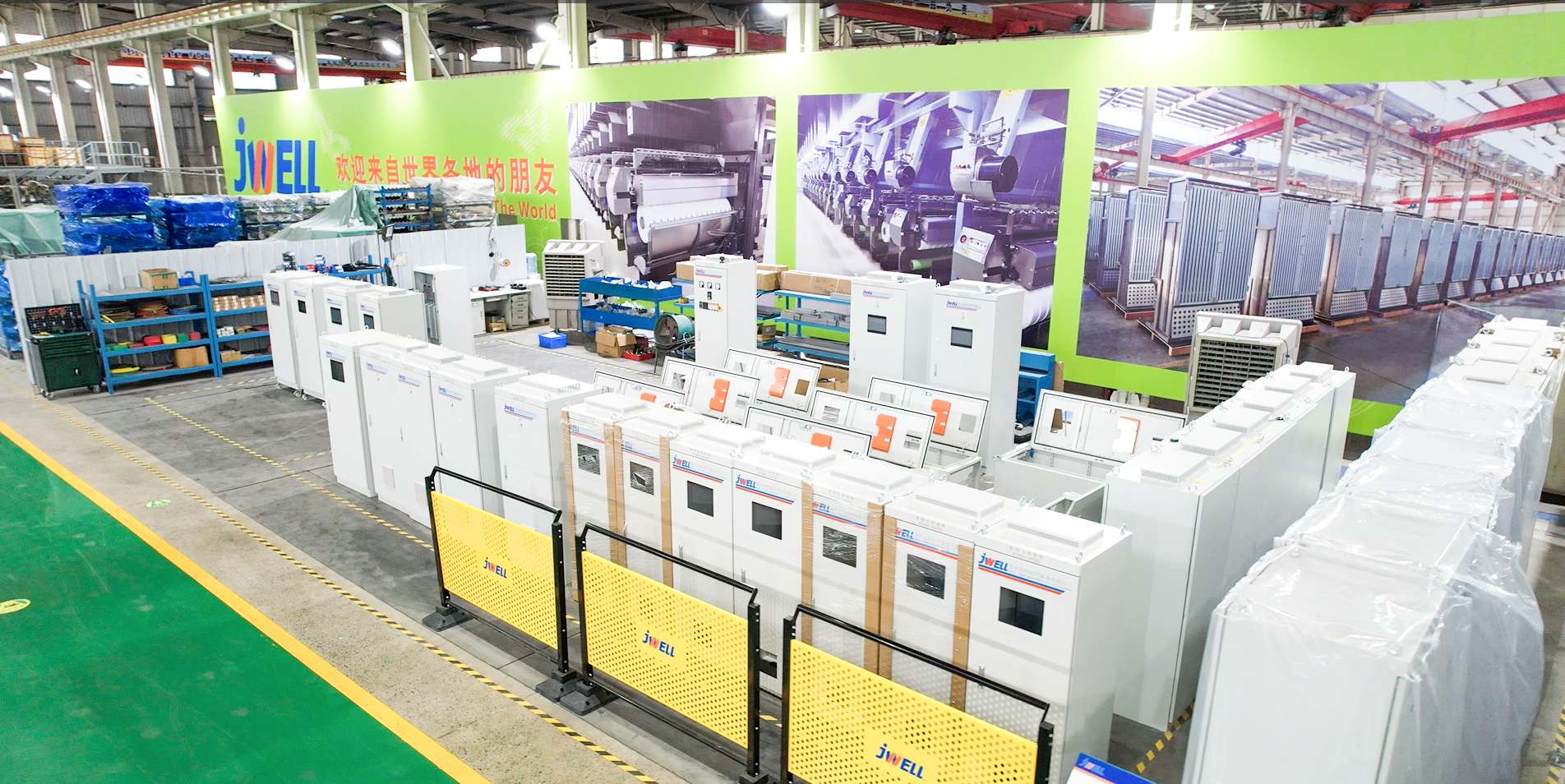

Electrical cabinet assembly area

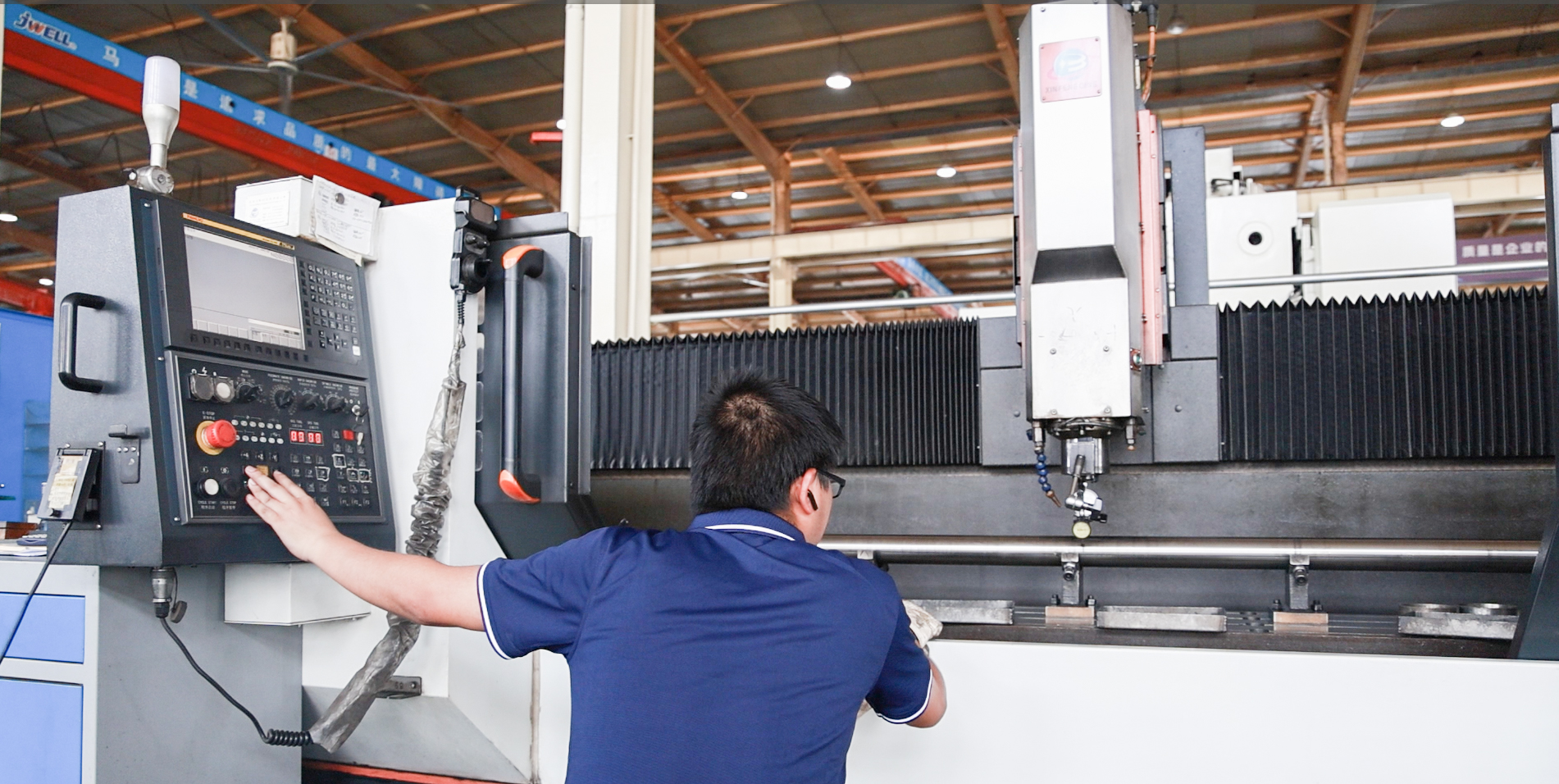

555

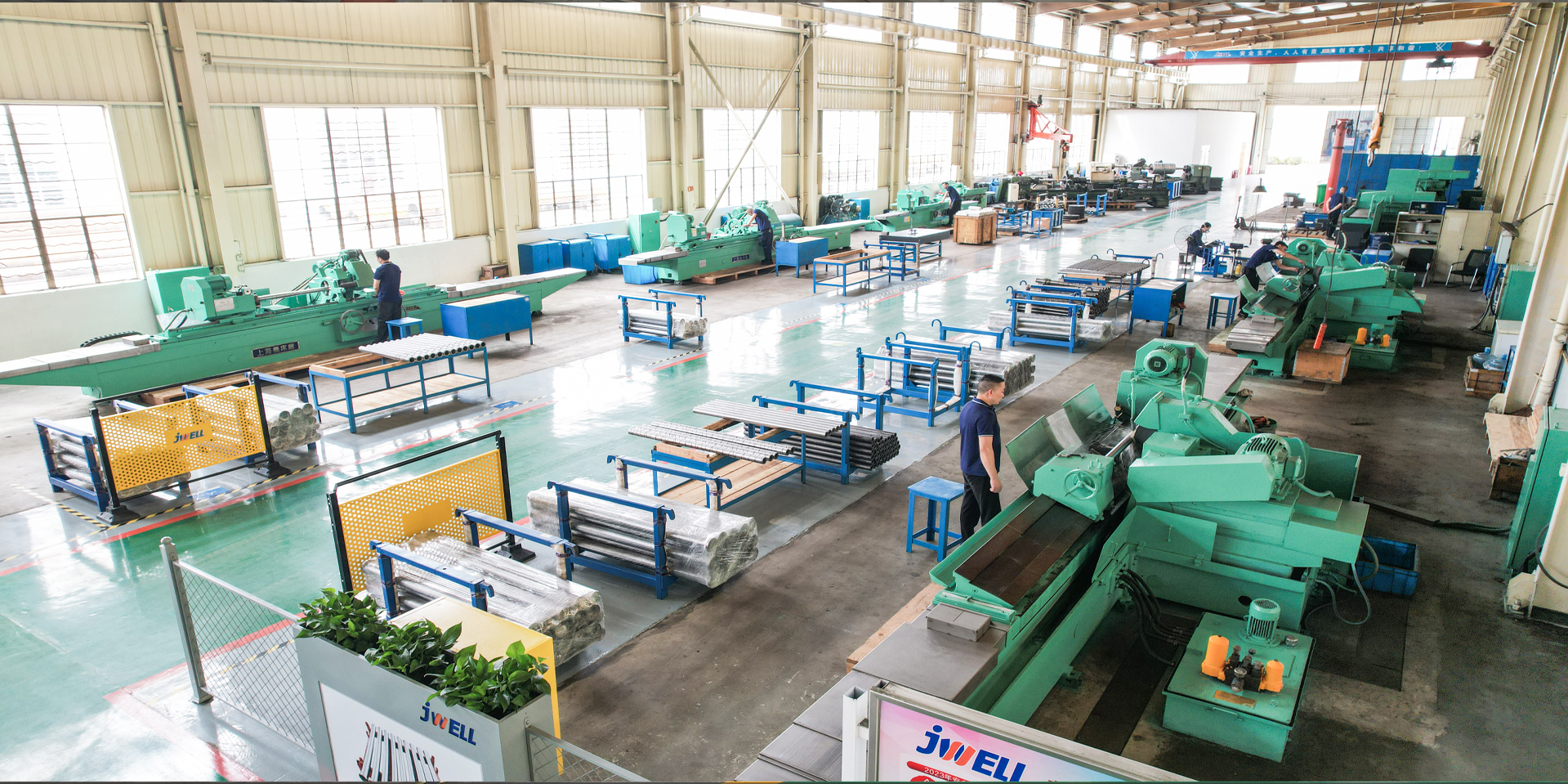

JWELL WORKSHOP


Enterprise Honors

证书
证书2


Our Team

Our customers are all over China, and we have customers in Germany, Russia,Italy, Spain, Japan, India, Korea, Indonesia, Middle East, South America and other countries and areas. Our machines are'well accepted by our customers.

Exhibition at 2026
Exhibition 8


Exhibition2
Exhibition10
Exhibition5
Exhibition6

JWELL K EXHIBITION IN GERMANY
Chinaplas


JWELL TEAM 3
JWELL TEAM 4


Our Developing History

JWELL DEVELOPING HISTORY


Our Base

JWELL FACTORYS


JWELL Global

微信图片_20260408090010_877_36
