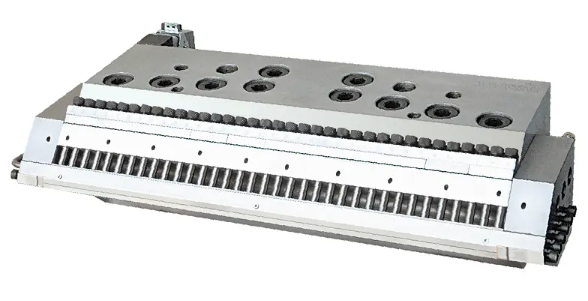

Overview of the JW-P-A1 Hanger-style Sheet Die
The JW-P-A1 hanger-style channel sheet die is a high-precision extrusion die solution developed by Jiangsu Jinwei, engineered for high-quality thermoplastic sheet and board manufacturing. Featuring an optimized standard hanger-style flow channel design, this sheet die delivers exceptional melt distribution uniformity, stable extrusion performance, and flexible production adaptability, making it an ideal core component for business clients engaged in mass sheet production. Suitable for both single-layer and multi-layer sheet extrusion, it meets the strict quality requirements of high-end sheet manufacturing across diverse industries.
Core Advantages of the JW-P-A1 Hanger-style Channel Sheet Die
Optimized Flow Channel for Uniform Extrusion
The core hanger-style flow channel is designed with advanced fluid dynamics simulation, ensuring even melt flow distribution across the entire die width, eliminating flow marks and thickness deviation in finished sheets. This optimized design guarantees consistent sheet quality even during high-speed continuous extrusion, reducing material waste and improving the finished product rate for business clients.
Wide Production Flexibility & Material Compatibility
This sheet die supports a maximum production width of up to 2100mm, with an adjustable sheet thickness range of 0.14mm to 2mm, adapting to diverse production specifications. Its versatile structure is compatible with both single-layer and multi-layer co-extrusion production, allowing business clients to flexibly adjust production plans without replacing the core die.
High-Precision Manufacturing for Long-Term Reliability
Every JW-P-A1 sheet die is manufactured with ultra-precision machining and strict quality inspection, meeting the highest industry standards for dimensional accuracy and wear resistance. The upper die lip adopts a fine-tuning design, enabling quick and precise sheet thickness adjustment during production, ensuring long-term stable performance and low maintenance costs in 24/7 manufacturing environments.
Technical Specifications of the JW-P-A1 Sheet Die
Core Parameter | Standard Specification |
Model Series | JW-P-A1 |
Max. Sheet Production Width | Up to 2100mm |
Adjustable Sheet Thickness Range | 0.14mm to 2mm |
Standard Flow Channel Design | Hanger-style channel |
Compatible Production Structure | Single-layer & Multi-layer co-extrusion |
Core Tunable Component | Fine-adjustable upper die lip |
Compatible Materials & Industrial Applications
The high-precision sheet extrusion die is compatible with a broad range of thermoplastic materials, including PET (APET, PETG), PC, PS, PP, PLA, and modified sheet-grade plastics. It is widely applied in high-demand sectors:
Food & Medical Packaging: APET food contact sheets, sterile medical packaging sheets, thermoformed tray materials
Electronics & Optics: PC optical sheets, electronic component packaging sheets, protective film substrates
Automotive & Transportation: Interior decorative sheets, sound insulation sheet substrates
Advertising & Decoration: PS advertising printing sheets, PP decorative sheet materials
Industrial Manufacturing: Engineering plastic sheets for equipment protection and structural components
Customization & Full-Cycle Support for Business Clients
We provide targeted customization for business clients, including flow channel optimization for specific materials, die width and thickness range adjustment, and structure modification for multi-layer co-extrusion lines. Our engineering team can also perform flow simulation analysis to optimize die design based on your extrusion line parameters and sheet quality requirements. Our full-cycle support includes pre-sales consultation and die matching design, on-site installation guidance and process optimization, and long-term after-sales service including die maintenance, refurbishment, and 24/7 technical support, helping business clients maximize production efficiency and return on investment.
FAQ
What materials can the JW-P-A1 sheet die process?
This die is primarily designed for PET (APET, PETG) sheet production, and is fully compatible with PC, PS, PP, PLA, and other common thermoplastic sheet materials, with flexible adjustment for different material properties.
Can this sheet die be used for multi-layer co-extrusion production?
Yes. The JW-P-A1 series is compatible with both single-layer and multi-layer co-extrusion lines, and we can customize the die structure to match your multi-layer co-extrusion system.
How does this die ensure consistent sheet thickness?
It features an optimized hanger-style flow channel for uniform melt distribution, paired with a fine-tunable upper die lip for precise thickness adjustment, ensuring minimal thickness deviation across the entire sheet width.
