High Speed Biaxially Oriented Stretch plastic Film Roller, High Dynamic Balancing Accuracy plastic Film extrusion Roller for Bi-Oriented Stretch Film Production Line
Related Information：Application of Suzhou Jwell High-speed Rubber-coated Rollers in Biaxial Stretching Film Equipment
1.Function

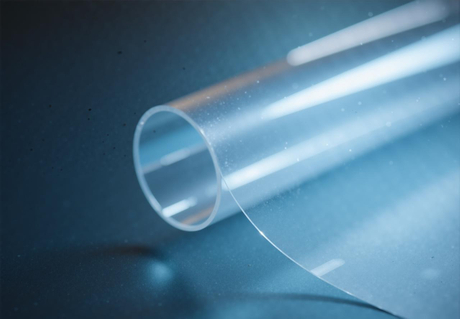

These rollers from Suzhou Jwell are used in the production of bi-oriented stretch films, helping to stretch the film biaxially (in both machine and transverse directions) to enhance its strength, clarity, and barrier properties.
2. Design
- Precision Engineering: Designed for precise control of film stretching to ensure uniform thickness and consistent film properties.
- Surface Finish: Highly polished surface to prevent sticking and ensure smooth film movement.
- Temperature Control: Often equipped with heating or cooling systems to manage the film's temperature during the stretching process.
advantage of Suzhou Jwell
| Item | Content |
| Roller type | Chilling roller, stretching roller, preheating roller, traction roller, corona roller, rubber roller, TEFLON roller, etc |
| Roll Advantages of Suzhou Jwell | High rotational speed, high dynamic balancing accuracy |
| Roll surface temperature control | The roller cylinder features a spiral circulation flow channel inside, which possesses strong heat exchange capability, ensuring minimal temperature fluctuations on the operating surface of the roller cylinder |
3. Material
Constructed from high-quality, wear-resistant materials such as hardened steel or chrome-plated steel to withstand the stresses of stretching operations.
4. Advantages
- Enhanced Film Properties: Improves the mechanical strength, clarity, and barrier properties of the stretch film.
- Uniform Thickness: Ensures consistent film thickness and quality.
- Durability: Built to endure high stress and temperature variations during the stretching process.
5. Applications
- Packaging Industry: Used to produce high-quality bi-oriented films for food packaging, shrink wraps, and other packaging applications.
- Industrial Uses: Produces films for protective covers, labeling, and other industrial applications requiring durable and strong films.

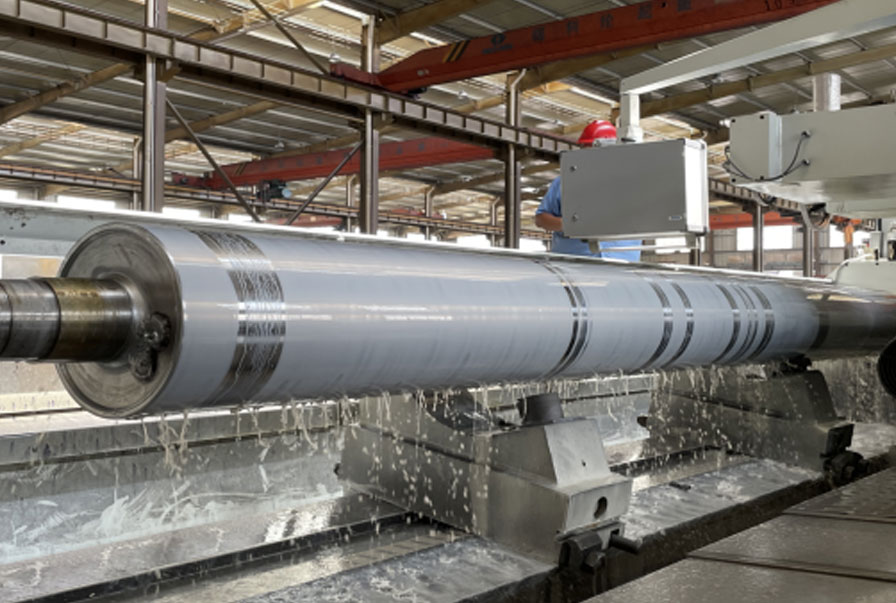

Our manufacturing capacity of roller:
Maxmachininglength:14000mm
Maxmachining diameter: 1600 mm
Manufacturing precision of roller:
Concentricity: 0.01mm
Cylindricity: 0.01mm
Surface roughness: Ra0.005 - 0.01m

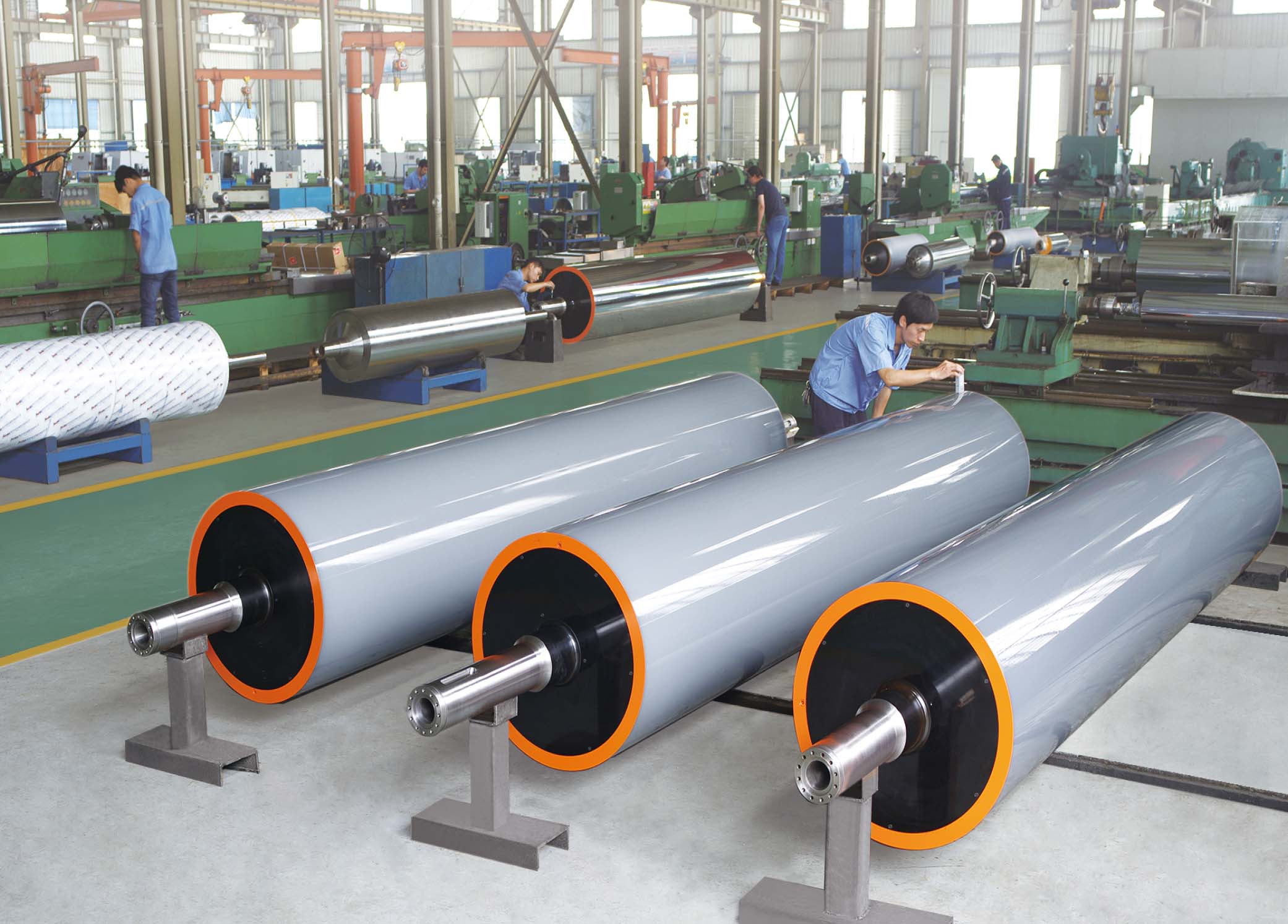

Roller surface treatment:
Electroplate hard chrome coating
Rubber overlay coating
Stainless steel overlay coating
Special coating like TEFLON etc
Due to the higher request for the tension / coated angle/ high line speed/ temperature precision control of thestretching film roller , we can provide the following certificates for each roller:
Shafts material
Outer jacket material
Dimension and geometrical report
Roughness (measures on the sides and in the center of the table)
Chrome coating hardness
Coating thickness (measures on the sides and in the center of the table)
Final balancing reach to G2.5 (machine Printed)
Weight, inertia , d flection under own weight, critical speed
Static pressure test to prevent the leakage
Temperature difference on the table surface
Cooling water flow
lnlet/Outlet water pressure difference
