Selecting an extrusion system represents a high-stakes capital expenditure for any manufacturing facility. Make the wrong choice, and you face chronic material degradation, excessive scrap rates, and severely bottlenecked throughput. Plant managers constantly navigate the tension between the operational simplicity of single screw systems and the advanced compounding, mixing, and devolatilization capabilities of twin screw setups. Understanding the fundamental differences in how these machines handle polymers dictates your production efficiency and final product quality.
You need a definitive, engineering-focused framework to evaluate the technical trade-offs and operational realities required to specify the correct custom extrusion line solution for your facility floor. We will break down the mechanical principles, material processing limits, and core evaluation dimensions to help you determine which technology aligns with your specific manufacturing goals.
- Operational Mechanism: Single screw extruders rely on friction-drag for material transport (ideal for stable pellets), whereas twin screw extruders utilize positive displacement (essential for powders, compounding, and reactive extrusion).
- Process Control & Mixing: Twin screw systems offer superior control over shear rates, residence time distribution, and dispersive/distributive mixing, making them mandatory for complex polymer blends and high-filler applications.
- Supplier Selection: Partnering with the right plastic extrusion machine supplier requires evaluating their capability to engineer custom screw profiles, provide robust metallurgical solutions for wear parts, and support comprehensive Factory Acceptance Testing (FAT).
Baseline Mechanics: How Operational Differences Impact Production
Single Screw Mechanics (Friction-Drag)
Single screw extruders operate strictly on the principle of friction-drag. Material transport relies entirely on the friction generated between the polymer pellets, the rotating screw root, and the stationary barrel wall. The barrel must generate more friction than the screw to move the material forward effectively. This mechanism builds pressure and conveys the melt toward the die head. However, this reliance on friction creates severe limitations regarding back-pressure sensitivity and feed consistency. Variations in material bulk density or die pressure cause surging. Surging leads directly to inconsistent output rates and dimensional variations in the final extruded profile.
Operators running single screw lines must constantly monitor the feed throat. If the pellets bridge or if the bulk density shifts, the friction-drag mechanism fails. The screw will simply spin without pushing material, causing localized degradation and a drop in die pressure. You cannot force-feed a standard single screw without risking severe mechanical overload or melt fracture.

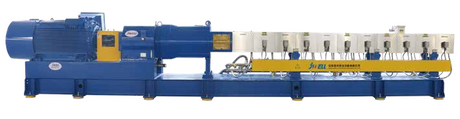

Twin Screw Mechanics (Positive Displacement)
Twin screw extruders utilize positive displacement for material conveying. The interaction between the two intermeshing screws forces the material forward, largely independent of friction. These systems fall into specific categories: intermeshing versus non-intermeshing, and co-rotating versus counter-rotating. Fully intermeshing, co-rotating twin screws dominate the compounding industry. The positive displacement mechanism prevents material stagnation, ensures a tight residence time distribution, and maintains consistent throughput regardless of downstream die pressure fluctuations.
Because the flights of one screw wipe the flanks of the other, the material has nowhere to go but forward. This mechanical reality allows operators to process fine powders, slippery additives, and highly viscous melts that would otherwise stall a single screw machine. Positive displacement gives you absolute control over the material flow rate.
Screw Anatomy and Zone Functionality
A standard extrusion screw comprises three primary functional zones. The Feed Zone captures and conveys solid material from the hopper. The Compression or Melting Zone transitions the material from a solid to a melt, applying mechanical shear and heat for plasticization. The Metering Zone pumps the homogeneous melt and generates the necessary pressure to force it through the die.
Single screw systems feature a fixed, solid-barrier screw geometry designed for specific polymer types. If you change your primary resin, you often have to pull and replace the entire screw. Conversely, a twin screw extruder manufacturer utilizes highly customizable, segmented, modular screw elements. You slide these elements—including conveying flights, kneading blocks, and mixing rotors—onto splined shafts. This modularity lets process engineers precisely optimize shear rates and residence time for specific, complex formulations without buying a completely new screw.
Material Processing Capabilities and Limitations
When to Specify a Single Screw Extruder
Single screw extruders excel in applications involving pre-compounded, stable pellets. They remain the standard choice for simple profile extrusion, including HDPE pipes, PET sheets, and blown film lines. These systems dominate when the process requires low shear and high pressure generation for shaping the final product through a restrictive die.
They face significant limitations when handling fine powders, slippery lubricants, or highly viscous melts. These materials disrupt the friction-drag mechanism required for conveying and melting. If you try to run a high percentage of calcium carbonate powder through a standard single screw, the powder will simply pack in the feed zone, stalling the machine and potentially damaging the thrust bearing.
When to Specify a Twin Screw Extruder
Twin screw extruders are mandatory for compounding, masterbatch production, reactive extrusion, and processing complex multi-component formulations. The intense mixing capabilities handle high filler loads, such as talc, glass fiber, or calcium carbonate, ensuring uniform dispersion within the polymer matrix. Without this dispersion, the final product will suffer from severe mechanical weak points and surface defects.
The precise temperature control and modular shear zones make twin screws suitable for processing heat-sensitive polymers like PVC. You can configure the screw profile to apply exact amounts of shear energy, preventing the localized overheating that causes PVC to degrade and release corrosive hydrochloric acid gas.
The Recycling Frontier: Processing PCR Plastics and Regrind
Processing Post-Consumer Recycled (PCR) plastics presents unique challenges on the shop floor. You have to handle washed flakes, films, mixed plastics, and highly contaminated regrind. Twin screw systems are vastly superior for recycling applications requiring extensive devolatilization. The large surface renewal area effectively removes moisture, volatile organic compounds (VOCs), and trapped odors from PCR materials before they reach the die.
However, in niche scenarios involving clean, consistent industrial scrap, a single screw extruder equipped with a specialized force-feeder and a high-capacity continuous screen changer serves as a highly effective choice for simple regrind processing. If the scrap is clean and dry, you do not need the aggressive degassing power of a twin screw setup.
Core Evaluation Dimensions
Mixing Efficiency and Shear Control
Mixing in extrusion falls into two categories: distributive and dispersive. Distributive mixing blends materials evenly without breaking them down. Dispersive mixing applies high shear to break down solid agglomerates. Twin screw extruders provide exceptional dispersive and distributive mixing due to the complex flow patterns generated by intermeshing kneading blocks. You can swap out kneading blocks to increase or decrease the shear intensity based on the specific polymer blend.
Single screw designs are largely fixed. They rely on specialized mixing sections machined directly into the steel, like Maddock or pineapple mixers. These sections offer limited dispersive capability compared to a twin screw setup. If a single screw mixer fails to break down an agglomerate, that un-melted particle will travel straight through the die and ruin the final product.
| Operational Parameter | Single Screw Extruder | Twin Screw Extruder |
| Conveying Principle | Friction-drag dependent | Positive displacement |
| Feeding Method | Flood feeding (hopper kept full) | Starve feeding (gravimetric metering) |
| Mixing Capability | Limited dispersive, moderate distributive | Excellent dispersive and distributive |
| Degassing/Venting | Poor to moderate surface renewal | Excellent surface renewal and devolatilization |
| Screw Design | Fixed, solid geometry | Modular, segmented elements on splined shafts |
Degassing and Venting Performance
Effective devolatilization requires exposing a massive surface area of the polymer melt to a deep vacuum. Twin screw extruders feature a significantly higher surface-area-to-volume ratio than single screw machines. The intermeshing action constantly renews the melt surface, pulling material from the root of the screw to the top of the barrel. This makes twin screws highly efficient at stripping moisture, unreacted monomers, solvents, and trapped gases.
The modular screw design allows engineers to create zero-pressure zones directly under the vent ports. You configure steep-pitch conveying elements to pull the melt forward rapidly, dropping the internal barrel pressure. This prevents the polymer melt from escaping out of the vent port and plugging your vacuum system.
Feeding Characteristics and Material Handling
Single screw extruders operate using flood feeding. You keep the hopper completely full, and the screw draws material in based on its rotational speed and the bulk density of the pellets. This works perfectly for consistent, uniform pellets but fails miserably with low bulk-density materials or fluffy regrind.
Twin screw extruders operate on a starve-feeding principle. You meter material into the extruder independently of the screw speed. This requires the integration of precise gravimetric loss-in-weight feeders. Starve feeding enables the accurate handling of powders, cohesive solids, and complex multi-component formulations. You control the exact ratio of base resin to additives before the material even hits the feed throat.
Self-Cleaning Capabilities and Changeover Times
Fully intermeshing co-rotating twin screws feature a distinct wiping action. The flight of one screw physically wipes the root and flank of the other screw as they rotate. This self-cleaning capability minimizes material stagnation and prevents polymer degradation on the screw root.
During color or formulation changeovers, this wiping action drastically reduces operational downtime. You can often transition from one color to another simply by running a purge compound through the starve feeders. Single screw systems lack this wiping feature. Operators often face intensive chemical purging or must physically pull the hot screw from the barrel and manually clean the flights with brass wire brushes to ensure complete removal of the previous material.
Capital Investment and Equipment Lifecycle
Initial Equipment Costs vs. Long-Term ROI
A direct comparison of capital expenditure reveals that twin screw extruders require a substantially higher initial investment. You are paying for complex drive motors, heavy-duty distribution gearboxes, sophisticated PLC control systems, and precision gravimetric feeders. However, the long-term return on investment often justifies the upfront capital.
Twin screw systems enable in-line compounding of raw powders and fillers. You eliminate the need to purchase expensive pre-compounded pellets from third-party suppliers. By mixing raw resin with cheap fillers like calcium carbonate directly on your floor, you generate massive material cost savings over the equipment's lifecycle. The machine pays for itself through raw material arbitrage.
Maintenance, Wear, and Replacement Parts
Maintenance complexity runs much higher for twin screw systems. The distribution gearboxes must drive two shafts in extremely close proximity under massive torque demands. Gearbox oil analysis and vibration monitoring become mandatory preventative maintenance tasks. Wear is also a critical factor when compounding abrasive fillers like glass fiber.
You must rigorously vet your screw and barrel manufacturer for advanced metallurgy capabilities. Utilizing bimetallic barrel liners, PM-HIP (Powder Metallurgy Hot Isostatic Pressing) tool steels, and specialized tungsten carbide coatings is absolutely necessary to mitigate abrasive and corrosive wear in high-shear zones. If you use standard nitrided steel for glass-filled compounding, you will destroy the barrel in a matter of months.
Energy Consumption and Operational Efficiency
When evaluating energy consumption, specific energy consumption (SEC) metrics (measured in kWh/kg) provide the only accurate comparison. Twin screw extruders rely heavily on mechanical shear heating to melt the polymer. The drive motor forces the screws through the highly viscous melt, generating internal friction. This mechanical energy transfer is highly thermally efficient.
Single screw extruders depend more heavily on conductive barrel heating from external heater bands. Conductive heating is less efficient, especially for larger diameter machines where the heat must penetrate deep into the solid pellet bed. Proper screw design in a twin screw system optimizes mechanical energy input, often resulting in a lower SEC for complex compounding tasks compared to running the same material through a single screw.
Sourcing Strategy: Evaluating Your Manufacturing Partner
Assessing Engineering Support and Customization
Procuring a reliable extrusion line requires far more than just buying machinery off a spec sheet; it demands comprehensive engineering support. Evaluate potential partners based on their ability to offer modular designs, seamless integration of downstream equipment, and robust control architecture. The supplier must demonstrate the capability to tailor the entire line—from the gravimetric feeders to the pelletizer—to your specific process parameters.
Look for vendors who offer open-architecture PLC systems. Proprietary, locked-down control systems trap you into expensive service contracts. You need full access to the HMI logic to adjust PID loops, set torque limits, and integrate third-party auxiliary equipment as your production needs evolve.
Vetting Extruder Manufacturers
The engineering competencies required for different extrusion technologies vary wildly. A single screw extruder manufacturer focuses heavily on screw geometry optimization, barrier flight design, and grooved feed throat engineering for stable pumping. They master the fluid dynamics of single-channel melt flow.
Conversely, building twin screw systems requires deep expertise in high-torque gearbox engineering and advanced screw simulation software to optimize mixing and shear. Avoid generalist assemblers who simply bolt together third-party components. Partner with a specialized plastic extrusion machine supplier who understands the distinct metallurgical and mechanical demands of the specific technology you are purchasing.
Factory Acceptance Testing (FAT) and Commissioning Realities
A rigorous Factory Acceptance Testing (FAT) protocol is non-negotiable. Never ship a machine to your facility until it has proven its capabilities on the vendor's floor. The FAT checklist must include throughput verification, melt temperature stability analysis, pressure control evaluation, and residence time distribution testing using your actual production materials.
- Ship your hardest-to-process raw materials to the vendor's facility.
- Run the machine at maximum rated RPM to test the gearbox cooling system and torque limits.
- Induce a sudden feed stoppage to verify the software interlocks shut down the drive motor before mechanical damage occurs.
- Pull the screw immediately after the run to inspect for dead spots or degraded polymer hang-up.
Implementation Risks and Mitigation Strategies
Over-engineering the Extrusion Line
A common implementation risk involves purchasing a complex, expensive twin screw system for a process that a well-designed single screw could handle efficiently. If you are simply melting and pumping clean, stable HDPE pellets into a pipe die, a twin screw machine is a massive waste of capital. This over-engineering inflates your initial costs and complicates your daily maintenance routines unnecessarily.
To mitigate this risk, conduct pilot-scale material trials before signing any purchase orders. These trials provide empirical data to justify the final equipment specification based on actual process requirements rather than assumptions. Let the material science dictate the machinery.
Operator Training and Process Complexity
Starve-fed twin screw operations present a steep learning curve for operators accustomed to flood-fed single screws. Balancing gravimetric feed rates, screw speeds, temperature profiles, and understanding modular screw configuration design requires specialized knowledge. If an operator pushes the feed rate too high without increasing the screw RPM, they will pack the barrel and snap the screw shafts.
Mitigate this complexity by mandating comprehensive, vendor-supplied training programs on your shop floor. Implement strict control automation features, such as torque limiters and melt pressure interlocks. Develop robust Standard Operating Procedure (SOP) documentation to ensure consistent, safe operation across all shifts.
Conclusion
Audit your current material data sheets to define the exact shear and thermal limits of your primary resins.
Calculate your required throughput rates against your available floor space and electrical power drops.
Schedule a pilot-scale material trial with your equipment vendor using your most difficult formulation.
Draft a strict Factory Acceptance Testing protocol that tests the machine at maximum capacity before taking delivery.
FAQ
Q: Can a single screw extruder be used for compounding?
A: Single screw extruders have severely limited dispersive mixing capabilities. While they can handle simple, low-fill masterbatches using specialized barrier screws or Maddock mixers, they cannot provide the intense mechanical shear required for complex compounding or high filler dispersion. Attempting heavy compounding on a single screw usually results in un-melted agglomerates and poor product quality.
Q: Why is a twin screw extruder more expensive than a single screw extruder?
A: The higher capital cost is driven by complex segmented modular screws, heavy-duty distribution gearboxes required to drive two shafts in close proximity, specialized gravimetric feeding systems, and the extremely tight machining tolerances necessary for intermeshing steel components.
Q: What is the difference between co-rotating and counter-rotating twin screw extruders?
A: Co-rotating twin screws rotate in the same direction and are used for high-speed compounding, intense mixing, and devolatilization. Counter-rotating twin screws rotate in opposite directions, providing low-shear, high-pressure conveying. This makes counter-rotating systems ideal for profile extrusion of heat-sensitive materials like PVC pipes.
Q: How do single and twin screw systems compare in plastic recycling and processing regrind?
A: Twin screw systems excel at degassing moisture and volatile contaminants from variable PCR materials due to their massive surface renewal capabilities. Single screw systems are typically reserved for processing clean, consistent industrial scrap where high-pressure filtration through a screen changer is the primary requirement.
Q: How do maintenance costs compare between single and twin screw extruders?
A: Twin screw extruders generally incur higher maintenance costs due to gearbox rebuild complexities, oil analysis requirements, and the frequency of replacing individual worn modular screw elements in high-shear zones. Single screw maintenance usually involves rebuilding or replacing the entire fixed screw much less frequently.
Q: Can I upgrade my single screw line to a twin screw system?
A: Retrofitting a single screw frame to a twin screw setup is rarely practical or cost-effective. Upgrading requires entirely new distribution gearboxes, drive motors, sophisticated PLC control systems, and gravimetric feeding setups. Replacing the full line is typically more economically viable and ensures total system compatibility.
