The Era of Ultra-High-Definition Displays: Micro-Structured Rollers for Optical Films Enable Performance Upgrades

One

In the era of high-definition displays, characterized by 4K/8K resolution, HDR, and wide color gamut, the demand for image quality has become extremely high. As a result, optical films have evolved from being mere supporting components in backlight modules to serving as core optical engines. The enhancement of brightness and contrast relies on the optical efficiency management of these films—prism brightness enhancement films use micro-prism structures to redirect scattered light toward the frontal direction, achieving a brightness increase of over 60%. Meanwhile, micro-lens films utilize precision micro-lens arrays to achieve uniform light diffusion and directional convergence, further reducing optical loss. As an invisible threshold for ultra-high-definition displays, image uniformity depends on diffuser films and composite optical films to convert point light sources into uniform area light sources, eliminating dark zones and bright spots between LED beads. The trend toward thinner and lighter designs has also driven the development of multifunctional composite films, which integrate functions such as diffusion, brightness enhancement, and light redirection into a single layer. These films are formed in one step using micro-structured rollers, significantly reducing module thickness and energy consumption.

Two

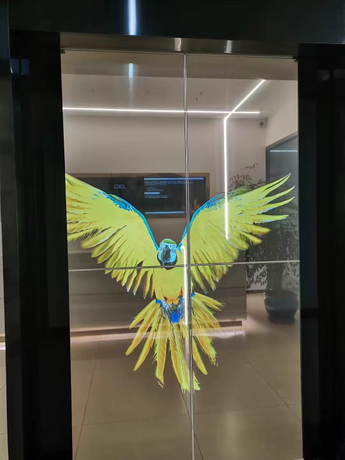

Underpinning these performance advancements is the precision manufacturing capability embodied by micro-structured rollers from suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827）. Large-size ultra-high-definition displays pose significant challenges to the large-area uniformity and micro-structure consistency of optical films. The width, surface precision, and processing consistency of micro-structured rollers directly determine the quality of optical films in large-size applications, making it possible to maintain micron-level precision under wide-web, high-speed production conditions. From LCD to Mini LED and OLED, no matter how display technologies evolve, precise light control remains a core challenge—Mini LED backlights require specialized light homogenizing films to achieve uniform mixing of dense LED arrays, while OLED transparent displays rely on optical films for anti-reflection and light extraction. Optical films serve as the key enabler for this challenge, and micro-structured rollers are the technological foundation for their precision manufacturing.

Three

Micro-structured rollers from suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827）serve as the core technology enabler for advancing optical film manufacturing from "ordinary" to "high-end." By precisely machining and replicating microstructures on the roller surface, they effectively "engrave" optical functions directly into the film, driving comprehensive upgrades in optical efficiency, thickness, and uniformity. This represents not merely incremental improvement, but a generational leap in optical film performance.

1 Precision microstructures determine the upper limit of optical performance. Traditional optical films rely on the intrinsic optical properties of materials, leaving limited room for performance improvement. In contrast, micro-structured rollers—after being coated with copper and nickel—are used to machine precise geometric shapes such as prisms, micro-lenses, and 3D gratings onto the roller surface. These microstructures are then accurately transferred to the film surface through embossing or coating processes, endowing optical films with the ability to actively control light paths. Prism brightness enhancement films use micro-prism structures to redirect scattered light toward the frontal direction, achieving a brightness increase of over 60%. Micro-lens films utilize precision micro-lens arrays to achieve uniform light diffusion, effectively eliminating dark zones and bright spots in the backlight. 3D grating films rely on grating microstructures to separate images for the left and right eyes, providing the core optical foundation for autostereoscopic 3D displays. The realization of these optical functions depends entirely on the machining accuracy of the micro-structured rollers—the dimensional tolerance of the microstructures must be controlled at the micron or even sub-micron level; otherwise, optical gain will diminish or visual defects will occur.

2 The copper and nickel plating process ensures microstructural precision and mold longevity. Micro-structured rollers are not directly machined on the roller body; instead, they first undergo copper and nickel plating. The copper layer serves as a soft base, facilitating high-precision mechanical processing or laser engraving of the microstructures. The nickel layer provides hardness and wear resistance, ensuring the durability of the microstructures during mass production. This composite plating process not only enables the precision required for microstructure machining but also extends the service life of the mold, making large-scale, consistent production of high-grade optical films possible.

3 Driving the upgrade of optical films toward thinner, more functionally integrated solutions. The emergence of micro-structured rollers has shifted optical films from a simple “diffusion + brightness enhancement” composite structure toward a direction that is thinner and more functionally integrated. Optical effects that previously required stacking multiple films can now be achieved with a single micro-structured film, reducing the thickness and cost of backlight modules while meeting the extreme demands for thinness and lightness in end products such as LCD screens, laptops, and mobile phones. At the same time, the design flexibility of microstructures provides room for customized optical requirements—prism angles, micro-lens arrangements, grating periods, and other parameters can be tailored according to backlight source type, display size, and viewing angle requirements, enabling precise matching of optical performance.

In Summary: In the era of ultra-high-definition displays, optical films have evolved from supporting components in backlight modules into core optical engines. Prism brightness enhancement films and micro-lens films achieve optical efficiency management through precision microstructures, increasing brightness by over 60%; diffuser films and multifunctional composite films ensure image uniformity and enable thinner, lighter designs. Underpinning this leap is the precision manufacturing capability of micro-structured rollers from suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827）. By machining and replicating precision microstructures on the roller surface, they directly “engrave” optical functions into the film, driving a generational upgrade in optical films across the three dimensions of optical efficiency, thickness, and uniformity. This is specifically reflected in: precision microstructures (prisms, micro-lenses, 3D gratings) determining the upper limit of optical performance, with dimensional accuracy required at the micron or even sub-micron level; copper and nickel plating processes ensuring microstructure precision and mold longevity; and multifunctional integration making optical films thinner and more functionally integrated. Micro-structured rollers are the technological foundation that establishes optical films as a critical enabler in the era of ultra-high-definition displays.
