Incorrect equipment dimensioning carries hidden operational costs that quietly erode profitability. When an extrusion line is improperly sized, facilities face constant energy waste, severe polymer degradation, and bottlenecked throughput. Operators often struggle to maintain stable melt temperatures, leading to high scrap rates and inconsistent product quality. The challenge lies in balancing current production targets with future scalability. Specifying equipment based solely on maximum theoretical output often leads to overcapitalization or process instability. A machine designed to run at 1000 kg/hr will perform poorly if your daily requirement hovers around 300 kg/hr. The melt residence time increases, causing thermal degradation, while low RPMs fail to generate the necessary shear for proper mixing. Solving this requires a systematic, engineering-first approach. By evaluating throughput requirements, material rheology, and mechanical constraints, engineers can specify the exact equipment dimensions needed for stable production.
- Target throughput establishes the baseline screw diameter, but material rheology and required residence time dictate the optimal Length-to-Diameter (L/D) ratio.
- Oversizing equipment leads to excessive residence times and thermal degradation of polymers; undersizing forces high RPMs, causing excessive shear and melt temperature spikes.
- Accurate single screw extruder capacity planning requires aligning motor power, screw geometry, and downstream equipment capabilities to prevent system bottlenecks.
- Partnering with a specialized custom screw and barrel supplier early in the design phase mitigates the risk of costly post-installation retrofits.

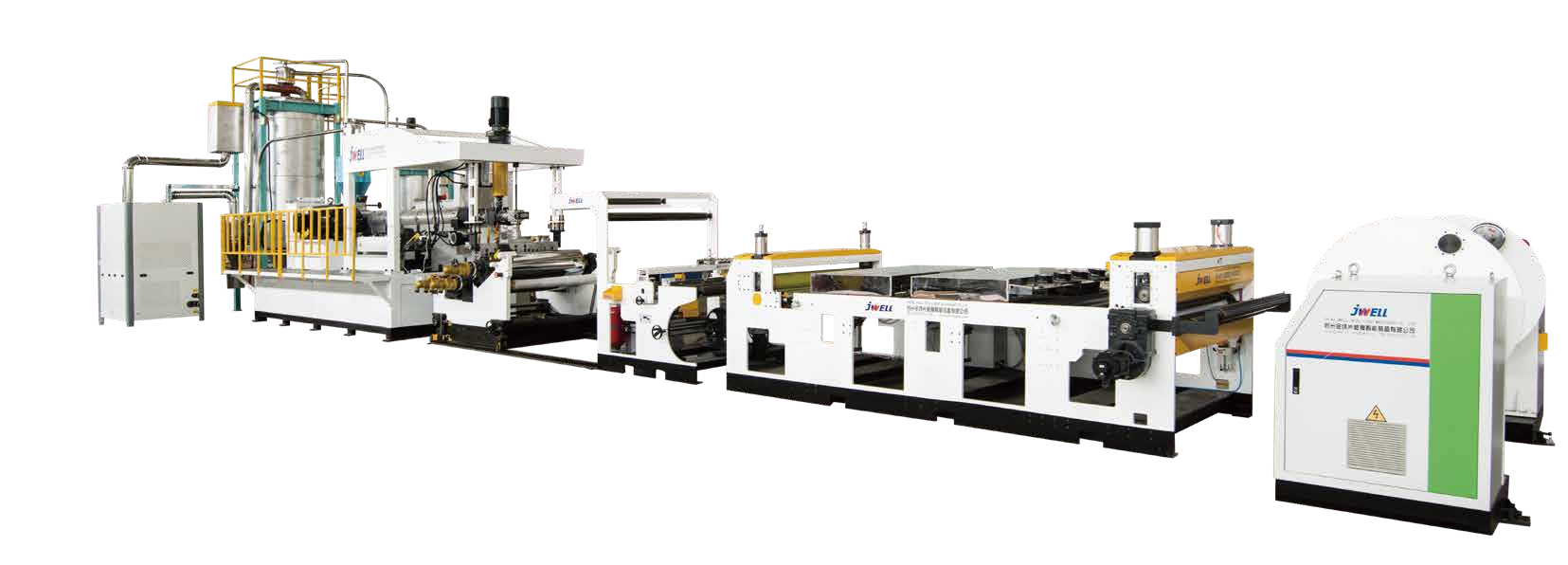

Framing the Sizing Problem: Success Criteria for Extrusion Lines
Process Architecture Validation: Single vs. Twin Screw Suitability
Before sizing a machine, you must validate the process architecture. Single screw extrusion excels at conveying, melting, pumping, and shaping prepared materials. It relies on drag flow, where friction between the polymer and the barrel wall drives the material forward. Twin screw extrusion serves a different purpose. It handles high-shear compounding, intensive dispersive mixing, and chemical reactions due to its positive displacement characteristics. Single screw systems are uniquely sensitive to solid conveying behavior and melt pressure generation. If the friction coefficients are wrong, the material will not feed properly. The sizing process must account for these frictional dynamics to ensure a stable output at the die.
When evaluating the baseline requirements, engineers must look at the specific frictional drag of the polymer against the barrel wall compared to the screw root. If the material slips on the barrel or sticks to the screw, forward conveying stops. This is why proper single screw extruder sizing is not just about volume; it is about matching the surface area and channel depths to the specific frictional properties of the resin.
Defining Target Throughput and Operating Windows
Establishing protocols for calculating maximum, minimum, and nominal output rates is critical. Output is typically measured in kg/hr or lbs/hr. You must define the exact operating window to prevent running the machine at its extreme limits. Generic volumetric output charts often mislead engineers. You must factor in the bulk density and specific gravity of the target polymer. A machine pumping 500 kg/hr of high-density polyethylene will not pump 500 kg/hr of low-bulk-density regrind at the same RPM.
To accurately define the operating window, follow these steps:
- Determine the absolute minimum throughput required during slow production periods or product changeovers.
- Calculate the nominal throughput required for standard daily operations based on downstream line speed.
- Identify the maximum theoretical throughput needed for future expansion, ensuring it does not exceed 80% of the extruder's mechanical limit.
- Cross-reference these figures with the specific gravity of the polymer at melt temperature to determine the actual volumetric flow rate.
The Cost of Miscalculation: Oversizing vs. Undersizing
Oversizing an extruder introduces severe process risks. Operating at low RPMs causes poor melt homogeneity because the screw cannot generate adequate shear. Polymers suffer degradation due to extended residence times in the heated barrel. Furthermore, oversized machines waste floor space and consume higher energy per kilogram processed. The heater bands must work harder to maintain melt temperature because the mechanical shear energy is insufficient.
Undersizing forces the extruder to run at maximum RPM to meet production targets. This leads to excessive shear heating, causing the melt temperature to spike beyond acceptable limits. High RPMs also accelerate premature screw wear and create unstable melt pressure at the die, resulting in dimensional variations in the final product. When a machine runs constantly at 100% capacity, any slight variation in bulk density or ambient temperature will cause the entire line to destabilize.
Core Parameters in Single Screw Extruder Sizing
Extruder Screw Diameter Selection
Proper extruder screw diameter selection dictates the baseline pumping capacity. Industry standards categorize diameters based on application niches. The mathematical correlation between screw diameter, channel volume, and output is non-linear. Output scales theoretically between the square and the cube of the diameter. Doubling the screw diameter increases the output capacity significantly more than double, provided the motor and heating systems can support the load.
| Category | Diameter Range | Typical Applications | Expected Output Range (Polyolefins) |
| Micro/Lab | 12mm – 30mm | Material R&D, medical micro-tubing, sample runs. | 1 - 20 kg/hr |
| Standard Production | 45mm – 90mm | Blown film, sheet, standard profiles, small pipes. | 50 - 450 kg/hr |
| High-Volume Production | 120mm – 150mm+ | Heavy pipe extrusion, large-scale pelletizing. | 800 - 2000+ kg/hr |
Length-to-Diameter (L/D) Ratio Evaluation
The L/D ratio determines how long the material stays inside the barrel. Standard ratios include 24:1 for basic venting and melt-shaping. A 30:1 ratio provides higher output and more homogeneous melting for standard polyolefins. Extended ratios from 33:1 to 40:1 handle complex degassing or intensive barrier mixing. A longer L/D ratio increases melting capacity and conductive heating time. It improves mixing quality and melt pressure stability at the die. However, excessive length increases torque requirements and risks thermal degradation for heat-sensitive polymers.
When processing materials with high moisture content that require atmospheric or vacuum venting, a minimum L/D of 33:1 is usually necessary. This provides enough axial length to melt the polymer, decompress it in the vent zone to extract volatiles, and recompress it before the die. Shorter L/D ratios simply do not have the physical space to accommodate these multiple functional zones effectively.
Screw Geometry and Functional Zone Dimensioning
The screw geometry must match the polymer's phase changes from solid to melt. The depth and length of the feed section optimize solid conveying based on the feed form factor. Deeper flights accommodate low bulk density materials. Compression ratios typically range from 1.5:1 to 4:1. This ratio matches the polymer's volumetric transition from bulk density to melt density, forcing air back out the feed throat. Metering depth controls the shear rate, pumping efficiency, and pressure stability at the die head. Shallow metering zones increase shear and pressure. Standard pitch usually equals the diameter. Deviations from this standard can improve high-efficiency solid conveying for specific resins.
Accurate single screw extruder capacity planning requires a deep understanding of how these zones interact. If the feed zone is too aggressive but the metering zone is too shallow, the screw will generate massive internal pressure, leading to surging and potential mechanical failure. The geometry must provide a balanced flow from the hopper to the die.
Motor Power and Torque Requirements
Calculating specific energy consumption depends heavily on the polymer type. Crystalline polymers require more energy to melt than amorphous polymers. You must calculate the SEC based on the target throughput to size the motor correctly. Matching drive systems involves selecting AC motors or permanent magnet torque motors and pairing them with appropriate gearbox ratios. The drive system must deliver sufficient torque to turn the selected screw diameter under the expected operational load without stalling or overheating.
For example, processing fractional melt HDPE requires significantly more torque at lower RPMs compared to processing high-flow PP. The gearbox service factor must be selected based on these continuous torque demands. A service factor of 1.5 or higher is standard for heavy-duty extrusion to ensure the gears and bearings survive the continuous thrust loads generated by the screw.
Material Influence on Extruder Dimensioning
Rheology and Viscosity Considerations
Material rheology dictates machine design. Fractional melt materials possess high viscosity. They require robust gearboxes and deeper screw flights to prevent excessive shear heating. High melt flow index materials flow easily and require different metering depths to maintain pressure. Shear sensitivity directly impacts the maximum allowable RPM. Thermal-sensitive materials require low RPMs, specialized cooling, and low-shear screw designs. Robust polyolefins can withstand higher RPMs and deeper flight depths without degrading.
Understanding the shear-thinning behavior of the specific polymer is non-negotiable. As screw speed increases, the apparent viscosity of most polymers decreases. However, this generates internal frictional heat. If the extruder is sized too small and run too fast, the shear heat will exceed the cooling capacity of the barrel blowers, leading to uncontrollable melt temperatures and degraded physical properties in the final product.
Feedstock Form Factor and Bulk Density
Feedstock form factors alter volumetric feeding efficiency. Virgin pellets feed predictably. Regrind, powders, and flakes bridge in the hopper and convey poorly due to varying bulk densities. Low bulk density materials require deeper feed sections to intake enough volume. Engineers often specify force-feeders or grooved feed throats to force light materials into the screw channels. These modifications fundamentally alter capacity planning and require careful torque evaluation.
When dealing with post-consumer regrind, the bulk density can fluctuate wildly from batch to batch. A standard smooth-bore feed throat may struggle to maintain a consistent fill factor in the screw. Implementing a grooved feed section increases the solid conveying capacity exponentially, but it also requires a significantly stronger gearbox and motor to handle the immense pressure generated in the first few diameters of the barrel.
Evaluating Custom vs. Standard Extrusion Systems
When to Specify Standard Equipment
Standard, off-the-shelf geometries suffice for highly predictable applications. If you process commodity resins into standard profiles within narrow throughput ranges, a general-purpose screw often performs adequately. Standard equipment reduces initial capital expenditure and shortens delivery lead times. These machines are built with conservative geometries designed to process a wide variety of materials reasonably well, though they will not optimize output or quality for any single specific resin.
The Role of a Custom Screw and Barrel Supplier
Specialized applications demand custom engineering. A reliable custom screw and barrel supplier tailors barrier flights and mixing sections to your specific formulation. Maddock, Pineapple, or Saxton mixers improve dispersive and distributive mixing for highly filled materials or color masterbatches. Metallurgy selection is equally critical. Abrasive or corrosive formulations containing glass fibers, flame retardants, or PVC quickly destroy standard steel. Custom suppliers provide bimetallic barrels, nitrided liners, and tungsten carbide or Colmonoy flight coatings to extend equipment lifespan and maintain process stability.
Investing in custom metallurgy upfront prevents catastrophic wear down the line. When processing 30% glass-filled nylon, a standard nitrided barrel may lose its dimensional tolerance within six months. A bimetallic barrel lined with a tungsten carbide alloy will maintain its internal diameter for years, ensuring consistent pumping efficiency and preventing material backflow over the screw flights.
Implementation Risks and Turnkey Extrusion Line Engineering

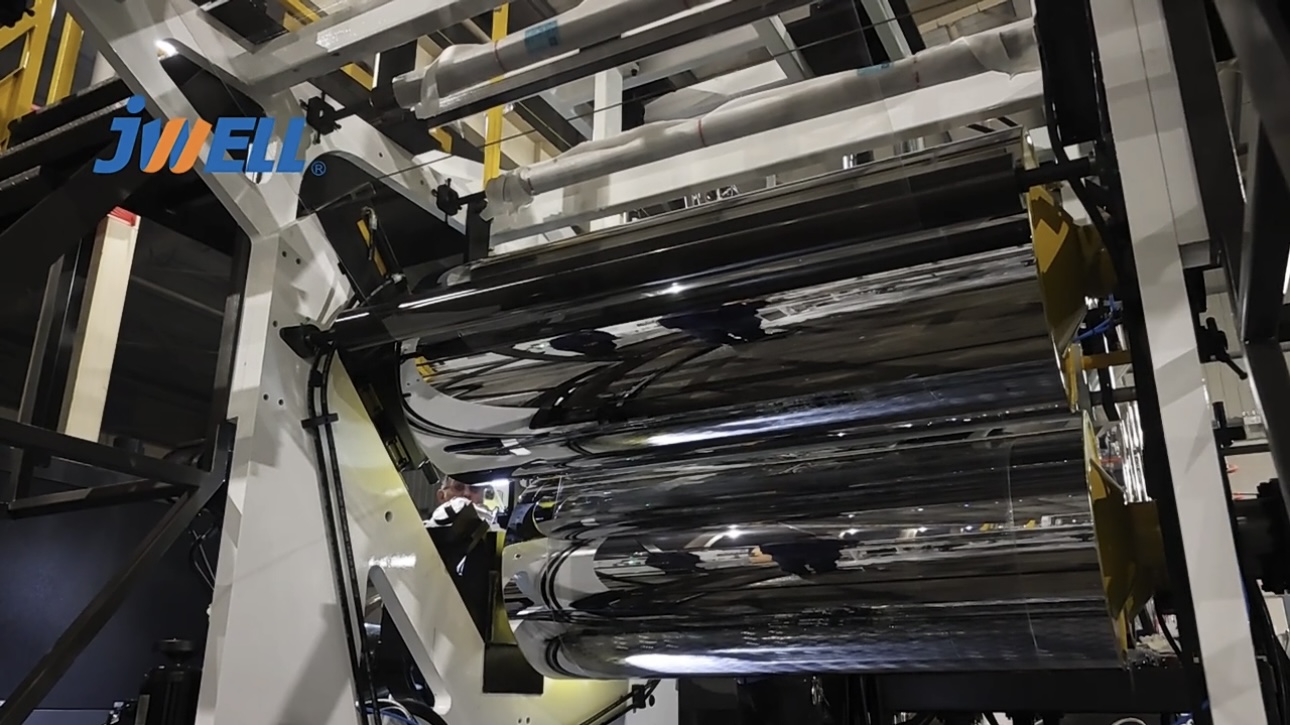

Mitigating Downstream Bottlenecks
An extruder is only one part of the system. You must ensure the die head, melt pump, screen changer, cooling calibration sizing, and pullers can handle the extruder's maximum output. If the downstream equipment cannot keep up, the extruder must be slowed down, negating the value of the sizing calculations. The cooling bath must have enough length and water flow to remove the heat from the extrudate at the maximum line speed. The puller must have enough traction to maintain consistent tension without deforming the product.
Thermal Management and Cooling Capacity
High throughputs generate massive shear heat. Sizing barrel heaters and cooling systems correctly is vital. Engineers must specify adequate blowers or water jackets to remove excess heat. Failure to manage thermal loads results in degraded polymer and unstable die pressure. For high-speed operations, liquid cooling on the feed throat is mandatory to prevent premature melting and bridging in the hopper.
Vendor Evaluation Criteria
Selecting a single screw extruder manufacturer requires strict evaluation. Demand Factory Acceptance Testing capabilities and firm process guarantees. The best manufacturers utilize rheological modeling capabilities, such as 3D FEM flow simulation, to prove their screw designs before cutting steel. Engaging in turnkey extrusion line engineering offers significant risk mitigation. It provides single-point accountability for overall system performance, ensuring seamless integration from the material hopper to end-of-line packaging.
Conclusion
Extruder sizing remains a complex balance of thermodynamics, fluid mechanics, and mechanical engineering. It requires precise alignment between material behavior and machine geometry to achieve profitable production. Prioritize manufacturers and engineering partners who utilize polymer-specific simulation and modeling. Avoid vendors who rely exclusively on generic sizing charts, as these rarely account for specific rheological challenges.
- Compile comprehensive material data sheets, including bulk density, melt flow index, and thermal degradation limits.
- Define strict minimum, nominal, and maximum throughput ranges based on actual downstream line capabilities.
- Engage a turnkey engineering firm to perform a custom sizing analysis using rheological flow simulation.
- Specify custom screw geometries and wear-resistant metallurgy tailored to your exact polymer formulation.
FAQ
Q: What is the most common screw diameter for a single screw extruder?
A: The most widely used screw diameters for standard production range from 45mm to 90mm. These sizes efficiently handle common applications like sheet, blown film, and standard profile extrusion. Larger diameters up to 150mm are reserved for high-volume pipe or pelletizing operations.
Q: How do you calculate the output capacity of a single screw extruder?
A: Output capacity is calculated by evaluating the screw diameter, channel depth in the metering zone, screw RPM, and the polymer's melt density. Accurate calculations must factor in the material's specific gravity and bulk density rather than relying on generic volumetric charts.
Q: What does the L/D ratio mean in single screw extruder sizing?
A: The Length-to-Diameter (L/D) ratio compares the flighted length of the screw to its outside diameter. A 30:1 ratio means the screw is 30 times longer than its diameter. Higher ratios provide longer residence times for melting and mixing.
Q: How does material bulk density affect extruder capacity planning?
A: Low bulk density materials, like flakes or powders, take up more volume per kilogram. They require deeper feed sections or force-feeders to ensure enough material enters the screw. Failing to account for bulk density results in severe under-feeding and reduced output.
Q: When should I choose a custom screw design over a general-purpose screw?
A: Choose a custom screw design when processing highly filled materials, heat-sensitive polymers, or specialized engineering resins. Custom mixing sections and barrier flights ensure proper melt homogeneity and prevent degradation that standard screws cannot manage.
Q: What happens if a single screw extruder is oversized for the application?
A: An oversized extruder must run at very low RPMs to hit low target throughputs. This causes poor mixing, extended residence times, and thermal degradation of the polymer. It also wastes energy and capital investment.
