Ever wondered how manufacturers create complex plastic products with multiple layers? Co-extrusion and tri-extrusion are key techniques. These processes revolutionize the manufacturing industry by combining different materials in one product. In this post, you'll learn about their definitions, importance, and the plastic extrusion process.
Understanding Co-Extrusion
Definition and Process
Co-extrusion is a plastic manufacturing process where two different molten plastic materials are pushed through a single die simultaneously. These materials merge to form a single, multi-layered product. Each layer retains its unique properties, resulting in a combined structure that benefits from the strengths of both materials.
The process starts by feeding plastic pellets into separate hoppers. These pellets are then melted and conveyed through individual extruders. The molten plastics meet at the die, where they join and are shaped into the desired profile. After exiting the die, the product cools, solidifies, and is cut to length.
Advantages Over Single Extrusion
Co-extrusion offers several advantages compared to single extrusion:
Multi-functionality: Products can have layers with different properties, like a rigid core and a flexible outer layer.
Cost Efficiency: Using a cheaper core material while maintaining an expensive, high-performance outer layer reduces overall costs.
Enhanced Performance: Different layers can provide barrier properties, UV resistance, or chemical resistance.
Design Flexibility: Allows for color variations and improved aesthetics without secondary processes.
Common Applications and Industries
Co-extrusion finds use in many sectors due to its versatility:
Packaging: Multi-layer films combining moisture barriers and strength.
Biomedical: Tubing with distinct layers for flexibility and chemical resistance.
Automotive: Components requiring durability and precise material properties.
Construction: Pipes and profiles with protective outer layers.
Consumer Goods: Items like toothbrush handles or food containers with layered materials.
This process enables manufacturers to tailor products to specific needs, combining performance, cost savings, and design in a single extrusion.
Exploring Tri-Extrusion
Definition and Process
Tri-extrusion is a plastic extrusion method that uses three different molten plastic materials simultaneously. These materials are pushed through separate extruders and combined in a single die to form a three-layered product. Each layer keeps its unique properties, which together create a complex structure offering multiple functionalities.
The process begins with feeding three types of plastic pellets into individual hoppers. Each pellet batch melts in its own extruder. The molten plastics then converge at the extrusion die, where they merge into one continuous profile with three distinct layers. After extrusion, the product cools, solidifies, and is cut to the desired length.
This process allows manufacturers to combine materials with varying characteristics such as flexibility, strength, or chemical resistance in a single product. For example, a tri-extruded tubing might have a rigid inner layer for structural support, a middle layer for impact resistance, and a soft outer layer for flexibility or grip.
Key Differences from Co-Extrusion
While both co-extrusion and tri-extrusion involve combining multiple materials, tri-extrusion uses three materials instead of two. This difference brings several unique aspects:
Number of Layers: Tri-extrusion produces three layers; co-extrusion produces two.
Complexity: Tri-extrusion requires more precise control to manage three molten streams simultaneously.
Performance: Tri-extrusion offers enhanced customization by blending three distinct material properties.
Equipment: Tri-extrusion machines have three extruders feeding into one die, whereas co-extrusion uses two.
These differences make tri-extrusion ideal for applications demanding more complex material combinations and higher performance standards.
Benefits of Using Three Materials
Using three materials in extrusion offers several advantages:
Multi-functionality: Each layer can serve a specific function, such as barrier protection, strength, or aesthetic appeal.
Cost Efficiency: Combining an expensive outer layer with cheaper core materials reduces overall costs without sacrificing quality.
Improved Durability: The layered structure can enhance resistance to chemicals, UV rays, or physical wear.
Customization: Different colors, textures, or finishes can be integrated into one product, improving design flexibility.
Enhanced Product Performance: Tri-extrusion allows for fine-tuning properties like flexibility, rigidity, and impact resistance in a single profile.
For example, in automotive tubing, the inner layer could resist fuel corrosion, the middle layer could provide strength, and the outer layer could offer abrasion resistance.
Materials Used in Co-Extrusion and Tri-Extrusion
Types of Plastics Commonly Used
Co-extrusion and tri-extrusion processes often use a variety of thermoplastic materials, chosen based on the desired properties of the final product. Common plastics include:
Polyethylene (PE): High-density (HDPE) and low-density (LDPE) versions offer flexibility, chemical resistance, and moisture barriers.
Polypropylene (PP): Known for its stiffness and chemical resistance, often used in packaging and automotive parts.
Polyvinyl Chloride (PVC): Rigid or flexible forms provide durability and weather resistance.
Acrylonitrile Butadiene Styrene (ABS): Offers toughness and impact resistance, popular in automotive and consumer goods.
Polycarbonate (PC): Provides high impact strength and optical clarity.
Thermoplastic Polyurethane (TPU): Flexible, abrasion-resistant, often used for tubing or protective layers.
Polyethylene Terephthalate (PET): Strong, with good barrier properties, used in food packaging.
Each plastic layer retains its chemical and physical characteristics after extrusion, allowing manufacturers to combine materials that complement each other.
Properties Retained in Finished Products
The multi-layer structure formed in co- and tri-extrusion maintains the distinct properties of each plastic layer. For example:
Barrier Protection: Inner layers can block moisture, oxygen, or chemicals.
Mechanical Strength: Core layers can add rigidity or impact resistance.
Surface Finish: Outer layers provide UV protection, color, or texture.
Flexibility: Specific layers can ensure bendability without cracking.
Chemical Resistance: Certain layers protect against corrosion or solvents.
This layering enables complex functionality in a single product that would be difficult or costly to achieve with a single material.
Role of Additives and Colorants
Additives and colorants play a crucial role during extrusion, enhancing performance and aesthetics:
UV Stabilizers: Protect plastics from degradation caused by sunlight exposure.
Antioxidants: Prevent oxidation during processing and product life.
Plasticizers: Increase flexibility in rigid polymers.
Flame Retardants: Reduce flammability for safety compliance.
Colorants: Provide consistent, vibrant colors for branding or product identification.
Fillers: Improve mechanical properties or reduce cost.
These additives are blended into the raw plastic pellets before melting. In co- and tri-extrusion, each layer can contain different additives tailored to its function, enhancing the overall product performance.
Applications of Co-Extrusion and Tri-Extrusion
Biomedical Industry Uses
Co-extrusion and tri-extrusion play vital roles in biomedical manufacturing. These processes allow creation of medical tubing and devices with multiple layers, each serving a unique function. For example, a tri-extruded catheter may have an inner layer that is biocompatible and smooth for patient safety, a middle layer providing strength and kink resistance, and an outer layer with antimicrobial properties or color coding for easy identification.
This layering improves device performance, durability, and safety without increasing size or weight. Additionally, color-coded layers help healthcare professionals quickly distinguish tubing types, which is crucial in emergencies. The ability to combine materials also supports customization for specialized applications like drug delivery systems or dialysis equipment.
Food Production and Packaging
In food production and packaging, co-extrusion and tri-extrusion enhance product safety, shelf life, and presentation. Multi-layer films created by these processes can combine barriers against oxygen, moisture, and odors, keeping food fresh longer. For instance, a tri-extruded film might have an inner layer that prevents moisture loss, a middle layer that blocks oxygen, and an outer layer that provides mechanical strength and printability.
This layered approach also allows manufacturers to use recycled or cheaper materials in core layers while maintaining high-quality surfaces for food contact. Moreover, co-extruded packaging films can incorporate colorants and textures that improve branding and consumer appeal without extra processing steps.
Besides packaging, co-extrusion is used in producing point-of-purchase displays like price tag holders and display channels. These components benefit from multi-layer construction for durability and aesthetic flexibility.
Automotive and Transportation
The automotive and transportation industries rely heavily on co-extrusion and tri-extrusion to produce parts that meet strict performance standards. Multi-layer plastic tubing and profiles are used in fuel lines, wiring insulation, and protective coverings. Each layer can be engineered for specific properties such as chemical resistance, flexibility, or abrasion resistance.
For example, tri-extruded fuel lines may have an inner layer resistant to fuel chemicals, a middle layer for structural strength, and an outer layer that protects against heat and physical damage. This layered design reduces failure risks and extends component life.
Additionally, co-extrusion helps reduce costs by combining expensive high-performance materials only where needed, while using less costly materials elsewhere. The ability to add color coding and textures also assists in assembly and maintenance processes.
Manufacturing Process of Co-Extrusion and Tri-Extrusion
Initial Pellet Formation
The manufacturing journey for co-extrusion and tri-extrusion starts with plastic pellets. These small granules serve as the raw materials. Each type of plastic pellet is carefully selected based on the desired properties of the final product. Before extrusion, additives like colorants, UV stabilizers, or plasticizers may be blended into these pellets to enhance performance or appearance.
Once the pellets are prepared, they are loaded into separate hoppers. For co-extrusion, two hoppers hold different plastic pellets; tri-extrusion uses three. This separation ensures each material maintains its unique characteristics during processing.
Extrusion Machine Setup
After pellet loading, the extrusion machine is set up. The machine features multiple extruders—two for co-extrusion, three for tri-extrusion. Each extruder has a heated barrel where the pellets melt into molten plastic.

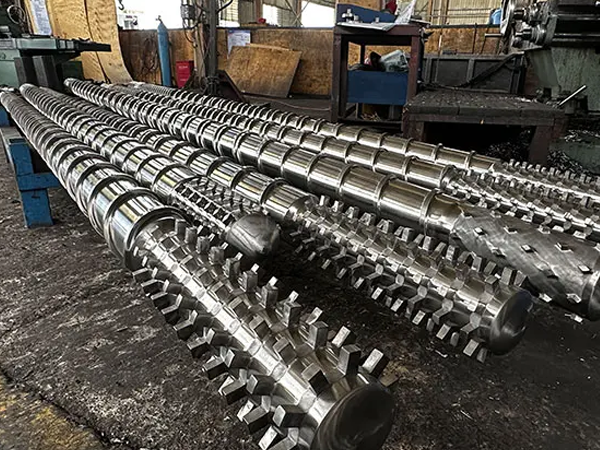

The molten plastics are pushed forward by rotating screws inside each extruder. The speed and temperature are precisely controlled to ensure consistent melting and flow. The molten streams then converge at the extrusion die, a specially designed tool that shapes the combined materials into a single profile.
The die is engineered to keep the layers distinct yet bonded. It directs the flow of each molten plastic to form the desired multi-layered structure—two layers for co-extrusion, three for tri-extrusion. This precise coordination requires careful calibration to avoid mixing layers or causing defects.
Cooling and Cutting Processes
Once the multi-layered plastic profile exits the die, it is still hot and malleable. To solidify the shape, the product passes through a cooling system. Commonly, water baths or air cooling tunnels are used to bring down the temperature quickly and uniformly.
The cooling process locks in the layered structure and ensures dimensional stability. After cooling, the solidified profile moves to cutting equipment. Here, it is cut into specified lengths or wound into coils for further processing.
Throughout cooling and cutting, quality checks ensure the layers remain intact, the dimensions meet tolerances, and the surface finish is smooth. Any defects found may require adjustments in temperature, speed, or die setup.
Choosing the Right Plastic for Extrusion
Factors to Consider
Selecting the right plastic for co-extrusion or tri-extrusion depends on several key factors:
Performance Requirements: Consider mechanical strength, flexibility, chemical resistance, and temperature tolerance needed for the final product.
Layer Functionality: Each layer serves a purpose—barrier, structural support, or surface finish. Choose materials that best fulfill these roles.
Compatibility: Ensure the plastics used bond well and maintain layer integrity during processing.
Cost Efficiency: Balance material cost against performance. Sometimes an expensive outer layer pairs with a cheaper core to reduce overall cost.
Regulatory Compliance: For biomedical or food packaging, materials must meet strict safety standards.
Processing Conditions: Plastics should have similar melting points and flow characteristics to avoid defects during extrusion.
Popular Plastic Materials
Several plastics are commonly chosen for extrusion layers due to their beneficial properties:
Polyethylene (PE): Flexible, chemical resistant, and moisture barrier.
Polypropylene (PP): Rigid, heat resistant, and cost-effective.
Polyvinyl Chloride (PVC): Durable, weather resistant, and versatile.
Acrylonitrile Butadiene Styrene (ABS): Tough, impact resistant, and easy to color.
Polycarbonate (PC): High impact strength and clarity.
Thermoplastic Polyurethane (TPU): Flexible and abrasion resistant.
Polyethylene Terephthalate (PET): Strong barrier properties and dimensional stability.
Manufacturers often combine these materials to optimize the final product’s performance.
Customization Options Available
Customization plays a vital role in extrusion projects:
Additives: UV stabilizers, antioxidants, flame retardants, and plasticizers can be added to tailor properties.
Colorants: Each layer can have distinct colors for branding, coding, or aesthetics.
Layer Thickness: Adjusting thicknesses optimizes cost and functionality.
Surface Textures: Outer layers can be smooth, matte, or textured based on application needs.
Material Blends: Sometimes blends or copolymers are used for enhanced characteristics.
These options allow manufacturers to meet exact specifications and create products suited for diverse markets.
Conclusion
Co-extrusion and tri-extrusion allow manufacturers to create multi-layered plastic products with enhanced properties and cost efficiency. These processes are vital in industries like biomedical, packaging, and automotive, offering flexibility and durability. Future trends in plastic extrusion may focus on sustainability and advanced material combinations. Jwell's innovative extrusion solutions provide exceptional value through tailored designs and high-performance products, meeting diverse market needs with precision and quality.
FAQ
Q: What are Co-Extrusion and Tri-Extrusion?
A: Co-Extrusion and Tri-Extrusion are processes where multiple molten plastic materials are combined through a single die, forming layered products with distinct properties.
Q: How do Co-Extrusion and Tri-Extrusion differ?
A: Co-Extrusion uses two materials, while Tri-Extrusion uses three, allowing for more complex and customizable product structures.
Q: Why are Co-Extrusion and Tri-Extrusion used?
A: These processes enhance product performance, cost efficiency, and design flexibility by combining different material properties in one product.
Q: What are the benefits of Co-Extrusion and Tri-Extrusion?
A: They offer multi-functionality, improved durability, cost savings, and design customization, making them ideal for various industries.
