BOPE Battery Separartor

BOPE Battery Separator

BOPE Battery Separator

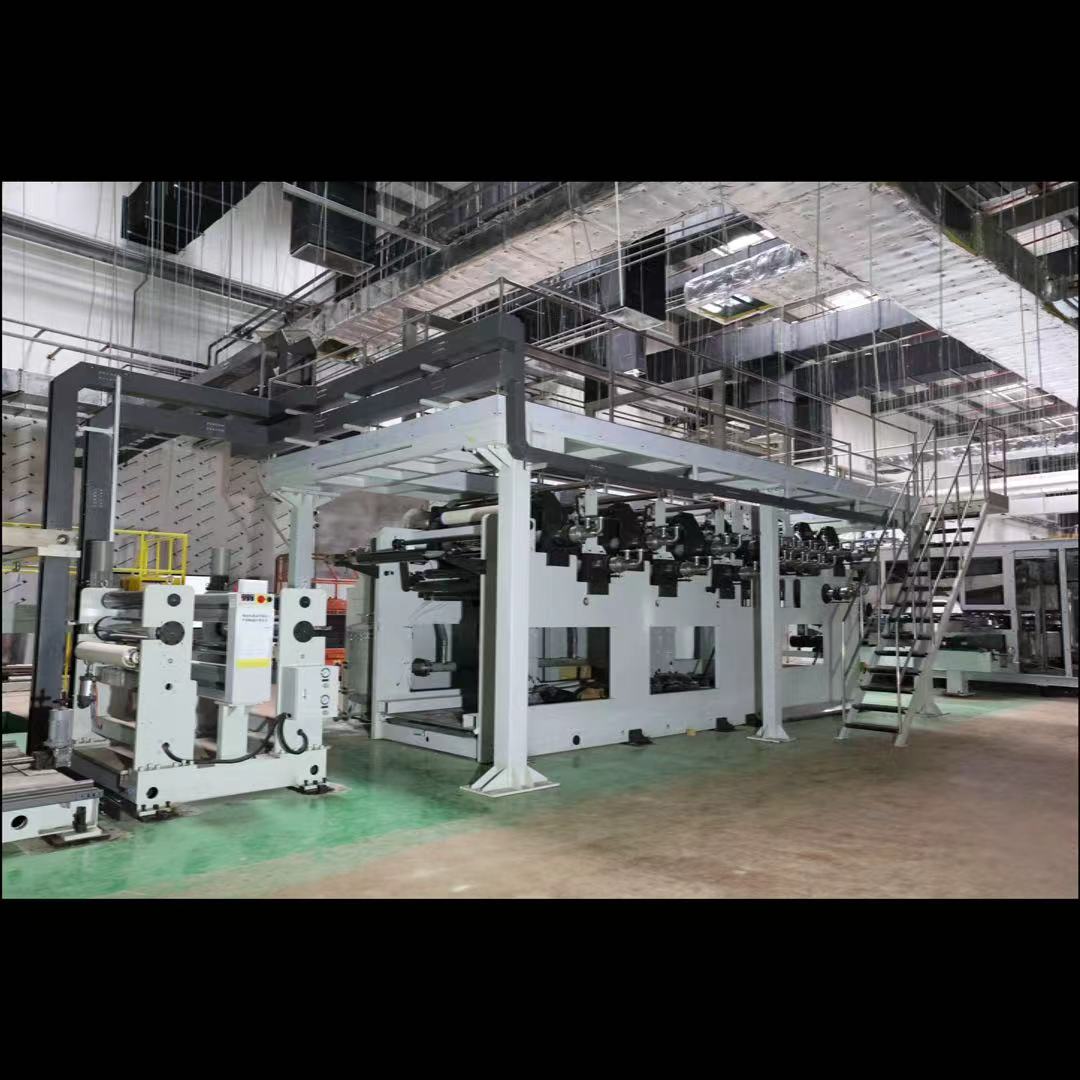

Bi-orientation Stretching Equipment

Adopts advanced fully closed-loop tension, speed, and temperature synchronization control system, the film is ensured to  achieve highly uniform and precise stretching in both longitudinal (MD) and transverse (TD) directions, endowing the  products with excellent mechanical, optical, and dimensional stability. Optimize the hot air circulation system and heat  recovery technology of the oven, significantly reduce energy consumption, and improve production efficiency. The production line design meets the stable production needs of large width and high line speed, helping customers achieve economies of scale.

Providing customized solutions for functional special films We are well aware of the strict requirements of functional films (such as high barrier films, optical films, lithium battery  separators, photovoltaic backsheet films, release films, special surface treatment films, biodegradable films, etc.) for  specific properties (barrier properties, light transmittance, weather resistance, electrical properties, surface characteristics,  environmental friendliness, etc.). Our company can customize and design various high-precision stretching film units  according to customer requirements.

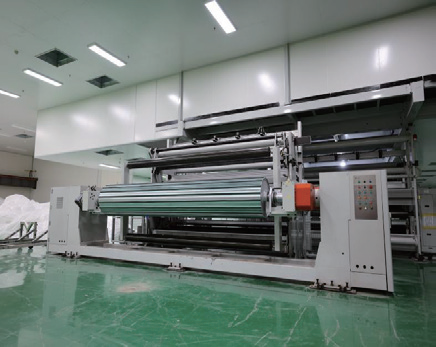

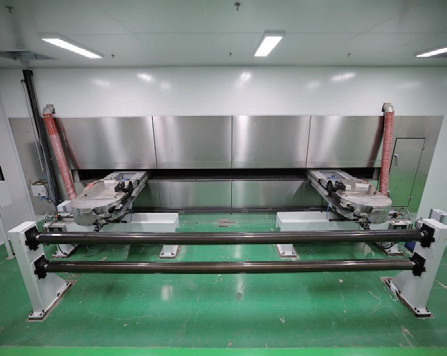

WET PROCESS LITHIUM BATTERY SEPARATOR PRODUCTION LINE

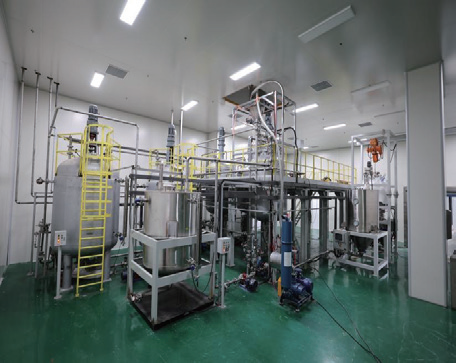

The wet process lithium battery separator production line independently developed by JWELL company can meet the  requirements of high output, low production cost, and excellent film quality; Low energy consumption, high automation  standards, and production stability; Easy to operate and low maintenance cost. The unique screw technology ensures good plasticization of the melt and uniform melting temperature. Efficient casting  unit design makes the surface properties of the film easier to adjust and control. The stretching part can achieve a fusion of  TD-MD bidirectional stepwise stretching and synchronous stretching. The unique oven structure design ensures the uniformity of wind speed and temperature.

6.5-8.5-meter Lithium Battery Separator Bi-orientation Stretching Production Line

Machine Parameters

MONO-ORIENTATION STRETCHING FILM LINE

Machine Parameters:

Detailed Overview of Stretch Film Production Line (MDO Technology)

The MDO stretch film production line is an advanced solution for manufacturing films with enhanced mechanical, optical, and thermal properties. By stretching films in the machine direction, this technology transforms their molecular structure, improving performance while reducing material usage and costs.

Working Principle of MDO Technology

1. Heating: The base film is passed through controlled heating zones to reach the optimal temperature for stretching.

2. Stretching: The film is stretched in the machine direction using high-precision rollers, aligning the polymer molecules for improved properties.

3. Annealing: Post-stretching, the film is stabilized through controlled cooling and annealing to prevent shrinkage and maintain dimensional stability.

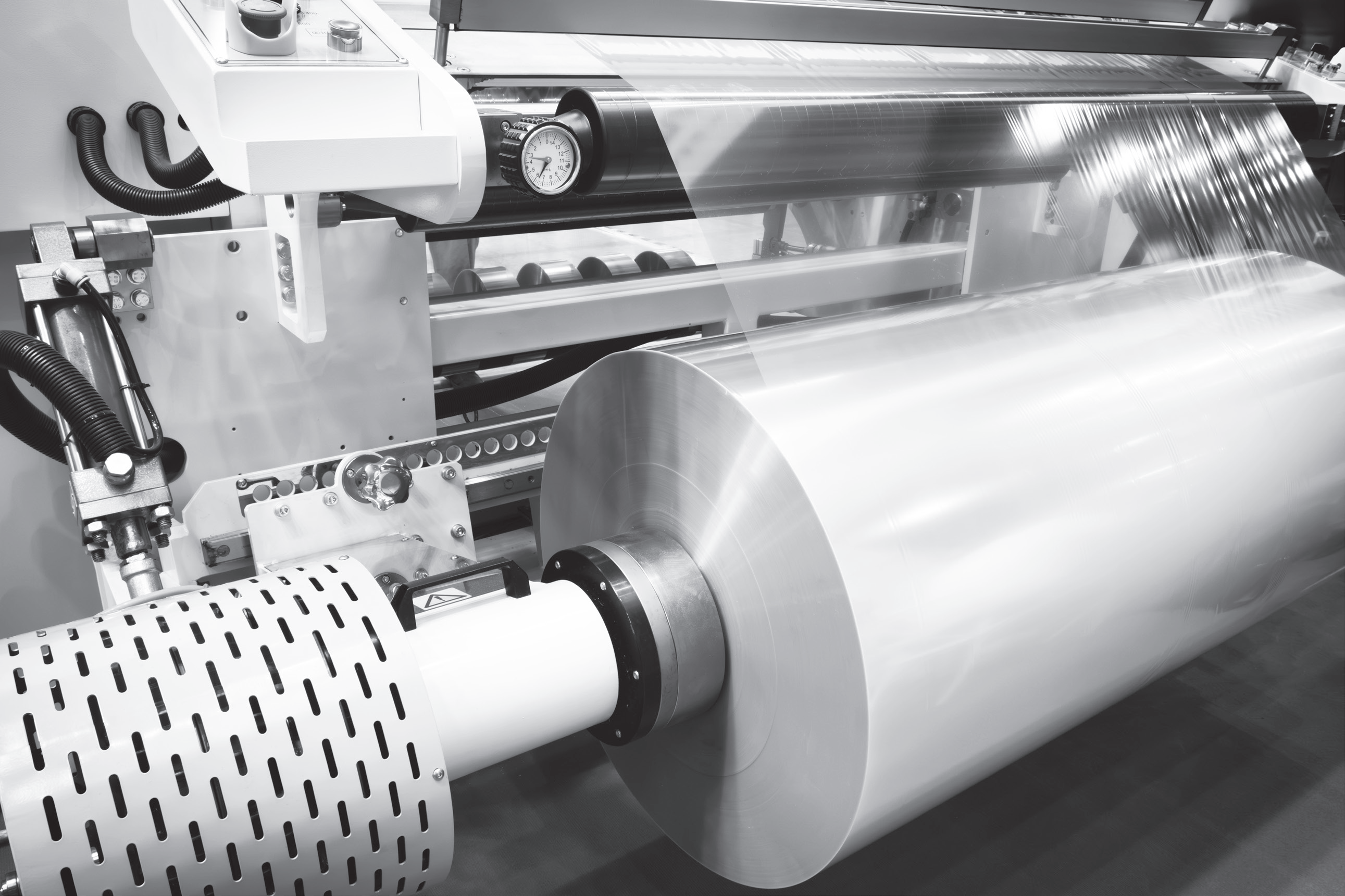

4. Winding: The final product is wound into rolls for further processing or direct use.

Core Components of the Production Line

1. Extrusion Unit: Produces the base film, often in multi-layer configurations (e.g., PE, PP, PET).

2. Pre-Heating Section: Gradually heats the film for uniform stretching.

3. Stretching Section: Adjustable rollers allow precise control of stretching ratios.

4. Cooling and Annealing Unit: Ensures film stability and quality.

5. Control System: Equipped with PLC or SCADA systems for automation, real-time monitoring, and recipe storage.

6. Edge Trimming and Recycling: Minimizes waste by reprocessing trimmed edges.

Material Compatibility

Polyethylene (PE): LDPE, LLDPE for stretch films and packaging.

Polypropylene (PP): For high-strength and transparent films.

Polyester (PET): Used in applications requiring high thermal and tensile properties.

Bio-Based Polymers: For sustainable and eco-friendly film solutions.

Performance Benefits

1. Improved Physical Properties:

  - Enhanced tensile strength and tear resistance.

  - Reduced elongation, ensuring dimensional stability.

2. Optical and Surface Properties:

  - High transparency and gloss for premium packaging.

  - Smooth surface for printing and lamination.

3. Cost Efficiency:

  - Thinner films with superior performance reduce raw material consumption.

  - Lower energy usage due to optimized heating and stretching processes.

4. Sustainability:

  - Enables production of recyclable films.

  - Facilitates downgauging to reduce environmental impact.

Applications

1. Flexible Packaging: Food packaging, pharmaceutical wraps, and consumer goods.

2. Label Films: Shrink labels, adhesive labels, and thermal transfer printing films.

3. Industrial Uses: Protective films, lamination substrates, and agricultural films.

4. Optical Films: Display screens, touch panels, and lighting covers.

Customization Options

The production line can be tailored to meet specific industry requirements, including:

Stretching Ratios: Adjustable from 2:1 to 10:1, depending on the film properties needed.

Film Thickness Range: From ultra-thin films (8 microns) to thicker films (100 microns).

Layer Configuration: Single-layer or multi-layer co-extrusion for specialized applications.

Additive Integration: Incorporates anti-static, anti-fog, or UV-blocking additives.

Market Trends and Advantages

1.Growing demand for lightweight and sustainable packaging has accelerated the adoption of MDO technology.

2.Films produced on MDO lines are increasingly replacing multi-material films due to their recyclability and cost-effectiveness.

3.Advanced MDO production lines can process bio-based and compostable polymers, meeting the needs of eco-conscious markets.

With its ability to produce high-quality films at lower costs, the uni-axial stretch film production line is a game-changing solution for manufacturers seeking innovation, efficiency, and sustainability.
