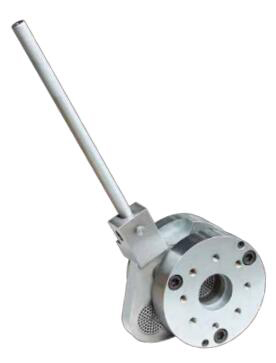

JW-MT Manual Screen Changer reduce resistance of screen changing and decrease the hydraulicsystem working pressure

JW-MT Manual Screen Changer reduce resistance of screen changing and decrease the hydraulicsystem working pressure-Suzhou JWELL

Non mechanical seal structure to ensure no material ooze during high pressure and high temperature. High efficiency to reduce resistance of screen changing and decrease the hydraulicsystem working pressure.

Whole body type without gap of bearing to bear high pressure.

Nitrated Alloy Steel extends the lifetime .

Cellular board after flowing simulation reduces the Fluid shear during extrusion process

Availability:

Quantity:



Inquire Add to Basket

Product Description

JW-MT Manual Screen Changer reduce resistance of screen changing and decrease the hydraulicsystem working pressure-Suzhou JWELL

Non mechanical seal structure to ensure no material ooze during high pressure and high temperature. High efficiency to reduce resistance of screen changing and decrease the hydraulicsystem working pressure.

Whole body type without gap of bearing to bear high pressure.

Nitrated Alloy Steel extends the lifetime .

Cellular board after flowing simulation reduces the Fluid shear during extrusion process

手动换网器系列

Manual screen changer series :

●Extruder screw can draw from the screen changer directly, it is convenient to remove and clean.

●Adopts advanced pressure seal technology, through the pressure of polymers to drive seal components, to achieve the best sealing effect and change screen more quickly.

●Modular combinations, suitable for different standard extrusion machine, and convenient to clean.

●Low cost investment, suitable for small extrusion system.

●The minimum stay time.

●The smallest installation space.

●Suitable for different extrusion industry.

PC板 (8)

Technical parameter

Model	Output（Kg/h）	Filter size （mm）	Filtration area （m㎡）	Withstanding pressure（Mpa）	Heating zone	Heating power（KW）
JW-MT-50	50-100	Φ55	1950	20	2	3.3
JW-MT-70	80~150	Φ75	3850	20	2	3.3
JW-MT-100	150~350	Φ105	7850	15	2	6
JW-MT-120	250~400	Φ125	11300	15	2	8
