Three Key Technical Advantages Enable High-Precision Molding of Super-Mirror Rollers for PC/PMMA Optical Sheets And Plates

One

In the field of manufacturing optical-grade plastic sheets, panels, and films, surface quality and optical performance are the ultimate benchmarks of product quality. High-end applications such as light guide plates for LED panels, membrane switches in the electronics industry, and LCD screens for computers and mobile phones impose extremely stringent requirements on light transmittance, haze, smoothness, and thickness uniformity. The key component that determines these critical indicators is the super mirror finish roll—an indispensable part of production equipment. It is no exaggeration to say that the surface finish and geometric accuracy of the roll directly determine the grade and performance of the final product. Following the fundamental rule that “the smoother and more precise the roll surface, the better the quality of the produced product,” the industry continuously pursues the ultimate limits of surface roughness tolerance and geometric precision, leading to the development of the super mirror finish roll as a piece of precision equipment.

Two

The super mirror finish roll from Suzhou Jwellmech has become the “core component” in the production of optical-grade PC (polycarbonate) and PMMA (polymethyl methacrylate, i.e., acrylic) sheets and panels due to its three key technical features.

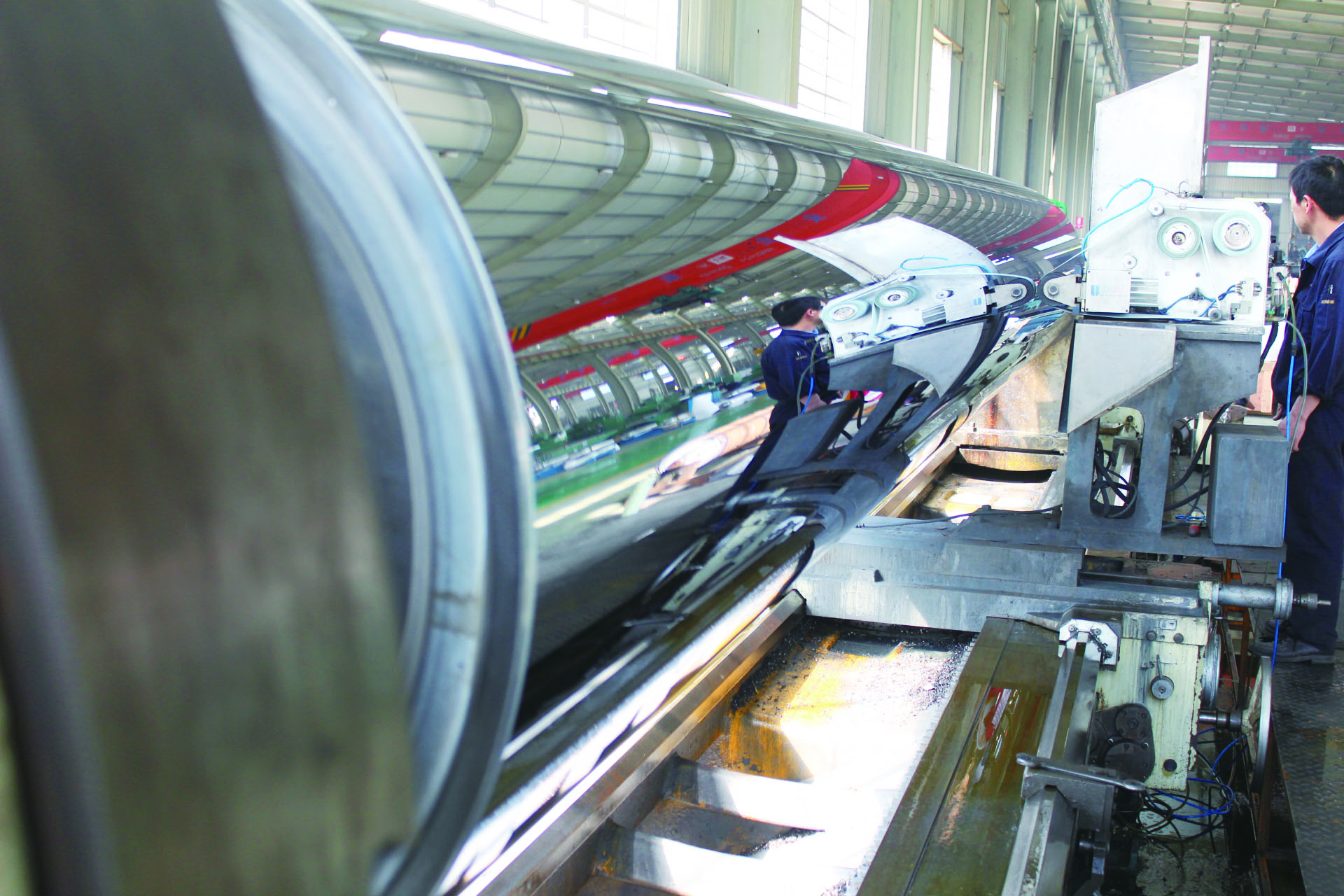

First is its exceptional surface smoothness. Through high-precision grinding, ultra-precision lapping, and polishing processes, the surface roughness (Ra) of this type of roll can be stably controlled between 0.005 and 0.01 micrometers. This value is only a fraction, or even one-tenth, of that of conventional mirror finish rolls, approaching or even surpassing the flatness of optical glass. When molten PC or PMMA resin is cast, calendered, or laminated on the roll surface, the microscopic topography of the roll is replicated onto the plastic surface with nanometer-level precision. Only a super mirror surface with Ra ≤ 0.01 μm can ensure that the produced optical-grade sheets are free from scratches, orange peel, or micro-pits, thereby achieving a light transmittance of over 90% and a haze of less than 1%, meeting the stringent requirements of liquid crystal displays and high-end touch panels for visual purity.

Secondly, the super mirror finish roll from Suzhou Jwellmech pursues not only surface “smoothness” but also geometric “accuracy”. Its cylindricity and coaxiality are both strictly controlled within ≤0.005 mm. This means that the diameter variation over the entire working length of the roll does not exceed 5 micrometers, and the deviation between the rotation center and the geometric center is likewise limited to the micrometer level. For the production of optical-grade PC/PMMA sheets, thickness tolerance is another critical quality indicator. Any cylindricity deviation in the roll will directly lead to uneven transverse thickness of the sheet, which in turn may cause Newton’s rings, rainbow patterns, or local focusing differences along the subsequent optical path. The cylindricity and coaxiality of less than 0.005 mm, combined with high-rigidity bearings and a precision transmission system, ensure that the roll can output sheets with uniform thickness and no longitudinal stripes even under high-speed rotation and constant pressure. This is particularly important for producing light guide plates and diffuser plates for large-area liquid crystal displays, because any tiny thickness fluctuation will be amplified into uneven display brightness.

Third, the special structural design of the super mirror finish roll aims to simultaneously ensure extremely high roll rigidity and minimal surface temperature deviation. Optical-grade plastic processing often needs to be carried out within tightly controlled temperature ranges: the glass transition temperature of PC is about 150°C, and that of PMMA is about 105°C, while the melt processing temperatures of both are typically above 200°C. The roll must not only withstand mechanical loads from melt pressure and the combined force of pressing rolls, but also precisely control the surface temperature to regulate the cooling crystallization of the resin (for PMMA, although it is amorphous, internal stress still needs to be controlled) or the setting of the viscous flow state. Conventional rolls may suffer from insufficient rigidity, leading to flexural deformation that results in a thicker center and thinner edges of the sheet; or poor flow channel design may cause uneven surface temperature distribution, leading to local shrinkage differences, warpage, or optical distortion. The super mirror finish roll uses a thick-walled seamless steel tube or alloy forging as the barrel, combined with a spiral or herringbone internal flow channel and a high-precision temperature control medium circulation system, so that the surface temperature uniformity of the roll can be controlled within ±1°C or even smaller. The extremely high rigidity ensures that the roll hardly bends during wide-width, high-speed production, while the uniform temperature field ensures that the molecular chains of PC/PMMA release stress evenly during cooling, thereby obtaining high-quality sheets with low internal stress, high flatness, and no optical distortion.

Three

Third, in the specific production process, the super mirror finish roll from Suzhou Jwellmech plays multiple critical roles. Taking the extrusion method for producing optical-grade PC or PMMA sheets as an example: after the molten plastic exits the T‑die, it immediately enters a calender unit composed of three (or more) super mirror finish rolls. The first roll is responsible for preliminarily flattening the melt and imparting its initial surface smoothness; the second roll further calenders and sets the thickness; the third roll performs cooling and final polishing. In this process, the surface smoothness of the rolls directly determines the “mirror effect” of the sheet—whether it can replace glass for mobile phone covers or screen protectors. The cylindricity and coaxiality of the rolls determine the thickness tolerance of the sheet—whether it can meet the winding and lamination requirements of ultra‑thin (below 0.1 mm) optical films. The rigidity and temperature uniformity of the rolls together affect the flatness and residual stress distribution of the sheet—key factors in preventing deformation during subsequent cutting, printing, or lamination processes.

Furthermore, the super mirror finish roll also performs the so‑called “hot replication” function in the calendering process. For optical films with microstructures (e.g., brightness enhancement films, prism films), it is usually necessary to pre‑engrave fine micro‑grooves or microlens arrays on the roll surface, which are then transferred onto the PMMA or PC substrate by embossing. In this application, the mirror‑quality substrate of the roll itself determines the background flatness of the microstructured areas; any minor defect in the substrate will cause failure of the microstructures. Therefore, the super mirror finish roll is also the foundation for achieving precision forming of optical functional films.

In summary, the super mirror finish roll from suzhou Jwellmech（https://www.jwellmech.com/） is by no means an ordinary mechanical component, but rather a systematic engineering solution integrating ultra‑precision machining, heat transfer, materials science, and fluid dynamics. With its极致表面光洁度 of Ra 0.005–0.01 μm, precision geometric tolerances of ≤0.005 mm, and rigidity and thermal uniformity achieved through special structural design, it provides fundamental equipment assurance for producing high‑quality optical‑grade PC/PMMA sheets, panels, and films. From LED panels to mobile phone LCD screens, from membrane switches in electrical appliances to high‑end optical protective films, every smooth, mirror‑like, flawless optical product depends on the precise replication and stable control of the super mirror finish roll during the process. It can be said that the manufacturing level of the super mirror finish roll directly signifies the technological height and core competitiveness of a region or enterprise in the field of optical‑grade plastic processing.
