The shift toward sustainable packaging and the increasing reliance on recycled PET (rPET) flakes have fundamentally changed the performance requirements for flat sheet extrusion. Processors face the dual challenge of maximizing throughput capacity, often exceeding 1,000 to 4,000 kg/h, while strictly controlling intrinsic viscosity (IV) drop, gauge tolerance, and optical clarity. Navigating the procurement of a high-capital extrusion system requires moving beyond basic spec sheets. This guide breaks down the technical process, critical equipment configurations, and the evaluation frameworks necessary to select a system that guarantees long-term ROI and operational stability. We will examine the mechanical realities of processing moisture-sensitive polymers and outline the exact specifications needed to maintain continuous, high-yield production environments.
- Material Handling Dictates Yield: The choice between traditional crystallization/drying towers and advanced twin-screw vacuum venting systems directly impacts energy consumption and rPET processing capabilities.
- Component Synergy is Critical: Achieving tight thickness tolerances relies on the precise synchronization of the melt pump, flat die, and three-roll calender stack.
- Vendor Evaluation Requires Scrutiny: Partnering with a reliable PET sheet extrusion line manufacturer requires assessing their component sourcing, post-sale support infrastructure, and ability to provide verifiable material trials.
- Long-Term Profitability Extends Beyond Capital Expenditure: Long-term profitability hinges on energy-efficient drives, automated gauge control systems, and the durability of wear parts.
Defining Success Criteria for PET Sheet Production
Production KPIs and End-Use Requirements
Establishing baseline metrics is the first step in defining a successful extrusion operation. You must define the target output rate in kg/h, the required line speed in m/min, and acceptable scrap rates. Equipment capabilities must map directly to end-product applications. Thermoforming packaging, blister packs, printable substrates, and medical-grade barrier packaging all demand specific line configurations. You must also establish acceptable ranges for optical clarity, specifically haze percentage, and mechanical strength to meet client specifications. A standard thermoforming line might target 1,200 kg/h with a thickness tolerance of ±2%, while a specialized medical packaging line might run slower but require absolute barrier integrity and zero optical defects.
| Application | Typical Thickness (mm) | Key Performance Indicator | Primary Material Focus |
| Thermoformed Food Packaging | 0.2 - 1.0 | High Output, Low Haze | rPET / Virgin Blend |
| Medical Blister Packs | 0.15 - 0.5 | Strict Gauge Tolerance, Barrier | 100% Virgin PET / PETG |
| Printable Substrates | 0.3 - 0.8 | Surface Tension, Flatness | Virgin PET |
| Heavy Gauge Trays | 1.0 - 2.5 | Impact Strength, Rigidity | rPET Core / Virgin Skin |
Material Input Flexibility & Polymer Versatility
Processing 100% virgin PET pellets, in-house skeleton regrind, and high-percentage post-consumer rPET flakes present distinct operational differences. Moisture content and bulk density variations directly impact line stability and output consistency. Evaluating the technical viability of a multi-polymer line offers operational flexibility. Processing PP and PS on the same physical line via modular screw and die configurations allows you to adapt to changing market demands without investing in entirely new lines. When running rPET, bulk density can fluctuate wildly from 250 kg/m³ to 450 kg/m³, requiring robust gravimetric dosing systems to maintain a consistent feed rate into the extruder throat.

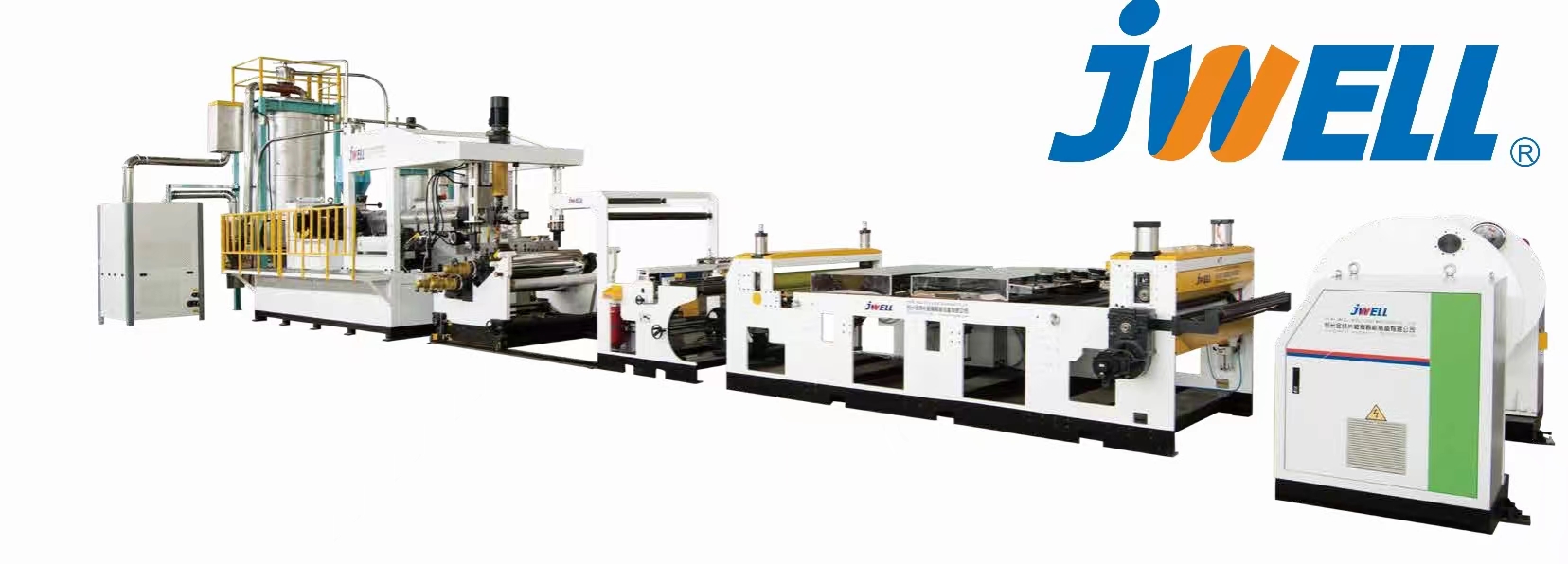

The PET Sheet Extrusion Process: Step-by-Step Mechanics
Pre-Treatment and Crystallization Mechanics
The crystallization tower plays a vital role when processing amorphous PET flakes or regrind. It prevents sticking and clumping during high-temperature drying. Mechanical agitation and specific heating profiles convert amorphous PET to a semi-crystalline state. This step ensures the material flows smoothly into the drying or extrusion phase without bridging or agglomerating. Agitator speeds and temperature ramps must be carefully calibrated; heating too quickly causes the flake surfaces to melt and fuse, shutting down the material handling system entirely.
Material Preparation and Dehumidification
Removing moisture is essential to prevent hydrolytic degradation and catastrophic IV loss during melting. You must achieve a dew point below -40°C. Traditional desiccant drying towers offer proven reliability. Infrared Rotary Drum (IRD) systems provide faster drying times. Direct-extrusion vacuum-assisted venting eliminates the need for extensive pre-drying, offering significant energy savings when processing rPET.
- Monitor incoming flake moisture levels continuously.
- Maintain desiccant bed regeneration cycles strictly according to manufacturer specs.
- Verify dew point sensors weekly using a calibrated handheld hygrometer.
- Clean rotary drum screens to prevent dust buildup and airflow restriction.
Plasticization and Homogenization
Within the extruder barrel, thermal and mechanical shear processes melt the polymer. Temperature zoning is critical for achieving a uniform melt without degrading the polymer chain or inducing thermal yellowing. Proper screw design ensures thorough mixing and homogenization, delivering a consistent melt to the downstream components. The feed zone must remain cool enough to prevent premature melting, while the compression and metering zones must balance shear heat with barrel cooling to maintain a melt temperature typically between 270°C and 285°C.
Melt Filtration and Degassing
Continuous screen changers remove unmelted particles, paper, aluminum, and foreign contaminants. This is mandatory when processing rPET. Multi-stage vacuum degassing zones operate under high vacuum, typically below 10 mbar, to remove volatile organic compounds (VOCs), acetaldehyde, and residual moisture. This ensures the final sheet meets food-grade and optical standards. Failure to maintain adequate vacuum levels results in microscopic bubbles within the sheet, ruining optical clarity and compromising mechanical strength.
Sheet Forming, Cooling, and Polishing
The polymer melt transitions through the flat die into the three-roll calender. Roll temperature, nip pressure, and cooling rates dictate the final sheet's crystallinity, thickness, and surface finish. Precise control over these parameters ensures the sheet remains amorphous and transparent, ready for thermoforming or winding. The cooling water circulating through the rolls must be highly turbulent to maximize heat transfer, and the roll surfaces must be polished to a mirror finish to impart high gloss to the extruded sheet.
Critical Equipment Components and Configuration Options
Extruder Selection: Single-Screw vs. Twin-Screw
Single-screw extruders are reliable but require intensive pre-drying and crystallization systems. Co-rotating twin-screw extruders offer superior mixing and direct rPET flake processing capabilities without pre-drying. When evaluating an extrusion screw and barrel manufacturer, focus on metallurgy, such as bimetallic alloys and high-wear protective coatings. The L/D ratio must be optimized for PET's hydrolytic sensitivity. Twin-screw systems utilize deep-cut elements in the feed section to handle low bulk density flakes, transitioning to kneading blocks that impart the exact amount of shear required for melting without excessive degradation.
Melt Pumps and Filtration Systems
Gear pumps eliminate extruder pressure surge and ensure constant volumetric flow to the die. This minimizes machine-direction gauge variation. Backflush filtration systems offer self-cleaning capabilities. Continuous dual-piston screen changers allow for uninterrupted production during screen swaps, maintaining line stability and output. The melt pump acts as a metering device, isolating the die from upstream pressure fluctuations caused by varying regrind bulk density or screen blinding.
The Flat Die and Feedblock Architecture
Internal flow channel design, specifically coat-hanger dies, ensures uniform melt distribution across the entire sheet width. Multi-layer co-extrusion feedblock systems range from standard A/B/A configurations to highly complex 9-layer barrier structures utilizing EVOH, PE, and regrind cores. When selecting a sheet extrusion die supplier, focus on thermal stability, lip adjustment mechanisms, and edge-bead reduction systems. Automatic profile control (APC) dies utilize thermal expansion bolts linked to a downstream thickness scanner to make real-time, micro-adjustments to the die lip, ensuring a perfectly flat sheet profile.
The Three-Roll Calender Stack
Vertical, horizontal, and inclined roll configurations are chosen based on sheet thickness requirements and melt viscosity. Individual servo-driven rolls provide precise speed control. Precise fluid temperature control units (TCUs) and hydraulic or pneumatic roll gap positioning ensure accurate cooling and thickness control. For thin PET sheet (under 0.5mm), an inclined or horizontal stack is often preferred to manage the low melt strength of the polymer as it exits the die.

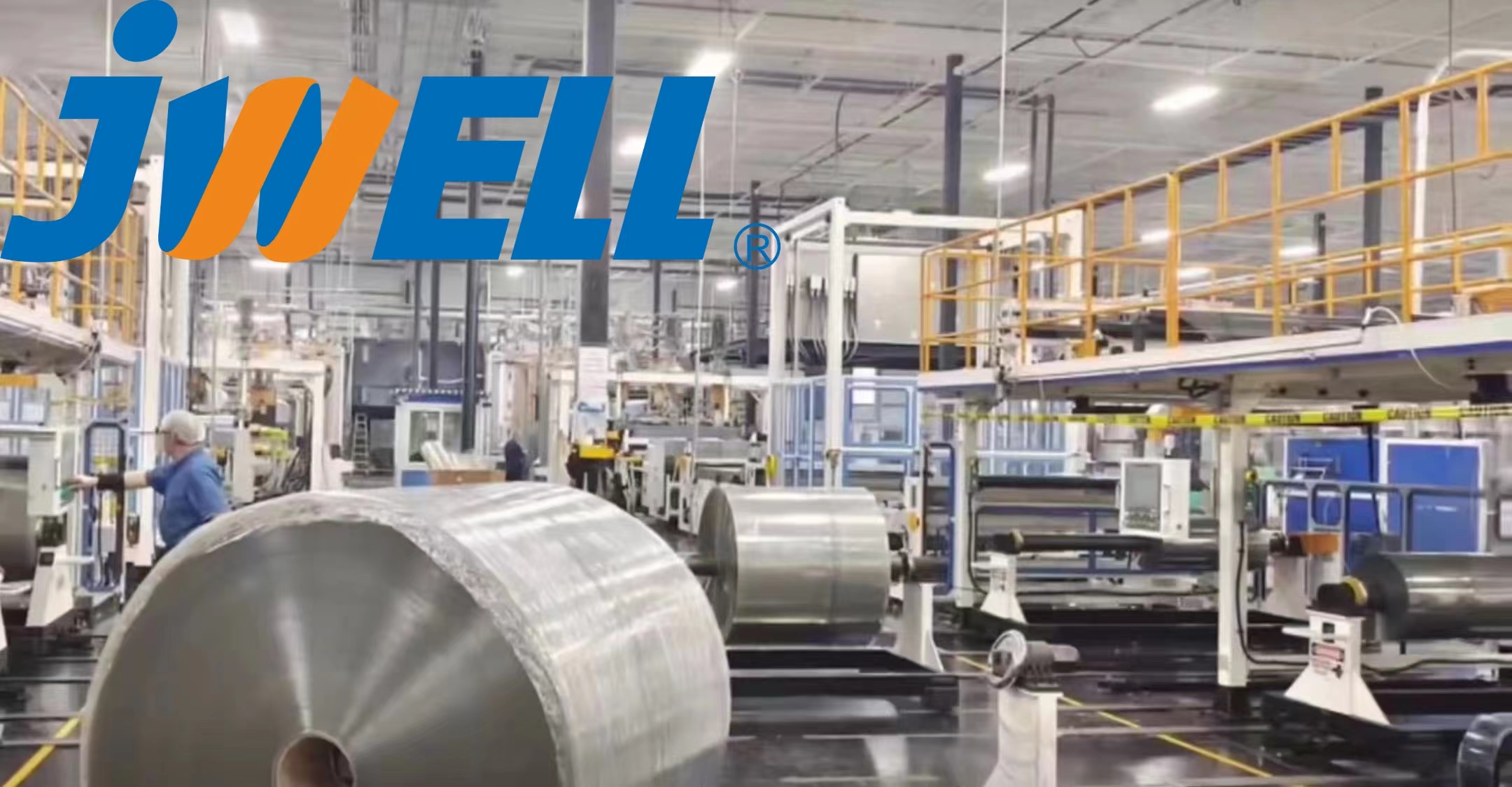

Downstream Winding and Accumulation
Haul-off units maintain sheet tension. Edge trimming systems and inline granulators allow for direct recycling of edge trim. Silicone coating and anti-static stations prepare the sheet for specific end-uses. Cantilevered, turret, and jumbo winders are selected based on roll diameter requirements, tension control systems, and automation levels. Proper tension control prevents telescoping or crushing of the finished rolls during storage and transport.
Evaluating and Sourcing a Plastic Sheet Extrusion Line Supplier
Engineering Expertise and Custom-Engineered Co-Extrusion
Audit a plastic sheet extrusion line supplier for specific experience in co-extrusion systems, such as food-grade multi-layer structures with functional barrier layers. Assess their ability to customize line layouts to fit specific physical facility footprints and ceiling heights. A flexible supplier can adapt the equipment to your existing infrastructure, designing mezzanine structures for material handling or right-angle extruder configurations to fit narrow factory bays.
Component Origins and Open-Architecture Controls
Proprietary, locked-down PLC systems present long-term maintenance risks. Open-architecture controls, like Siemens or Allen-Bradley, offer flexibility and easier troubleshooting. Verify the origin of critical sub-components, including motors, drives, gearboxes, and sensors, to ensure reliability and parts availability. Standardized components mean your maintenance team can source replacement parts locally rather than waiting for overseas shipments during a machine down event.
The Value of a Turnkey Sheet Extrusion Line Service
Utilizing a turnkey sheet extrusion line service provider manages integration, Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), and operator training. This mitigates integration risks when a single vendor is responsible for the entire line's performance guarantee, from raw material handling to the finished roll. Turnkey providers handle the complex handshake between the gravimetric blenders, the extruder PLC, and the downstream winder tension controls.
Turnkey Line Installation, Commissioning, and Optimization
Facility Preparation and Structural Engineering
Define floor load-bearing capacity requirements, especially for high-capacity heavy calender stacks. Ceiling clearance is critical for vertical components like crystallization towers. Detail power, water chilling loops, and compressed air utility distribution layouts before installation begins. A 1,000 kg/h line requires substantial chilled water capacity to remove heat from the calender rolls; undersizing the central chiller will severely limit maximum line speed.
Precision Alignment and Calibrating the Line
Laser-aligning the extruder, die, and calender stack prevents mechanical stress and sheet distortion. Thermal calibration for the die lips and calender rolls eliminates cross-direction gauge deviation. Proper alignment ensures consistent sheet quality across the entire width. Even a millimeter of misalignment between the die exit and the primary cooling nip can induce internal stresses that cause the sheet to warp during subsequent thermoforming operations.
Optimization of Throughput and Yield
Fine-tune line speed, roll nip pressure, and extruder RPM during commissioning to match specific material recipes, such as high rPET content. Optimization ensures the line operates at maximum efficiency while maintaining product quality standards. Operators must establish baseline recipes in the PLC for different flake blends, documenting the exact melt temperatures, pump pressures, and roll speeds that yield acceptable product.
Implementation Risks and Mitigation Strategies
Managing Intrinsic Viscosity (IV) Drop
Excessive moisture or shear stress leads to brittle sheets and mechanical failure during thermoforming. Implement strict dew-point monitoring in dryers. Select optimized screw geometry and utilize inline viscometers to monitor IV in real-time. If IV drops below acceptable thresholds, operators must immediately check dryer performance and reduce extruder screw speed to lower shear heating.
Preventing Die Lines and Gauge Variations
Contamination or poor melt distribution causes visual defects and out-of-spec thickness, leading to rejected rolls. Specify high-mesh continuous filtration. Invest in automatic profile control (APC) dies with beta or X-ray gauge scanners. Establish strict die maintenance protocols. Brass tools must be used exclusively when cleaning die lips to prevent scratching the hardened steel surfaces.
| Defect Type | Common Cause | Immediate Corrective Action |
| Continuous Die Lines | Carbon buildup on die lip | Perform brass-tool lip scrape; check melt temp. |
| Machine Direction Gauge Variation | Melt pump pressure fluctuation | Verify extruder feed stability; check screen changer. |
| Cross Direction Gauge Variation | Improper die bolt adjustment | Recalibrate APC scanner; manually adjust thermal bolts. |
| Haze or Cloudiness | Roll temperature too high | Decrease TCU setpoint on primary cooling roll. |
Facility and Utility Scaling
Underestimating the chilled water, compressed air, and electrical load requirements for high-capacity lines causes operational bottlenecks. Conduct a comprehensive utility audit during the procurement phase. Mandate detailed consumption matrices from the equipment supplier. Ensure your facility's transformers can handle the massive initial current draw when heating up the extruder barrel and die zones from a cold start.
Conclusion
Procuring a high-performance PET sheet extrusion line requires balancing capital expenditure with material flexibility and operational efficiency. Define your exact material inputs and required outputs before contacting suppliers. Conduct thorough facility audits to ensure adequate utilities and space. Prioritize vendors offering open-architecture controls and comprehensive training programs.
- Compile a detailed material specification sheet including bulk density, moisture content, and contamination levels of your intended rPET supply.
- Request verifiable utility consumption data (power, water, air) from shortlisted vendors based on your specific throughput targets.
- Schedule a Factory Acceptance Test (FAT) using your actual production materials, not virgin test resins.
- Establish a preventative maintenance schedule for die cleaning, screen changes, and melt pump inspection before the line arrives on site.
FAQ
Q: What is the ideal dew point for drying PET flakes?
A: The ideal dew point for drying PET flakes is below -40°C. This prevents hydrolytic degradation and maintains intrinsic viscosity during the extrusion process. Consistent monitoring of the desiccant bed performance is required to sustain this level.
Q: Can a single-screw extruder process 100% rPET flakes?
A: Yes, but it requires extensive pre-drying and crystallization systems to prevent IV drop and ensure a stable melt. Twin-screw extruders with vacuum venting are often preferred for direct rPET processing because they bypass the need for separate drying silos.
Q: What causes die lines in PET sheet extrusion?
A: Die lines are typically caused by contamination, degraded polymer buildup on the die lips, or damaged die surfaces. Regular maintenance, high-quality filtration, and using proper brass cleaning tools prevent these visual defects.
Q: How does a melt pump improve sheet quality?
A: A melt pump eliminates pressure surges from the extruder, providing a constant, uniform volumetric flow of polymer to the die. This significantly reduces machine-direction gauge variations and ensures consistent sheet thickness.
Q: Why is roll temperature control critical in the calender stack?
A: Roll temperature dictates the cooling rate of the polymer melt. Precise control ensures the PET remains amorphous and transparent, preventing unwanted crystallization and haziness that ruins the sheet's optical clarity.
