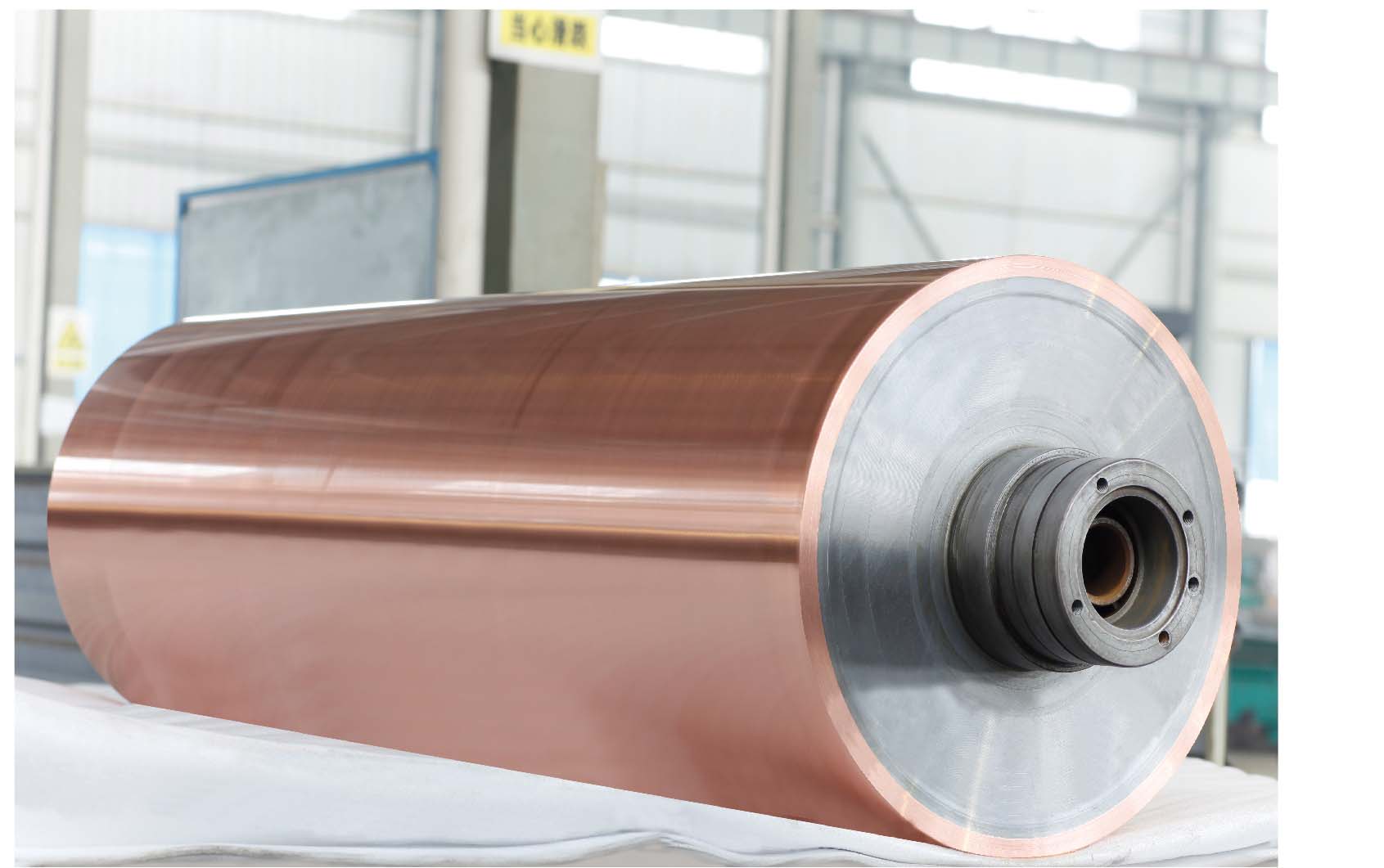

The electromagnetic heating roll utilizes the principle of electromagnetic induction to generate self-heating in the roll shell, eliminating the need for thermal oil. Its thermal efficiency exceeds 90%, saving 30%–50% energy compared to resistance heating. Equipped with multi-zone independent temperature control, the roll surface temperature difference can be controlled within ±1°C, and high-end models achieve ±0.2°C. Suzhou Jwellmech’s electromagnetic heating rolls feature rapid temperature rise, no leakage risk, and fast cooling capability. They are widely used in continuous thermal pressing processes such as plastic calendering, nonwoven thermal bonding, paper drying, and film lamination, serving as key components for high-precision, clean production.
II. Key Factors Affecting the Performance of Electromagnetic Heating Rolls and Improvement Measures
1. Roll Material and Coil Design – The Foundation of Performance
The roll should not be made of high-conductivity materials such as pure copper or pure aluminum, as these cause strong magnetic shielding effects, concentrating magnetic flux on the coil side and leading to overheating or even burnout, while greatly reducing eddy current heating efficiency. Instead, materials with moderate conductivity and low residual magnetism, such as 50-grade steel, should be selected to balance heating efficiency and hysteresis loss control. For heat treatment, a combination of overall quenching and tempering plus surface hardening is adopted: core hardness is controlled at HRC 28–32 to ensure toughness, while surface hardness is raised to HRC 50–58 to enhance wear resistance and thermal fatigue resistance. Suzhou Jwellmech’s electromagnetic coils use high-temperature-resistant copper alloys with high-grade insulation such as polyimide or glass-fiber-wrapped wire to prevent inter-turn short circuits due to insulation aging at high temperatures. Internal thermal insulation employs a multi-layer composite structure of aerogel felt and ceramic fiber, minimizing heat transfer while maintaining strength, so that bearing temperature rise is kept under control. The roll surface is coated according to process requirements – with hard chrome plating, thermally conductive ceramic coating, or Teflon anti-stick coating – to protect the roll, improve heat transfer, and provide anti-stick properties, maintaining surface integrity at operating temperatures above 400°C.
2. Electromagnetic Parameter Matching – Directly Determining Heating Efficiency and Temperature Distribution
The current frequency must be optimized based on roll wall thickness. For steel rolls with wall thickness of 10–20 mm, a medium frequency of 5–20 kHz is most suitable, ensuring sufficient heating depth while achieving fast ramp-up rates, thus supporting rapid temperature rise from room temperature to 200°C in just 25 minutes. Current intensity is precisely regulated by an adjustable power supply and closed-loop control system, avoiding thermal shock from abrupt power changes while meeting differentiated needs for heating and holding in various process stages. The gap between the coil and the inner roll wall should be controlled at 2–5 mm, ensuring coupling efficiency while allowing thermal expansion clearance to prevent contact arcing. The coil is segmented or multi-layer wound, and the turns distribution is optimized through simulation to eliminate axial magnetic field non-uniformity – a key prerequisite for achieving temperature control accuracy of ±0.5°C.
3. Structural and Manufacturing Process – Determining Mechanical Reliability and Thermal Uniformity
The roll body consists of multiple layers: central shaft, thermal insulation layer, heating layer, radiation layer, heat preservation layer, and reflection layer. A modular design with proper expansion gaps is adopted. After assembly, hot dynamic balancing is performed to avoid additional stresses from uneven thermal expansion. Wall thickness uniformity is central to temperature consistency: precision seamless steel tubes or boring-processed roll blanks are used, controlling wall thickness tolerance within ±0.1 mm. Roll surface runout is kept ≤0.005 mm and coaxiality ≤0.01 mm. After CNC precision machining and high-speed dynamic balancing, very low vibration during high-speed rotation is ensured, along with uniform coatings and long-term bearing stability – fully realizing the environmental benefits of fully electric control and oil‑free operation.
4. Operating Parameters and Environmental Conditions – Also Critical
Heating power is precisely adjusted by a power supply with soft-start and constant-power control functions, enabling rapid response to temperature settings. Roll surface linear speed must be matched and interlocked with heating power, using a variable-frequency drive motor. Excessive linear speed leads to insufficient heat absorption by the material, while too low speed may cause overheating. Proper matching not only ensures product quality but also achieves energy savings – which is why electromagnetic heating rolls save about 60% energy compared to thermal oil rolls. Ambient temperature and humidity affect the precision of electronic components in the control cabinet; therefore, air conditioning or dehumidifiers are needed to maintain constant temperature and humidity. Additionally, air curtains or heat shields are installed at both ends of the roll to reduce ambient airflow disturbance on the roll surface temperature, ensuring stable temperature control.
5. Thermal Management and Control Strategy – The Final Guarantee for High-Precision Temperature Control
A multi-zone independent temperature control scheme is adopted, with each heating zone equipped with its own sensor and power regulation module. Sensors are placed close to the inner roll wall to minimize measurement lag. Combined with self-tuning PID or fuzzy control algorithms and high-speed sampling, the roll surface temperature difference can be controlled within ±0.5°C, and even ±0.2°C in high-end applications. The cooling system uses an internal cooling structure – compressed air or circulating cooling water is fed through the central shaft, with proportional control valves to achieve smooth switching between heating and cooling, greatly reducing wait time while avoiding excessive thermal stress. The insulation layer uses a thermal break design with materials having a thermal conductivity below 0.05 W/(m·K). Forced air cooling with heat sinks at the shaft ends ensures long-term stable bearing operation. These improvement measures collectively enhance heating efficiency, temperature uniformity, and service life, fully meeting the demanding requirements of high temperature, high precision, and clean environmental performance in advanced processes from rubber/plastic calendering to chemical fiber synthesis.
Summary
The electromagnetic heating roll utilizes electromagnetic induction to achieve self-heating of the roll, offering high thermal efficiency and controllable roll surface temperature difference within ±0.5°C. Through synergistic optimization of material selection, electromagnetic parameter matching, manufacturing processes, and temperature control strategies, suzhou Jwellmech（https://www.jwellmech.com/,+86 15806221827）comprehensively enhances roll performance: 50-grade steel combined with medium-frequency heating enables rapid temperature rise, while multi-zone independent temperature control and internal cooling structure ensure high precision and long service life.
