Electromagnetic Heating Roller: Stable, Efficient And Energy-Saving, with Ultra-Simple Maintenance Driving High-Quality Industry Development

Electromagnetic Induction Heating Roller: Igniting a Green Manufacturing Revolution

In many industrial fields such as laser anti-counterfeiting printing, automotive laminated glass production, medical tape manufacturing, and nonwoven fabric production, the heating roller is a critical piece of process equipment. Traditional thermal oil heating rollers suffer from chronic problems including high energy consumption, temperature control lag, and environmental pollution. The emergence of suzhou Jwellmech（https://www.jwellmech.com/,+86 15806221827）'s electromagnetic heating roller is sparking a green manufacturing revolution with unprecedented technical advantages.

I. Working Principle of Electromagnetic Heating

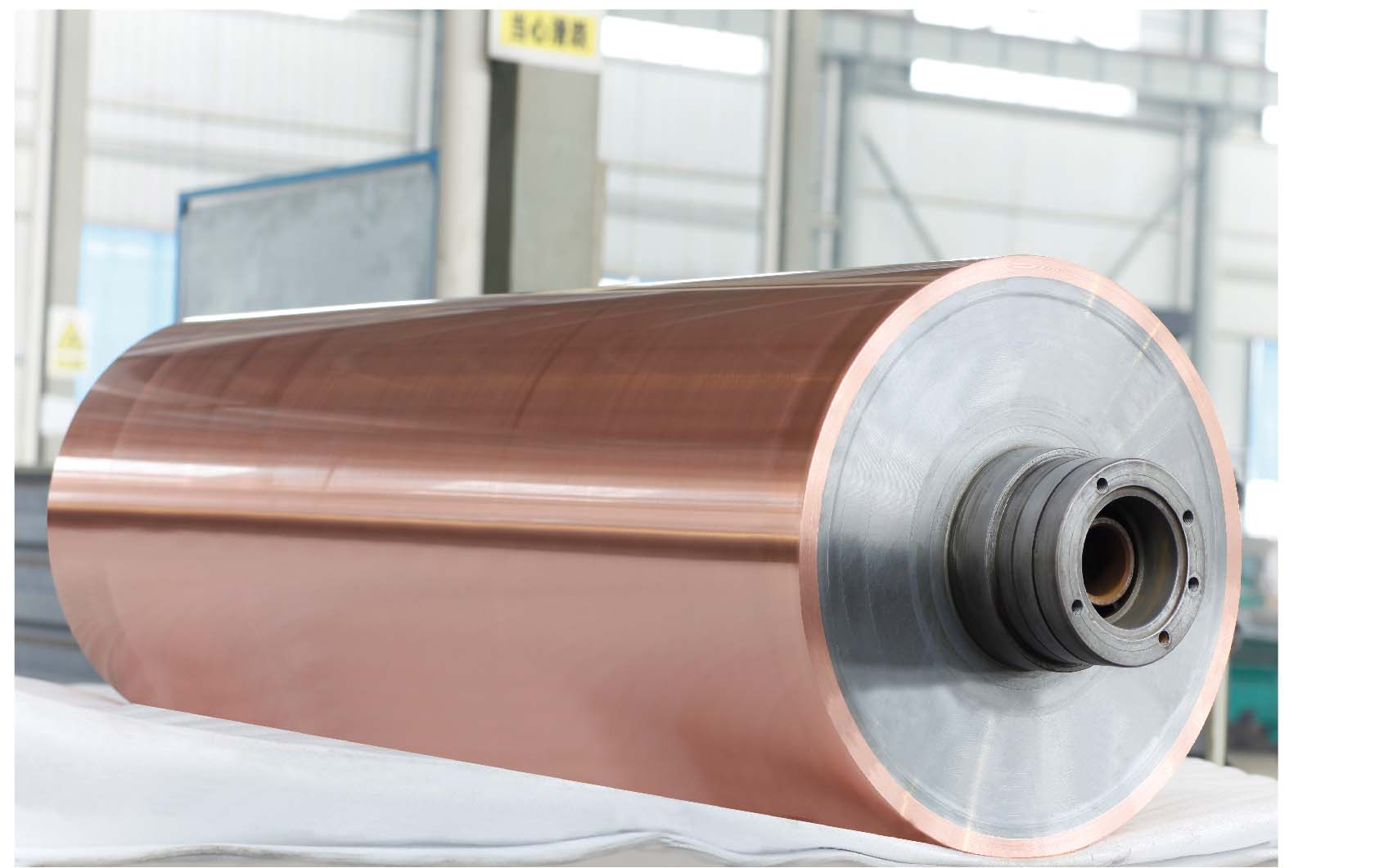

The electromagnetic heating roller operates based on Faraday's law of electromagnetic induction and the Joule heating effect. Its core structure consists of three main parts: the outer roller shell, the internally fixed coil assembly, and a precision control system. When alternating current passes through the internal coil, a rapidly changing alternating magnetic field is generated. The roller shell, being a magnetic conductor placed in this alternating magnetic field, generates induced eddy currents within it. Due to the inherent electrical resistance of the roller material, the eddy currents perform work as they flow against this resistance, directly converting electrical energy into heat and causing the roller itself to generate heat.

Unlike the long-path heat transfer of thermal oil rollers ("heat source → thermal oil → inner wall of roller → roller surface"), Suzhou jwellmech's electromagnetic heating roller achieves instantaneous conversion of "electrical energy → magnetic field → heat", with the heat source located inside the roller wall. This "internal heat generation" mode eliminates the time lag and沿途 heat loss of heat conduction, laying the physical foundation for precise temperature control.

II. Unique Advantages in Design and Materials

The electromagnetic heating roller adopts a multi-layer composite structure in its design: the roller wall thickness is precisely optimized through electromagnetic-thermal coupling simulation, balancing mechanical strength and magnetic penetration for induction; the coil is wound with high-temperature resistant special copper wire to maintain a uniform air gap; thermal breaks at both ends, combined with a water cooling system, isolate heat to protect the bearings.

In terms of material selection, the roller shell of the electromagnetic heating roller is typically made of 45# steel or alloy structural steel, materials that possess good magnetic permeability and thermal conductivity, achieving an electromagnetic heat conversion efficiency of over 95%. The roller surface can be plated with chromium, sprayed with ceramic, or coated with Teflon according to application requirements to enhance wear resistance and release properties. Compared with traditional thermal oil rollers, the electromagnetic heating roller requires no complex accessories such as rotary joints, oil pumps, expansion tanks, or oil/gas pipelines. The overall structure is compact, and weight is reduced by more than 30%.

III. Revolutionary Advantages Over Traditional Heating Methods

Thermal oil rollers expose multiple pain points in actual production: the thermal oil tends to coke and carbonize during long-term high-temperature operation, causing heat transfer efficiency to decline year by year; the entire heating process takes 1.5-2 hours, making shutdown and restart costly; the roller surface temperature distribution is affected by the oil circuit design, with axial temperature differences often reaching 3-5°C; more problematic is that oil seal wear leads to leakage, not only contaminating products and creating waste, but the high-temperature oil mist also poses a fire hazard. Steam rollers require a boiler system and have even lower energy efficiency.

To address these issues, Suzhou jwellmech's electromagnetic heating roller offers multiple solutions: Energy saving – electrical energy is directly converted into heat, with minimal waste heat heating the ambient air or being conducted to bearings, saving about 60% energy compared to thermal oil rollers; Temperature control – using PID and fuzzy control algorithms combined with non-contact infrared or thermocouple sensors, the roller surface temperature control accuracy reaches ±0.5°C, far exceeding the ±3°C of thermal oil rollers; Heating speed – it takes only 25 minutes to raise the temperature from room temperature to 200°C, reducing production preparation time by more than 70%; Operating temperature – through optimized coil insulation and magnetic circuit design, the roller surface operating temperature can stably exceed 400°C, meeting the high-temperature process requirements of PTFE sintering, carbon fiber prepreg, and more; Environmental protection – fully electrified control achieves zero oil contamination, zero exhaust emissions, and zero leakage, keeping the workshop environment clean and safe, with no risk of product oil stains.

IV. Convenience Benefits from High Efficiency and Stability

In production practice, Suzhou jwellmech's electromagnetic heating roller demonstrates excellent operational convenience. Traditional thermal oil rollers require regular oil quality testing, thermal oil replacement (every 1-2 years), rotary joint inspection, and coke removal – each maintenance shutdown lasting several days. In contrast, the electromagnetic heating roller has no consumable or easily damaged media; daily maintenance only requires checking electrical connections and bearing lubrication, reducing maintenance workload by more than 80%.

More critically, the electromagnetic heating roller has extremely fast response speed. When heat load fluctuates due to changes in production line speed or product specification changes, the control system can adjust power output within 10 seconds to maintain a constant roller surface temperature. This is crucial for temperature-sensitive processes such as calendering, lamination, and coating. Users can easily achieve a flexible production model of "instant start, instant stop, and instant cooling," without needing to keep the circulation pump running even after shutdown (to prevent oil coking, as required for thermal oil rollers).

The reliability of the electromagnetic heating roller has also been verified in demanding operating conditions. In 24/7 continuous operation scenarios such as film production lines, the electromagnetic heating roller can achieve 8,000 hours of maintenance-free operation, with a failure rate only one-fifth that of thermal oil rollers. Its non-contact heating feature completely eliminates the risk of dynamic seal leakage, removing the biggest failure source of traditional heating rollers.

From energy saving and consumption reduction to precise temperature control, from speed and output increase to clean production, the electromagnetic heating roller, with its revolutionary technical advantages, is driving many industries – including anti-counterfeiting printing, composite materials, nonwovens, and rubber/plastic calendering – toward a new stage of high-quality development. This is not only equipment upgrading but also a profound manufacturing process revolution. With continuous advances in electromagnetic heating technology, we have reason to believe that the electromagnetic heating roller will unleash the core value of green manufacturing in even broader fields.

Summary: Suzhou jwellmech's electromagnetic heating roller, based on the principle of electromagnetic induction, achieves roller self-heating and completely overturns traditional thermal oil heating methods. Compared with thermal oil rollers, it saves about 60% energy, achieves temperature control accuracy of ±0.5°C, heats from room temperature to 200°C in just 25 minutes, and can stably operate at temperatures exceeding 400°C. The equipment has no complex accessories such as oil pumps or rotary joints, reduces weight by more than 30%, cuts maintenance workload by 80%, and can achieve 8,000 hours of maintenance-free operation with a failure rate only one-fifth that of thermal oil rollers. Fully electrified control brings zero oil contamination, zero leakage, and zero exhaust emissions, eliminating fire hazards. Its 10-second power response supports "instant start, instant stop, and instant cooling," making it especially suitable for temperature-sensitive high-end processes such as laser anti-counterfeiting printing, automotive laminated glass production, medical tape manufacturing, and nonwoven fabric production. From energy saving to clean production, the electromagnetic heating roller is driving many industries toward high-quality development and igniting a green manufacturing revolution.
