Properties & Advantages:
This line features stable plasticization, high output, low sheering force, long life service and other advantages. The production line consists of control system, conical twin screw extruder or parallel twin screw extruder,extrusion die, calibration unit, haul off unit, film covering machine and stacker. The extruder is equipped with AC variable frequency, imported temperature controller. The calibration unit's pump and haul off unit's reducer are famous brand products. After simple changing of the die and screw and barrel, it also can produce the foam profiles, the effect can be better than single screw extruder.
Technical Parameter:
| Model | YF240 | YF240 | YF240A |
| Production Width(mm) | 240 | 240 | 150*2 |
| Extruder Model | SJP75/28 | SJP93/28/31 | SJP110/28 |
| Output(kg/h) | 150-250 | 250-400 | 400-500 |
| Extruder Power(kw) | 37 | 55 | 75 |
| Cooling Water(m³/h) | 7 | 8 | 10 |
| Compressor Air(m³/min) | 0.6 | 0.6 | 0.8 |
| The specifications are subject to change without prior notice. | |||

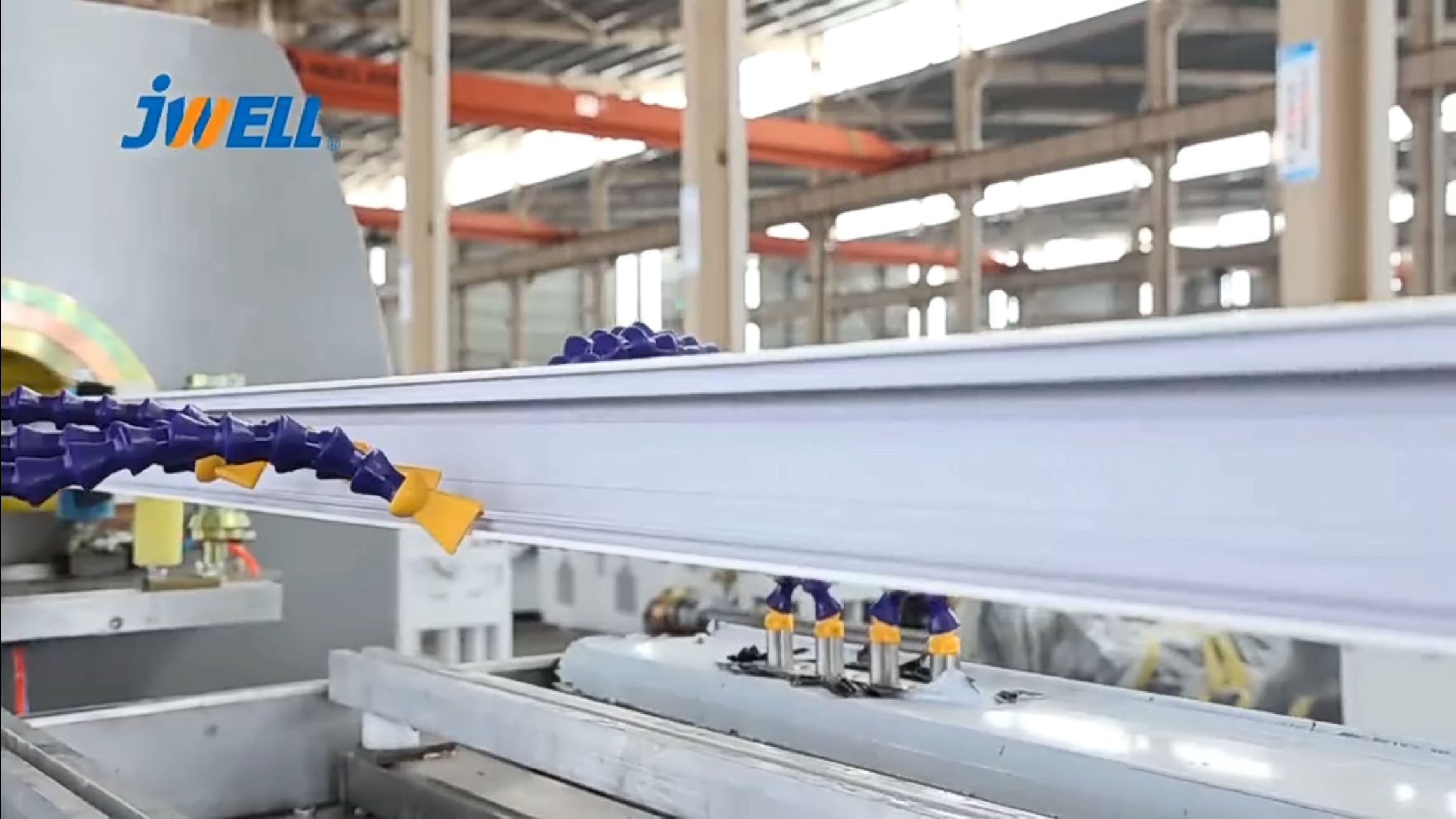

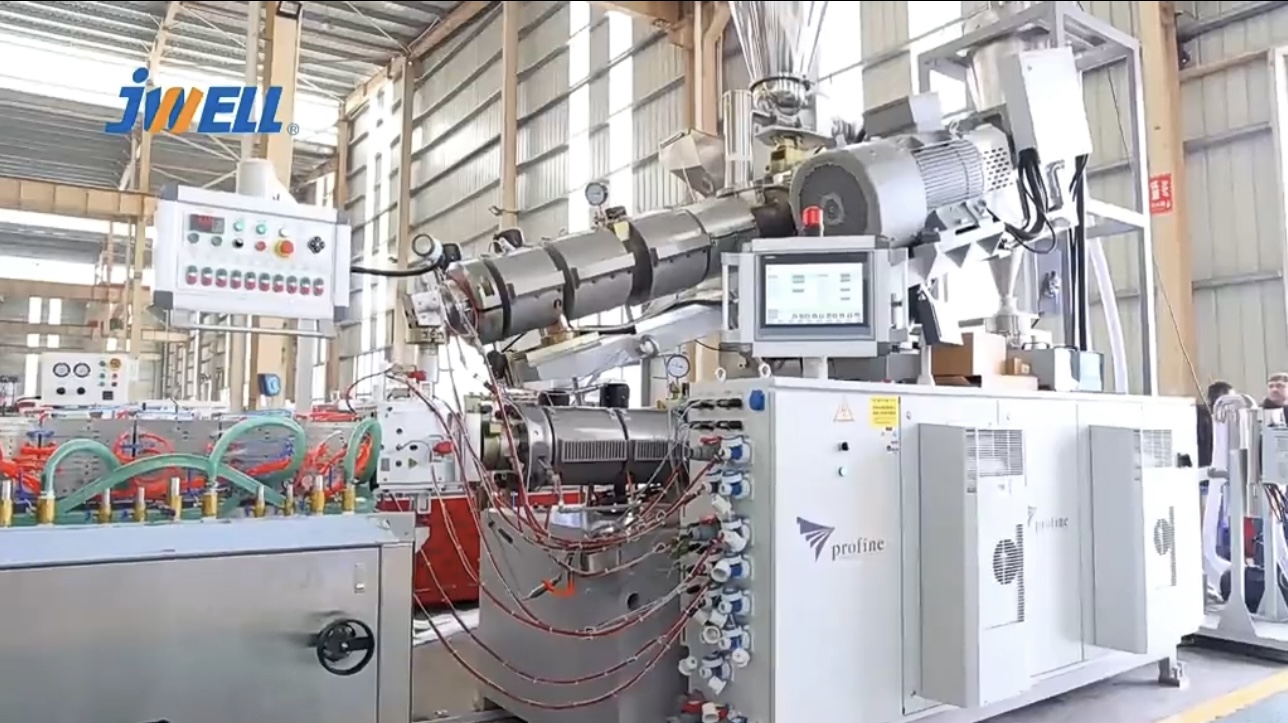

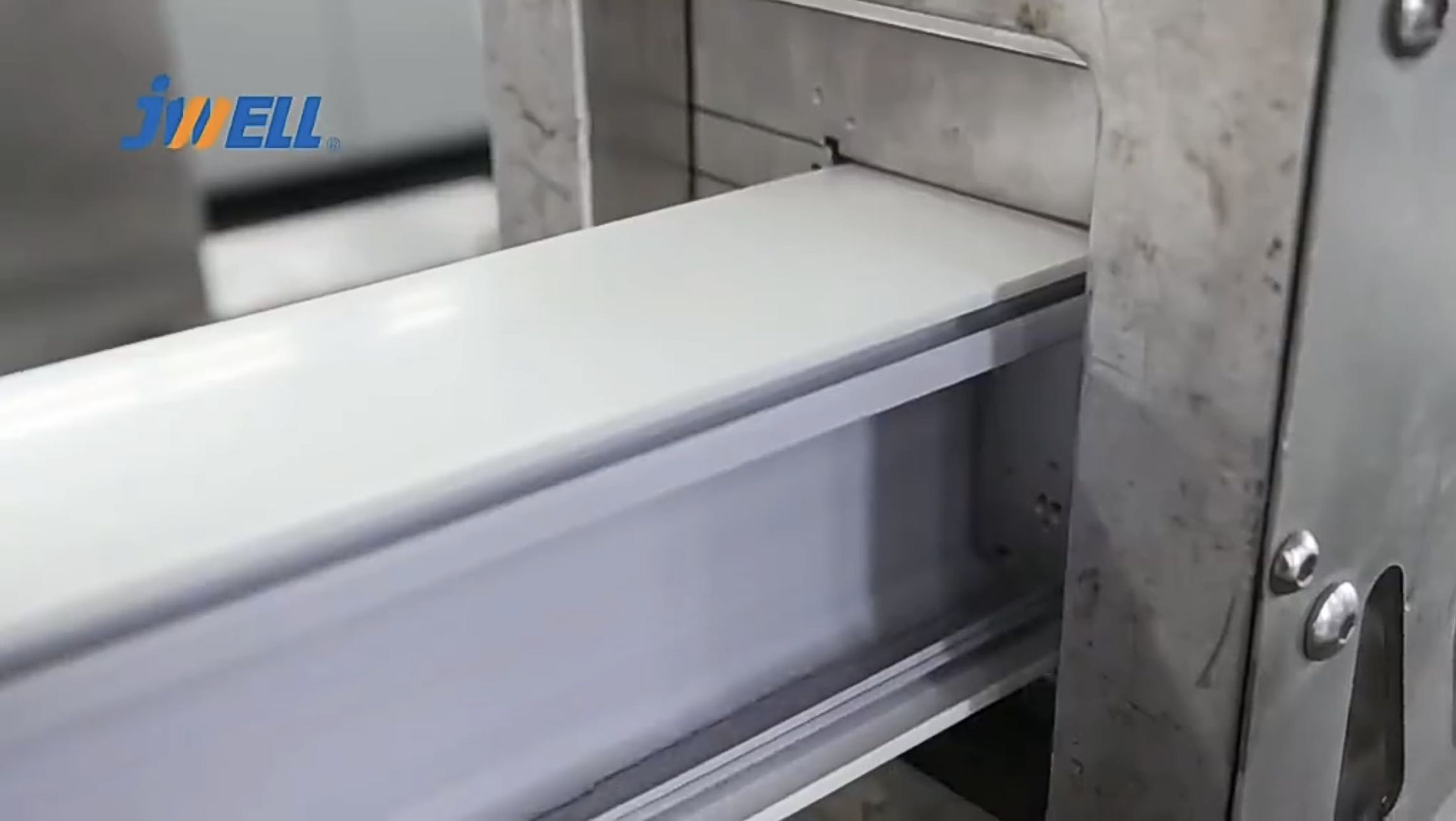

Factory Shot
