One Introduction of drainage boards and special-shaped forming Extrusion rollers
Drainage plates and shaped surface forming Extrusion rollers are critical equipment in plastic extrusion production lines, primarily used for the continuous production of plastic sheets with specific three-dimensional structures. Through precision-machined convex-concave surfaces, molten plastic billets are rolled and formed to create complex structures in a single pass—such as the conical protrusions of drainage plates or the hexagonal grids of honeycomb panels—enabling continuous, high-efficiency production from raw material to finished product.

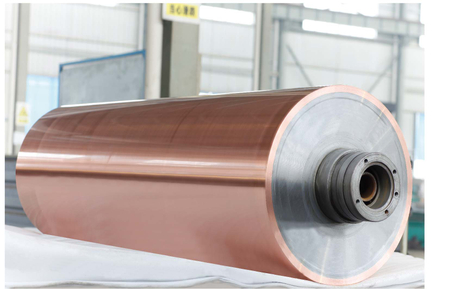

Such rollers from Anhui Jwell are typically designed in pairs, with a raised roller and a grooved roller precisely meshing to form the forming cavity. Their core technology is reflected in three key aspects: first, high-precision surface processing, utilizing CNC equipment for precision engraving to ensure consistent凸台 dimensions and clear contours; second, forming process control, which fully considers the thermal expansion and contraction characteristics of plastics along with venting requirements to prevent product adhesion or bubble formation; third, cooling system optimization, with circulating water channels inside the roller to enable timely cooling and shaping of the formed product, thereby enhancing dimensional stability.
Such rollers have a wide range of applications, primarily including drainage boards (used in underground engineering, rooftop greening, and tunnel waterproofing and drainage, with their conical protrusions forming water channels), honeycomb panels (featuring a hexagonal grid structure that combines lightweight and high-strength properties), water stop sheets and waterproofing sheets (used in building waterproofing projects), and bubble film (used as cushioning material in packaging).
Two The quality precision of drainage boards and shaped surface forming Extrusion rollers determines the upper limit of sheet quality.
The machining precision of drainage board and special-shaped surface forming Extrusion rollers defines the upper limit of the final sheet quality. This determining effect runs through every key performance indicator of the product—from dimensional consistency to structural strength, and from surface quality to production efficiency—all of which are directly and closely related to the precision of the rollers.
1 Dimensional Accuracy: Precise Control of Key Features of the Boss
The functionality of drainage boards relies on the protruding studs or grid structures on their surface, whose height, shape, and arrangement density directly determine water conduction capacity and compressive strength. In terms of height, even minor deviations in the machining of the roller's protruding particles will result in inconsistent stud heights on the produced sheets. Studs that are too short fail to form effective water channels, while those that are too high may deform under pressure during stacking or construction. High-precision rollers can control the height tolerance of the studs within an extremely small range, ensuring that each stud provides stable support and reliable drainage. Regarding shape, the clarity of the stud contour and sharpness of its edges depend on the machining accuracy of the roller cavity. If the cavity has burrs or excessive rounding, the molded studs will be blurred, leading to a reduced flow area and increased fluid resistance, thereby impairing drainage efficiency.
2 Forming Integrity: Ensuring Demolding and Structural Strength
The difficulty in forming special-shaped surfaces lies in whether the molten plastic can completely fill the fine cavities of the roller. The surface finish of the cavity is extremely critical; a cavity surface polished to a mirror finish with high precision ensures smooth flow and complete filling of the melt. If the surface is rough, the melt flow is obstructed, and the base of the protrusions is prone to insufficient filling, resulting in "short shot" defects that reduce compressive strength. Furthermore, the smoothness of demolding cannot be overlooked. Rollers with insufficient precision may have issues such as unreasonable draft angle design or microscopic undercuts on the surface, causing the formed protrusions to stick and become difficult to release. In mild cases, this leads to product deformation during stretching, and in severe cases, it may necessitate production line shutdowns for cleaning. Anhui Jwell Precision-machined rollers combined with a proper draft angle allow the product to release naturally, maintaining its structural integrity.
3 Surface Quality: Affects Appearance and Additional Functions
For transparent or light-colored drainage boards and special-shaped decorative sheets, surface quality is a crucial quality indicator. The surface roughness of Anhui Jwell's rollers directly impacts the sheet surface. Sheets produced by high-finish rollers are smooth and flat, providing better adhesion for subsequent lamination or coating processes; rough roller surfaces, however, can result in orange-peel textures or drag marks on the sheet, affecting appearance and making it prone to dust accumulation. Simultaneously, temperature uniformity is also vital. High-precision rollers, combined with a precision internal flow channel design, ensure uniform temperature across the roller surface, preventing defects such as bright spots, dark areas, or local crystallinity differences on the sheet, thereby guaranteeing product uniformity.
4 Fitting accuracy: Ensure plate thickness and symmetry
For drainage boards, especially double-sided profiled sheets, precise alignment of the upper and lower rollers during forming is essential. The meshing accuracy of the male and female rollers is critically important. If the peripheral speeds of the upper and lower rollers are not synchronized or the meshing gap is uneven, it can result in localized areas of the sheet being too thin (posing a risk of rupture) or too thick (causing material waste). A precision-machined gear synchronous drive system ensures accurate alignment of the upper and lower rollers, controlling the sheet thickness tolerance within an extremely small range. Even minor deviations in the axial parallelism of the roller ends will manifest as uneven thickness distribution across the sheet width. Anhui Jwell's high-precision rollers, with their exceptional parallelism, guarantee stable quality across the full width of the sheet.
5 Longevity and Stability: Maintaining Long-Term Production Quality
Machining precision not only affects the performance of a new roller but also determines its ability to maintain quality during long-term use. In terms of wear resistance, rollers subjected to precision heat treatment and surface hardening have uniformly distributed hardness and wear resistance. If insufficient machining precision leads to localized hardness inconsistencies, the softer areas will wear out first, causing the shape of the protrusions to change and resulting in a gradual decline in quality across different production batches using the same roller. Regarding dynamic balancing accuracy, rollers with poor dynamic balance will vibrate during high-speed operation, affecting forming precision and accelerating bearing wear. High-precision dynamic balancing correction ensures that the roller remains stable during high-speed production, delivering consistent quality over time.
In summary, drainage board and special-shaped surface forming Extrusion rollers from anhui Jwell are key equipment in extrusion production lines. Through the precise meshing of a paired design consisting of a raised roller and a grooved roller, they perform one-step roll forming to create special-shaped structures such as conical protrusions and hexagonal grids. Their core technology encompasses high-precision surface machining, forming process control, and cooling system optimization. They are widely used in fields such as drainage boards, honeycomb panels, waterproof sheets, and bubble film. The machining precision of the rollers determines the upper quality limit of the sheet from five dimensions: dimensional precision controls the height tolerance of the protrusions within an extremely small range; forming integrity, achieved through mirror polishing, ensures structural strength; surface quality maintains a low temperature difference across the roller surface; mating precision guarantees thickness stability; and longevity and wear resistance provide a reliable guarantee for continuous production.
