1. Product Overview
JWELL PVC Waterstop Extrusion Line is a customized full-automatic extrusion system specially developed for producing PVC middle-buried waterstop, back-stick waterstop, ribbed waterstop, widely applied in tunnel, subway, reservoir dam, underground basement, highway bridge, hydraulic engineering concrete joint waterproof construction. The finished PVC waterstop features excellent anti-aging, acid & alkali resistance, high elongation, low-temperature toughness, replacing traditional rubber waterstop for cost-effective construction waterproof projects.

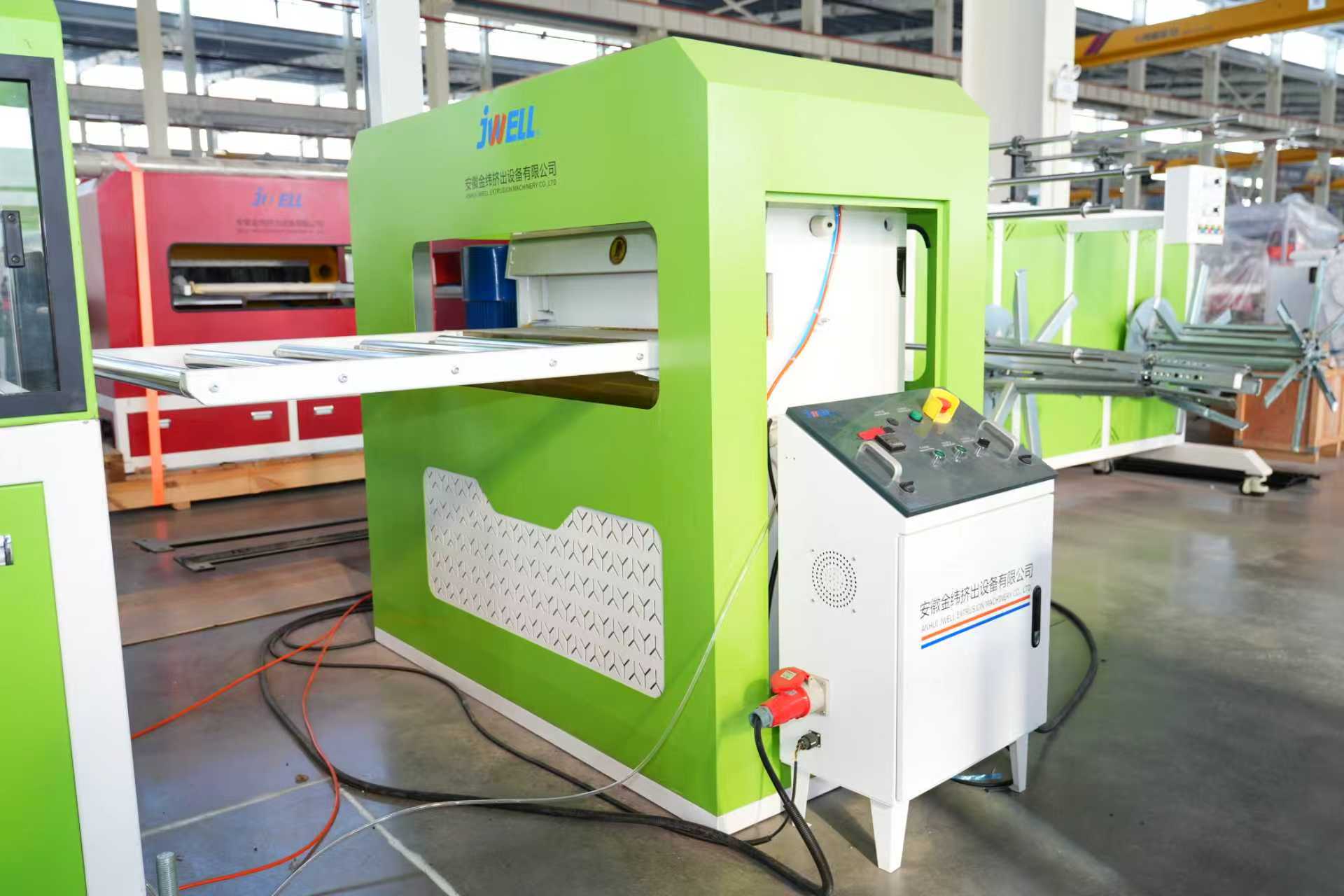

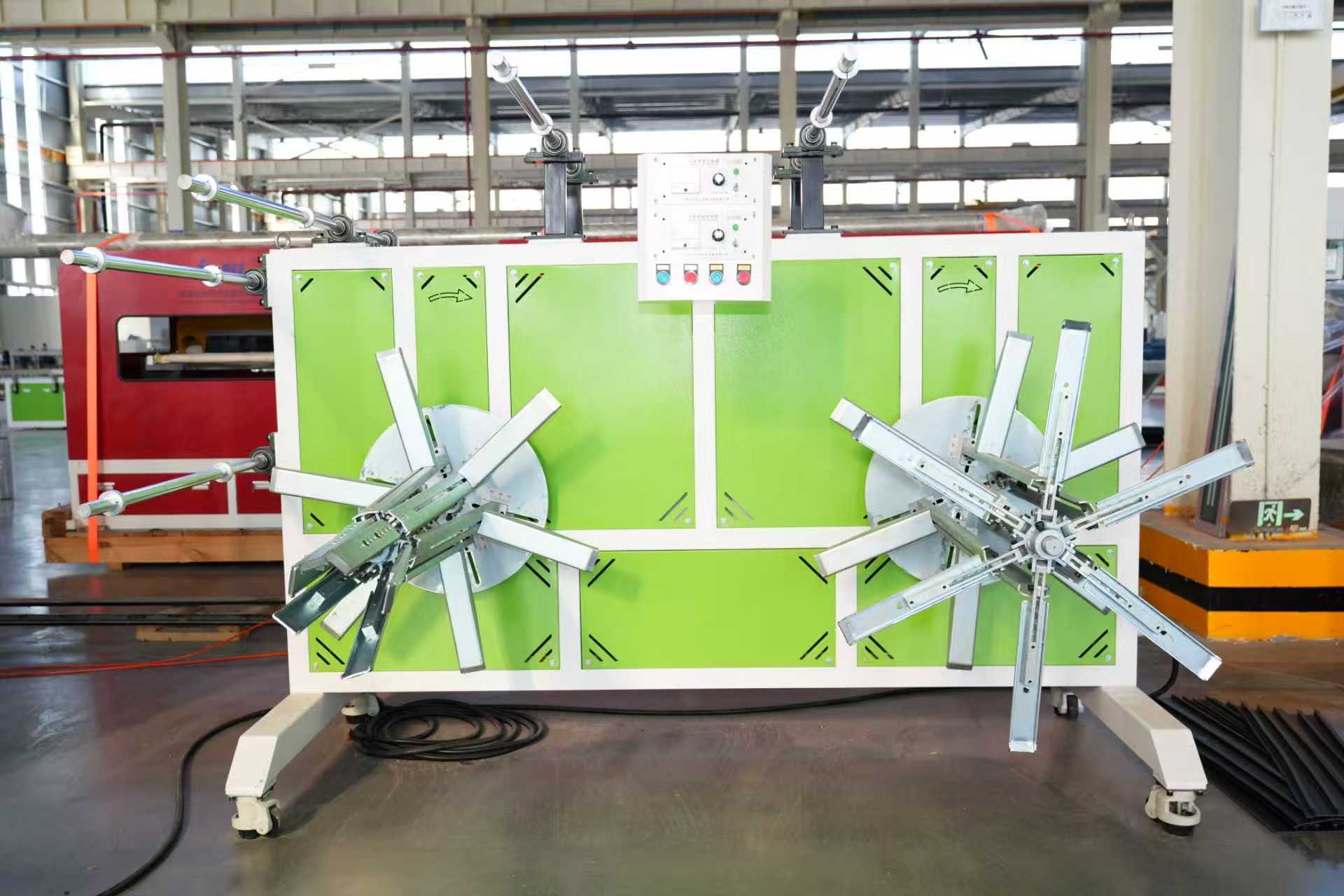

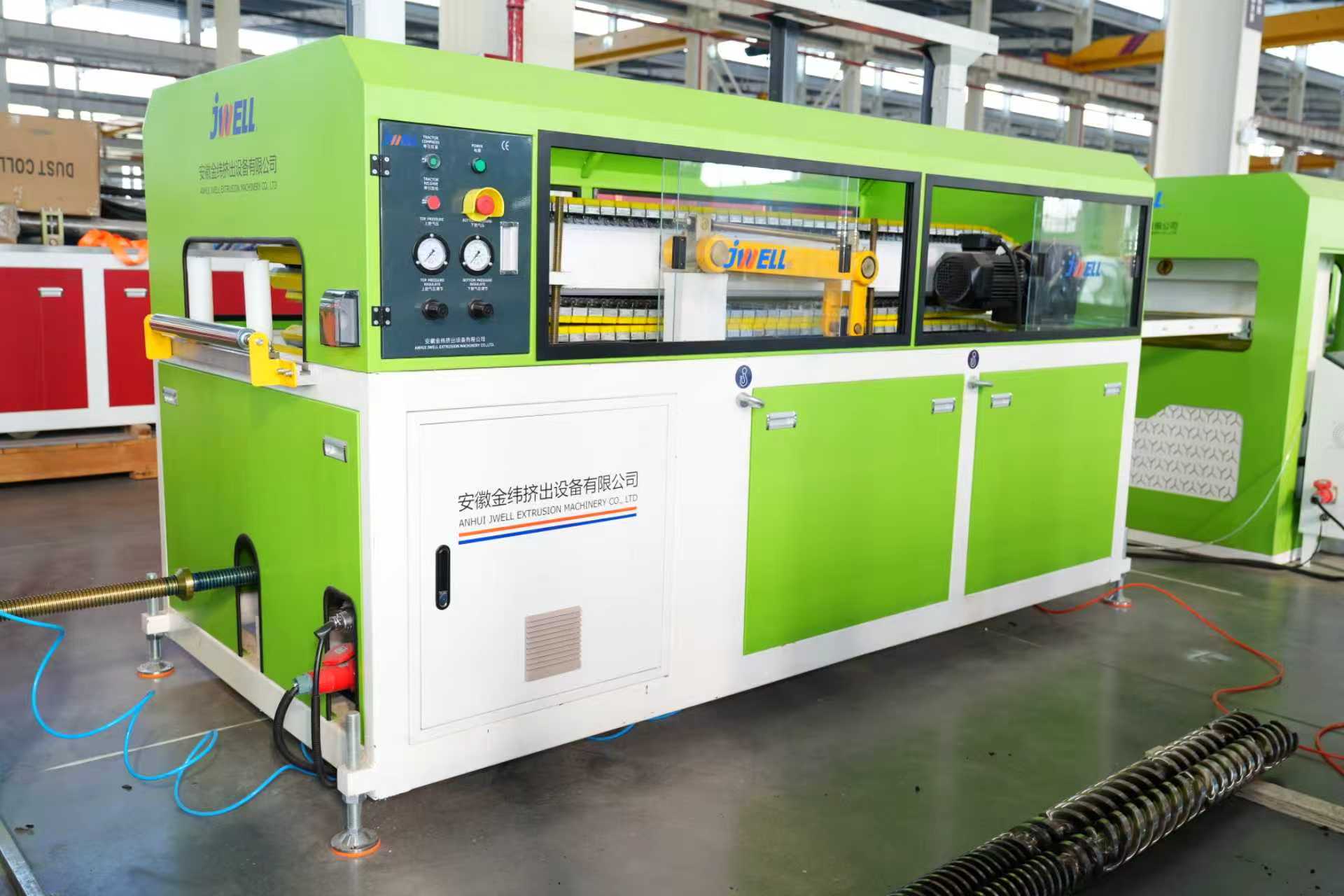

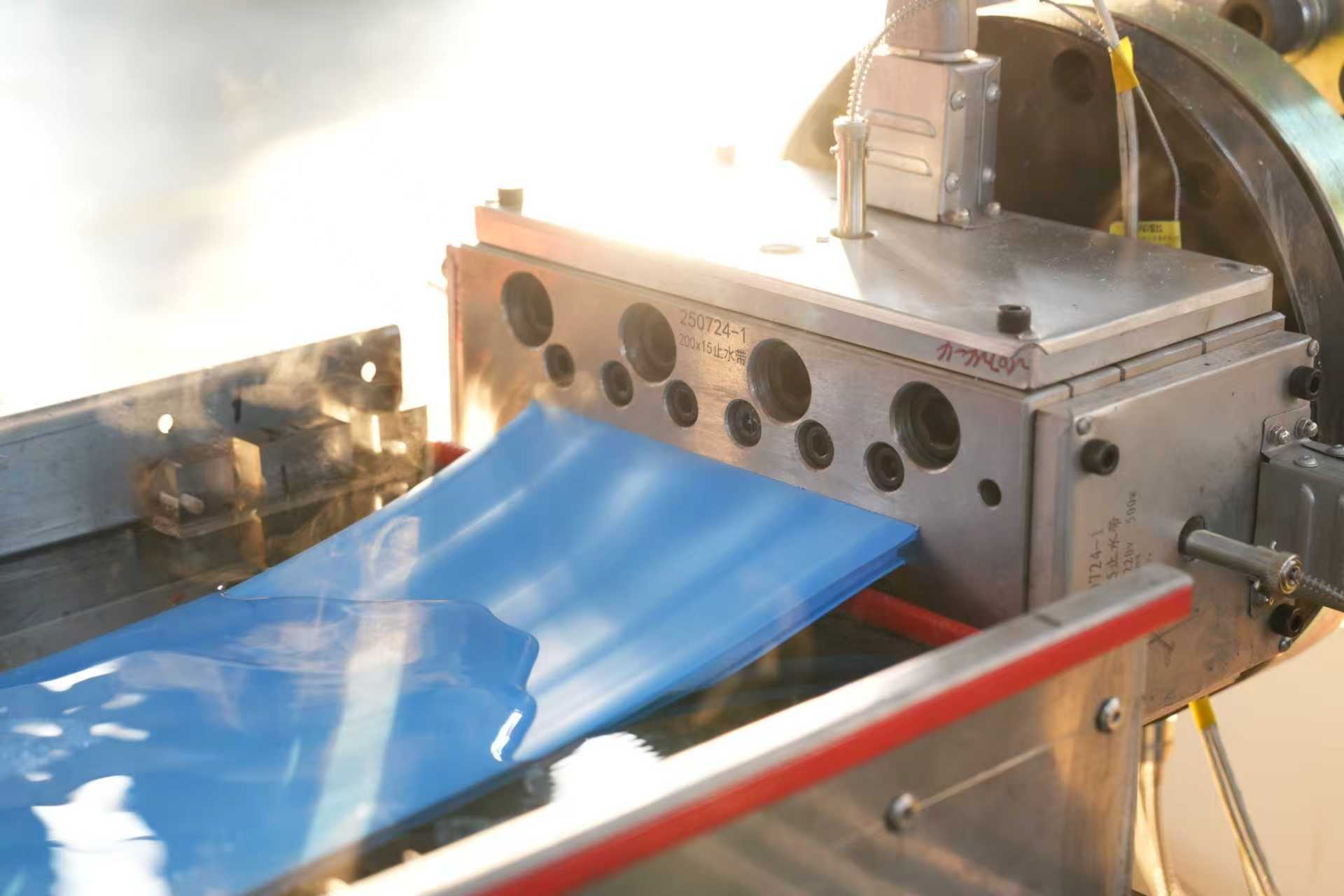

Full-line workflow: PVC raw material automatic mixing → feeding → conical twin-screw extrusion → customized profile die → vacuum sizing → cooling shaping → haul-off traction → fixed-length cutting → finished product stacking.
2. Core Technical Advantages

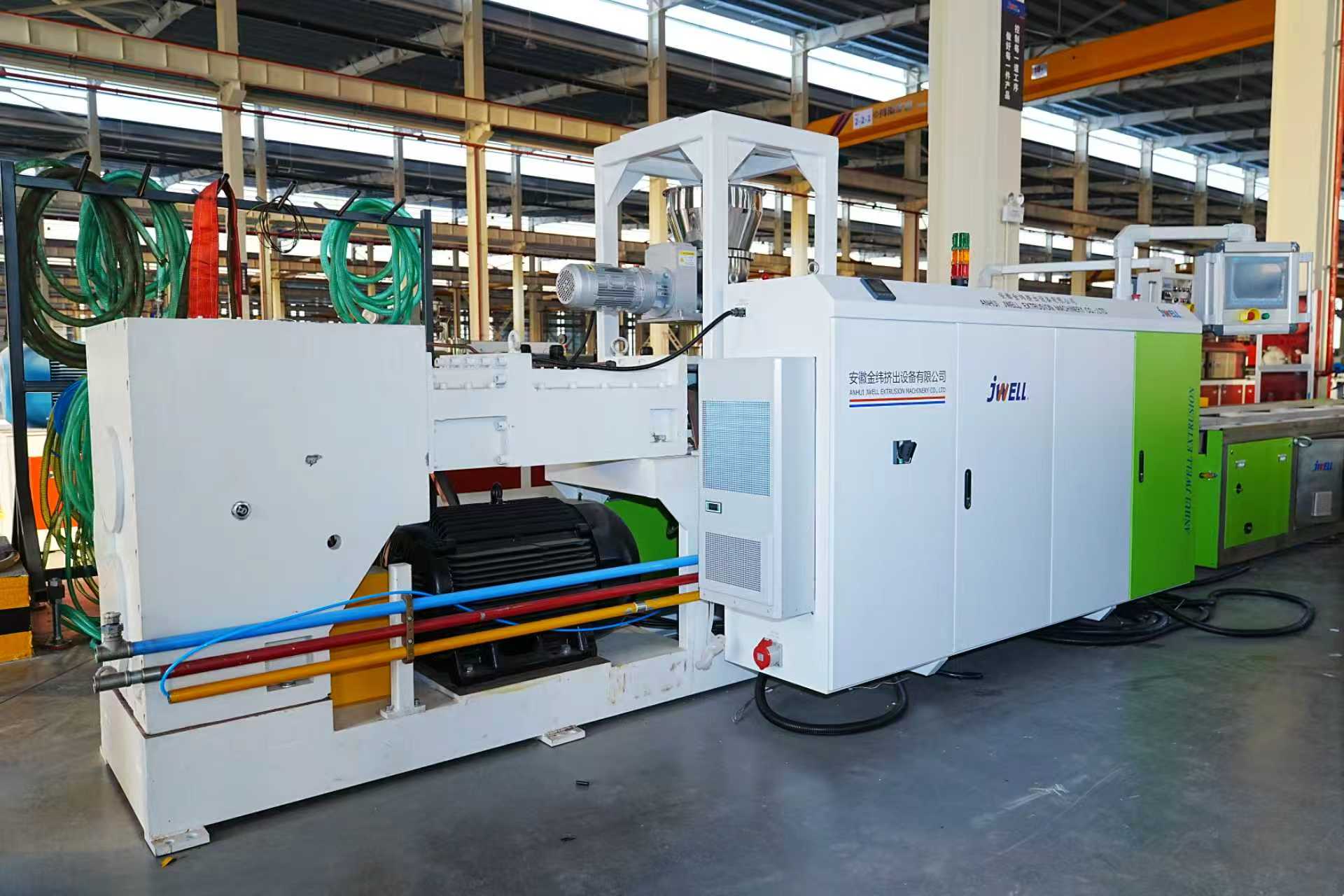

High-stable Extrusion Host
Optimized Jwell self-developed conical twin-screw barrel with wear-resistant alloy lining, uniform PVC plasticization, no bubble inside finished waterstop, output range 80–220kg/h according to product width/thickness.
World-class Electric Configuration
Standard equipped with Siemens PLC, Schneider electric parts, Omron inverter, full touch screen intelligent parameter adjustment, real-time temperature & speed monitoring, reduce operation fault rate sharply.
Customizable Mould Service
Free profile mould design for 150/200/250/300mm width standard & irregular waterstop, single/multi-rib shape available, one set line switches different waterstop specs by changing mould only.
Energy-saving & Low Waste
Precise temperature closed-loop control, lower power consumption than ordinary domestic extruder; stable traction system ensures finished product dimensional tolerance ≤±0.3mm, material leftover cut down by 5%+.
Complete After-sales System
Jwell owns over 300 global service engineers, 12-month full machine warranty, overseas installation & commissioning, technical formula guidance for PVC waterstop raw material proportion.
3. Main Technical Parameters
Applicable Material: PVC, modified PVC, TPE composite waterstop raw material
Finished Product Width: 100~500mm customizable
Line Running Speed: 3~8 m/min
Total Installed Power: 55~110KW (depends on model)
Certification: CE, ISO9001, factory inspection certification
4. Application Fields
Finished PVC waterstops produced by Jwell line are core waterproof parts for:
✅ Municipal subway & highway tunnel
✅ Hydraulic dam, reservoir, aqueduct
✅ Basement, underground garage, nuclear shelter
✅ Airport, high-speed rail concrete engineering
5. JWELL Brand Advantage
With over 30 years plastic extrusion R&D experience, Jwell is top Chinese extrusion equipment manufacturer, factories in Zhejiang, Jiangsu, Anhui, products exported to Middle East, Southeast Asia, Russia, Latin America over 80 countries, thousands of waterstop manufacturers use Jwell production line for long-term cooperation.1. Product Overview
