Are you curious about how manufacturers achieve efficient material processing? Twin-screw extrusion is a key technology in modern manufacturing. It offers precise control over material flow and mixing. In this post, you'll learn about twin-screw extrusion's role in manufacturing, its conveying principles, and how it enhances production efficiency.
Twin-screw extruders come in several configurations, mainly classified by how the screws rotate and mesh. Understanding these types helps choose the right extruder for specific manufacturing needs.
Co-rotating twin-screw extruders have screws that rotate in the same direction. This design offers excellent mixing and compounding capabilities. It allows materials to be conveyed forward smoothly while creating strong shear forces for thorough blending. Co-rotating extruders are widely used in compounding plastics, reactive processing, and devolatilization.
Counter-rotating twin-screw extruders feature screws that rotate in opposite directions. They provide gentler mixing and higher pressure generation, making them suitable for processes requiring low shear, such as PVC compounding. These extruders excel in pumping materials uniformly at low speeds but may not handle energy-intensive processes well.
Intermeshing twin-screw extruders have screws that overlap or interlock, increasing the contact area between screws. This design improves mixing efficiency and self-wiping action, reducing material build-up. Intermeshing screws are common in high-speed energy input (HSEI) extruders for compounding and reactive extrusion.
Non-intermeshing twin-screw extruders keep screws separate without overlapping. They are easier to maintain and less prone to wear but provide less intensive mixing. These extruders suit applications where gentle conveying or low shear is needed.
Co-rotating intermeshing extruders dominate compounding industries. They handle fillers, additives, and polymers well, producing homogenous blends. Their modular screw design lets operators customize screw elements for specific processes.
Counter-rotating intermeshing extruders find use in PVC processing and other materials sensitive to shear. Their low-speed operation preserves material integrity while ensuring steady output.
Non-intermeshing extruders are selected for specialty applications requiring less mixing intensity or easy cleaning, such as food extrusion or certain chemical processes.
In summary, the choice between co-rotating and counter-rotating, intermeshing and non-intermeshing depends on the material properties, desired mixing intensity, and process goals. Co-rotating intermeshing types suit high-shear, high-speed compounding, while counter-rotating and non-intermeshing types serve gentler, low-shear needs.
Tip: When selecting a twin-screw extruder, match screw rotation and meshing type to your material's shear sensitivity and mixing requirements for optimal performance.

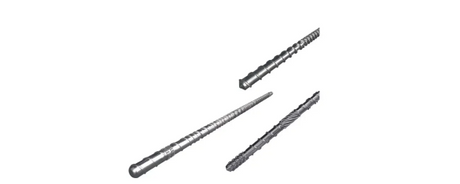

Twin-screw extruders use two screws rotating inside a barrel to move material forward. The design of these screws is crucial. Each screw has flights, which are helical ridges wrapped around the shaft. These flights push material along the barrel as they turn. The pitch, depth, and width of the flights affect how material moves and mixes.
Screw shafts are usually segmented. This lets operators add or remove screw elements to customize the process. For example, some elements focus on moving material forward, while others enhance mixing or apply shear. The screw outside diameter (OD) and inside diameter (ID) define the channel where material flows. A larger channel lets more material pass but may reduce shear.
Screw elements are the building blocks of the screw. They determine how material is conveyed, mixed, or compressed. The main types include:
Conveying Elements: These have continuous flights and push material steadily forward. They control the feed rate and help maintain pressure.
Kneading Blocks: These consist of discs staggered at angles. They create shear and mixing by forcing material to flow in complex paths.
Mixing Elements: Designed to split and recombine the material, improving homogeneity.
Discharge Elements: Located near the end, they build pressure to push the melt through the die.
The arrangement and length of these elements affect conveying efficiency. For example, too many kneading blocks may slow conveying but improve mixing. Operators must balance conveying speed and mixing quality.
Screw speed (rpm) controls how fast the screws rotate. Higher speed moves material faster but increases shear and heat. Torque measures the rotational force applied to the screws. It reflects the resistance from the material being processed.
Higher Screw Speed: Increases throughput but may cause overheating or degradation if not controlled.
Higher Torque: Indicates more energy is needed to push material, often due to viscous or filled compounds.
The balance between speed and torque is key. Operators adjust speed to optimize energy input and product quality. Monitoring torque helps detect issues like material blockage or changes in feedstock.
In summary, the conveying principle depends on screw design, element configuration, and operating parameters. Understanding these helps optimize twin-screw extrusion for efficient material transport and processing.
Material characteristics play a big role in how well the twin-screw extruder conveys the feedstock. For example, materials with high viscosity or sticky nature tend to resist flow, reducing conveying efficiency. Powders or granules with poor flowability can cause blockages or inconsistent feeding.
Feed rate also affects conveying. If the feed rate is too low, the screws may not be fully filled, leading to inefficient conveying and poor mixing. On the other hand, too high a feed rate can overload the screws, causing pressure build-up and possible material degradation.
Operators must adjust feed rates based on material behavior to maintain steady, consistent conveying.
The shape and size of the screws and barrel directly impact conveying efficiency. Key geometric factors include:
Screw Pitch: The distance between flight peaks. A larger pitch moves material faster but reduces shear; a smaller pitch increases shear but slows conveying.
Flight Depth and Width: Deeper flights carry more material but may reduce shear. Narrow flights increase pressure and shear.
Channel Clearance: The gap between screw flights and barrel wall affects how tightly material is contained. Smaller clearances improve pressure build-up and conveying but increase wear risk.
Screw Diameter and Length: Larger diameters increase throughput capacity. Longer screws provide more conveying and mixing zones.
Barrel design, including length and cooling/heating zones, also affects material behavior and conveying efficiency.
Temperature control is vital for efficient conveying. If the temperature is too low, materials may not melt or soften sufficiently, increasing resistance and reducing flow. Too high a temperature can cause degradation, excessive melting, or sticking.
Pressure gradients along the extruder influence conveying. Proper pressure build-up ensures material moves forward steadily. Sudden pressure drops or spikes can cause flow instabilities or backflow.
Temperature and pressure must be carefully monitored and controlled to maintain optimal conveying conditions.
Optimizing twin-screw extrusion starts by tailoring the screw configuration. The modular design lets operators swap screw elements to suit the material and process goals. For example, adding more conveying elements speeds up material transport. Including kneading blocks and mixing elements enhances dispersion and homogeneity but may reduce throughput.
Adjusting the sequence and length of these elements balances conveying and mixing. For shear-sensitive materials, fewer kneading blocks and gentler screw profiles help avoid degradation. For abrasive or filled compounds, wear-resistant elements improve screw life.
Changing the screw pitch and flight depth impacts conveying speed and shear. A larger pitch moves material faster but lowers shear. Deeper flights carry more material but may reduce mixing intensity. Operators must find the right mix to maximize output without compromising quality.
Specific energy consumption (SEC) measures power used per unit of material processed. It’s a key indicator of process efficiency. High SEC can signal excessive shear, overheating, or material degradation. Low SEC might indicate underfilled screws or poor mixing.
Monitoring SEC helps detect process variations early. For example, if the SEC drops unexpectedly while other conditions remain constant, it might mean feedstock changes or screw wear. Maintaining SEC within target ranges ensures consistent energy input and product quality.
Operators calculate SEC by dividing the applied motor power by throughput rate. Tracking this over time supports troubleshooting and process optimization. Adjusting screw speed or configuration can fine-tune SEC for better efficiency.
Process control parameters like screw speed, feed rate, temperature, and pressure are crucial for stable conveying. Screw speed directly affects throughput and shear. Increasing speed boosts output but risks overheating or material damage if not balanced.
Feed rate must match screw capacity. Starving screws reduce conveying efficiency and can cause inconsistent melting. Overfeeding leads to pressure build-up and possible surges or blockages.
Temperature zones along the barrel control melting and viscosity. Precise temperature control avoids degradation or incomplete melting. Pressure monitoring ensures steady flow and identifies blockages or leaks.
Automated control systems help maintain parameters within target ranges. Real-time data allows quick adjustments to optimize conveying and product quality.
Twin-screw extruders use dual rotating screws for efficient material mixing and conveying. Key factors include screw design, speed, and material properties. Optimizing these elements enhances performance and product quality. With advancements in screw technology and smart manufacturing, the future of twin-screw extrusion looks promising. Companies like Jwell lead the industry with innovative solutions, offering high-quality extruders that meet diverse manufacturing needs. Their products provide exceptional value through enhanced efficiency and sustainability, aligning with modern industry demands.
A: Twin screw extrusion is a process where two screws rotate inside a barrel to mix, convey, and process materials efficiently, often used in plastics and food industries.
A: Co-rotating extruders rotate screws in the same direction for strong mixing, while counter-rotating extruders rotate screws oppositely for gentle mixing and higher pressure.
A: Intermeshing extruders improve mixing efficiency and reduce material build-up, while non-intermeshing extruders offer easier maintenance and suit low shear applications.
A: Costs depend on extruder type, screw design, material properties, and specific process requirements, including maintenance and energy consumption.
A: Check feed rate accuracy, inspect screw elements, monitor torque and pressure, and adjust screw configuration to improve material flow and resolve blockages.
