Ever wondered how your favorite plastic products are made? Twin screw extruders play a crucial role in the plastic extruder machine industry, ensuring efficient and consistent production. These machines are vital for creating high-quality materials. In this post, you'll learn about the different types of twin screw extruders and their unique functionalities. Discover how they contribute to modern manufacturing and why they're indispensable in today's industrial landscape.

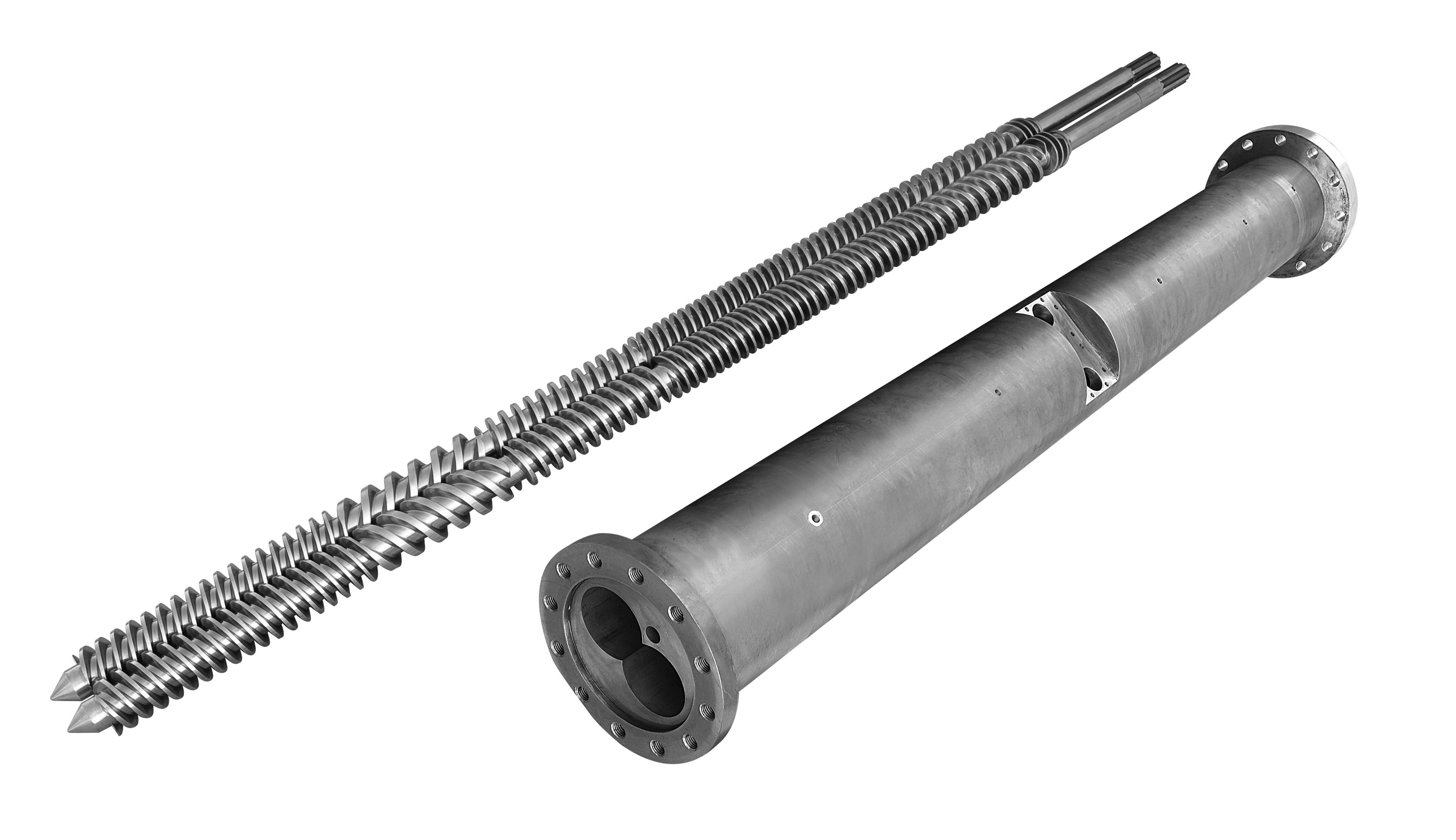

Co-rotating twin screw extruders feature two screws rotating in the same direction inside a single barrel. This design allows the screws to intermesh, which means they fit closely together and rotate synchronously. This intermeshing action provides excellent mixing and conveying of materials. The screws move the plastic pellets forward while continuously blending them, ensuring a uniform melt and consistent output. The tight intermeshing also reduces backflow, increasing the extruder’s efficiency.
Co-rotating twin screw extruders offer several advantages in plastic processing:
Superior Mixing: The intermeshing screws provide intense mixing, which is ideal for compounding and blending different polymers or additives.
Efficient Heat Transfer: The design promotes better heat distribution, preventing material degradation.
High Throughput: These extruders can handle high volumes of material, making them suitable for large-scale production.
Flexibility: They accommodate a wide range of materials, including thermoplastics, elastomers, and biodegradable plastics.
Self-cleaning: The intermeshing action helps prevent material buildup on the screws, reducing downtime.
These benefits make co-rotating twin screw extruders a popular choice in industries requiring precise material properties and consistent quality.
Co-rotating twin screw extruders are widely used in various sectors:
Compounding: Mixing polymers with fillers, plasticizers, or colorants to create custom materials.
Reactive Extrusion: Performing chemical reactions during extrusion, such as polymer modification or grafting.
Masterbatch Production: Creating concentrated mixtures of pigments or additives for coloring plastics.
Biodegradable Plastic Processing: Manufacturing eco-friendly plastic alternatives.
Engineering Plastics: Processing high-performance materials requiring precise control over mixing and temperature.
Their versatility and efficiency make them indispensable in modern plastic manufacturing.

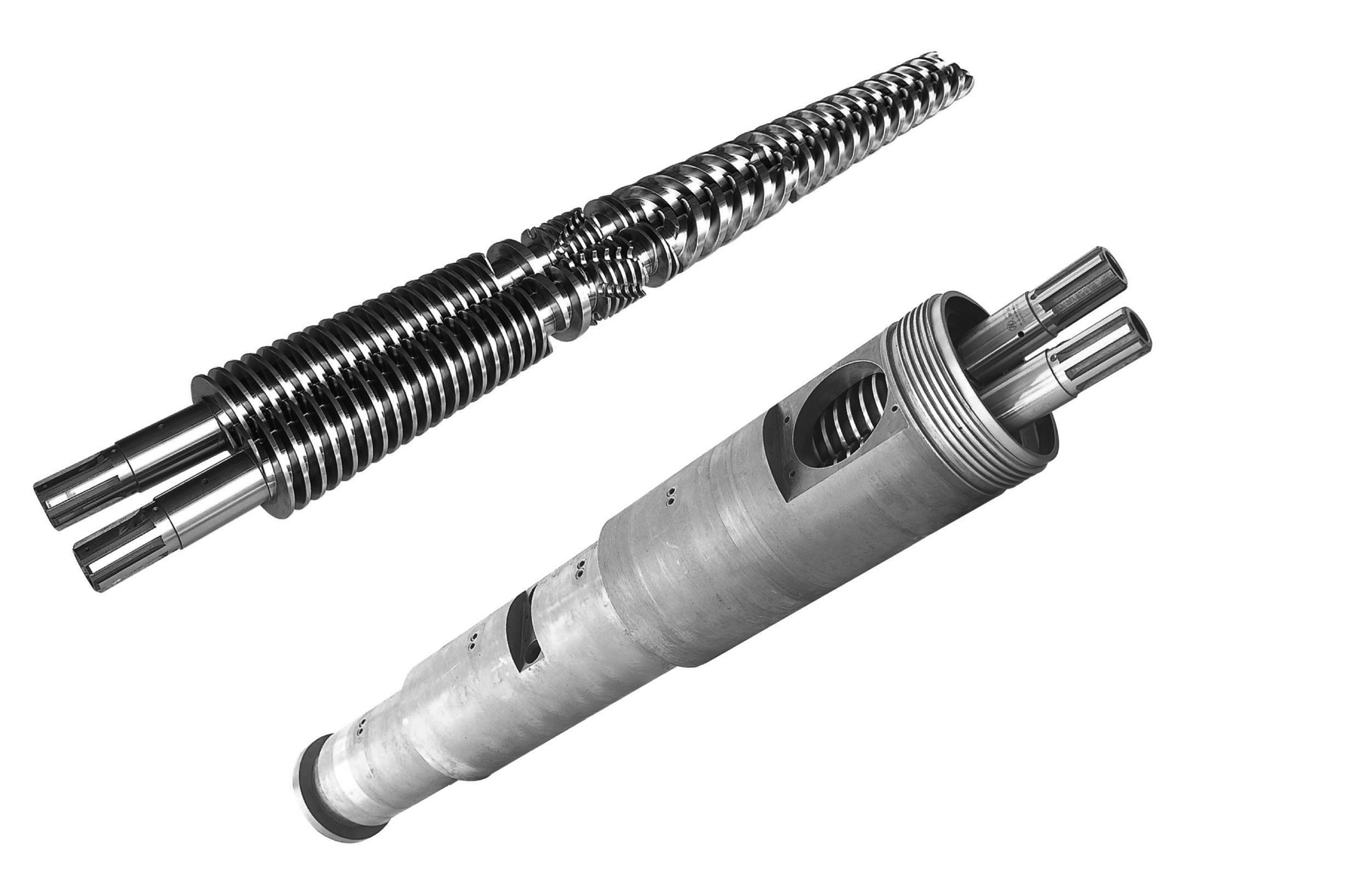

Counter-rotating twin screw extruders have two screws rotating in opposite directions inside a single barrel. Unlike co-rotating types, the screws do not intermesh. Instead, they rotate against each other, creating a strong shearing action that helps break down materials. This design moves materials forward by pushing them between the screws, providing effective mixing and compounding. The counter-rotation creates a self-wiping effect, which reduces residue buildup on the screws and barrel.
Counter-rotating twin screw extruders offer several unique benefits compared to co-rotating and other types:
High Shear Mixing: The opposing screw rotation generates intense shear forces, ideal for dispersing fillers or breaking down agglomerates.
Better Control Over Residence Time: The design allows for precise control of material flow and retention, useful for sensitive polymers.
Lower Energy Consumption: They often require less power for certain materials due to efficient mechanical action.
Reduced Material Degradation: The controlled shear and temperature help protect heat-sensitive materials.
Self-cleaning Action: The screws wipe each other, minimizing contamination and easing cleaning.
These advantages make counter-rotating extruders suited for processes needing thorough mixing without damaging materials.
Counter-rotating twin screw extruders find applications in various industries:
PVC Processing: Widely used due to their effective mixing and gentle handling of PVC compounds.
Rubber and Elastomers: Ideal for compounding elastomeric materials requiring strong shear without overheating.
Adhesives and Sealants: Used in producing materials that need precise mixing and consistent properties.
Food Industry: Applied in processing food-grade plastics or ingredients where gentle mixing matters.
Pharmaceuticals: Useful for mixing sensitive compounds requiring controlled shear and temperature.
Their ability to handle delicate materials while providing strong mixing makes them valuable in specialized sectors.
Split twin screw extruders feature two screws placed side by side, each housed in separate barrels or channels. Unlike intermeshing screws found in co-rotating types, these screws do not physically mesh or overlap. Instead, they operate independently but in close proximity, allowing material to transfer between screws through the gap. This design reduces mechanical complexity and allows easier maintenance. The screws rotate either in the same or opposite directions depending on the specific machine design. This setup provides moderate mixing and conveying capabilities, suitable for applications where gentle processing is required.
Split twin screw extruders offer several benefits that make them suitable for distinct processing needs:
Reduced Screw Wear: Since the screws don’t intermesh, wear caused by metal-to-metal contact is minimized, extending screw life.
Simplified Maintenance: The independent screw channels allow easier cleaning and replacement compared to intermeshing designs.
Gentle Material Handling: The non-intermeshing action reduces shear forces, making it ideal for heat-sensitive or fragile materials.
Lower Mechanical Complexity: Fewer components in close contact reduce the risk of mechanical failure and downtime.
Flexibility in Screw Configuration: Screws can be designed with different profiles to optimize conveying or mixing independently.
These advantages make split twin screw extruders a practical choice for processes requiring moderate mixing without aggressive shear.
Industries benefit from split twin screw extruders in applications where material integrity and ease of maintenance matter:
Food Processing: Handling ingredients gently to preserve texture and quality.
Pharmaceuticals: Mixing sensitive compounds without excessive heat or shear.
Biodegradable Polymers: Processing materials prone to degradation under high shear.
Adhesives and Sealants: Mixing components that require controlled shear levels.
Specialty Chemicals: Producing compounds where precise control over mixing intensity is necessary.
Their ability to balance gentle processing and effective mixing makes them valuable in sectors demanding high product quality and operational reliability.
Non-intermeshing twin screw extruders feature two screws rotating inside separate barrels or channels, but unlike intermeshing types, the screws do not physically mesh or overlap. Each screw operates independently, often running in opposite directions, creating a gap between them. This gap allows materials to be processed with less shear and reduced mechanical interaction between screws. Because the screws do not intermesh, the risk of metal-to-metal contact and wear decreases. The design also simplifies maintenance since screws can be removed or replaced more easily without disturbing the other.
Non-intermeshing twin screw extruders offer several advantages:
Gentle Material Handling: The absence of intermeshing reduces shear forces, protecting heat-sensitive or fragile materials.
Lower Wear and Tear: Less mechanical contact means screws and barrels experience less abrasion, extending equipment life.
Simplified Maintenance: Easier to clean and maintain due to separate screw channels.
Flexibility in Screw Speed: Screws can run at different speeds, allowing customized processing conditions.
Reduced Risk of Screw Jamming: Independent screws minimize the chance of mechanical interference.
However, they also have some disadvantages:
Lower Mixing Efficiency: Without intermeshing, mixing intensity is reduced compared to co-rotating types.
Limited Compounding Capability: Less effective at blending multiple materials or additives uniformly.
Lower Throughput: Typically handle smaller volumes due to gentler conveying action.
Potential for Material Backflow: The gap between screws can sometimes cause backflow or dead zones.
Non-intermeshing twin screw extruders suit industries requiring gentle processing or specialized handling:
Pharmaceuticals: Mixing sensitive compounds needing low shear to preserve active ingredients.
Food Industry: Processing food-grade materials where texture and quality must be maintained.
Adhesives and Sealants: Producing formulations that require controlled shear and precise temperature management.
Biodegradable Polymers: Handling materials prone to degradation under high shear.
Specialty Chemicals: Manufacturing products needing careful mixing without aggressive mechanical action.
Their ability to handle delicate materials while offering operational flexibility makes them valuable in these sectors.
Selecting the right twin screw extruder depends on several key factors. Understanding these will help you match the machine to your specific application, ensuring optimal performance and cost efficiency.
Material Type: Some materials need gentle handling, others require intense mixing. For heat-sensitive polymers, non-intermeshing or split twin screw extruders work best. For tough compounding, co-rotating types shine.
Shear Requirements: High shear is crucial for dispersing fillers or breaking down agglomerates. Counter-rotating or co-rotating extruders provide strong shear, while split or non-intermeshing types offer gentler processing.
Mixing Intensity: Intermeshing screws like co-rotating extruders deliver superior mixing. If uniform blending is critical, they are preferred.
Throughput Needs: Large-scale production calls for high throughput extruders, typically co-rotating. Smaller batches or specialty materials may suit split or non-intermeshing types.
Maintenance and Downtime: Split and non-intermeshing extruders are easier to maintain due to simpler designs and less wear. This reduces downtime and operating costs.
Energy Efficiency: Counter-rotating extruders often consume less power for certain materials, which can lower operational expenses.
Application Specifics: Industry standards, product quality, and regulatory requirements may dictate the extruder type.
| Type | Mixing Intensity | Shear Level | Throughput | Maintenance Ease | Material Sensitivity | Typical Applications |
|---|---|---|---|---|---|---|
| Co-rotating Twin Screw | High | High | High | Moderate | Medium | Compounding, reactive extrusion |
| Counter-rotating Twin Screw | Moderate | High | Moderate | Moderate | High | PVC, elastomers, adhesives |
| Split Twin Screw | Moderate | Low | Low | Easy | High | Food, pharmaceuticals |
| Non-intermeshing Twin Screw | Low | Low | Low | Easy | Very High | Sensitive polymers, specialty chemicals |
For high-volume compounding or complex blends, choose co-rotating extruders for their mixing power and throughput.
When processing heat-sensitive or fragile materials, split or non-intermeshing extruders reduce shear and protect product integrity.
If energy consumption is a concern, counter-rotating extruders may offer savings without sacrificing quality.
Consider maintenance schedules and downtime costs; simpler designs like split or non-intermeshing types can improve uptime.
Evaluate the specific industry requirements such as FDA approvals or food-grade standards to ensure compliance.
Taking time to analyze your production needs, material properties, and operational goals will guide you to the best twin screw extruder choice.
Twin screw extruder technology continues evolving rapidly, driven by demands for higher efficiency, better product quality, and sustainability. One key advancement is the integration of smart sensors and automation. These enable real-time monitoring of temperature, pressure, and torque, allowing precise control over processing conditions. Automation reduces human error and increases repeatability, which is critical for consistent output.
Another major trend is the development of modular extruder designs. Modular screws and barrels allow quick reconfiguration for different materials or products, improving flexibility and reducing downtime. Advanced materials for screws and barrels, such as wear-resistant alloys and coatings, extend equipment life and lower maintenance costs.
Energy efficiency also sees improvement through optimized screw geometry and drive systems. New designs reduce power consumption while maintaining or enhancing mixing and conveying performance. This supports eco-friendly manufacturing goals and lowers operational expenses.
Additionally, twin screw extruders now increasingly support processing of bio-based and recycled polymers. Enhanced mixing capabilities and temperature control help handle these materials, which often have variable properties. This aligns extruder technology with circular economy principles.
These technological improvements significantly impact the plastic extruder machine market. Manufacturers offering smart, flexible, and energy-efficient extruders gain competitive advantages. Customers seek machines that reduce waste, improve product consistency, and adapt quickly to new materials.
The rise of biodegradable and recycled plastics boosts demand for extruders capable of processing such materials effectively. As regulations tighten on plastic waste, industries invest more in extrusion technology that supports sustainable production.
Global supply chains also influence market trends. The ability to quickly switch extrusion setups helps manufacturers respond to changing demands and material availability. This agility is vital in today’s dynamic market environment.
Moreover, digitalization and Industry 4.0 integration enable predictive maintenance and remote diagnostics. These features reduce downtime and optimize machine performance, appealing to large-scale producers focused on maximizing uptime.
Looking ahead, twin screw extruders will likely become even smarter and more adaptable. Artificial intelligence (AI) and machine learning could play roles in process optimization, automatically adjusting parameters for best results. This would further reduce waste and energy use.
We may also see greater use of additive manufacturing (3D printing) to create custom screw designs tailored to specific applications. This customization can boost efficiency and product quality.
Sustainability will remain a core focus. Extruders designed for easy recycling of plastics and compatibility with new bio-polymers will grow in demand. Circular economy principles will drive innovation in screw and barrel materials to minimize environmental impact.
Finally, collaboration between extruder manufacturers and material scientists will deepen. This partnership will enable extrusion processes finely tuned for emerging advanced polymers and composites.
Twin screw extruders are essential for efficient plastic processing, with co-rotating, counter-rotating, split, and non-intermeshing designs offering unique benefits. These machines enhance mixing, handle diverse materials, and improve production quality. In modern manufacturing, their adaptability and precision are crucial. Jwell's advanced twin screw extruders exemplify innovative solutions, providing superior performance and reliability. With a focus on sustainability and cutting-edge technology, Jwell ensures these extruders meet evolving industry demands, offering exceptional value to manufacturers seeking quality and efficiency.
A: A plastic extruder machine is used for melting and shaping plastic materials into various forms, such as sheets, films, or profiles.
A: It offers superior mixing, efficient heat transfer, high throughput, flexibility, and self-cleaning, making it ideal for large-scale production.
A: It provides high shear mixing, better control over residence time, lower energy consumption, and reduced material degradation.
A: Costs vary based on type, size, and features. Co-rotating extruders may be pricier due to advanced capabilities, while split types offer cost-effective maintenance.
A: Check for material blockages, ensure proper screw alignment, verify temperature settings, and inspect for wear or damage on screws and barrels.
