PET Flakes Spinning
JWELL Unlocks High-Value Fiber Conversion Tech
As the synonymous term for polyester fiber, PET take PTA and EG as raw material to form PET high polymers through precise polymerization. It has been wildly used in chemical fiber area due to its features of high strength, wear resistance, anti-wrinkle and shape retention, so It can be regarded as a fine example in the fiber industry. Moreover, with technological innovation and changes in market demand, its application situations continue to expand.
一、PET—— Four Core Missions in Spinning Equipment
01 Raw Material Supply

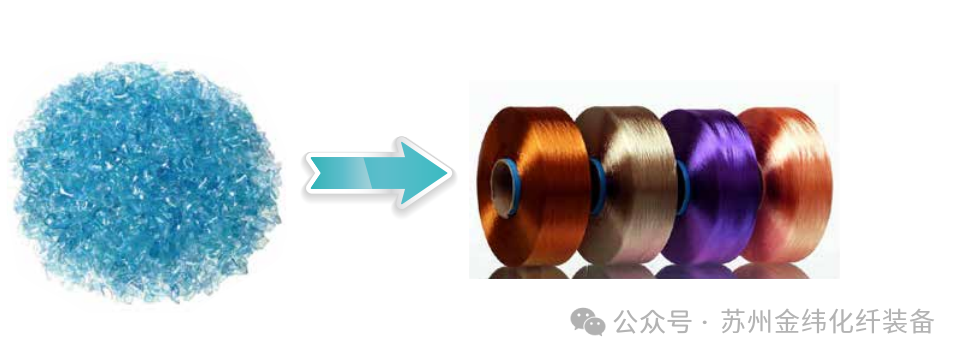

In the spinning equipment, PET raw material become into a melt stream, through the spinneret hole extrusion, after melting, extrusion, measurement, filtration and other processes. In the process of cooling forming, the melt stram is cooled and solidified by the cooling medium, finally become a polyester fiber with a specific form and performance, such as the fiber with circular section and the fiber with special section.
02 Endowing With Fiber Performance
Polyester itself has excellent performance such as high strength, good elasticity, good shape retention and high dimensional stability and so on. In industrial spinning equipment, the performance of polyester fibers can be further optimized by controlling the spinning process parameters to meet the needs of different application fields, such as melt temperature, screw extrusion pressure, cooling and blowing temperature and wind speed. For example, through controlling the change of the spinning speed and cooling conditions, the crystallinity and orientation of the fibers will also changed, thus affecting the strength, elasticity, wear resistance and other performance of the fibers.
03 Achieve Differentiated Production
In the industrial spinning equipment, Polyester can also be differentially modified by adding various additives or adopting special spinning technology to produce polyester fibers with specific functions, such as cationic dyeable polyester, antistatic polyester, and flame-retardant polyester，and so on.These polyester fibers have a wide range of applications in clothing, industry, medical and other fields.

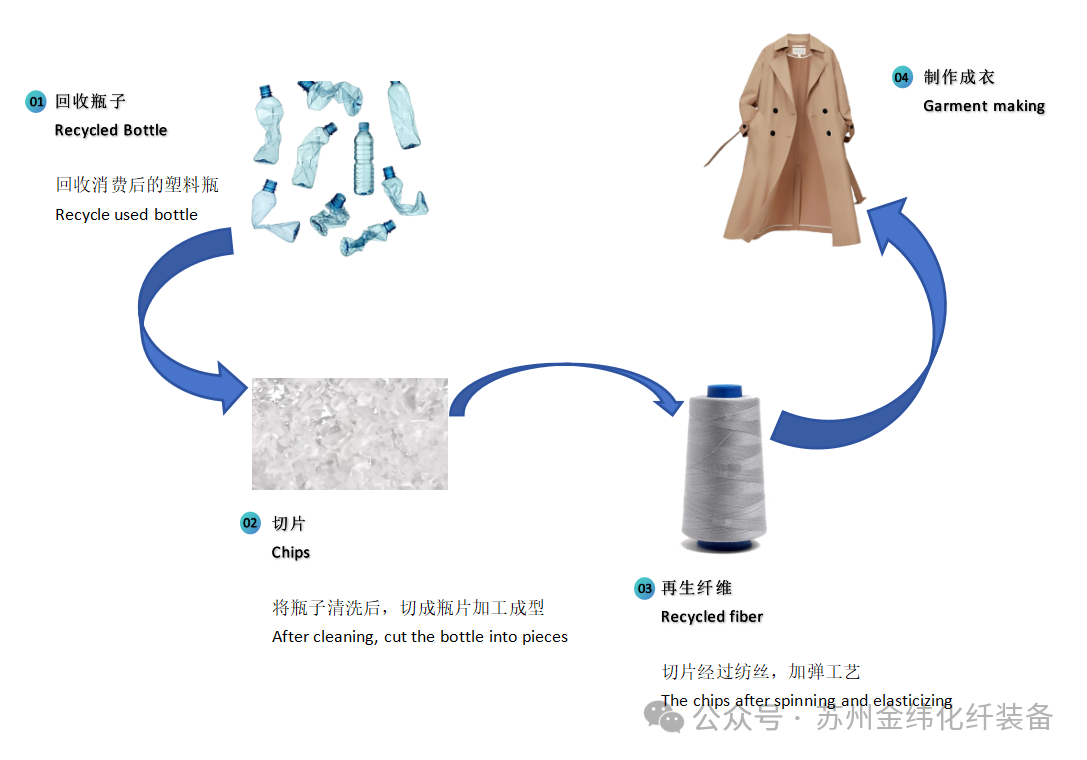

二、JWELL ——PET Bottle Flakes Spinning System
1、Special designed screw & barrel for Recycle bottle PET, optimized for processing recycled materials.
2、Dual-stage CPF with boost pump, to keep melt pressure stable and filter performance.
3、Adopt special spinning beam for flakes material, saving energy and high quality.
4、Bottom mounted cup-shaped spin pack, improves melt flow uniformity.
5、Special for quenching system, honeycomb structure,to keep air blowing better, and foe the better yarn evenness.
6、Using a small adjustment godet reduces the contact area with the yarn, decreasing the wear on the yarn.
三、Applications
| Application | Producton | Scene |

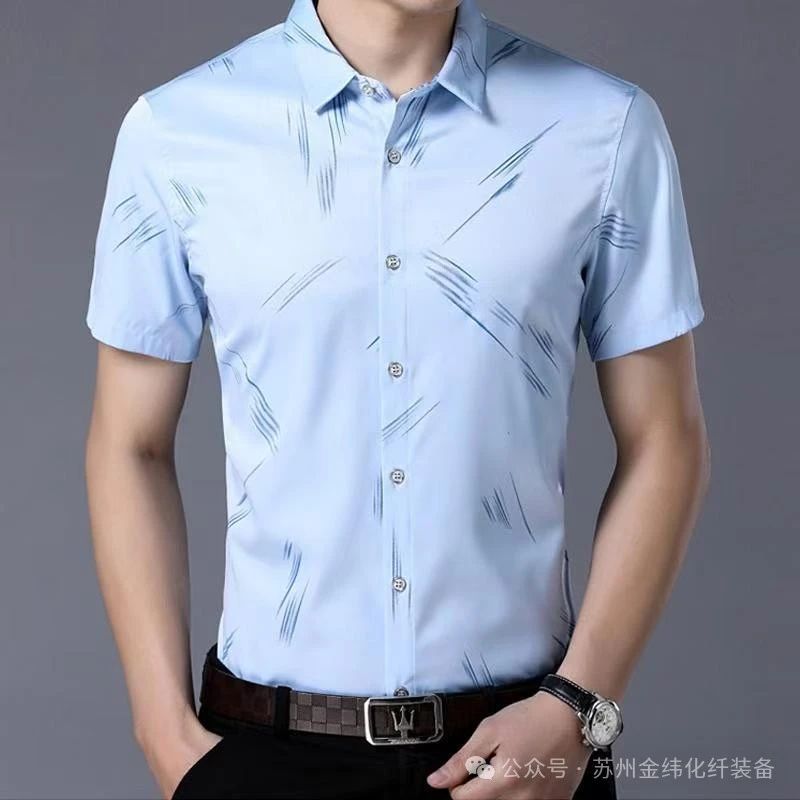

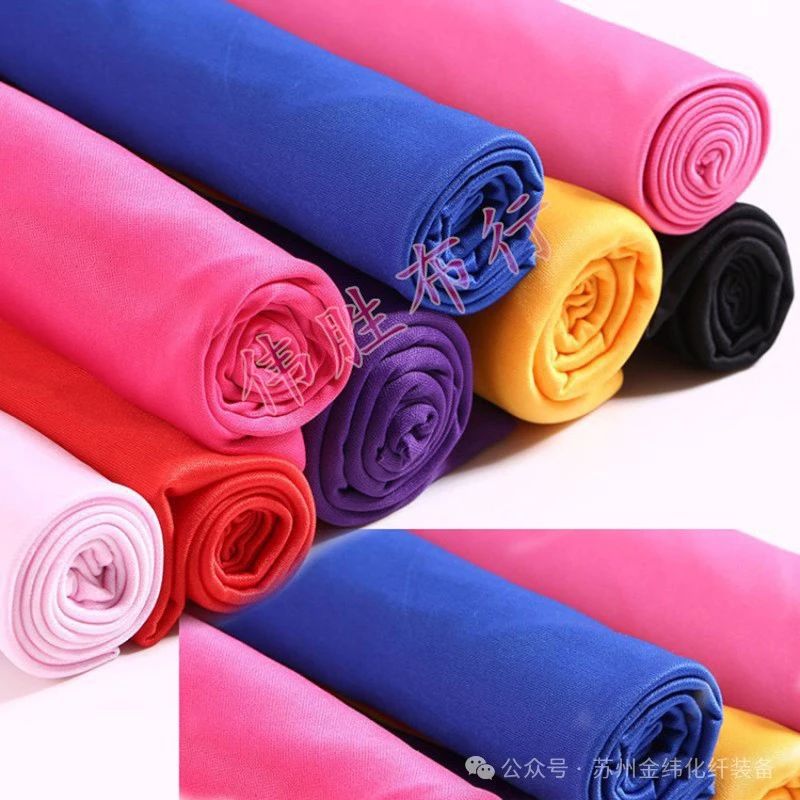

| Clothing | Apparel Fabrics |  |
| Sportswear |  | |

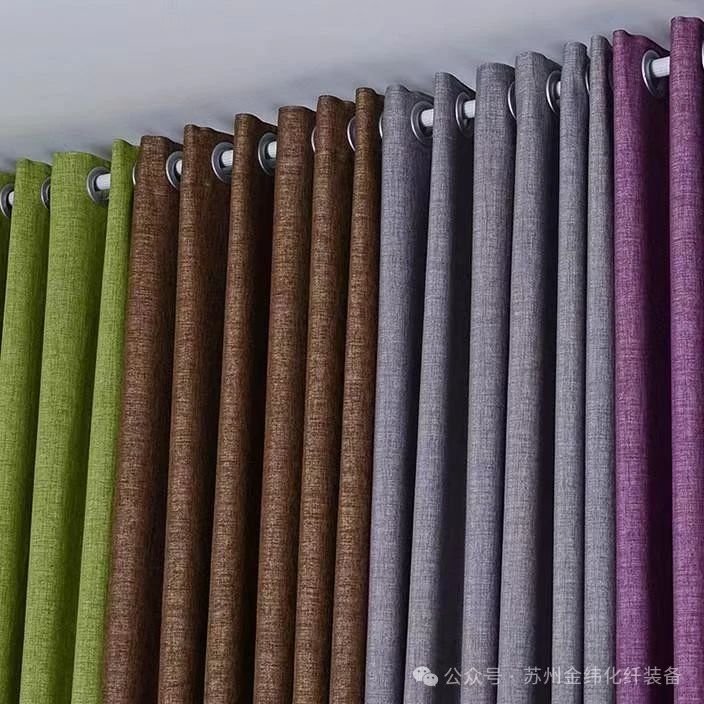

| Fitting | Curtains |  |
| Bedding |  | |

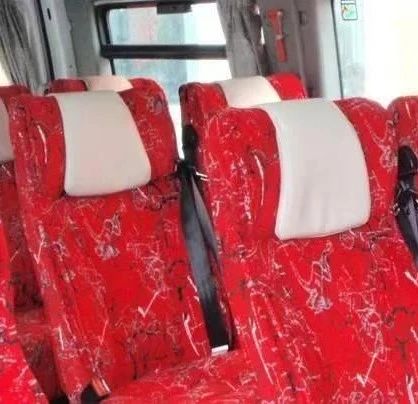

Car Interiors | Car Seat and table Fabri-cs |  |

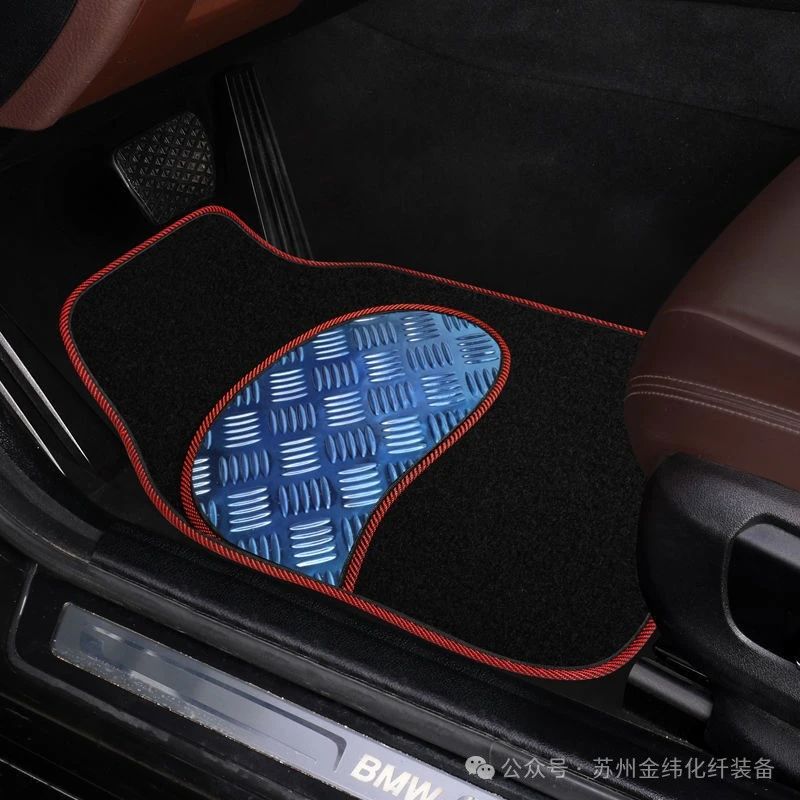

| Car Carpets |  | |

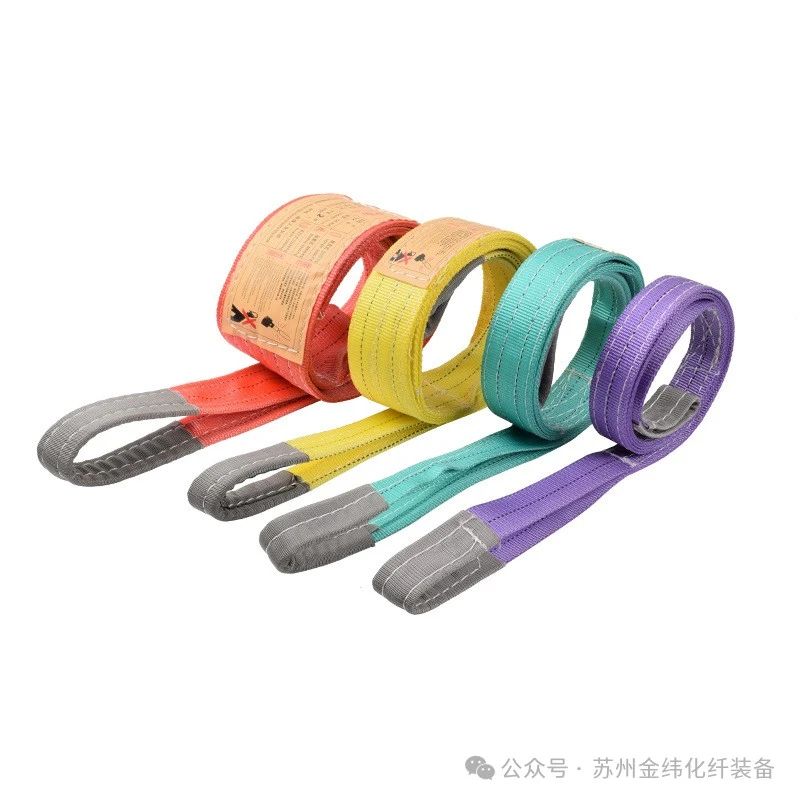

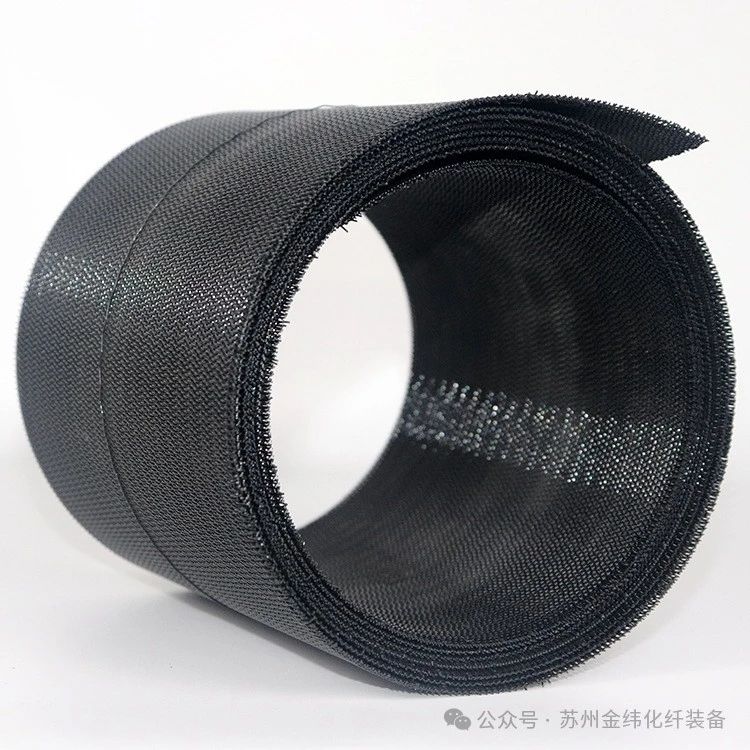

| Industry | Rope、Lifting Strap |  |
| Conveyor belt |  |
