Twin screw extruders are essential in various industries, offering efficient material processing capabilities. However, neglecting extruder gearbox repair and screw maintenance can lead to costly downtime. In this post, you'll learn about twin screw extruder components, the importance of regular maintenance, and practical strategies to ensure optimal performance.
Twin screw extruders consist of several key components working together to process materials efficiently:
Screws: Two intermeshing screws rotate inside barrels, pushing and mixing the material.
Barrel: Houses the screws and provides the chamber for melting and mixing.
Gearbox: Transmits power from the motor to the screws, controlling their speed and torque.
Motor: Drives the gearbox and screws.
Feed system: Introduces raw materials into the extruder.
Die: Shapes the processed material as it exits the extruder.
Each component plays a critical role in extrusion performance and product quality.
Twin screw extruders excel at mixing, compounding, and processing polymers and other materials. Their intermeshing screws provide excellent shearing and blending capabilities, making them ideal for:
Compounding plastics with additives, fillers, or colorants.
Recycling plastic waste by melting and reforming.
Producing biodegradable materials and bioplastics.
Food processing such as pasta or snack production.
Pharmaceuticals for mixing active ingredients.
Their versatility suits a wide range of industries requiring precise material handling and consistent output.
Despite their advantages, twin screw extruders face several common challenges:
Wear on screws and barrels due to abrasive materials, leading to reduced efficiency.
Gearbox failures from poor lubrication or overheating.
Material buildup causing blockages and inconsistent flow.
Noise and vibration indicating misalignment or worn parts.
Temperature control difficulties affecting product quality.
Addressing these issues requires understanding the extruder's components and their maintenance needs to ensure long-term reliable operation.
Note: Regularly inspect screws and gearbox parts for wear signs to prevent costly downtime and maintain extrusion quality.
Regular maintenance of extruder gearboxes and screws ensures smooth operation and extends equipment life. Routine checks help identify wear early, preventing costly breakdowns. Proper lubrication reduces friction and heat, maintaining efficient power transmission. Clean screws and gearboxes improve product quality by avoiding contamination and inconsistent material flow. Maintenance also minimizes unexpected downtime, saving time and money. Consistent upkeep boosts energy efficiency by keeping parts running smoothly, lowering operational costs. Ultimately, it maintains safety standards by preventing mechanical failures that could cause accidents.
Ignoring maintenance leads to accelerated wear and tear on screws and gearboxes. Lack of lubrication causes overheating, resulting in gear damage or bearing failure. Contaminants build up, causing blockages and uneven extrusion. These problems reduce product quality and increase scrap rates. Unexpected breakdowns force costly emergency repairs and disrupt production schedules. Neglected gearboxes may develop noise, vibration, or oil leaks, signaling deeper issues. Over time, the entire extruder’s lifespan shortens, increasing replacement costs. Safety risks rise due to potential mechanical failures, endangering operators and equipment.
Plastic Compounding Plant: Implemented a scheduled lubrication and inspection program. Resulted in 30% fewer gearbox failures and 20% longer screw life over two years.
Food Processing Facility: Regular screw cleaning and wear checks prevented material contamination, improving product consistency and reducing recalls.
Recycling Operation: Early detection of gearbox oil contamination avoided a major breakdown, saving $50,000 in repair costs and downtime.
Bioplastic Manufacturer: Annual gearbox overhaul and screw replacement improved extrusion efficiency by 15%, reducing energy consumption and waste.
These examples show how proactive maintenance preserves equipment reliability, enhances product quality, and lowers operational costs.
Tip: Schedule regular inspections and lubricant changes for gearboxes and screws to prevent costly downtime and maintain extrusion quality.
Start maintenance by thoroughly inspecting the gearbox. Look for:
Signs of oil leaks around seals or joints.
Unusual noises or vibrations during operation.
Visible wear or damage on the gearbox exterior.
Check oil level and clarity through inspection ports or dipsticks.
Assess the gearbox's operating temperature. It should stay within safe limits, usually below 70°C. Overheating signals lubrication or mechanical issues. Early detection helps avoid costly repairs.
Ensure the gearbox housing has adequate ventilation. Good airflow prevents heat buildup, which can degrade lubricants and damage bearings or gears. Keep the operating environment temperature between 5°C and 35°C for optimal gearbox performance.
Install cooling fans or heat exchangers if necessary. Monitor temperature regularly using sensors or infrared thermometers. Maintaining ideal temperature reduces wear and extends gearbox life.
Lubrication is vital for smooth gearbox operation. Follow these steps:
Check lubricant level frequently and top up if low.
Inspect oil color and clarity; dark or contaminated oil indicates degradation.
Replace lubricants after the initial 250 hours of operation for new gearboxes.
Subsequently, change oil every 4,000 to 8,000 hours or at least once a year.
Use manufacturer-recommended oils and greases to ensure compatibility.
Proper lubrication reduces friction, heat, and wear on gears and bearings. Avoid mixing different lubricant types.
Perform a detailed gearbox inspection at least once a year:
Open the gearbox cover carefully.
Examine gear teeth for wear, burrs, or pitting. Smooth minor surface damage with an oil stone.
Check bearings for cracks, noise, or excessive clearance. Clean and apply grease if no damage is found.
Inspect lubricant for metal particles or impurities. Filter or replace oil as needed.
Replace oil seals and bearing covers during reassembly.
Clean the gearbox exterior to prevent dirt buildup.
Replace gears showing deep wear, pitting, or causing noise and vibration. Bearings with cracks or damage should also be replaced immediately.
Tip: Schedule regular gearbox inspections and timely lubricant changes to prevent overheating, reduce wear, and avoid unexpected breakdowns.

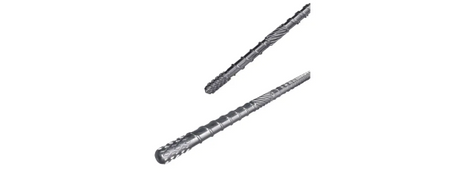

Regular inspection of screws is crucial to spot wear early. Look for:
Surface erosion or scratches caused by abrasive materials.
Corrosion or pitting, especially if processing corrosive substances.
Deformation or bending of screw flights.
Loss of flight height which reduces conveying efficiency.
Cracks or fractures indicating structural failure.
Use visual checks and feel for roughness or irregularities during routine shutdowns. Early detection prevents severe damage and downtime.
Keeping screws clean ensures smooth material flow and consistent product quality. Follow these steps:
Remove residual materials after each production run.
Use appropriate solvents or cleaning agents compatible with the processed material.
Avoid abrasive cleaning tools that may damage screw surfaces.
Dry screws thoroughly before reassembly to prevent corrosion.
Lubrication of screws is less common but essential for certain screw types or bearings. Use manufacturer-recommended lubricants sparingly on screw shafts or bearings to reduce friction.
Knowing when to replace screws saves time and cost:
Replace screws if wear causes more than 10% loss in flight height.
Cracks, fractures, or severe corrosion require immediate replacement.
If material buildup or surface damage affects product quality, consider replacing.
Follow manufacturer’s lifespan recommendations based on operating hours and material abrasiveness.
Always use OEM or approved replacement screws to maintain extrusion performance and avoid compatibility issues.
Tip: Schedule regular visual and tactile inspections of screws during planned shutdowns to catch wear early and maintain extrusion efficiency.
Noise and vibration often signal gearbox problems. Common causes include:
Misalignment of gears or shafts.
Worn or damaged bearings causing irregular motion.
Gear tooth wear or pitting leading to rough meshing.
Insufficient lubrication increasing friction and heat.
To troubleshoot:
Listen carefully to identify noise type—grinding, knocking, or whining.
Use vibration analysis tools to detect abnormal frequencies.
Inspect gear teeth and bearings for visible damage.
Check gearbox alignment and correct if needed.
Ensure lubricant level and quality meet specifications.
Ignoring noise and vibration risks severe gearbox damage and costly downtime.
Oil leaks reduce lubrication, causing overheating and wear. Common leakage points:
Seals and gaskets around shafts and covers.
Oil plugs and drain points not tightened properly.
Cracks or damage in the gearbox casing.
Solutions include:
Regularly inspect seals for cracks or hardening; replace if damaged.
Tighten all plugs and bolts to manufacturer torque specs.
Clean gearbox exterior to spot leaks early.
Use sealants or gasket materials recommended by the manufacturer.
Avoid overfilling oil, which can cause leaks through breathers.
Promptly fixing leaks preserves lubricant integrity and gearbox health.
Gears wear due to friction, load, and contamination. Signs of wear:
Pitting or spalling on gear teeth surfaces.
Burrs or rough edges causing noise.
Irregular gear meshing or backlash.
Increased operating temperature.
Replacement strategies:
Replace gears showing deep wear or pitting immediately.
Use oil stones to smooth minor burrs if caught early.
Follow OEM guidelines for gear replacement intervals.
Use genuine or approved replacement parts for compatibility.
When replacing, inspect mating gears and bearings to avoid repeated failures.
Proper gear maintenance and timely replacement extend gearbox life and improve reliability.
Tip: At the first sign of unusual noise or oil leakage, stop the extruder and inspect the gearbox to prevent costly damage and downtime.
Maintaining extruder gearboxes and screws requires the right tools to ensure accuracy and safety. Key tools include:
Wrenches and socket sets: For loosening and tightening bolts and nuts during inspections or part replacements.
Screwdrivers: Useful for removing covers and accessing internal components.
Oil dipsticks and inspection ports: To check lubricant levels and clarity without disassembling the gearbox.
Oil filter kits: For filtering contaminants from lubricants during oil changes.
Oil stones: Handy for smoothing minor burrs or pitting on gear teeth.
Feeler gauges: To measure clearances and ensure proper gear alignment.
Cleaning brushes and cloths: For removing dirt, debris, and old lubricant from screws and gearboxes.
Torque wrenches: To tighten bolts to manufacturer specifications, preventing over or under-tightening.
Flashlights or inspection lamps: To illuminate hard-to-see areas inside the gearbox or screw assembly.
Using these tools properly helps maintain the extruder’s performance and prevents damage during maintenance.
For more detailed assessments, advanced diagnostic tools help identify issues before they cause failures:
Vibration analyzers: Detect abnormal vibrations indicating misalignment, bearing wear, or gear defects.
Infrared thermometers and thermal cameras: Measure surface temperatures to spot overheating components.
Ultrasound detectors: Identify leaks or electrical issues by detecting high-frequency sounds.
Borescopes or inspection cameras: Allow visual inspection inside tight or sealed areas without disassembly.
Oil analysis kits: Test lubricant quality and detect metal particles or contaminants signaling wear.
Alignment tools: Laser alignment devices ensure shafts and gears are properly positioned.
These tools provide early warnings, enabling timely repairs and reducing unplanned downtime.
Safety is critical when maintaining extruder gearboxes and screws. Proper protective equipment and procedures include:
Gloves: Protect hands from sharp edges, hot surfaces, and chemicals.
Safety goggles or face shields: Guard eyes against debris, splashes, or lubricant sprays.
Hearing protection: Required in noisy environments to prevent hearing damage.
Protective clothing: Durable wear resists cuts and chemical exposure.
Lockout/tagout devices: Ensure machinery is powered off and cannot start unexpectedly during maintenance.
Proper ventilation: Reduces exposure to fumes from lubricants or cleaning solvents.
Clear workspace: Keeps tools and parts organized, preventing trips or accidents.
Following safety protocols minimizes risks and ensures a safe maintenance environment.
Regular maintenance of extruder gearboxes and screws is vital for optimal performance. Key practices include routine inspections, proper lubrication, and timely replacements. These efforts ensure smooth operation, reduce unexpected breakdowns, and extend equipment life. Proactive maintenance strategies enhance product quality and lower operational costs. Companies like Jwell provide valuable solutions with their advanced extruder systems, offering reliability and efficiency. Embrace regular maintenance to maximize benefits and maintain high safety standards in extrusion operations.
A: A twin screw extruder is a machine with two intermeshing screws that mix and process materials. It is essential for compounding plastics, recycling, and food processing due to its excellent shearing and blending capabilities.
A: Signs your extruder gearbox needs repair include oil leaks, unusual noises, vibrations, and overheating. Regular inspections help detect these issues early, preventing costly downtime and ensuring efficient extrusion.
A: Routine maintenance of extruder gearboxes extends equipment life, prevents breakdowns, improves product quality, boosts energy efficiency, and maintains safety standards by preventing mechanical failures.
A: Proper screw maintenance ensures smooth material flow, consistent product quality, and prevents severe damage. Regular inspections and cleaning help detect wear early, maintaining extrusion efficiency.
A: Temperature management prevents overheating, which can degrade lubricants and damage gearbox components. Adequate ventilation and cooling help maintain safe operating temperatures, extending gearbox life.
