The Secret To Doubling Pipe Production Efficiency: A Three-in-One Plastic Pipe Extrusion Screw Design

One

Plastic pipes, including HDPE/MDPE water supply and gas pipes, PE/PP polyolefin pipes, PPR/PE-RT/PEX small-diameter pipes, and PE/PP corrugated pipes, form the core framework of modern municipal construction, building water supply and drainage, and gas transmission. They play an irreplaceable role in their respective fields.

Water supply and gas transmission: HDPE/MDPE pipes, with their excellent corrosion resistance, flexibility, and rapid crack propagation resistance, have become the preferred material for urban water supply networks and medium- and low-pressure natural gas transmission. Their heat fusion connection method creates an integrated, leak-free system, significantly reducing leakage rates and ensuring the safety of drinking water and the reliability of gas transmission. PE/PP polyolefin pipes are also widely used in urban water supply, agricultural irrigation, and industrial fluid conveyance. Their lightweight and high-strength characteristics greatly reduce construction difficulty and operation and maintenance costs.

Building hot and cold water and heating: PPR pipes are the standard choice for indoor hot and cold water systems, offering high temperature resistance, pressure resistance, hygiene, and non-toxicity. PE-RT and PEX pipes, with their excellent heat creep resistance, are widely used in radiant floor heating systems and high-temperature hot water transmission. Their flexibility allows them to adapt to building deformation, and they are easy to install with a service life of over 50 years.

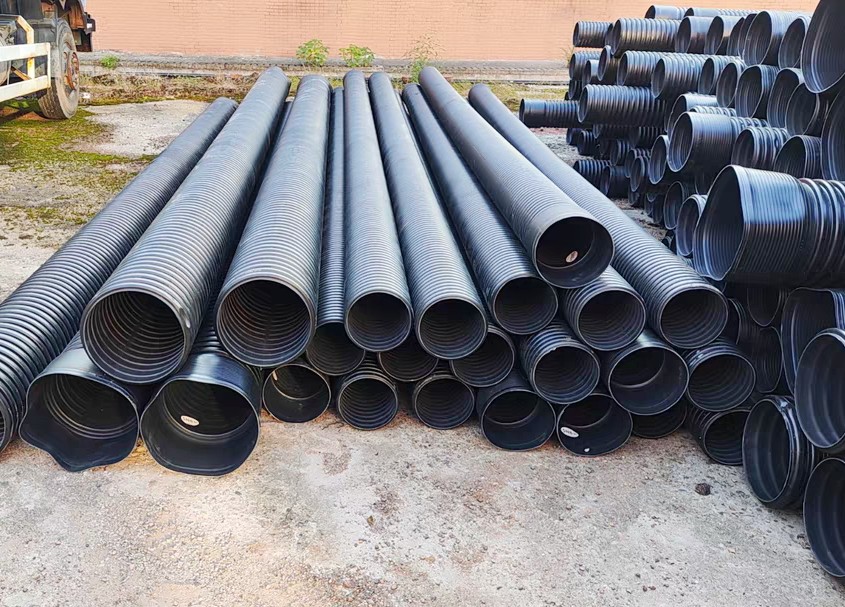

Drainage and cable protection: PE/PP double-wall corrugated pipes feature high ring stiffness, light weight, and corrosion resistance, making them ideal for municipal sewage, rainwater collection, and power and communication cable conduits. Their corrugated structure ensures load-bearing capacity while significantly saving material consumption, aligning with the concept of green construction.

Two

Importance: The application of the above-mentioned pipes has not only promoted the technological innovation of "replacing steel with plastic" but has also made significant contributions to ensuring public safety, conserving water resources, improving living comfort, and reducing life-cycle costs. They are corrosion-resistant, non-scaling, earthquake-resistant, and freeze-resistant, effectively avoiding secondary pollution and rust issues associated with traditional metal pipes. They are a key guarantee for the safe operation and sustainable development of modern infrastructure.

In an increasingly competitive industry, extrusion efficiency directly determines production capacity, energy consumption, product quality, and costs, placing efficient pipe manufacturers in an unbeatable position. Targeting the processing characteristics of polyolefin pipes such as HDPE, MDPE, PP, PPR, PE-RT, and PEX, suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827） has achieved a technological breakthrough in high-efficiency extrusion through the synergistic combination of a “separating + barrier + mixing” three-in-one screw and a “split barrel with internal spiral groove” design. This systematically optimizes the entire process from material conveying, plasticizing, and mixing to pressure build-up.

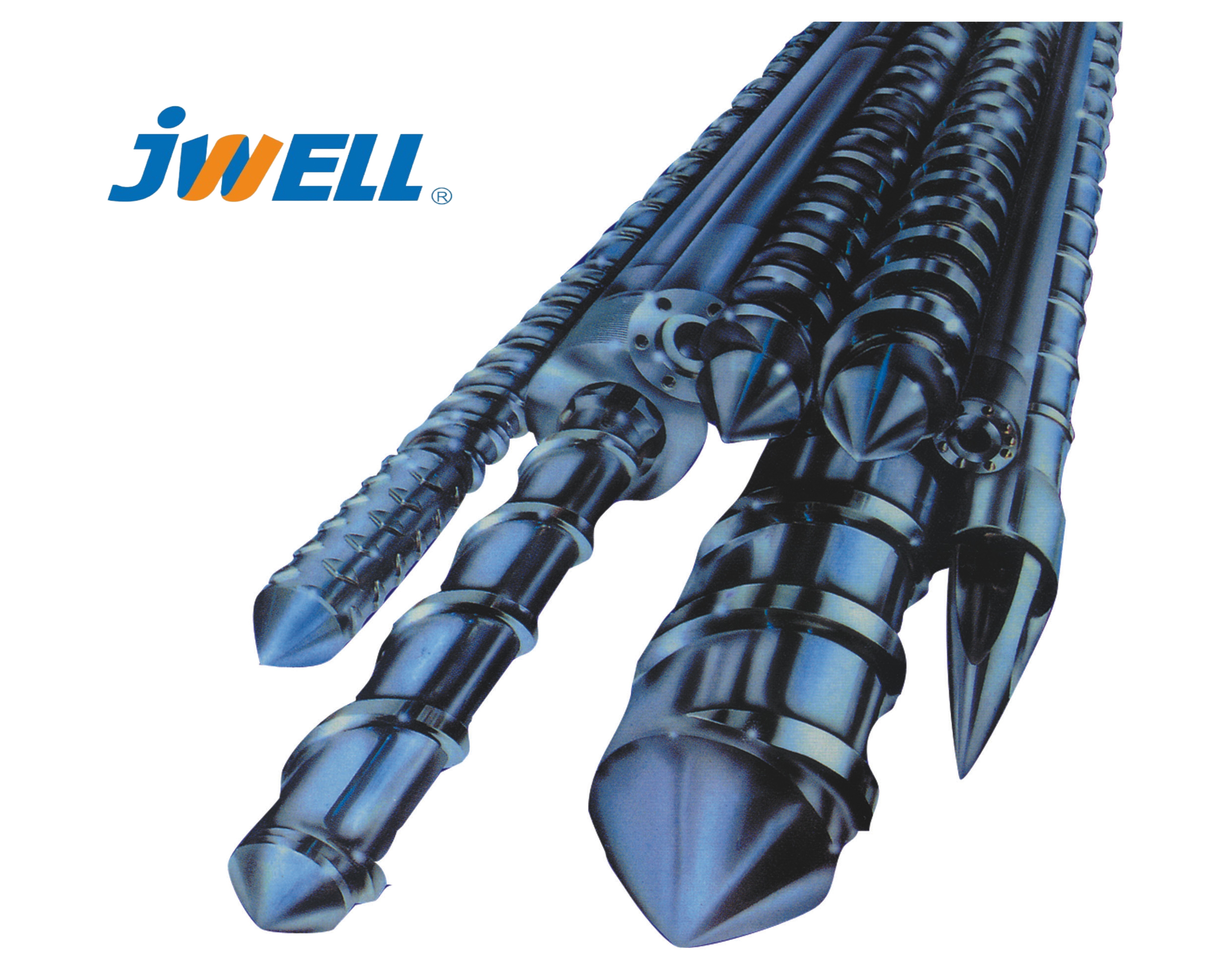

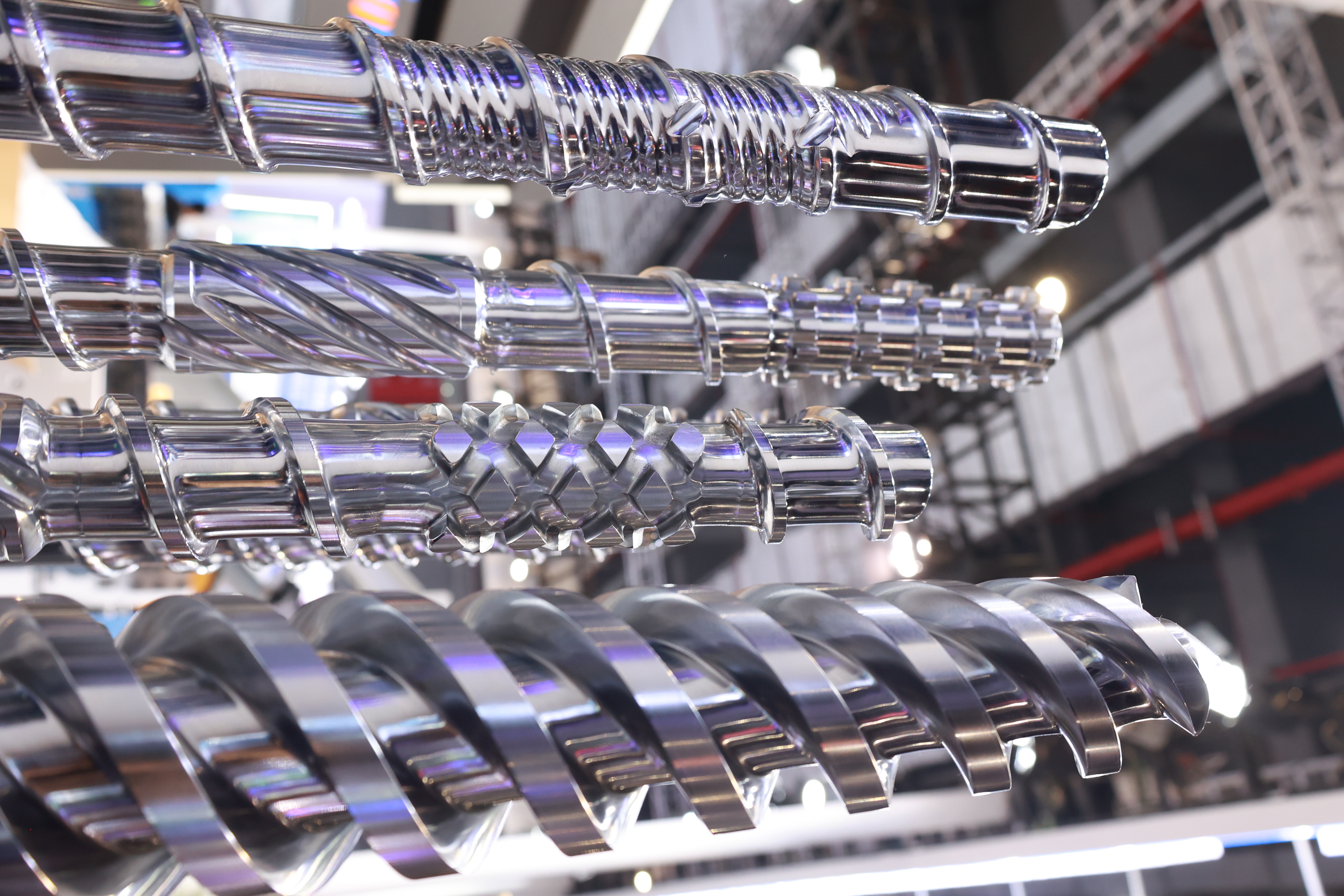

First, the separating section of the screw is the starting point of the entire high-efficiency plasticizing process. In a conventional screw, between the feed section and the compression section, the molten material and unmelted solid particles are often mixed together. The solid fragments remaining in the melt not only hinder flow but also prolong the melting length and limit the increase in screw speed. suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827）'s separating section, through a special screw flight geometry, forcibly separates the already molten material from the unmelted solid particles, forming two independent channels: the melt is conveyed forward along one channel, while the solid particles are directed into another channel closer to the inner wall of the barrel, where they absorb heat and melt earlier and faster. This forced separation shortens the distance required for the complete transformation from solid to liquid, allowing the screw to operate at higher speeds without “under‑plasticization,” thereby achieving higher output with the same screw length.

After the separating section, the barrier section further enhances the melting effect. Even after the separating section, small unmelted particles or gels may still remain in the melt. The barrier section incorporates several narrow barrier gaps on the screw. As the melt is forced through these gaps, it is subjected to intense shear and heat conduction, completely melting any residual solids in a very short time. At the same time, the barrier section eliminates “melting peaks” in the melt—that is, it prevents material degradation caused by localized shear overheating and makes the melt temperature distribution more uniform. This is particularly important for heat‑sensitive polyolefins such as PPR and PE‑RT, because non‑uniform temperature can cause wall thickness fluctuations or flow marks on the pipe surface.

The fully melted material then enters the mixing section. The mixing section typically uses pins, gear‑type, or wave‑type elements to repeatedly divide, redirect, and recombine the melt. This mechanical action achieves two types of mixing effects: distributive mixing evenly disperses different components (such as color masterbatch, antioxidants, carbon black, and other additives) in the melt, avoiding streaks or color differences; dispersive mixing breaks up agglomerated fillers or tiny unmelted gels, preventing surface defects like specks or weak mechanical points on the pipe. For pipe production, the presence of a mixing section greatly improves product quality stability, especially when the raw material contains reprocessed material or batches with varying properties—the mixing section effectively eliminates batch‑to‑batch differences.

The synergistic effect of these three sections significantly increases the plasticizing capacity of the screw: the separating section shortens the melting length, the barrier section completes the final melting and homogenizes the temperature, and the mixing section ensures component uniformity. As a result, for the same length‑to‑diameter (L/D) ratio, the high‑efficiency screw can operate at speeds 50% to 100% higher than a conventional screw, with output increasing correspondingly by 30% to 60%, while melt temperature fluctuations can be controlled within ±2°C, providing a stable and uniform melt for subsequent die sizing.

However, efficient plasticizing alone is not sufficient; solids conveying capacity is often the bottleneck limiting high‑speed extrusion. Conventional barrels rely on friction between the material and the barrel inner wall for forward conveying. When screw speed increases, slippage or uneven feeding easily occurs, preventing output from increasing linearly. To address this, suzhou Jwellmech（https://www.jwellmech.com/，+86- 15806221827）’s new barrel adopts a “split‑barrel + internal spiral groove” design. The split design divides the barrel into three independent modules: the feed section, the melting section, and the metering section. Each section can be independently temperature‑controlled, cooled, and replaced. This allows the temperature profile to be optimized according to material characteristics: the feed section can be force‑cooled to prevent premature melting and clogging of the feed opening; the melting section is precisely heated to promote plasticization; and the metering section maintains a constant temperature for stable pressure. More importantly, the split design permits precision machining of spiral grooves on the inner wall of the feed section (the grooves usually run opposite or at an angle to the screw flights), while the inner walls of the subsequent sections remain smooth to avoid melt stagnation. These internal spiral grooves effectively add auxiliary conveying elements to the barrel. As the screw rotates, the material is forced into the grooves, generating a forward conveying force much greater than ordinary friction. Solids conveying efficiency can be increased from 0.3–0.5 for a conventional barrel to above 0.8, approaching the theoretical maximum. This means that even at very high screw speeds, the feed section can stably push material into the melting zone without “starving” or “flooding.” At the same time, the spiral grooves pre‑compact the material, expel entrained air, and increase bulk density—an especially valuable feature for low‑bulk‑density materials such as recyclate or powders.

Another benefit of the split design is maintenance economy. Barrel wear occurs mainly in the feed section. With a conventional one‑piece barrel, once worn, the entire barrel must be replaced at high cost. In contrast, the split design requires only replacement of the worn feed section module, greatly reducing long‑term operating costs. Furthermore, different pipe raw materials may require different spiral groove parameters (e.g., groove depth, pitch, number of starts). The split barrel allows quick changeover of the corresponding feed section, enhancing production line flexibility.

Suzhou Jwell’s combination of the “three-in-one” screw and the “split barrel with internal spiral groove” creates an efficient chain covering the entire process from solids conveying, melting and plasticizing, to mixing and homogenization. In the solids conveying stage, the spiral groove ensures stable feeding even at high screw speeds. In the melting and plasticizing stage, the separating and barrier sections achieve rapid and uniform melting. In the mixing and homogenizing stage, the mixing section eliminates compositional differences. The final results for pipe production lines of the same diameter are: output increased by 30% to 60%, energy consumption reduced by 15% to 25%, wall thickness tolerance narrowed from ±8%–10% (conventional extruders) to ±4%–5%, and the ability to stably process recycled materials, highly filled compounds, and low‑bulk‑density powders. Therefore, this screw and barrel combination represents the core technology for achieving high‑speed, high‑output, and high‑quality extrusion in modern pipe production lines. It is widely applicable to the production of various pipes, including HDPE/MDPE water supply and gas pipes, PE/PP polyolefin pipes, PPR/PE‑RT/PEX small‑diameter pipes, and PE/PP corrugated pipes.

In Summary: Plastic pipes are a critical guarantee for modern infrastructure, covering areas such as water supply, gas transmission, building hot/cold water and drainage, and cable protection. Suzhou Jwell has introduced a combination design featuring a “separating + barrier + mixing” three‑in‑one screw and a “split barrel with internal spiral groove” for polyolefin pipes, achieving a full‑process efficiency revolution: output increased by 30%–60%, energy consumption reduced by 15%–25%, wall thickness tolerance narrowed to ±4%–5%, and the ability to stably process difficult materials such as recyclate. This is the core technological pathway for high‑speed, high‑output, and high‑quality extrusion of pipes.
