Ever wondered how everyday plastic items are made? The plastic extrusion process is essential in creating countless products. From automotive parts to food packaging, extrusion machines shape raw plastic into useful forms. In this article, you'll learn about different machines used in plastic extrusion and their applications across industries.
Plastic extrusion machines come in several types, each designed to handle specific materials and produce particular product forms. Understanding these types helps businesses choose the right equipment for their manufacturing needs.
Single screw extruders are the most common type used in plastic extrusion. They consist of one rotating screw inside a heated barrel. The screw moves plastic pellets forward, melting them through friction and heat. This molten plastic is then pushed through a die to form continuous shapes.
Advantages: Simple design, cost-effective, reliable.
Applications: Ideal for producing pipes, sheets, and profiles with consistent shapes.
Limitations: Less effective at mixing additives or complex formulations.
Twin screw extruders feature two screws rotating inside the barrel, either intermeshing or non-intermeshing. This design provides better mixing and more uniform melting, making them suitable for complex formulations and materials requiring additives.
Advantages: Superior mixing, flexible screw configurations, better control over temperature and pressure.
Applications: Used in industries needing precise material properties, such as food packaging, automotive parts, and specialty plastics.
Limitations: Higher initial cost and more complex maintenance than single screw machines.
This type of extrusion machine specializes in producing flat plastic sheets or films. The raw plastic is melted and forced through a flat die, forming a continuous sheet that can be cut or rolled.
Advantages: Produces uniform sheets with precise thickness.
Applications: Manufacturing weather stripping, plastic panels, packaging films, and protective covers.
Limitations: Limited to sheet or film products, not suitable for tubular or complex profiles.
Plastic extrusion machines consist of several key components working together to transform raw plastic into continuous shaped products. Understanding these parts helps optimize the extrusion process for quality and efficiency.
The hopper is the entry point for raw plastic materials, usually in pellet or granule form. It feeds the material into the barrel by gravity. The barrel is a long, heated cylinder where the plastic melts. It houses the screw that pushes the plastic forward. The barrel's temperature is carefully controlled to ensure the plastic melts evenly without degrading.
Hopper: Holds and feeds raw plastic steadily.
Barrel: Provides heat and space for melting and mixing.
Inside the barrel is the screw, a helical structure that rotates to move the plastic forward. The screw has different zones for feeding, melting, and metering the plastic to prepare it for shaping. The motor powers the screw, controlling its speed and torque. Proper screw design and motor power are critical for consistent output and product quality.
Screw Drive: Moves and melts plastic through the barrel.
Motor: Powers the screw rotation, controlling process speed.
The die mold shapes the molten plastic as it exits the barrel. It is a custom-designed metal tool that forms the plastic into the desired continuous profile, such as tubing, sheets, or complex shapes. Different dies are used depending on the product requirements. The die must maintain uniform flow to avoid defects in the final product.
Die Mold: Shapes molten plastic into continuous profiles.
Variety: Flat dies for sheets, round dies for pipes, custom dies for special profiles.
The plastic extrusion process is divided into three key zones inside the extrusion machine’s barrel: the feed zone, melting zone, and metering zone. Each zone plays a crucial role in transforming raw plastic pellets into a continuous, uniform molten material ready for shaping.
The feed zone is where raw plastic pellets, granules, or powders enter the machine through the hopper. Gravity helps move the material into the barrel. Here, the screw starts rotating slowly to push the solid plastic forward. This zone is designed to handle the initial loading and conveyance of material without causing blockages or bridging.
Purpose: Steady feeding of raw plastic into the machine.
Key Consideration: Avoid overheating or friction that could prematurely soften the plastic.
Next is the melting zone, where the plastic heats up and begins to melt. The barrel’s heaters and the friction from the rotating screw work together to raise the temperature. The plastic transitions from a solid to a molten, viscous state here. The screw design promotes efficient heat transfer and mixing to ensure the plastic melts evenly.
Purpose: Convert solid plastic into a molten form suitable for shaping.
Key Consideration: Maintain precise temperature control to prevent degradation or incomplete melting.
The final zone is the metering zone. Here, the molten plastic is homogenized to ensure consistent temperature and composition before exiting the barrel. The screw’s pitch and speed are optimized to create steady pressure and flow. This uniformity is critical for producing high-quality, defect-free extruded products.
Purpose: Mix and stabilize the molten plastic for consistent output.
Key Consideration: Uniform pressure and temperature minimize product variation.
Maintaining a consistent temperature throughout the extrusion process is crucial. The plastic must be heated enough to melt evenly but not so much that it degrades or burns. Temperature control affects product quality, process stability, and energy efficiency.
Plastic extrusion involves melting solid raw materials into a uniform molten state. If the temperature varies too much, several problems can occur:
Product Defects: Overheated plastic can degrade, causing discoloration, bubbles, or weak spots. Underheated plastic may not melt fully, leading to incomplete shaping or rough surfaces.
Process Instability: Temperature fluctuations can cause changes in melt viscosity, affecting flow rate and pressure. This leads to inconsistent product dimensions or surface finish.
Energy Waste: Excessive heating wastes energy and increases operational costs. Precise control reduces waste and improves efficiency.
Each zone in the extrusion barrel requires specific temperature settings. The feed zone is usually cooler to prevent premature melting. The melting zone needs the highest temperature to liquefy the plastic. The metering zone maintains a stable temperature to ensure uniform flow.
After extrusion, the molten plastic must cool and solidify. Cooling systems help control the temperature of both the barrel and the extruded product.
Barrel Cooling: The barrel often has cooling jackets or channels where water or air circulates. This removes excess heat and keeps the barrel temperature steady.
Air Cooling: Fans or air knives blow cool air onto the extrudate, helping it harden quickly without warping.
Water Cooling: Water baths or spray tanks cool extruded products like pipes or sheets. This method provides rapid and uniform cooling.
Chill Rolls: For sheet extrusion, chilled rollers cool and flatten the plastic as it exits the die.
Proper cooling prevents deformation, shrinkage, or internal stresses in the finished product. It also speeds up the production process by reducing handling time.
Plastic extrusion is a versatile manufacturing process used across many industries. The continuous shaping of molten plastic through a die enables production of various products with consistent quality and efficiency. Below are some key applications where plastic extrusion machines play a vital role.
The automotive sector relies heavily on plastic extrusion for parts that require durability, flexibility, and precision. Extruded plastic components include:
Seals and Gaskets: Used in doors, windows, and engines to prevent leaks and reduce noise.
Trim and Molding: Decorative and protective strips around vehicle bodies.
Tubing and Hoses: For fuel lines, brake systems, and air conditioning.
Wire Insulation: Extrusion coats electrical wiring to protect against heat and abrasion.
Industrial applications also benefit from extrusion. Plastic profiles serve as conveyor belts, protective covers, and structural components in machinery. The process supports production of custom shapes tailored to specific industrial needs.
Plastic extrusion is crucial in food packaging, where films and sheets made from polyethylene or polypropylene provide airtight, moisture-resistant barriers. These materials keep food fresh and safe during transport and storage.
Wire and cable insulation is another major use. Extrusion machines coat wires with plastic layers that provide electrical insulation, mechanical protection, and resistance to chemicals and weathering. This ensures safety and longevity in electrical systems.
In construction, extruded plastic pipes and conduits replace traditional materials like metal or concrete. These plastic pipes are lightweight, corrosion-resistant, and easy to install. Common applications include:
Water and Gas Pipes: Durable pipes for plumbing and gas lines.

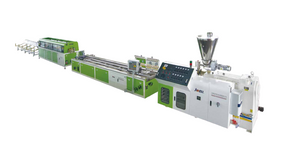

Electrical Conduits: Protective channels for electrical wiring, preventing damage and exposure.

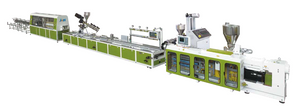

Window and Door Frames: Extruded PVC profiles offer weather resistance and low maintenance.
Extruded plastic sheets and panels are also used in building facades, insulation, and interior design elements.
Plastic extrusion offers numerous advantages that make it a preferred manufacturing method for many industries. These benefits stem from the process's continuous nature, flexibility, and compatibility with various raw materials.
One of the biggest advantages of plastic extrusion is its ability to produce large quantities of products quickly and continuously. Since the process pushes molten plastic through a die, it creates a constant stream of shaped material. This continuous operation means manufacturers can meet high demand without frequent stops or slowdowns.
Continuous Production: Unlike batch processes, extrusion runs non-stop, increasing throughput.
Speed Control: Operators can adjust screw speed and temperature to optimize production rates.
Reduced Waste: Continuous flow minimizes material scrap and rework.
This high efficiency lowers production costs and shortens lead times, making extrusion ideal for mass production of pipes, tubes, sheets, and profiles.
Plastic extrusion machines allow for a great deal of customization in product design. By changing the die shape, screw configuration, or processing parameters, manufacturers can create a wide variety of shapes and sizes.
Versatile Profiles: Extrusion can produce simple tubes or complex cross sections.
Additive Compatibility: Colorants, fillers, and reinforcements can be incorporated during extrusion.
Low Tooling Costs: Compared to molding, extrusion dies are simpler and less expensive to produce.
This flexibility lets companies tailor products to specific applications without incurring high setup costs. It also makes small to medium production runs more economical.
Extrusion works with many thermoplastic materials, including polyethylene, polypropylene, PVC, ABS, nylon, and more. It can also handle blends and composites.
Material Variety: Supports rigid, flexible, and even brittle plastics.
Additive Integration: Enhances properties such as UV resistance, flame retardancy, or conductivity.
Recyclability: Many extruded products can be recycled or made from recycled materials.
This broad compatibility allows manufacturers to select materials based on performance, cost, or environmental considerations without changing the process.
Plastic extrusion machines, including single and twin screw extruders, are crucial in manufacturing diverse plastic products. They offer high efficiency, customization, and material compatibility. Future trends in plastic extrusion technology focus on enhancing energy efficiency and process automation. Jwell offers advanced extrusion solutions, providing exceptional value through innovative design and reliable performance, ensuring optimal production outcomes for various industries.
A: The plastic extrusion process involves melting raw plastic materials and pushing them through a die to create continuous shapes such as pipes, sheets, or profiles.
A: Single screw extrusion machines in the plastic extrusion process use one rotating screw inside a heated barrel to melt plastic pellets, forming continuous shapes through a die.
A: Twin screw extrusion machines are preferred for complex formulations in the plastic extrusion process due to their superior mixing capabilities and better control over temperature and pressure.
A: Plastic sheet extrusion equipment benefits the plastic extrusion process by producing uniform sheets or films with precise thickness, ideal for weather stripping and packaging films.
A: Temperature control in the plastic extrusion process is crucial to prevent product defects, ensure process stability, and improve energy efficiency by maintaining consistent melt viscosity and flow rate.
