Plastic extrusion has become one of the most widely used methods in the plastics industry for producing continuous products such as pipes, films, sheets, profiles, and cables. At the heart of this process is a simple yet powerful component: the single screw. Though it may appear modest in design, the single screw plays a critical role in transforming raw plastic materials into usable, high-quality products. This article provides an in-depth look at how the single screw works, its functions in the extrusion process, its advantages, and the factors that affect its performance.
A single screw extruder is a type of machine used in plastic processing where raw plastic material, usually in the form of pellets or powder, is melted and forced through a shaped die to form a continuous product. The “single screw” refers to the rotating helical shaft located inside a cylindrical barrel. This screw is responsible for transporting, melting, mixing, and pressurizing the plastic material as it moves forward through the barrel.
The simplicity of the single screw makes it one of the most common and cost-effective tools in the plastic manufacturing industry. It is especially suitable for applications where the raw material is already well mixed and does not require complex compounding.
To better understand the role of the screw, it’s important to first understand the key components of a single screw extruder:
Hopper: Where raw plastic material is fed into the machine.
Barrel: A heated cylindrical tube where the screw rotates and processes the material.
Heaters: Located outside the barrel, they control the temperature to ensure proper melting.

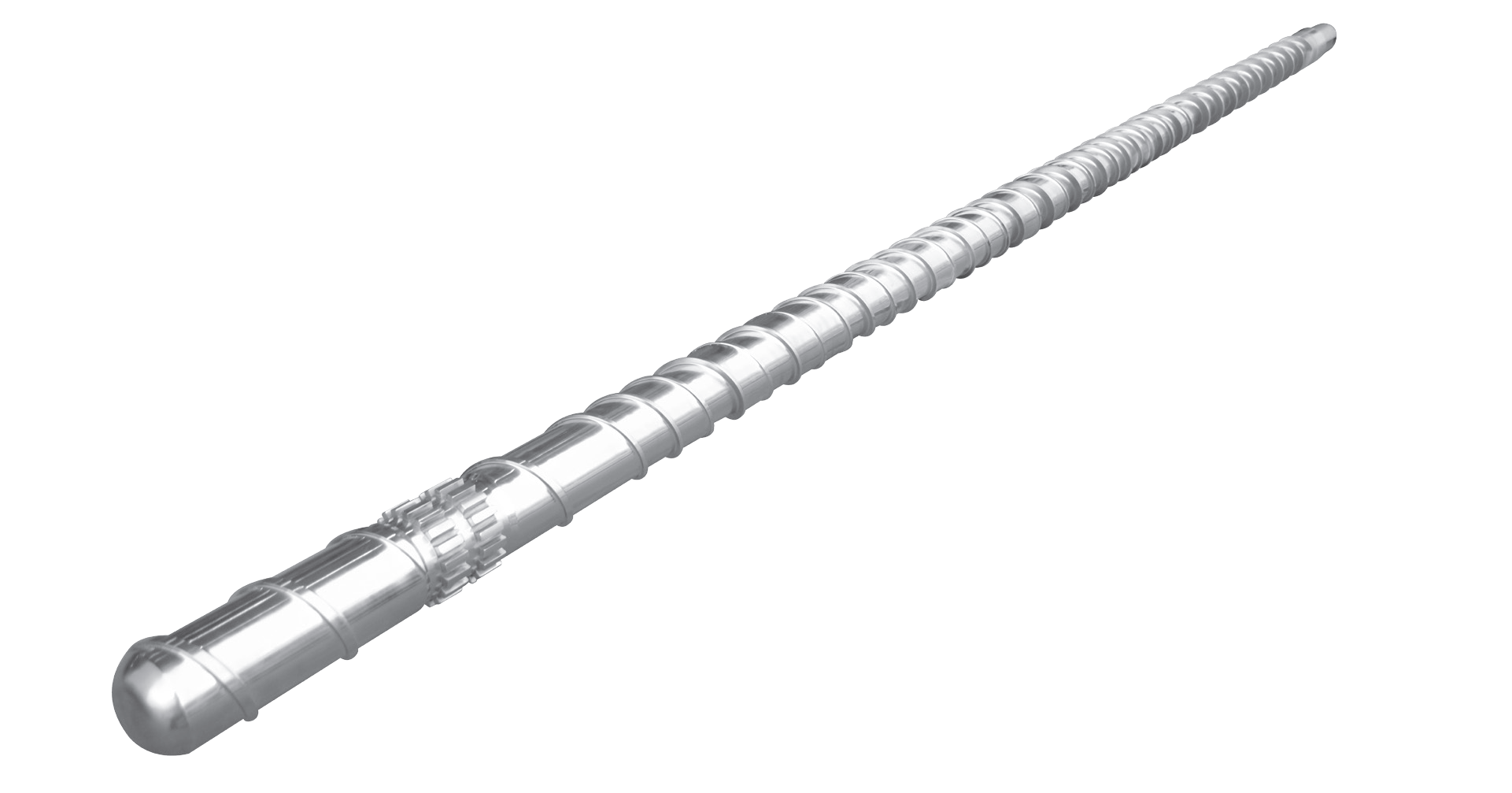

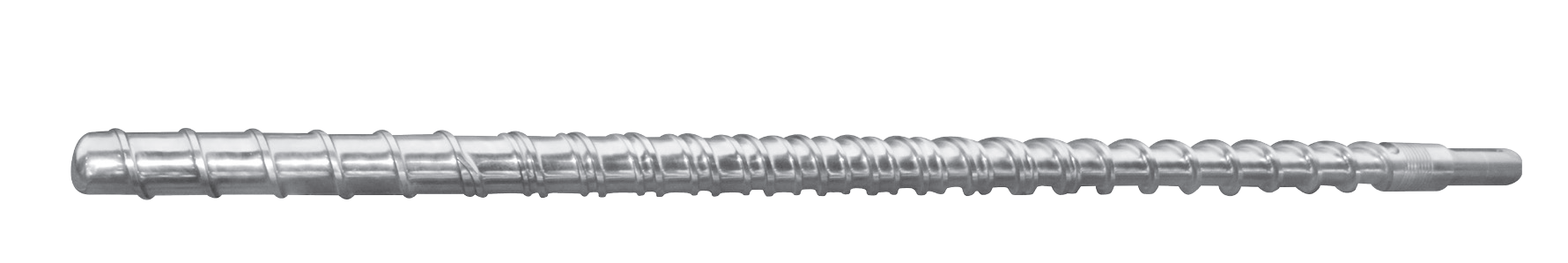

Screw: A rotating shaft with a helical flight that moves the material forward.
Die: The shaped opening through which the molten plastic is pushed to form the final product.
Drive Motor: Powers the rotation of the screw.
The screw itself is divided into three main sections, each performing a different function:
Feed Zone: This is the first section, located near the hopper. Its main job is to convey the solid plastic pellets forward and begin warming them through external barrel heaters and friction.
Compression Zone (Transition Zone): In this zone, the material starts to melt due to increased pressure, shear, and higher temperatures. The flight depth decreases in this section, which compresses the material and eliminates air pockets.
Metering Zone: In this final zone, the plastic is completely melted and homogenized. The screw maintains a consistent pressure and melt quality to ensure smooth flow through the die.
Each of these zones must be precisely designed to ensure consistent product quality, throughput, and energy efficiency.
The single screw performs multiple critical tasks throughout the extrusion process:
Feeding: It draws in the raw material from the hopper into the barrel.
Melting: The screw creates friction and works in conjunction with the barrel heaters to melt the plastic.
Mixing: While rotating, the screw helps blend the molten plastic to ensure it is uniform in temperature and composition.
Pressurizing: The melted material must be pressurized to be forced through the die and maintain the desired shape.
Pumping: The screw moves the material at a controlled rate to the die, determining the production speed.
These functions must be performed simultaneously and continuously, making the design and speed of the screw absolutely crucial.
There are several advantages to using a single screw in extrusion processes:
Cost-Effective: Compared to twin-screw extruders, single screw machines are more affordable to buy, operate, and maintain.
Simplicity: The mechanical design is straightforward, making it easier to operate and service.
Efficiency: For applications that do not require complex mixing, a single screw offers high throughput with excellent energy efficiency.
Versatility: Single screw extruders are widely used for producing a variety of plastic products, such as tubing, sheets, blown films, and coatings.
Consistency: When running a stable, uniform material, single screw extruders can offer excellent melt quality and product consistency.
Single screw extruders are used in a wide range of industries and applications, such as:
Pipe and tubing: Polyethylene, PVC, and polypropylene pipes for water and drainage systems.
Blown film: Thin plastic films for packaging and wrapping.
Plastic sheets: Sheets for thermoforming, signage, and construction.
Cable insulation: Plastic coatings for electrical wires and fiber optics.
Coatings: Applying plastic layers over paper, foil, or textiles.
These machines are especially well-suited for extrusion processes that involve a single type of polymer or require a consistent output over long production runs.
Several variables can impact how well a single screw functions during the extrusion process:
Screw Design: The diameter, length-to-diameter ratio (L/D), pitch, and flight depth all affect how efficiently the screw performs.
Material Type: Different polymers melt and behave differently under pressure and heat.
Barrel Temperature Profile: Proper heating in each zone ensures smooth melting and avoids overheating or degradation.
Screw Speed: Affects how much material is processed and the quality of the final product.
Back Pressure: This is created at the die and helps control the density and appearance of the extruded product.
Proper calibration of all these factors ensures stable production, minimal material waste, and high product quality.
Even though single screw extruders are durable and simple, they still require regular maintenance to perform optimally. Over time, wear can occur on the screw and barrel, especially when processing abrasive or high-temperature materials. Proper cleaning, monitoring of pressure and temperature readings, and regular inspection of mechanical components can extend the machine's lifespan and prevent costly downtime.
The extrusion industry continues to evolve, and so does single screw technology. Today’s extruders often include digital controls, touchscreens, and automation systems that monitor and adjust temperature, speed, and pressure in real time. Some modern machines are equipped with energy-saving motors and precision temperature zones that help reduce energy consumption and improve performance.
Additionally, computer-aided design (CAD) and simulation software have made it easier to optimize screw designs for specific materials and applications, improving mixing performance, reducing melt degradation, and increasing throughput.
While single screw extruders are suitable for many standard applications, they are not ideal for all situations. If your process requires high levels of compounding, mixing additives, or working with thermosetting polymers, a twin-screw extruder may be more appropriate. Twin screws can provide more intensive mixing and better handling of multiple materials at once.
However, for most general-purpose plastic processing tasks involving a single type of material, the single screw remains the most efficient and cost-effective solution.
The single screw is the backbone of the plastic extrusion industry. Despite its simple design, it performs multiple vital tasks that allow raw materials to be transformed into functional, consistent, and high-quality plastic products. From feeding and melting to mixing and pressurizing, the single screw is involved at every stage of the process.
Its reliability, versatility, and efficiency make it the ideal choice for manufacturers across various sectors—from packaging and construction to electronics and consumer goods. With continued improvements in design, automation, and materials, single screw extruders will remain a foundational technology in plastic manufacturing for years to come.
If you're involved in plastic production and looking to optimize your process, understanding and investing in a well-designed single screw extruder can lead to long-term gains in quality, efficiency, and profitability.
