Series of Automatic Winders

Well-structured, excellently designed, aesthetically pleasing, with stable specifications, equipped with imported PLC control, and easy to operate. The rotation speed of the bobbin chuck is controlled by PID, allowing the speed accuracy during the spinning process to reach ±1 meter per minute.

Major components are manufactured using high-precision CNC machines and processing centers; special bearings and seal rings are imported from Japan, the United States, Germany, French etc., ensuring high reliability, low vibration, and long service life.


Availability:
Quantity:
  • JWELL

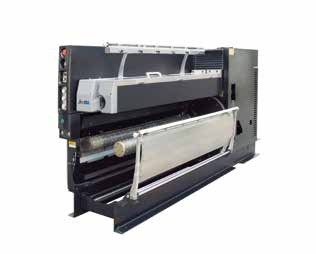

Traverse Cam Type Automatic Winders


Main Specifications

Model  JWA1260 JWA1380 JWA1500 JWA1680 JWA1800
Mechanical speed 2500-5000m/min 2500-5000m/min 2500-5000m/min 2500-5000m/min 2500-5000m/min
Length of chuck 1260mm 1380mm 1500mm 1680mm 1800mm
Tube dimension Ꝋ112/Ꝋ126

Ꝋ112/Ꝋ12

Ꝋ120/Ꝋ134

Ꝋ112/Ꝋ12

Ꝋ120/Ꝋ134

Ꝋ120/Ꝋ134 Ꝋ120/Ꝋ134
Dia of yarn package Ꝋ420 Ꝋ420 Ꝋ430 Ꝋ430 Ꝋ430
Package volum/astrok
8  ends WPS图片(1)

16.3dm³/130

WPS图片(1)

17.6dm³/142

WPS图片(1)

20.3dm³/155

—— ——
10 ends

WPS图片(1)

12.6dm³/100

WPS图片(1)

13.7dm³/110

WPS图片(1)

16.1dm³/123


——


——

12 ends

WPS图片(1)

10.3dm³/82

WPS图片(1)

11.2dm³/90

 WPS图片(1)

13.1dm³/100

  WPS图片(1)

 14.68dm³/112

  WPS图片(1)

  16.1dm³/123

16 ends

WPS图片(1)

7.0dm³/56

WPS图片(1)

7.5dm³/60

WPS图片(1)

9.5dm³/73

WPS图片(1)

10.8dm³/82

WPS图片(1)

11.3dm³/86

Note: Reference specific gravity: Polyester specific gravity = 0.95, Nylon specific gravity = 0.75, Polypropylene specific gravity = 0.71.



Detailed Dimentions of   Different Specifications
Model JWA1260 JWA1380 JWA1500 JWA1680 JWA1800
W 748 748 790 790 790
H 1380 1380 1330 1330 1330
L 2340 2520 2690 2889 3069




7

Birotor Type Automatic Winders

Main Specifications

Model JWAR15000 JWAR1680 JWAR1800
Mechanical speed 2500-5000m/min 2500-3500m/min 2500-3500m/min
Length of chuck 1500mm 1680mm 1800mm
Tube dimension

Ꝋ112/Ꝋ126

Ꝋ120/Ꝋ134

Ꝋ120/Ꝋ134 Ꝋ120/Ꝋ134
Dia of yarn package
Ꝋ430 Ꝋ430 Ꝋ430





Package volume/astroke

8 ends —— —— ——
10 ends

WPS图片(1)

15.7dm³/120-125



12 ends

WPS图片(1)

13.1dm³/100

WPS图片(1)

14.68dm³/112

WPS图片(1)

15.7dm³/120-125

16 ends

WPS图片(1)

10.8dm³/82


Note: Reference specific gravity: Polyester specific gravity = 0.95, Nylon specific gravity = 0.75, Polypropylene specific gravity = 0.71.




Detailed Dimentions of   Different Specifications
Model JWAR1500 JWAR1680 JWAR1800
W 725 725 725
H 1228 1228 1228
L 2768 2948 3068



6



Presenting the Treavese Cam Style and Birotor Style Completely Programmed Exchanging Winding Head.

Improve your creation effectiveness with our Treavese Cam Style and Birotor Style Completely Programmed Exchanging Winding Head. Intended for the twisting of engineered fiber turning, this state of the art innovation guarantees exact control and high precision in the interim.


With servo exchanging and high level control components, our winding head ensures consistent change and dependable activity. Experience the comfort of different models accessible, taking special care of different creation prerequisites. Whether you want a high volume yield or concentrated winding, our Hare Head Style Completely Programmed Exchanging Winding Head conveys extraordinary execution.


    Put resources into this cutting edge arrangement and witness the consistent mix of innovation and proficiency in your creation line.


Cost-efficient manufacturing

  • Competition within the yarn markets is becoming more intense. The consequence: constantly rising pressure on costs. The solution: optimized production processes, efficient systems, sustainable technologies. All these are provided by our FDY technology .

Your benefits

  • Sustainability saves money

  • Automation makes processes more efficient

  • Digital plants help you maintaining the overview

  • Easy maintenance ,faster start up
